1 1/2 Inch Galvanized 90 Degree Elbow for American Plumbing

If you’re replacing old pipes or installing a new plumbing system in a U.S. home, you’ve likely come across the need for a 1 1/2 inch galvanized 90 degree elbow. These fittings are essential for changing pipe direction while maintaining structural integrity and water flow efficiency. Whether you’re a DIYer or a licensed plumber, choosing the right elbow ensures long-term reliability and compliance with local plumbing codes. In this guide, we’ll walk you through everything you need to know about this critical component in American plumbing systems.

What Is a 1 1/2 Inch Galvanized 90 Degree Elbow?

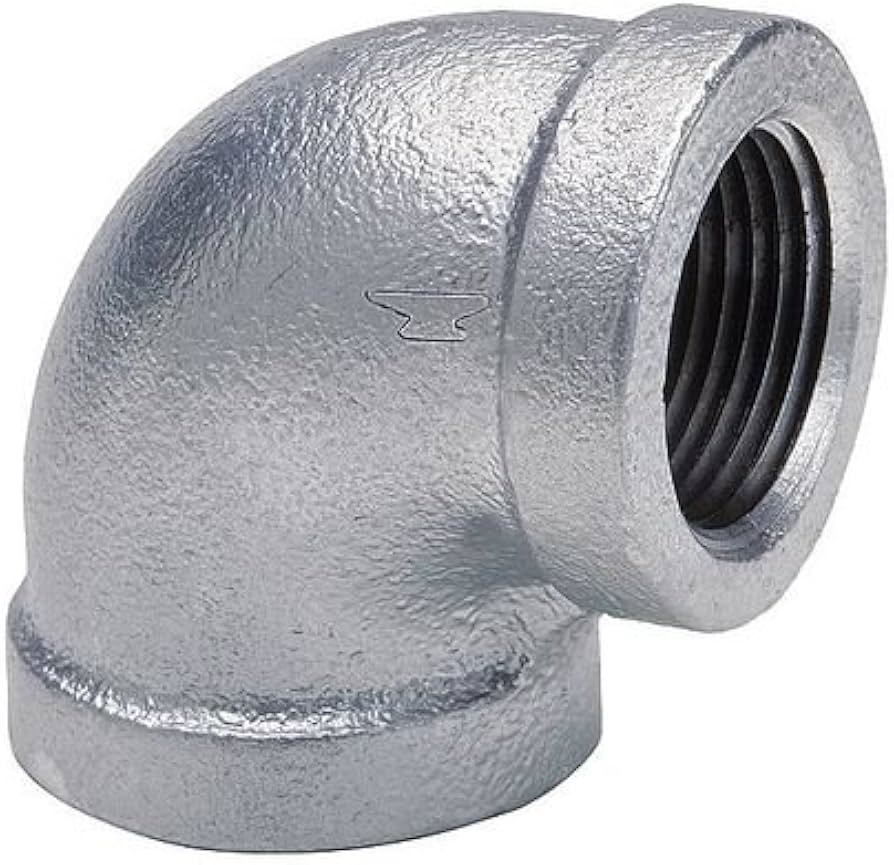

A 1 1/2 inch galvanized 90 degree elbow is a pipe fitting designed to connect two sections of 1 1/2-inch nominal pipe diameter (NPT) at a right angle. It’s coated with a layer of zinc—known as galvanization—to protect against rust and corrosion, making it ideal for both indoor and outdoor plumbing applications.

These elbows are commonly used in:

• Drain-waste-vent (DWV) systems
• Gas lines (in specific approved applications)
• Outdoor water supply lines
• Agricultural irrigation setups
• Industrial fluid management

According to the Plumbing-Heating-Cooling Contractors Association (PHCC), galvanized steel fittings like the 90-degree elbow remain a standard choice for non-potable systems in the U.S., particularly in older homes or rural infrastructure.

💡 Pro Tip: While galvanized pipes were once standard for all plumbing, modern U.S. building codes (like the IPC and UPC) now restrict their use in potable water systems due to potential lead leaching and internal corrosion over time.

For more on galvanized steel and its properties, see the Wikipedia entry on galvanization.

Why Choose a Galvanized 90 Degree Elbow for American Plumbing?

Durability You Can Trust

Galvanized fittings are known for their long service life—often exceeding 40 years in dry or controlled environments. The zinc coating acts as a sacrificial anode, corroding before the underlying steel, which significantly extends the fitting’s lifespan.

Compatibility with U.S. Standards

In the U.S., pipe fittings must meet standards set by organizations like:

• ASTM International (e.g., ASTM A795 for galvanized steel pipe)
• ANSI/ASME B16.9 (for factory-made wrought butt-welding fittings)
• NSF/ANSI 61 (for products in contact with drinking water—note: galvanized fittings typically do not qualify)

A properly labeled 1 1/2 inch galvanized 90 degree elbow will include thread type (usually NPT—National Pipe Tapered), size, and manufacturer markings that align with these standards.

Cost-Effective for Non-Potable Systems

Compared to copper or PEX, galvanized steel remains one of the most budget-friendly options for non-potable applications. A standard 1 1/2″ elbow typically costs between $3.50 and $8.00, depending on brand and supplier (Home Depot, Ferguson, or McMaster-Carr).

How to Install a 1 1/2 Inch Galvanized 90 Degree Elbow (Step-by-Step)

Installing this fitting correctly prevents leaks and ensures system integrity. Follow these steps:

1. Turn Off the Water Supply
   Shut off the main valve and drain any residual water from the line.
2. Clean the Pipe Threads
   Use a wire brush to remove debris, old sealant, or rust from the male threads of the pipe.
3. Apply Pipe Thread Sealant
   Wrap 3–5 layers of Teflon tape (clockwise) around the male threads or apply a NSF-rated pipe dope. Do not use both—this can crack fittings under pressure.
4. Hand-Tighten the Elbow
   Screw the elbow onto the pipe by hand until snug.
5. Use a Pipe Wrench for Final Tightening
   Give it 1.5 to 2 additional turns with a wrench. Over-tightening can strip galvanized threads.
6. Pressure Test the Joint
   Turn the water back on and check for leaks. If moisture appears, gently tighten another ¼ turn—but never force it.

⚠️ Safety Note: Always wear safety glasses and gloves when working with galvanized steel—zinc fumes can be harmful if heated (e.g., during welding).

Galvanized vs. Other Materials: Which Is Right for You?

Best Use Case for Galvanized 90° Elbow:
Outdoor gas lines (if code-approved), farm irrigation, workshop air lines, or legacy system repairs.

Common Mistakes to Avoid

• Mixing Galvanized with Copper: This causes galvanic corrosion. Use a dielectric union if transition is unavoidable.
• Using in Hot Water Lines: Accelerated internal rusting can reduce flow and contaminate water.
• Ignoring Local Codes: Some U.S. municipalities (e.g., Los Angeles, Chicago) ban galvanized pipe in new residential builds. Always check with your local building department.

FAQ Section

Q1: Can I use a 1 1/2 inch galvanized 90 degree elbow for drinking water?

A: No. While it was common in homes built before the 1980s, modern plumbing codes (IPC Section 605.1) discourage galvanized pipe for potable water due to internal corrosion and potential lead contamination from old joint compounds. Use copper, PEX, or CPVC instead.

Q2: What’s the difference between “1 1/2 inch” and actual pipe diameter?

A: Pipe sizes in the U.S. use nominal dimensions. A “1 1/2 inch” galvanized pipe has an outside diameter of 1.900 inches, but the internal diameter is smaller (~1.610″) due to wall thickness and threading. Always verify measurements before purchasing.

Q3: Are threaded galvanized elbows the same as welded elbows?

A: No. Threaded elbows (like the common 1 1/2″ NPT type) screw onto pipes and are used in low-to-medium pressure systems. Welded elbows are seamless, used in high-pressure industrial settings, and require professional welding—not suitable for standard American residential plumbing.

Q4: How do I remove a seized galvanized elbow?

A: Apply penetrating oil (like PB Blaster), let it sit for 1–2 hours, then use two pipe wrenches—one to hold the pipe, one to turn the fitting. If it won’t budge, cut it out with a reciprocating saw and replace with a new fitting or transition to PEX.

Q5: Where can I buy a code-compliant 1 1/2 inch galvanized elbow?

A: Reputable U.S. suppliers include Ferguson, Grainger, Home Depot, and PlumbingSupply.com. Look for fittings marked with ASTM A795 or similar standards, and avoid unbranded imports with no certification.

Conclusion

The 1 1/2 inch galvanized 90 degree elbow remains a reliable, cost-effective solution for specific American plumbing applications—especially in non-potable, outdoor, or legacy systems. While it’s no longer used for drinking water, its strength and corrosion resistance make it invaluable when applied correctly and in compliance with local codes.

Before you buy or install, always:

• Confirm your system’s pressure and fluid type
• Check local plumbing regulations
• Use proper thread sealants and tools
