Are you planning a bathroom renovation but feeling overwhelmed by the complex terminology of shower plumbing? You are not alone; many homeowners struggle to understand the specific requirements for installing a traditional three-handle system correctly. Getting the 1 2 inch rough in shower plumbing 3 valve setup right from the start is crucial to ensuring consistent water temperature and preventing future leaks inside your walls. This guide will walk you through everything you need to know, transforming a confusing technical task into a manageable DIY project.
Understanding the 1/2 Inch 3-Valve System
What Exactly Is a 3-Valve Shower System?

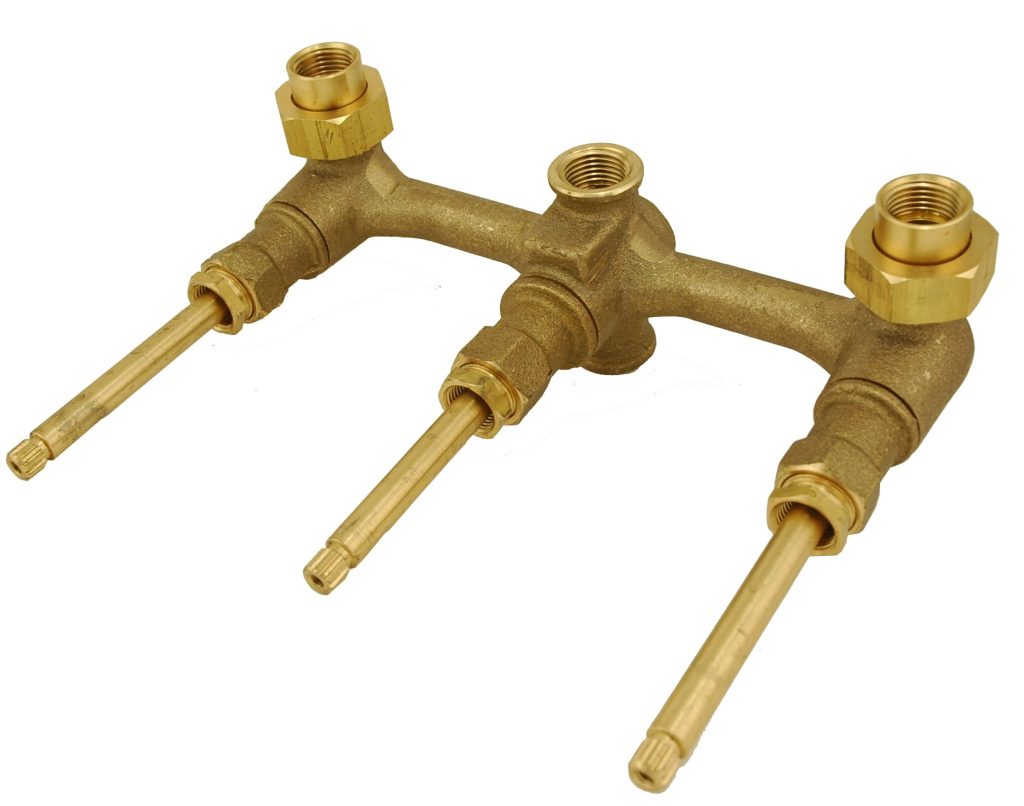

A three-valve shower system is a classic plumbing configuration that offers distinct control over your bathing experience. Unlike modern single-handle mixers, this setup uses three separate controls: one for hot water, one for cold water, and a central diverter valve. The hot and cold handles allow you to manually mix the water to your desired temperature, while the third handle directs the flow either to the tub spout or the showerhead. This traditional design is often found in vintage homes and is still preferred by many for its precise manual control and aesthetic appeal. Most standard kits, such as those from Pfister or Moen, come with 1/2-inch union inlets and outlets, making them compatible with standard residential piping .
Why Choose 1/2 Inch Piping Over 3/4 Inch?
A common question among DIYers is whether they should upsize to 3/4-inch pipes for better flow. While 3/4-inch pipes can theoretically carry more water volume, a 1/2-inch line is typically sufficient for most residential shower applications. In fact, most 1/2-inch shower valves are designed to flow over 7 to 8 gallons per minute, which is ample for a standard showerhead . Upsizing to 3/4 inch all the way to the valve often yields negligible performance improvements in a typical home setting unless you are running multiple high-flow fixtures simultaneously. Furthermore, sticking to 1/2 inch simplifies the installation process and ensures compatibility with the vast majority of trim kits available on the market.
Critical Rough-In Dimensions and Placement
What Is the Standard Height for a 3-Handle Valve?
Proper placement is vital for both comfort and code compliance. The standard height for installing a shower valve typically ranges between 38 to 48 inches from the finished floor . This range ensures that the controls are easily reachable for most adults without requiring excessive bending or stretching. For households with elderly members or those aiming for ADA compliance, positioning the valve at exactly 48 inches is often recommended to maximize accessibility . Always measure from the finished floor level, not the subfloor, to account for the thickness of your future flooring and tile.
How Far Should the Valve Protrude From the Wall?
One of the most frequent mistakes during rough-in is incorrect depth placement. The valve body must be positioned so that it sits flush with the finished wall surface once the tile or surround is installed. A good rule of thumb is to dry-fit the valve with your intended wall material (e.g., 1/2-inch cement board plus 3/8-inch tile) to determine the exact protrusion needed. If the valve is set too deep, the handle stems may not reach the trim plate; if it sticks out too far, the escutcheon won’t sit flat against the wall. Many professional plumbers use a “depth guide” or temporary blocking to hold the valve at the precise distance before securing it to the studs.
Where Should the Tub Spout and Showerhead Be Located?
In a tub-and-shower combination, the tub spout is generally installed 4 to 6 inches above the rim of the bathtub. The showerhead, on the other hand, is typically placed at a height of 78 to 80 inches from the floor . Ensure that the vertical pipe running from the diverter valve to the showerhead is perfectly plumb to avoid alignment issues with the shower arm later. For the drain, the center is usually positioned 12 inches from the finished wall, though this can vary based on your specific tub model .
Step-by-Step Installation Guide
Installing a 1 2 inch rough in shower plumbing 3 valve requires precision and attention to detail. Follow these steps to ensure a leak-free and functional system.
Step 1: Preparation and Safety
Before touching any pipes, turn off the main water supply to the house. Open existing faucets to drain any remaining water from the lines. Gather your tools: pipe cutter, soldering torch (for copper) or PEX crimping tool, flux, solder, pipe tape, and the valve kit. Ensure the work area is well-ventilated and free of flammable materials.
Step 2: Cutting and Fitting the Supply Lines
Cut the hot and cold water supply lines to the appropriate length. If you are using copper, clean the ends of the pipes and the inside of the valve fittings with emery cloth until they shine. Apply a thin layer of flux to both surfaces. For PEX systems, ensure cuts are square and use the correct size rings for your crimping tool. Slide the union nuts onto the pipes before connecting them to the valve body if required by your specific model .
Step 3: Soldering or Crimping Connections
Heat the joint evenly with your torch until the flux sizzles, then touch the solder to the joint. Capillary action will pull the solder into the gap; you typically need about 1/2 inch of solder for a 1/2-inch joint. Wipe away excess solder with a damp cloth immediately. If using PEX, slide the ring over the pipe, insert the fitting fully, and crimp firmly. Crucial Tip: Do not direct the flame directly at the valve body, as excessive heat can damage internal rubber seals and cartridges . Use a heat sink or wet rag around the valve connections to protect the internals.
Step 4: Securing the Valve Body
Once the connections are made, secure the valve body to the wooden stud backing. Use the mounting brackets provided in the kit. Ensure the valve is perfectly level and at the correct depth relative to the future finished wall. Tighten the screws firmly but avoid over-tightening, which could crack the valve housing.
Step 5: Pressure Testing
Before closing up the wall, you must test for leaks. Turn the main water supply back on slowly. Inspect every joint and connection for drips. Run water through the hot, cold, and diverter handles to ensure smooth operation and check for leaks at the outlet points (shower arm and tub spout drop). If using a pressure gauge, aim for a steady reading between 40 to 60 PSI; significant drops indicate a leak.
Step 6: Finalizing the Rough-In
Once confirmed leak-free, cap the shower arm and tub spout outlets temporarily to prevent debris from entering the pipes during construction. Install any required insulation around the plumbing to prevent condensation and heat loss. You are now ready for the drywall and tiling phase.
Common Mistakes to Avoid
Even experienced DIYers can stumble when working with shower valves. Here are the top pitfalls to watch out for:
| Mistake | Consequence | Solution |
|---|---|---|
| Incorrect Depth | Trim kit won’t fit; leaks behind wall. | Measure depth including tile thickness; use a depth guide. |
| Overheating Valve | Damaged internal seals; premature failure. | Use a wet rag/heat sink while soldering near the valve body . |
| Debris in Pipes | Clogged cartridges; reduced flow. | Flush lines thoroughly before installing final trim. |
| Wrong Pipe Size | Flow restriction or pressure imbalance. | Stick to manufacturer specs; 1/2″ is usually standard . |
| Poor Support | Vibrating pipes; noisy operation. | Securely strap pipes to studs every 6 feet and near fittings. |
One of the most critical errors is failing to flush the lines before installing the final cartridge. Construction debris like solder blobs or pipe shavings can easily clog the fine screens inside the valve, leading to poor performance or complete blockage. Always remove the cartridge or open the stops briefly to flush water through the system before final assembly.
Expert Insights and Data
According to plumbing industry standards, the longevity of a shower valve is heavily dependent on the quality of the initial rough-in installation. A study by the National Association of Home Builders suggests that proper installation techniques can extend the life of plumbing fixtures by up to 20 years. Furthermore, using high-quality solder and ensuring clean pipe surfaces reduces the risk of joint failure by nearly 90% compared to rushed jobs.
For those interested in the history and evolution of plumbing standards, resources like Wikipedia’s article on Plumbing offer a comprehensive overview of how modern codes have developed to ensure safety and efficiency. Understanding these standards helps homeowners appreciate why specific steps, like pressure testing and proper venting, are non-negotiable.
FAQ Section
Q1: Can I replace my old 3-valve system with a single-handle valve?
A: Yes, but it requires significant modification. You will need to cap one of the existing supply lines (usually the separate hot or cold feed depending on the old setup) and potentially reframe the wall to accommodate the new valve’s dimensions. It is often easier to stick with a 3-valve replacement if the existing rough-in is in good condition.
Q2: What if my water pressure is low after installing the 1/2 inch valve?
A: Low pressure is rarely caused by the 1/2-inch valve itself, as they are designed for adequate flow. Check for kinked pipes, clogged aerators, or partially closed shut-off valves. If your home has inherently low pressure, consider installing a pressure-boosting pump rather than upsizing pipes unnecessarily.
Q3: Do I need a special license to install a shower rough-in?
A: Regulations vary by location. In many US jurisdictions, homeowners can perform plumbing work in their own primary residence but must obtain a permit and pass an inspection. Always check with your local building department before starting to ensure compliance with local codes.
Q4: How do I know if I need a pressure-balancing or thermostatic valve?
A: Modern codes often require pressure-balancing valves to prevent scalding if someone flushes a toilet while you are showering. Thermostatic valves offer even greater precision by maintaining a set temperature. Most modern 3-valve kits can be adapted with pressure-balancing cartridges, but verify the specific model’s capabilities.
Q5: What is the best way to protect the valve during the tiling process?
A: Leave the protective plaster guard (usually included with the valve kit) in place until the tile work is completely finished. This guard ensures the tile installer knows exactly where the finished wall line will be and protects the valve threads from mortar and grout.
Conclusion
Mastering the 1 2 inch rough in shower plumbing 3 valve installation is a rewarding skill that can save you hundreds of dollars in labor costs while giving you full control over your bathroom’s functionality. By adhering to standard dimensions, avoiding common pitfalls like overheating the valve, and rigorously testing for leaks, you can ensure a durable and efficient shower system that lasts for decades. Remember, patience and precision are your best tools in any plumbing project.
