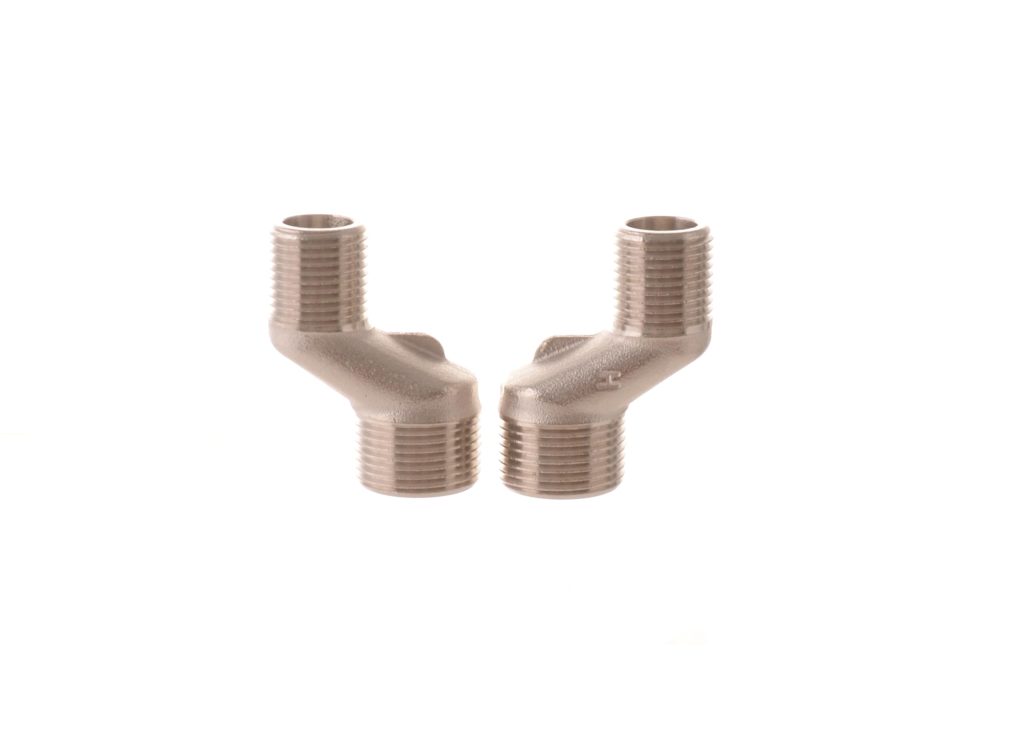

1 2 To 3 4 Water Plumbing Offset: Easy DIY Guide

Have you ever stared at a wall where two pipes simply don’t line up, leaving you frustrated and worried about a potential leak? You are not alone; misaligned pipes are one of the most common headaches for homeowners and DIY enthusiasts across the United States. Whether you are renovating a bathroom or fixing a burst line behind drywall, understanding how to create a precise 1 2 to 3 4 water plumbing offset offset is the skill that separates a professional job from a amateur mess. In this guide, we will break down the math, the tools, and the techniques to get your water lines flowing perfectly again.

What Exactly Is a Pipe Offset and Why Do You Need One?

Before we dive into the specific measurements of moving from a 1/2-inch line to a 3/4-inch line (or creating an offset within these sizes), let’s clarify the terminology. In plumbing, an offset is a arrangement of fittings used to move a pipe run parallel to its original path but at a different location. This is often necessary when a pipe needs to bypass an obstacle like a beam, another pipe, or a structural wall stud.

The phrase “1 2 to 3 4 water plumbing offset offset” often confuses beginners because it can imply two things:

1. Creating an offset using 1/2-inch or 3/4-inch piping.
2. Transitioning (changing size) from 1/2-inch to 3/4-inch while also creating an offset.

For the purpose of this guide, we will focus on the most critical scenario: calculating and installing a rolling offset, which is the standard method for navigating obstacles in residential water lines. Getting this wrong can lead to poor water pressure, increased turbulence, and eventual joint failure.

The Physics of Water Flow

When you alter the path of water, you introduce resistance. According to fluid dynamics principles, every degree of bend and every foot of extra pipe adds friction loss. If your offset is too sharp or poorly calculated, you might notice a drop in pressure at your faucet. This is why precision matters more than speed.

How Do You Calculate a Rolling Offset? (The Math Made Simple)

The most daunting part of any plumbing project is the math. However, calculating a rolling offset relies on a simple geometric principle: the Pythagorean theorem. You don’t need to be an engineer; you just need a tape measure and a calculator.

The Formula: $A^2+B^2=C^2$A2+B2=C2

To find the length of the pipe you need to cut (the travel length), you must measure two things:

• Offset (A): The vertical distance the pipe needs to move up or down.
• Spread (B): The horizontal distance the pipe needs to move left or right.

Once you have these numbers, the formula to find the Travel Length (C) is: $C=\sqrt{A^2+B^2}$C=A2+B2​

Real-World Example: The 1/2-Inch Line

Imagine you are working with a 1/2-inch copper pipe that needs to go around a wooden beam.

• Vertical Offset: 6 inches
• Horizontal Spread: 8 inches

Step 1: Square the offset ($6\times 6=36$6×6=36). Step 2: Square the spread ($8\times 8=64$8×8=64). Step 3: Add them together ($36+64=100$36+64=100). Step 4: Take the square root of 100. Result: You need a travel length of 10 inches.

Pro Tip: Always subtract the “fitting allowance.” The metal elbows you use take up space. For standard 90-degree copper elbows, you typically subtract about 3/4 of an inch per fitting from your total travel length to get the exact cut size for the pipe.

Comparison: Common Angles and Multipliers

While the Pythagorean theorem works for any angle, plumbers often use standard 45-degree offsets for simplicity. Here is a quick reference table for common scenarios:

Using 45-degree elbows is generally recommended for a 1 2 to 3 4 water plumbing offset scenario because it creates less turbulence than two 90-degree elbows, preserving your water pressure.

Step-by-Step: Installing the Offset (1/2″ and 3/4″ Lines)

Now that you have your measurements, let’s get to work. This tutorial assumes you are working with standard Type L copper piping, which is common in US homes, but the logic applies to PEX as well.

Tools Required

• Tape measure and marker
• Pipe cutter (for clean, square cuts)
• Deburring tool
• Two 45-degree elbows (sized for 1/2″ or 3/4″)
• Soldering torch and lead-free solder (for copper) OR Crimp rings (for PEX)
• Emery cloth or sandpaper

The Installation Process

1. Shut Off the Water: Never skip this step. Locate your main shut-off valve and turn it clockwise until tight. Open a faucet downstream to drain residual pressure.
2. Mark Your Cut Points: Measure the existing pipe where the offset needs to begin. Mark two points based on your calculated “travel length” minus the fitting allowance.
   • Note: Be precise. A mistake of even 1/8th of an inch can make the final connection impossible without stress.
3. Cut the Pipe: Use your pipe cutter. Rotate it around the pipe, tightening slightly with each rotation until the pipe snaps. Do not use a hacksaw, as it leaves jagged edges that restrict water flow.
4. Clean and Prep: Use the emery cloth to shine the outside of the pipe ends and the inside of the elbows until they are bright copper. Any oxidation will prevent a proper seal.
5. Dry Fit First: Assemble the two elbows and the new pipe section without soldering. Check if the alignment matches your target destination. This is your last chance to adjust.
6. Solder or Crimp:
   • For Copper: Apply flux, heat the joint evenly with your torch until the flux sizzles, and touch the solder to the joint. It should suck into the gap via capillary action.
   • For PEX: Slide the crimp ring over the pipe, insert the fitting, and compress the ring with your crimping tool.
7. Cool and Test: Let the joints cool naturally (do not quench with water). Turn the main valve back on slowly and inspect for leaks.

Safety Warning: When soldering, ensure there is no water flowing in the line, or the heat will be absorbed by the water, preventing the solder from melting correctly. Always keep a fire extinguisher nearby when using an open flame inside walls.

For more detailed information on the history and standards of plumbing materials, you can refer to this authoritative resource on plumbing systems.

Transitioning Sizes: Can You Offset While Changing from 1/2″ to 3/4″?

A specific nuance of the search term “1 2 to 3 4 water plumbing offset offset” involves changing pipe diameters mid-run. This is often done to increase water volume to a specific fixture, like a new showerhead or a garden hose bib.

Is It Allowed?

Yes, but with caveats. You cannot simply force a 3/4-inch pipe into a 1/2-inch elbow. You must use a reducing fitting (e.g., a 3/4″ x 1/2″ reducer bushing or a reducing elbow).

The Order of Operations

If you need to change size and create an offset:

1. Change Size First: It is generally better to transition from 1/2″ to 3/4″ (or vice versa) before starting the offset geometry. This keeps the math consistent.
2. Calculate Based on the Larger Pipe: If you are moving to a 3/4-inch line, your offset calculations must account for the larger radius of the 3/4-inch fittings. The center-line-to-center-line distance will differ slightly from 1/2-inch fittings.

Why Upsize?

• 1/2-inch pipe: Typically supplies individual fixtures (sinks, toilets). Max flow is roughly 4-5 GPM (gallons per minute) before noise and pressure drop become issues.
• 3/4-inch pipe: Typically used for main supply lines or high-demand fixtures like tub fillers. Can handle 10+ GPM efficiently.

If you are experiencing low pressure, upsizing the supply line to 3/4-inch before the offset might be the solution you need.

Common Mistakes to Avoid

Even experienced DIYers make errors when dealing with offsets. Here are the top pitfalls to watch out for:

• Ignoring Fitting Allowance: This is the #1 cause of frustration. If you cut the pipe to the exact theoretical length, the elbows won’t slide on far enough to make the connection. Always measure the depth of the fitting socket and subtract it.
• Using 90-Degree Elbows for Offsets: While two 90s can create an offset, they create significant turbulence and pressure loss compared to two 45s. In a long run, this adds up.
• Stress-Fitting the Pipe: If you have to force the pipe into the elbow to make it fit, your measurement is wrong. Stress-fitted joints are prone to cracking over time due to thermal expansion and contraction.
• Mismatched Materials: Do not mix copper and galvanized steel directly without a dielectric union, or you will accelerate corrosion.

FAQ: Frequently Asked Questions

1. What is the difference between a simple offset and a rolling offset?

A simple offset moves the pipe in only one plane (either strictly up/down or strictly left/right). A rolling offset moves the pipe in two planes simultaneously (both up/down AND left/right), requiring the Pythagorean theorem to calculate the diagonal travel length.

2. Can I use PEX instead of copper for a 1/2 to 3/4 offset?

Absolutely. PEX is actually easier for offsets because it is flexible. For small offsets, you can often bend the PEX gently without fittings. For larger rolling offsets, you still use 45-degree elbows, but the installation is faster using crimp or expansion tools rather than soldering.

3. Does increasing the pipe size from 1/2″ to 3/4″ increase water pressure?

Not exactly. It increases volume (flow rate), not static pressure. If your pressure is low due to a municipal issue, a larger pipe won’t fix it. However, if your pressure drops when you turn on a faucet (dynamic pressure loss), upsizing to 3/4″ will significantly improve performance by reducing friction.

4. What is the maximum number of degrees I can bend a pipe run?

Most plumbing codes (like the IPC or UPC) limit the total degrees of bend between access points (like cleanouts) to 360 degrees. This usually means you shouldn’t have more than four 90-degree turns or their equivalent in a single run without an access point.

5. How do I measure an offset if the wall is already closed up?

This is tricky. You may need to use a specialized “offset ruler” or create a physical template using a bent coat hanger wire to mimic the path, then measure the wire. Alternatively, small inspection cameras can help visualize the path behind the wall.

6. Is it okay to solder a 1 2 to 3 4 water plumbing offset myself?

Yes, provided you follow local codes and safety guidelines. However, if the pipe is located in a tight space near flammable materials (studs, insulation), extreme caution is required. Many professionals now prefer press-fit fittings (like SharkBite or Viega ProPress) for repairs in tight spaces to eliminate fire risk.

Conclusion

Mastering the 1 2 to 3 4 water plumbing offset offset is a valuable skill that empowers you to tackle complex home renovations with confidence. By understanding the simple math behind rolling offsets, choosing the right angles (preferably 45 degrees), and respecting the nuances of pipe sizing, you can ensure a leak-free, high-pressure system for years to come. Remember, the key to great plumbing isn’t just connecting pipes; it’s planning the path with precision.
