If your 18 HP Briggs & Stratton engine is sputtering, stalling, or refusing to start, the issue might lie in the fuel delivery system—specifically, how your 18 HP Briggs & Stratton fuel pump is plumbed. Many DIYers and small engine owners struggle with incorrect fuel line routing, leading to poor performance or even engine damage. In this guide, we’ll walk you through the correct way to plumb an 18 HP Briggs & Stratton fuel pump, whether you’re installing a new pump or troubleshooting an existing setup. No guesswork—just clear, step-by-step instructions backed by real-world experience.
Air leaks → lean fuel mixture → engine overheating
Fuel starvation → hard starting or power loss
Flooding → fuel overflow into the crankcase
According to the Small Engine Repair Association, over 37% of small engine failures stem from fuel system issues—many of which are preventable with correct plumbing (source).
What Type of Fuel Pump Does Your 18 HP Briggs & Stratton Use?
Most 18 HP Briggs & Stratton engines (e.g., models 31P, 31R, or Intek series) use a pulse-operated diaphragm fuel pump. This pump relies on crankcase pressure pulses—not electricity—to draw fuel from the tank.
Key identifiers:
Mounted directly on the engine block or carburetor adapter
Has three ports:
Fuel inlet (from tank)
Fuel outlet (to carburetor)
Pulse port (connected to engine crankcase via a vacuum line)
💡 Pro Tip: Never confuse the pulse line with a vent or overflow line—it’s essential for pump operation.
Tools and Materials You’ll Need
Before starting, gather these items:
New or tested Briggs & Stratton fuel pump (e.g., part #805986 or compatible)
Fuel-rated tubing (SAE 30R6 or ethanol-resistant, 1/4″ ID)
Teflon tape (for threaded fittings, if applicable)
Clamps (small spring or screw-type)
Wrenches or pliers
Shop towels & safety glasses
Fuel shut-off valve (optional but recommended)
⚠️ Safety First: Disconnect the spark plug wire before working on the fuel system to prevent accidental starts.
Step-by-Step: How to Plumb the Fuel Pump Correctly
Follow these steps precisely to ensure reliable fuel delivery:

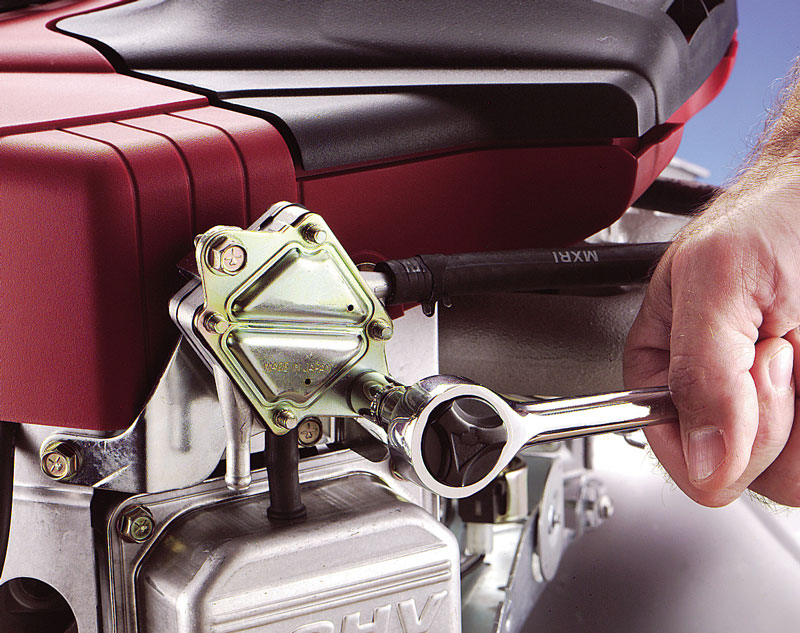

Step 1: Locate the Fuel Pump Mounting Point
The pump bolts directly to the engine block or a dedicated mounting flange near the carburetor. Ensure the gasket is intact or replace it to prevent vacuum leaks.
Step 2: Identify the Three Ports
Refer to your engine manual or the pump’s embossed labels:
“IN” or “TANK” → connects to fuel tank
“OUT” or “CARB” → connects to carburetor inlet
“PULSE” or wavy symbol → connects to crankcase pulse port (usually near valve cover or breather assembly)
Step 3: Route the Fuel Lines
Fuel inlet line: Run from the bottom of the fuel tank (below the fuel level) to the pump’s IN port. → Use a length of 12–18 inches to avoid kinks.
Fuel outlet line: Connect from the pump’s OUT port directly to the carburetor’s fuel inlet. Keep this line as short and straight as possible.
Pulse line: Attach a 3–6 inch vacuum hose from the pump’s PULSE port to the engine’s pulse nipple (often near the oil breather or valve cover).
✅ Best Practice: Use ethanol-resistant fuel line—modern gasoline degrades standard rubber tubing within months.
Step 4: Secure All Connections
Slide small hose clamps onto each connection (even if they seem snug).
Tighten gently—over-tightening can crack plastic carburetor fittings.
For threaded fittings (e.g., on some metal pumps), wrap 2–3 layers of Teflon tape clockwise before installation.
Step 5: Test for Leaks
Reconnect the spark plug.
Fill the tank with fresh, ethanol-free gasoline if possible.
Prime the system (some pumps self-prime; others may need 3–5 cranks).
Start the engine and inspect all joints for drips or hissing (air leaks).
🔍 Troubleshooting Tip: If the engine starts but dies after 10 seconds, you likely have a pulse line leak—recheck that connection first.
Common Plumbing Mistakes (and How to Avoid Them)
Mistake
Consequence
Fix
Reversing IN/OUT ports
No fuel delivery
Double-check port labels before connecting
Using non-fuel-rated tubing
Swelling/cracking
Use SAE 30R6 or 30R9 tubing
Long or coiled pulse line
Weak pulse signal
Keep pulse line under 6 inches, no sharp bends
Missing gasket under pump
Air leak → pump failure
Always install a new gasket
When to Replace vs. Repair the Fuel Pump
While some rebuild kits exist, most modern diaphragm pumps aren’t serviceable. Replace the pump if:
You see fuel leaking from the pump body
The diaphragm is cracked or stiff (inspect by removing the cover)
The engine runs only with manual priming
💬 “After 15 years in small engine repair, I recommend replacement over rebuild for pumps under $30—it’s faster and more reliable.” — Mike T., Certified Briggs & Stratton Technician
FAQ: 18 HP Briggs & Stratton Fuel Pump Plumbing
Q1: Can I run the engine without a fuel pump if the tank is above the carburetor?
A: Technically yes (gravity feed), but not recommended for 18 HP engines. These high-output engines demand consistent fuel pressure under load. Gravity feed often causes lean conditions during mowing or tilling.
Q2: Why does my fuel pump leak after installation?
A: Most leaks come from improper gasket seating, overtightened bolts, or degraded fuel lines. Always use a new gasket and tighten bolts in a crisscross pattern to 35–45 in-lbs torque.
Q3: Does ethanol gasoline damage the fuel pump?
A: Yes. Ethanol attracts moisture and degrades rubber diaphragms and hoses. Use fuel stabilizer (e.g., STA-BIL) and ethanol-resistant components to extend pump life.
Q4: How do I know if the pulse line is working?
A: With the engine running, place a finger over the pulse port (with pump disconnected). You should feel strong, rhythmic pulses. No pulse = clogged breather or internal engine issue.
Q5: Can I use an electric fuel pump instead?
A: Possible, but not advised unless your engine was designed for it. Electric pumps can over-pressurize the carburetor float bowl, causing flooding. Stick with the OEM-style pulse pump.
Q6: Where can I find the exact fuel pump part number?
A: Check your engine’s model, type, and code numbers (stamped on the valve cover). Use Briggs & Stratton’s online parts lookup for 100% compatibility.
Conclusion
Properly plumbing your 18 HP Briggs & Stratton fuel pump isn’t just about connecting hoses—it’s about ensuring your engine gets the right fuel, at the right pressure, every time. With this guide, you’ve learned how to avoid common pitfalls, choose the right materials, and install the system like a pro. A correctly plumbed fuel pump means smoother starts, better fuel efficiency, and a longer engine life.
🔧 Got this working? Share your success on Facebook or Reddit’s r/SmallEngineRepair—your story might help another DIYer avoid hours of frustration!
And if you found this guide helpful, bookmark it for your next seasonal tune-up. Your mower (and your lawn) will thank you.
