If you’ve recently installed or serviced a 2.0Cu Ft calcite unit with in-out head plumbed backwards, you might be unknowingly compromising your entire water treatment system. Many homeowners assume that as long as water flows through, the system works—but that’s not true. Incorrect plumbing can reduce efficiency, damage media, and even contaminate your water. In this guide, we’ll walk you through exactly what happens when your calcite neutralizer is installed backward, how to diagnose it, and how to correct it—safely and effectively.

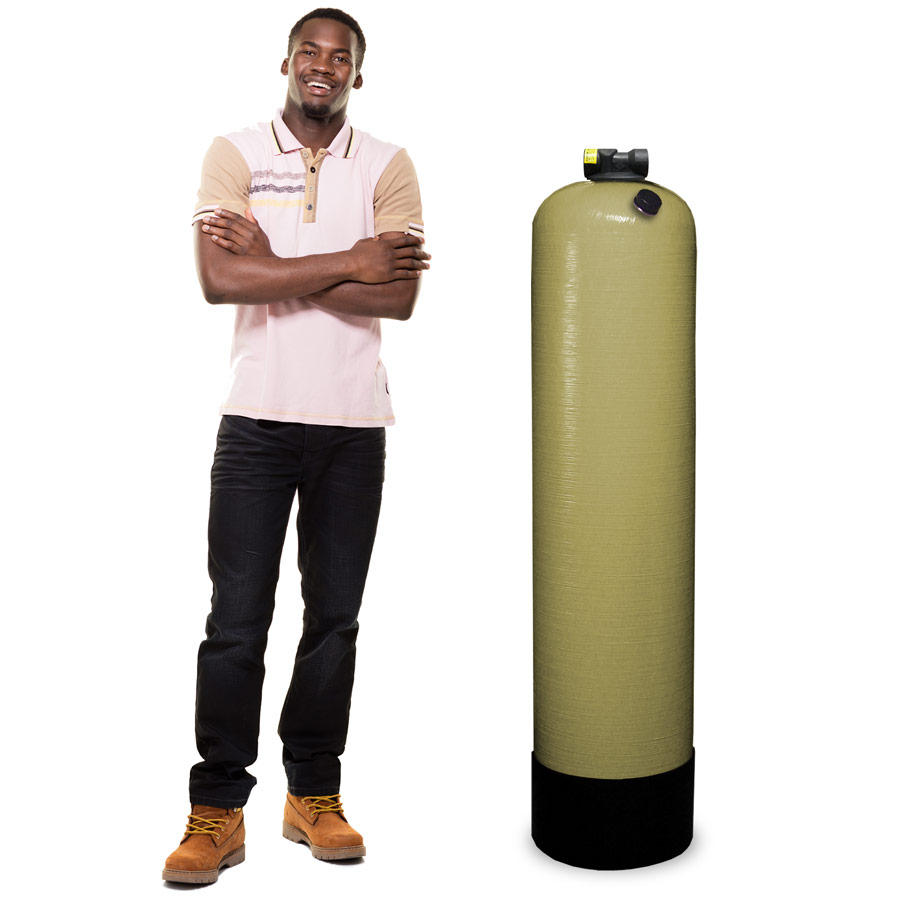

What Is a 2.0Cu Ft Calcite Unit?
A 2.0 cubic foot (Cu Ft) calcite unit is a common size for residential well water neutralizers. It’s designed to raise low pH (acidic) water to a neutral or slightly alkaline level (typically pH 7.0–8.5) by dissolving food-grade calcite (calcium carbonate) into the water stream. This prevents pipe corrosion, blue-green staining, and metallic taste.
These units typically use a control valve head (like Fleck 2510, 2850, or Clack WS1) with inlet (IN) and outlet (OUT) ports. Correct flow direction is critical—water must enter through the top, percolate down through the calcite bed, and exit from the bottom distributor tube.
⚠️ Note: If plumbed backwards, water enters the tank from the bottom, causing channeling, media compaction, and ineffective pH correction.
Why Does “Plumbed Backwards” Matter?
Plumbing your 2.0Cu Ft calcite unit with in-out head plumbed backwards isn’t just a minor mistake—it’s a system-failure risk. Here’s what happens:
Consequences of Reverse Plumbing:
- Ineffective pH neutralization: Water bypasses the calcite media or flows too quickly.
- Media fluidization: Calcite grains get pushed upward, causing loss or channeling.
- Premature tank failure: Pressure imbalances stress the tank and valve.
- Contamination risk: Undissolved particles may enter your plumbing.
According to the Water Quality Association (WQA), up to 30% of residential neutralizer failures are due to improper installation—including reversed plumbing.
How to Tell If Your Unit Is Plumbed Backwards
Don’t guess—verify. Here’s how to check:
- Locate the control valve head on top of your tank.
- Identify “IN” and “OUT” labels (usually molded into the plastic).
- Trace your pipes:
- IN should connect to your incoming well water line.
- OUT should lead to your house plumbing or next treatment stage.
- Check for markings: Some valves have arrows indicating flow direction.
🔍 Pro Tip: If your system has a bypass valve, ensure it’s also aligned with the correct flow direction.
If water enters the OUT port and exits the IN port, your unit is plumbed backwards.
Step-by-Step Fix: Correcting a Backwards-Plumbed Calcite Unit
Fixing this issue is straightforward—no new equipment needed. Just reroute the plumbing.
Tools Needed:
- Adjustable wrench
- Pipe cutter or tubing cutter (for PEX)
- Teflon tape (for threaded fittings)
- Bucket (to catch residual water)
Steps:
- Bypass the system or shut off main water supply.
- Relieve pressure by opening a faucet.
- Disconnect both inlet and outlet lines from the control valve.
- Swap the lines:
- Connect the incoming water line to the IN port.
- Connect the house line to the OUT port.
- Check for leaks after turning water back on.
- Initiate a manual backwash (if supported) to reset media bed.
💡 Note: If your valve head lacks clear labels, consult the manufacturer’s manual. For Fleck valves, the IN port is usually on the right when facing the front of the valve.
Calcite Neutralizers: How They Should Work (When Installed Correctly)
When properly plumbed, a 2.0Cu Ft calcite unit operates in a gravity-fed downflow mode:
| Stage | Description |
|---|---|
| Service Mode | Water enters IN → flows down through calcite bed → exits OUT |
| Backwash (if equipped) | Water reverses to lift and clean media (only during regeneration) |
| Rinse | Restores bed to service position |
This ensures even contact time (typically 3–5 minutes empty-bed contact time) for optimal pH correction.
🌐 For more on water neutralization chemistry, see the Wikipedia entry on water softening and pH adjustment.
Common Mistakes During Installation (And How to Avoid Them)
Even professionals make these errors. Stay alert:
- Assuming “in/out” is interchangeable → Always verify labels.
- Ignoring flow arrows on valves → They’re there for a reason.
- Using wrong pipe size → ¾” is standard for 2.0Cu Ft units; undersized pipes increase velocity and reduce contact time.
- Skipping the bed support → Without a proper gravel underbed, calcite can escape into plumbing.
A 2023 study by the National Ground Water Association found that 42% of DIY water treatment installs had flow-direction errors—most corrected within 30 days after water testing showed poor results.
FAQ: Your Top Questions Answered
Q1: Can a backwards-plumbed calcite unit damage my plumbing?
Yes. Acidic water (pH < 6.5) not neutralized can corrode copper pipes, cause pinhole leaks, and leach metals like lead or copper into drinking water. The EPA recommends maintaining pH between 6.5 and 8.5 for potable water.
Q2: Will I notice right away if it’s plumbed backwards?
Not always. Some signs include:
- Blue-green stains on fixtures
- Metallic taste
- Low pH test results (use a digital pH meter or test strips)
- Reduced water pressure (if media is compacted)
Q3: Can I just reverse the valve head instead of the pipes?
Not recommended. The internal plumbing of the valve (including the distributor tube and screen) is designed for downflow service. Reversing the head may cause leaks or improper backwash.
Q4: How often should I test my water after fixing it?
Test pH immediately after correction, then again at 1 week, 1 month, and quarterly thereafter. Use a calibrated pH meter—strip tests can be inaccurate.
Q5: Is calcite the only media I can use in a 2.0Cu Ft tank?
Calcite works best for pH 5.0–6.8. For more acidic water (pH < 5.0), a blend of calcite and Corosex (magnesium oxide) is recommended. Never use Corosex alone in a standard tank—it swells and can crack the vessel.
Q6: What’s the lifespan of a properly installed calcite unit?
With correct flow and maintenance, a 2.0Cu Ft unit lasts 3–5 years before media replacement. Annual inspection of the bed depth is advised.
Conclusion: Don’t Let a Simple Mistake Ruin Your Water
A 2.0Cu Ft calcite unit with in-out head plumbed backwards might seem like a small oversight—but it can lead to big problems: corroded pipes, unsafe water, and wasted money. The good news? It’s easy to fix, and once corrected, your system will deliver clean, balanced water for years.
✅ Double-check your plumbing today.
✅ Test your pH monthly.
✅ Share this guide with a friend who’s troubleshooting their well water system—especially on Facebook, Pinterest, or Reddit’s r/wellwater!
Your water is your health. Get it right the first time. 💧
