Best 2 Inch by 2 Inch Steel Plumbing Elbow Epoxy Coated for Durability

If you’re working on a plumbing, HVAC, or industrial piping project, you know how crucial it is to choose fittings that won’t fail under pressure—or rust over time. That’s where the 2 inch by 2 inch steel plumbing elbow epoxy coated shines. Designed for strength and longevity, this specific fitting solves one of the most common headaches in metal piping: corrosion. Whether you’re a contractor, engineer, or DIY enthusiast, this guide will help you understand why this elbow is worth your investment—and how to use it correctly.

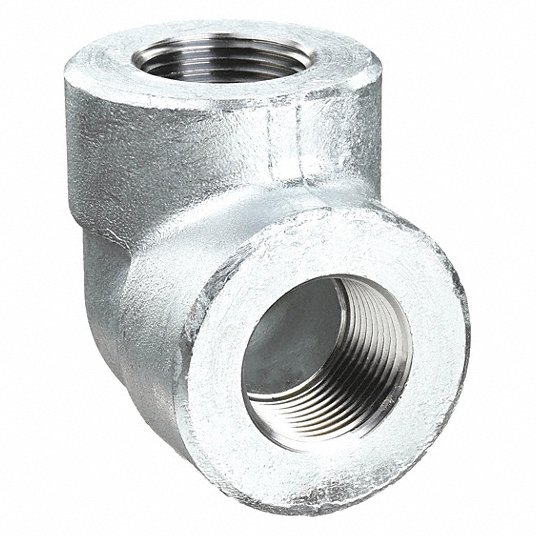

What Is a 2 Inch by 2 Inch Steel Plumbing Elbow Epoxy Coated?

A 2 inch by 2 inch steel plumbing elbow epoxy coated is a pipe fitting that connects two sections of 2-inch diameter steel pipe at a 90-degree (or sometimes 45-degree) angle. The “epoxy coated” part refers to a protective polymer layer applied to the steel surface, which dramatically improves resistance to rust, chemicals, and abrasion.

These elbows are commonly used in:

• Water supply systems
• Fire sprinkler installations
• Industrial fluid transport
• Underground piping

Unlike bare carbon steel, which can corrode in moist or acidic environments, epoxy-coated steel fittings maintain structural integrity for years—even in harsh conditions.

Did You Know? According to the National Association of Corrosion Engineers (NACE), corrosion costs the U.S. economy over $276 billion annually. Using protective coatings like epoxy can reduce that cost by up to 35% in piping systems.

Why Choose Epoxy Coating Over Galvanized or Bare Steel?

Not all steel elbows are created equal. Here’s how epoxy-coated elbows compare to other common types:

Key Advantage: Epoxy coatings create a seamless, non-porous barrier. This prevents water and oxygen from contacting the metal—stopping rust before it starts.

Unlike galvanization (which uses a zinc layer that can wear off), epoxy remains stable even in pH 4–10 environments—ideal for municipal water or wastewater applications.

For more on corrosion protection methods, see [Wikipedia’s overview on protective coatings](https://en.wikipedia.

org/wiki/Protective_coating).

Common Applications of This Fitting

The 2 inch by 2 inch steel plumbing elbow epoxy coated is widely specified in projects requiring reliability and code compliance. Below are real-world use cases:

1. Fire Protection Systems

NFPA 13 (the standard for sprinkler systems) often permits epoxy-coated steel pipes in dry and wet systems. The coating prevents internal rust that could clog nozzles during emergencies.

2. Municipal Water Infrastructure

Cities like Austin, TX, and Portland, OR, now mandate epoxy-lined or coated steel for underground water mains due to their 50-year+ service life projections.

3. Industrial Process Piping

In food processing or chemical plants, epoxy coatings resist contamination and meet FDA or ANSI/NSF 61 standards for potable water contact.

4. Retrofitting Older Systems

Contractors often replace corroded galvanized elbows with epoxy-coated versions during building upgrades—extending system life without full repiping.

How to Install a 2×2 Epoxy-Coated Steel Elbow: Step-by-Step

Proper installation preserves the integrity of the epoxy coating and ensures leak-free performance. Follow these steps:

1. Inspect the Fitting
   Check for scratches, chips, or dents in the coating. Even a small breach can lead to localized corrosion.
2. Cut and Prepare Pipe Ends
   Use a pipe cutter (not a torch) to avoid overheating. Deburr edges with a file—sharp burrs can damage the coating during threading.
3. Apply Thread Sealant
   Use PTFE tape or non-hardening pipe dope rated for epoxy-coated pipe. Avoid solvent-based sealants—they can degrade the coating.
4. Hand-Tighten First
   Screw the elbow onto the pipe by hand to align threads properly. This prevents cross-threading, which stresses the coating.
5. Final Tightening
   Use two wrenches: one to hold the pipe, one to turn the elbow. Tighten 1.5 to 2 full turns past hand-tight—over-tightening cracks the epoxy layer.
6. Pressure Test
   After assembly, test the system at 1.5x operating pressure for 2 hours. Look for leaks or coating damage at joints.

Pro Tip: Always wear gloves during handling. Skin oils can degrade epoxy over time, especially in UV-exposed areas.

Advantages vs. Potential Drawbacks

✅ Pros

• Superior corrosion resistance in wet or humid environments
• Smooth interior reduces friction loss and improves flow efficiency
• Complies with ASTM A742/A742M standards for fusion-bonded epoxy coatings
• Long service life reduces maintenance and replacement costs

❌ Cons

• Slightly higher upfront cost than galvanized fittings
• Not suitable for high-temperature steam (epoxy softens above 250°F/121°C)
• Requires careful handling—coating is tough but not indestructible

For most cold-water, fire protection, or general industrial uses, the benefits far outweigh the limitations.

Choosing the Right Supplier: What to Look For

Not all “epoxy-coated” elbows meet the same quality benchmarks. When sourcing, verify:

• ASTM Certification: Ensure coating meets ASTM A742 (for external) or ASTM A886 (for internal)
• Coating Thickness: Ideal range is 10–15 mils (0.25–0.38 mm)
• Cure Process: Fusion-bonded epoxy (FBE) is more durable than liquid-applied
• Hydrotesting: Reputable manufacturers test each fitting at 500+ PSI

Ask for a material test report (MTR)—it shows chemical composition and coating validation.

FAQ Section

Q1: Can I weld an epoxy-coated steel elbow?

A: No. Welding burns off the epoxy coating and creates a weak, uncoated zone prone to rapid corrosion. Use threaded or grooved connections instead.

Q2: Is this fitting suitable for potable water?

A: Yes—if it’s certified to NSF/ANSI 61. Always check the manufacturer’s documentation to confirm potable water approval.

Q3: What’s the temperature limit for epoxy-coated elbows?

A: Continuous service should stay below 140°F (60°C) for optimal coating performance. Short-term peaks up to 250°F are acceptable, but not recommended for steam.

Q4: How do I repair a scratch on the epoxy coating?

A: Use an epoxy repair kit (available from pipe suppliers). Clean the area, apply the patch compound, and let it cure per instructions—usually 4–24 hours.

Q5: Are 2×2 elbows available in 45-degree angles?

A: Yes. While 90-degree is standard, 45-degree and even custom angles are manufactured for directional changes in tight spaces.

Q6: Can I use this elbow underground?

A: Absolutely. Epoxy-coated steel is commonly used in direct-burial applications, especially when wrapped with a protective polyethylene sleeve for added abrasion resistance.

Conclusion

The 2 inch by 2 inch steel plumbing elbow epoxy coated isn’t just another pipe fitting—it’s a smart, long-term solution for anyone tired of leaks, rust, and premature failures. With proven performance in fire protection, water infrastructure, and industrial systems, it offers unmatched durability when installed correctly.

If you’re specifying materials for a new build or upgrading an aging system, this elbow delivers peace of mind, code compliance, and cost savings over time.

🔁 Found this guide helpful? Share it with your team or on LinkedIn to help others make smarter plumbing choices!

And if you’re ready to source high-quality fittings, always prioritize certified suppliers with full documentation—your project’s longevity depends on it.
