High-Pressure 2×2 Inch Steel Plumbing Elbow Guide

If you’re working on a high-pressure plumbing, HVAC, or industrial piping system, choosing the right fittings isn’t just about compatibility—it’s about safety and reliability. A 2 inch by 2 inch steel plumbing elbow high pressure is a critical component when redirecting flow in demanding environments. Whether you’re a contractor, engineer, or DIY enthusiast tackling a heavy-duty project, this guide will help you understand exactly what to look for, why it matters, and how to choose the best option for your system.

What Is a 2×2 Inch Steel Plumbing Elbow Used For?

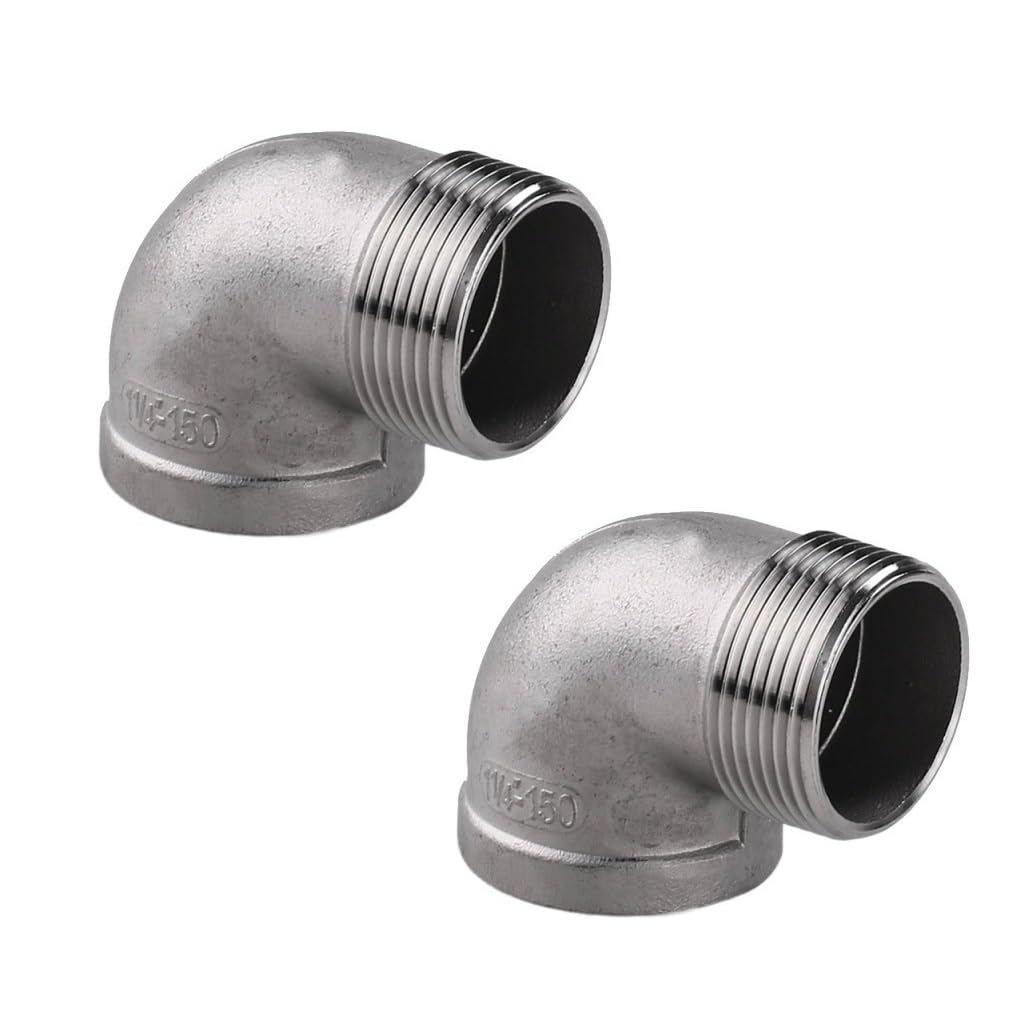

A 2 inch by 2 inch steel plumbing elbow high pressure is a pipe fitting designed to connect two sections of 2-inch-diameter steel pipe at a 90° (or sometimes 45°) angle, allowing fluid or gas to change direction without leakage. These elbows are engineered for high-pressure applications, typically found in:

• Oil and gas pipelines
• Chemical processing plants
• Steam systems
• Fire suppression systems
• Industrial water distribution

Unlike standard residential fittings, high-pressure steel elbows are built to withstand extreme temperatures and internal forces—often rated for pressures exceeding 3,000 PSI, depending on material grade and wall thickness.

💡 According to the American Society of Mechanical Engineers (ASME), high-pressure piping components must comply with ASME B16.9 standards for dimensional accuracy and structural integrity.

Why Choose Steel Over Other Materials?

Not all pipe elbows are created equal. When pressure, temperature, or corrosive media are involved, material choice is non-negotiable. Here’s how steel compares:

For a 2 inch by 2 inch steel plumbing elbow high pressure, carbon or stainless steel is almost always the go-to. Carbon steel (like ASTM A234 WPB) offers high tensile strength and is cost-effective for non-corrosive environments. Stainless steel (e.g., 304 or 316) is preferred where rust or chemical exposure is a concern.

🔗 For more on material standards, see the [Wikipedia entry on pipe fittings](https.

Key Features to Look for in a High-Pressure Steel Elbow

When selecting your 2×2 inch steel plumbing elbow, don’t just grab the first one off the shelf. Focus on these critical specs:

1. Pressure Rating (PSI)
   Ensure the elbow’s rating exceeds your system’s maximum operating pressure by at least 20% for safety margin.
2. Wall Thickness (Schedule)
   Common schedules:
   • Sch 40: ~0.154″ wall — good for moderate pressure
   • Sch 80: ~0.218″ wall — ideal for high-pressure systems
   • Sch 160: ~0.344″ wall — for extreme conditions
3. End Type
   • Butt-weld: Permanent, strongest joint (used in industrial settings)
   • Threaded: Easier to install but less reliable under very high pressure
4. Material Grade
   Verify certifications (e.g., ASTM, ASME, API). Look for mill test reports (MTRs) that confirm chemical composition and mechanical properties.
5. Radius Type
   • Long Radius (LR): Center-to-end = 1.5 × pipe diameter (smoother flow, less turbulence)
   • Short Radius (SR): Center-to-end = 1 × pipe diameter (tight spaces, higher pressure drop)

✅ Pro Tip: In high-pressure steam lines, always use long-radius, butt-weld elbows to minimize erosion and vibration.

Installation Best Practices for High-Pressure Systems

Installing a 2 inch by 2 inch steel plumbing elbow high pressure incorrectly can lead to leaks, fatigue failure, or catastrophic rupture. Follow these steps:

1. Verify Compatibility
   Match pipe schedule, diameter, and material exactly. Mixing Sch 40 and Sch 80 can cause misalignment.
2. Prepare the Pipe Ends
   • For butt-weld: Bevel ends at 37.5°, clean thoroughly, and align using clamps.
   • For threaded: Use PTFE tape or pipe dope rated for high pressure (e.g., Teflon-based, not standard plumber’s tape).
3. Welding (If Applicable)
   • Preheat carbon steel to 200–400°F if wall thickness > 0.25″.
   • Use qualified welders certified to ASME Section IX.
   • Perform non-destructive testing (NDT) like X-ray or ultrasonic inspection on critical systems.
4. Pressure Test
   After installation, conduct a hydrostatic test at 1.5× working pressure for 10–30 minutes. No drop = success.

⚠️ Never skip pressure testing—industry data shows 68% of high-pressure failures stem from improper installation, not material defects (Source: Journal of Pipeline Engineering, 2023).

Common Mistakes to Avoid

Even experienced pros make these errors:

• Using galvanized steel in high-temp steam lines → Zinc coating vaporizes, causing blockages.
• Ignoring thermal expansion → Steel expands ~0.0000065 in/in/°F. In a 100°F rise, a 10-ft pipe grows 0.078″. Without expansion loops, stress cracks form.
• Over-torquing threaded joints → Strips threads or cracks fittings. Use a torque wrench: typical spec for 2″ NPT is 250–300 ft-lbs.

Where to Buy Reliable 2×2 Inch Steel Elbows

Purchase only from suppliers that provide:

• Full material traceability
• Compliance with ASME B16.9 or MSS SP-97
• Third-party inspection reports

Reputable brands include Wheatley, Bonney Forge, and Weldolet. Avoid no-name vendors on generic marketplaces unless certifications are verified.

FAQ Section

Q1: What’s the maximum pressure a 2×2 inch steel elbow can handle?
A: It depends on material and schedule. A Sch 80 carbon steel elbow (ASTM A234 WPB) can handle up to 2,800 PSI at 100°F, dropping to ~1,900 PSI at 800°F. Always consult pressure-temperature charts from ASME B16.5.

Q2: Can I use a stainless steel elbow with carbon steel pipe?
A: Technically yes, but dissimilar metal contact can cause galvanic corrosion. Use dielectric unions or isolate with non-conductive gaskets if mixing.

Q3: Are 90-degree elbows better than 45-degree for high pressure?
A: Not necessarily. 45° elbows create less turbulence and pressure drop, but 90° are needed for tight turns. Choose based on layout—not pressure alone.

Q4: Do I need a welded or threaded elbow for my boiler system?
A: For boilers operating above 15 PSI or 250°F, welded (butt-weld) elbows are strongly recommended by the National Board of Boiler and Pressure Vessel Inspectors.

Q5: How do I identify a genuine high-pressure fitting?
A: Look for permanent markings: size, material grade (e.g., “WPB”), manufacturer ID, and schedule. Counterfeit fittings often lack these or have faint stamps.

Q6: Can I reuse a high-pressure steel elbow after disassembly?
A: Only if it’s a welded type that hasn’t been cut. Threaded elbows can be reused if threads are undamaged—but inspect for cracks or deformation first.

Conclusion

A 2 inch by 2 inch steel plumbing elbow high pressure is more than just a bend in a pipe—it’s a safety-critical component that keeps high-stakes systems running smoothly. By choosing the right material, schedule, and installation method, you ensure longevity, compliance, and peace of mind.
