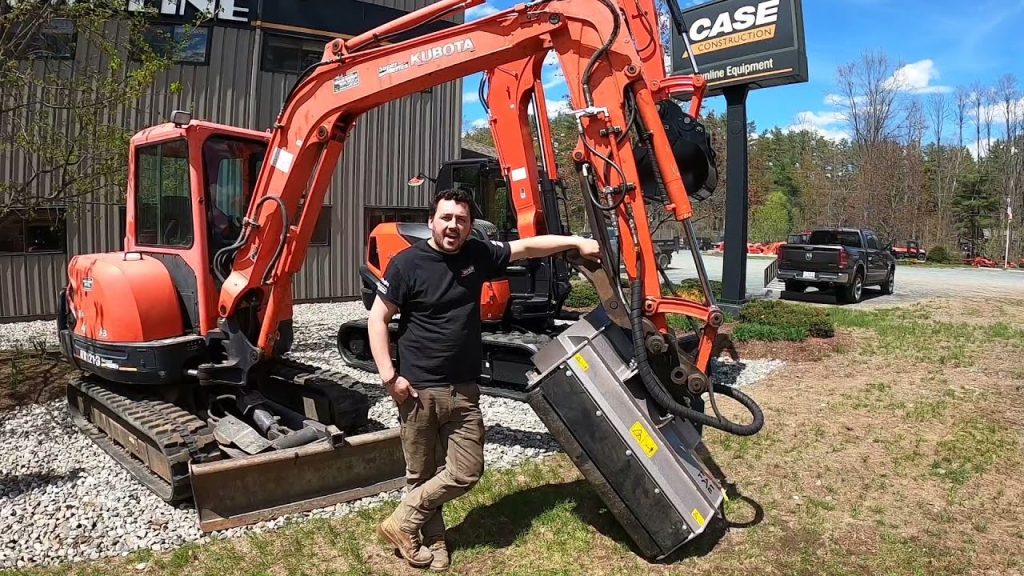

2004 KX121-3 Kubota Aux Plumbing for Brush Cutter: The Ultimate Guide

Are you staring at your 2004 Kubota KX121-3 excavator and a brand-new brush cutter, wondering how to connect them without frying your hydraulic system? You are not alone; many operators struggle with the specific plumbing requirements for older Kubota models when adding high-flow attachments. Getting the 2004 KX121-3 Kubota aux plumbing for brush cutter installation right is critical not just for performance, but for the longevity of your machine’s pump and seals. In this guide, we will walk you through the exact steps, pressure settings, and safety checks you need to get cutting safely and efficiently.

Understanding the Hydraulic Requirements of Your KX121-3

Before you pick up a wrench, it is vital to understand what your machine is capable of delivering. The 2004 Kubota KX121-3 is a robust mini-excavator, but its auxiliary hydraulic circuit was designed with specific flow and pressure limits in mind. A brush cutter is a demanding attachment that requires consistent oil flow to spin the motor at high RPMs under load.

The primary concern when plumbing for a brush cutter is matching the flow rate (GPM) and pressure (PSI). If the flow is too low, the cutter will stall in thick vegetation. If the pressure is set too high, you risk blowing out the hydraulic hoses or damaging the swing motor, which often shares the same circuit in older configurations.

According to general hydraulic principles found in engineering resources like Wikipedia’s entry on hydraulic machinery, the power output of a hydraulic system is directly proportional to both pressure and flow. Therefore, balancing these two factors is the cornerstone of a successful installation.

Key Specifications for the 2004 KX121-3

• Standard Aux Flow: Typically ranges between 10 to 15 GPM (check your specific serial number plate).
• Maximum Relief Pressure: Usually set around 2,900 to 3,200 PSI for standard digging, but brush cutters often require a dedicated relief setting.
• Coupler Type: Most 2004 models use flat-face or agricultural style quick couplers (ISO 16028), but adapters may be needed.

Step-by-Step: Plumbing the Auxiliary Circuit

Installing the auxiliary plumbing for a brush cutter on a 2004 KX121-3 is not a “one-size-fits-all” job. It requires a methodical approach to ensure leak-free operation and correct directional flow. Follow these concrete steps to ensure a professional installation.

Step 1: Depressurize the System

Safety is paramount. Before disconnecting any lines:

1. Shut down the engine completely.
2. Move the control levers back and forth multiple times to release residual pressure in the lines.
3. Wait at least 10 minutes for the hydraulic oil to cool if the machine has been running recently. Hot oil can cause severe burns and creates messy spills.

Step 2: Identify the Auxiliary Ports

On the KX121-3 boom, locate the auxiliary hydraulic ports. On a 2004 model, these are often capped with dust plugs near the stick cylinder.

• Port A (Pressure/Inlet): This sends oil from the pump to the brush cutter motor.
• Port B (Return/Outlet): This returns oil from the motor back to the tank.

Note: Incorrectly swapping these lines will cause the brush cutter to spin in reverse, which can dislodge the cutting head or damage the motor internals.

Step 3: Install the Correct Hoses and Couplers

You cannot use standard digging bucket hoses for a brush cutter. You need high-pressure hoses rated for at least 3,500 PSI to handle the surge pressures generated by a spinning rotor hitting dense brush.

• Hose Length: Measure the distance from the boom ports to the attachment point with the arm fully extended. Add an extra 12 inches (30 cm) to allow for movement without tension.
• Fittings: Ensure you use JIC 37-degree flare fittings or ORS (O-Ring Seal) fittings compatible with Kubota’s port threads. Do not force mismatched threads.

Step 4: Configure the Control Pattern

The 2004 KX121-3 often uses a pedal or a button on the joystick to activate the aux hydraulics.

1. Check the operator’s manual to switch the control pattern from “Breaker” to “Continuous Flow” if available. Brush cutters need continuous flow, whereas breakers need pulsating flow.
2. If your machine lacks a continuous flow switch, you may need to install a solenoid valve kit that locks the aux circuit open when engaged.

Step 5: Bleed the System

Air in the lines is the enemy of hydraulic motors.

1. Connect the hoses to the machine but leave the return line slightly loose at the brush cutter end.
2. Start the engine and gently engage the aux flow for 5 seconds.
3. Tighten the return line once a steady stream of oil (free of bubbles) emerges.
4. Run the brush cutter at idle for 2 minutes to circulate oil and purge remaining air.

Adjusting Pressure and Flow for Optimal Performance

One of the most common mistakes operators make is running the factory default pressure settings when using a brush cutter. The standard digging pressure might be too aggressive for the hydraulic motor inside the cutter.

How to Adjust the Relief Valve

1. Locate the main relief valve on the distributor block (usually under the cab floor or side panel).
2. Use a calibrated pressure gauge installed in-line with the auxiliary circuit.
3. Loosen the lock nut on the relief valve screw.
4. Turn the adjustment screw clockwise to increase pressure or counter-clockwise to decrease it.
5. Target Setting: For most brush cutters on a KX121-3, aim for 2,500 – 2,800 PSI. Consult your brush cutter manufacturer’s manual for the exact spec.
6. Tighten the lock nut while holding the screw in place.

Flow Restriction Considerations

If your KX121-3 has a high-flow option enabled, it might overwhelm a smaller brush cutter motor, causing it to overheat. In such cases, installing a flow restrictor orifice in the pressure line is necessary.

• Orifice Size: Typically between 3mm to 5mm, depending on the desired GPM reduction.
• Installation: Place the orifice immediately after the quick coupler on the pressure side.

Comparison: Standard Digging Setup vs. Brush Cutter Setup

To visualize the differences, refer to the table below. This highlights why you cannot simply swap attachments without adjustments.

Common Troubleshooting Scenarios

Even with perfect plumbing, issues can arise. Here is how to diagnose common problems based on real-world field data.

Issue 1: The Brush Cutter Spins Slowly or Stalls

• Cause: Insufficient flow or a clogged filter.
• Solution: Check the hydraulic return filter on the KX121-3. A clogged filter restricts return flow, starving the pump. Also, verify that the aux circuit is not sharing flow with the track motors (some machines reduce aux flow when moving).

Issue 2: Hydraulic Oil Overheating

• Cause: Running the relief valve constantly or incorrect oil viscosity.
• Solution: Ensure the relief pressure is not set higher than the brush cutter motor’s rating. If the oil is old or the wrong grade (e.g., using AW-32 in hot summer instead of AW-46), change the fluid. Overheating above 180°F (82°C) damages seals rapidly.

Issue 3: Leaking at Quick Couplers

• Cause: Worn O-rings or mismatched coupling styles.
• Solution: Replace the O-rings on the male and female couplers. Ensure you are using the correct profile (e.g., Parker vs. ISO). Never force a connection; if it doesn’t click smoothly, the sizes are incompatible.

FAQ Section

1. Can I use the same auxiliary lines for a hammer and a brush cutter?

Yes, physically you can connect both, but you must adjust the pressure settings between uses. Hammers require high impact pressure, while brush cutters need continuous flow at moderate pressure. Failure to adjust the relief valve can destroy the brush cutter motor.

2. Does the 2004 KX121-3 have a standard high-flow option?

Some 2004 KX121-3 units were equipped with a high-flow auxiliary kit from the factory, while others require an aftermarket upgrade. Check your serial number with a Kubota dealer. If you do not have high flow, you may be limited to smaller diameter brush cutters (under 24 inches).

3. What type of hydraulic oil should I use for this setup?

For a 2004 model operating in typical US climates, AW-46 Hydraulic Oil is generally recommended. If you are operating in extremely cold conditions (below -10°F), switch to AW-32. Always ensure the oil meets the Denison HF-0 or Vickers M-2950-S specifications.

4. How often should I check the plumbing connections?

Brush cutters generate significant vibration, which can loosen fittings faster than digging attachments. Inspect all hose connections and couplers daily before operation. Look for signs of weeping oil or abrasion on the hose outer cover.

5. Will installing an aux circuit void my warranty?

Since your machine is a 2004 model, the original warranty has long expired. However, improper plumbing can cause catastrophic pump failure. If you are unsure about the installation, it is wise to consult a certified heavy equipment mechanic to avoid costly repairs down the line.

6. Can I run the brush cutter and move the tracks at the same time?

On most mini-excavators of this era, the auxiliary circuit and travel circuits share the main pump. Engaging both simultaneously may result in reduced power to both functions (load sensing). It is generally safer to position the machine, stop the tracks, and then operate the brush cutter for maximum efficiency and safety.

Conclusion

Mastering the 2004 KX121-3 Kubota aux plumbing for brush cutter installation transforms your excavator from a simple digging tool into a versatile land-clearing powerhouse. By carefully managing your pressure settings, selecting the right hoses, and following a disciplined bleeding process, you ensure that both your machine and your attachment perform at their peak. Remember, the key to longevity in hydraulic systems is cleanliness and correct pressure management.

Don’t let hydraulic confusion slow down your projects. Take the time to set up your aux lines correctly, and you will enjoy years of reliable service. Found this guide helpful? Share it with your fellow operators on Facebook or LinkedIn to help them get their Kubota running smoothly!
