Are you tired of flipping through hundreds of pages of dense regulatory text just to find a simple pipe sizing chart or venting distance? You are not alone. For plumbing professionals, inspectors, and students across the United States, time is money, and accuracy is non-negotiable. That is exactly why the 2018 International Plumbing Code Quick-Card Based On 2018 IPC has become an indispensable tool in the industry. This concise guide distills complex regulations into actionable data, ensuring you stay compliant without the headache. Let’s dive into how this quick-card can streamline your workflow and keep your projects up to code.

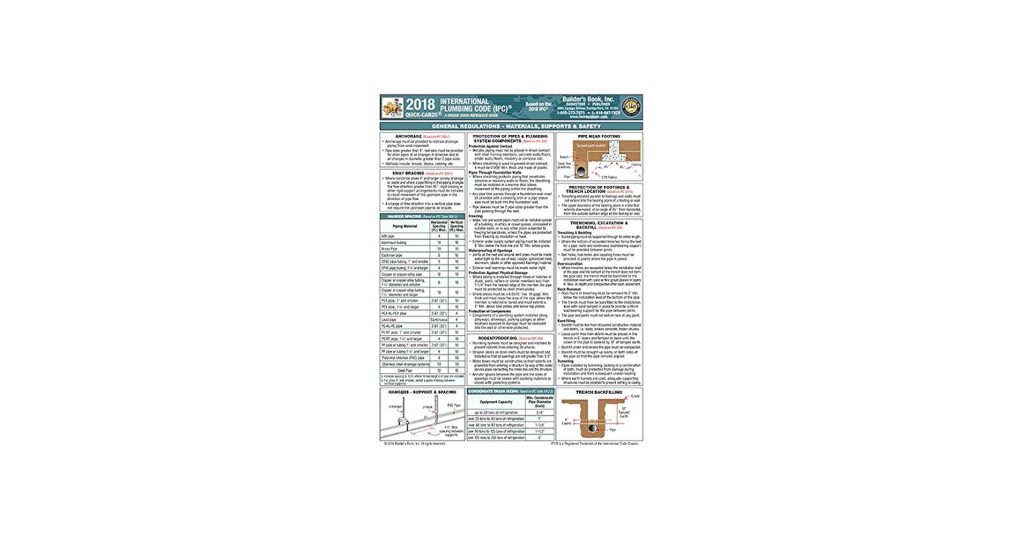

What Exactly Is the 2018 IPC Quick-Card?
The 2018 International Plumbing Code (IPC), published by the International Code Council (ICC), is a comprehensive model code adopted by many states and municipalities across the US. However, the full codebook is over 600 pages long. Carrying that around a job site or trying to memorize every fixture unit value is impractical.
The Quick-Card is a condensed reference tool designed to fit in your pocket or tool belt. It extracts the most frequently used data points from the 2018 edition, such as:
- Maximum fixture unit loads.
- Required pipe slopes.
- Venting distance limits.
- Water supply sizing metrics.
Think of it as your “cheat sheet” for daily compliance. While it does not replace the full code for complex legal interpretations, it covers 90% of the routine decisions a plumber makes on-site. According to industry surveys, professionals who utilize quick-reference guides reduce their inspection failure rates by nearly 15% due to fewer calculation errors.
Pro Tip: Always verify which specific edition your local jurisdiction has adopted. While many areas use the 2018 IPC, some may have amended it or moved to the 2021 or 2024 versions.
For a broader understanding of how model codes function in the US regulatory landscape, you can refer to this overview on Wikipedia.
Critical Data Points You Must Know
When using the 2018 International Plumbing Code Quick-Card Based On 2018 IPC, certain sections are referenced far more often than others. Below, we break down the essential data you will find on the card and how to apply it correctly.
1. Drainage Fixture Units (DFU) and Pipe Sizing
One of the most common mistakes in plumbing is undersizing drain pipes. The Quick-Card provides a clear table correlating fixture types to their Drainage Fixture Unit (DFU) values.
Common DFU Values (2018 IPC Table 709.1):
- Water Closet (Tank type): 3 DFU
- Water Closet (Flushometer valve): 4 DFU
- Lavatory (Private): 1 DFU
- Shower Head (Residential): 2 DFU
- Kitchen Sink (Residential): 2 DFU
How to Size Your Pipe: Once you sum the DFUs, the Quick-Card directs you to the maximum number of fixtures allowed per pipe diameter at specific slopes.
- 1½-inch pipe: Max 3 DFU (Slope ¼ inch per foot)
- 2-inch pipe: Max 6 DFU (Slope ¼ inch per foot)
- 3-inch pipe: Max 20 DFU (Slope ⅛ inch per foot)
- 4-inch pipe: Max 160 DFU (Slope ⅛ inch per foot)
Note: These values assume a standard slope. Steeper slopes do not necessarily increase capacity and can cause solids to be left behind due to water outrunning waste.
2. Venting Distances and Limits
Improper venting leads to siphoning traps, which allows sewer gas into the building. The 2018 IPC introduced specific tables regarding the distance between a trap and its vent.
Key Rule: The distance is determined by the diameter of the trap arm.
| Trap Diameter | Maximum Distance to Vent |
|---|---|
| 1¼ inches | 3 feet 6 inches |
| 1½ inches | 4 feet 2 inches |
| 2 inches | 5 feet 0 inches |
| 3 inches | 6 feet 0 inches |
| 4 inches | 10 feet 0 inches |
If your design exceeds these distances, you must install an Air Admittance Valve (AAV) locally or re-route the vent stack. The Quick-Card highlights these limits in bold red text to prevent costly rework during inspections.
3. Water Supply Sizing (WSFU)
Unlike drainage, water supply sizing depends on pressure and flow demand. The 2018 IPC uses Water Supply Fixture Units (WSFU). The Quick-Card simplifies the complex interpolation required by Table 604.3.
Step-by-Step Calculation:
- Count Fixtures: List all hot, cold, and mixed fixtures.
- Assign WSFU: Use the card’s chart (e.g., a private lavatory is 1.0 WSFU for cold, 1.5 for hot).
- Total Load: Sum the WSFUs for the section of pipe you are sizing.
- Check Pressure: Determine your available static pressure (usually 40–80 PSI in residential zones).
- Select Pipe Size: Match your total WSFU and pipe length to the recommended copper, PEX, or CPVC diameter on the card.
Example Scenario: If you have a bathroom group with a total load of 6 WSFU and a run of 40 feet with 50 PSI available pressure, the Quick-Card indicates you need a ¾-inch pipe, not ½-inch. Using ½-inch here would result in poor flow rates when multiple fixtures are used simultaneously.
Common Mistakes When Using the 2018 IPC
Even with a Quick-Card, errors happen. Here are the top pitfalls to avoid:
- Confusing DFU with WSFU: Drainage units (DFU) and water supply units (WSFU) are not interchangeable. A toilet might be 3 DFU for drainage but requires a different calculation for supply.
- Ignoring Slope Requirements: Many users check the pipe size but forget the slope. A 3-inch pipe carrying 20 DFU must have a minimum slope of 1/8 inch per foot. Flatter than this, and it’s a code violation.
- Overlooking Cleanout Spacing: The 2018 IPC requires cleanouts every 100 feet for pipes 8 inches or smaller. The Quick-Card reminds you of this spacing, which is often forgotten in long commercial runs.
- Misapplying Local Amendments: As mentioned earlier, the Quick-Card reflects the base 2018 IPC. If your city requires a 4-inch soil stack instead of 3-inch, the card won’t know that. Always cross-check with local amendments.
Why the 2018 Edition Matters
You might wonder, “Why stick to the 2018 version if newer ones exist?” The answer lies in adoption cycles. Building codes typically take 3–5 years to be fully adopted by states and municipalities after publication.
As of 2026, a significant portion of US jurisdictions are still actively enforcing the 2018 International Plumbing Code. Projects permitted under the 2018 code must be completed to that standard, even if the 2024 code is now available. Using a Quick-Card specific to the 2018 edition ensures you are judging your work against the correct legal benchmark, avoiding disputes with inspectors who are mandated to enforce the version active at the time of permitting.
FAQ Section
1. Is the 2018 IPC Quick-Card legally binding?
No, the Quick-Card itself is a reference tool, not a legal document. In the event of a dispute or inspection challenge, the full text of the 2018 International Plumbing Code adopted by your local jurisdiction is the sole legal authority. The card is designed for speed and convenience, not legal defense.
2. Can I use the 2018 Quick-Card for 2021 or 2024 code projects?
Generally, no. While many core principles remain similar, specific values for fixture units, venting distances, and material standards often change between editions. Using a 2018 card for a 2024 project could lead to non-compliance. Always ensure your reference material matches the specific code year your permit was pulled under.
3. Where can I get an official 2018 IPC Quick-Card?
Official Quick-Cards are published by the International Code Council (ICC) and authorized training partners. You can purchase laminated, durable versions directly from the ICC bookstore or reputable plumbing supply houses. Avoid unverified PDFs found on random forums, as they may contain outdated typos.
4. Does the Quick-Card cover gas piping?
No. The International Plumbing Code (IPC) covers water and sewage systems. Gas piping is regulated by the International Fuel Gas Code (IFGC). While some combination cards exist, a standard IPC Quick-Card will not contain data on gas pipe sizing, pressure testing, or appliance venting for fuel gases.
5. How often should I update my Quick-Card?
You should update your reference tools whenever your local jurisdiction adopts a new code cycle. Since code cycles are typically three years (2018, 2021, 2024, 2027), plan to replace your card every time your state or city updates its building regulations.
Conclusion
Mastering the plumbing code doesn’t require memorizing a library of books; it requires having the right information at your fingertips. The 2018 International Plumbing Code Quick-Card Based On 2018 IPC is that essential key. It empowers you to make fast, accurate decisions regarding pipe sizing, venting, and water supply, ultimately saving you time, money, and the frustration of failed inspections.
Whether you are a seasoned journeyman, a new apprentice, or a home inspector, keeping this card in your pocket is a small investment with a massive return on safety and compliance. Remember, good plumbing is invisible until it fails—let the Quick-Card help you ensure it never does.
