3/4 G Thread to 1/2 NPT Plumbing: The Ultimate Adapter Guide

Have you ever stood in the plumbing aisle, holding two pipes that should fit together, only to realize the threads just won’t catch? It is a frustratingly common scenario for homeowners and DIY enthusiasts alike. You are likely trying to connect a European-style appliance or fixture to standard American piping, creating a confusing 3 4 G thread to 1 2 NPT plumbing dilemma. Don’t worry; you aren’t alone, and with the right adapter and technique, you can solve this mismatch without calling an expensive plumber.

Understanding the Mismatch: Why Your Threads Don’t Fit

Before rushing to buy a part, it is crucial to understand why these two threads are incompatible. The confusion often stems from the fact that both look like standard pipe threads to the untrained eye. However, they belong to two entirely different measurement systems with distinct geometries.

The Core Differences: BSP (G) vs. NPT

The “G” stands for British Standard Pipe Parallel, often referred to as BSP. This is the standard used in Europe, Asia, Australia, and for many imported appliances (like washing machines or tankless water heaters). On the other hand, NPT (National Pipe Tapered) is the United States standard.

The fundamental issue lies in the thread angle and the taper:

• NPT threads have a 60-degree angle and are tapered. As you tighten them, the threads wedge together to create a seal.
• G (BSP) threads have a 55-degree angle and are often parallel (straight). They rely on a washer or O-ring to create a seal, not the friction of the threads themselves.

Attempting to force a 3/4″ G male thread into a 1/2″ NPT female port (or vice versa) will result in cross-threading, leaks, or cracked fittings. According to general engineering standards documented on Wikipedia, mixing these standards without a proper conversion adapter is a primary cause of residential plumbing failures.

Size Confusion: Nominal vs. Actual Diameter

Adding to the complexity is the naming convention. A “3/4 inch” pipe does not measure exactly 0.75 inches in diameter.

• A 3/4″ NPT has an outside diameter (OD) of approximately 1.050 inches.
• A 3/4″ BSP (G) has an outside diameter of approximately 26.44 mm (about 1.04 inches).

While the diameters are close, the pitch (threads per inch) differs significantly. A 3/4″ NPT has 14 threads per inch (TPI), whereas a 3/4″ BSP has 14 TPI as well, but the 55-degree angle prevents a proper seal. When stepping down to a 1/2″ NPT (which has 14 TPI and an OD of 0.840 inches), the size mismatch becomes even more critical if you are trying to adapt a larger 3/4″ G source to a smaller 1/2″ NPT destination.

Choosing the Right Adapter: Your Best Options

To successfully bridge a 3 4 G thread to 1 2 NPT plumbing gap, you need a specific reducing bushing or hex nipple. You cannot simply use tape to fill the gap; the mechanical fit must be precise.

Option 1: The Hex Bushing (Most Common)

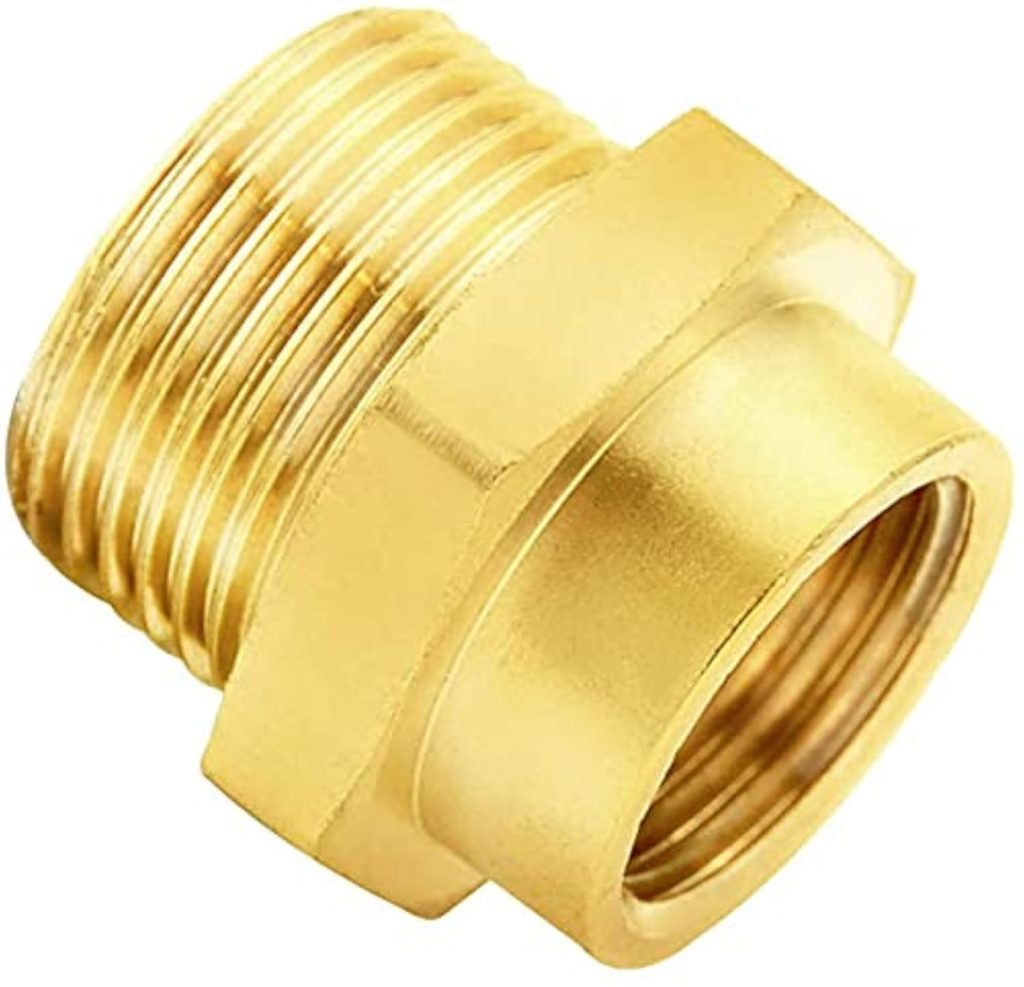

For most applications, a 3/4″ BSP (Male) to 1/2″ NPT (Female) hex bushing is the ideal solution.

• Best for: Connecting a European shower head or faucet to US wall piping.
• Material: Choose brass for durability and corrosion resistance. Avoid cheap plastic adapters for high-pressure lines.
• Sealing Method: Since the BSP side is parallel, this adapter usually requires a rubber washer or fiber gasket on the G-thread side. The NPT side seals with thread tape or dope.

Option 2: The Double-Male Nipple

If you have two female ports needing connection, look for a 3/4″ BSP (Male) to 1/2″ NPT (Male) nipple.

• Best for: Extending a pipe run or connecting two fixtures.
• Note: Ensure you know which end is which. Manufacturers often mark “G” or “BSP” on one side and “NPT” on the other.

Comparison Table: Adapter Types

Pro Tip: Always verify if your “G” thread is BSPP (Parallel) or BSPT (Tapered). While “G” strictly denotes parallel, some imported parts use tapered BSPT (often marked “R”). If both sides are tapered, you might get a seal with thread compound, but using the correct adapter is still highly recommended for longevity.

Step-by-Step Installation Guide

Follow these precise steps to ensure a leak-free connection when converting 3 4 G thread to 1 2 NPT plumbing. Rushing this process is the number one cause of future leaks.

Tools and Materials Needed

• Correct adapter (3/4″ G Male to 1/2″ NPT Female)
• PTFE Thread Seal Tape (Teflon tape) – Get the pink or green heavy-duty version for gas/water, not the thin white stuff.
• Pipe wrench or adjustable channel locks (2 units)
• Rubber washer or fiber gasket (if not included with adapter)
• Pipe thread dope (optional, for extra security on NPT side)

Installation Steps

1. Inspect and Clean the Threads Before applying any sealant, wipe both the existing pipe threads and the new adapter with a clean rag. Remove any old tape, rust, or debris. Even a small piece of grit can cause a leak.
2. Prepare the NPT Side (The Tapered End) Identify the 1/2″ NPT female port on your adapter (or the male pipe if using a nipple).
   • Take your PTFE tape and wrap it clockwise (looking at the end of the thread).
   • Apply 3 to 4 wraps tightly. Do not cover the first thread; start slightly back from the edge to prevent tape shreds from entering the water line.
   • Optional: Apply a thin layer of pipe thread dope over the tape for a chemical bond.
3. Prepare the G Thread Side (The Parallel End)
   • Crucial Step: Do not use Teflon tape on the G (BSP) threads if the design relies on a washer seal. Tape can prevent the fitting from tightening enough to compress the washer.
   • Insert the rubber or fiber washer into the recess of the G-threaded component (e.g., the hose or fixture).
   • If your specific adapter requires tape on the G side (rare for “G” but common for “R/BSPT”), apply only 2 wraps lightly.
4. Hand-Tighten First Screw the adapter into the 1/2″ NPT port by hand. Ensure it goes on straight. If you feel immediate resistance, stop! You may be cross-threading. Back it out and try again.
   • Once hand-tight, use a wrench to tighten the NPT side. Turn it 1.5 to 2 full turns past hand-tight. The taper should wedge firmly.
   • Warning: Do not overtighten. Brass is soft; cracking the fitting is a real risk if you use excessive force.
5. Connect the 3/4″ G Component Screw your 3/4″ G threaded hose or fixture onto the adapter. Tighten until the washer compresses snugly. You should feel a solid “stop” when the washer is fully compressed.
6. Pressure Test Turn the water supply on slowly. Inspect the connection immediately for drips.
   • If it leaks at the NPT side: Tighten slightly (1/8th turn). If it persists, disassemble and add more tape.
   • If it leaks at the G side: Tighten slightly. If it still leaks, check if the washer is pinched or damaged. Replace the washer and retry.

Common Mistakes to Avoid

Even experienced DIYers make errors when dealing with mixed threading systems. Here are the pitfalls to watch out for:

• Assuming “Close Enough” Works: Just because the adapter screws on three threads deep doesn’t mean it’s sealed. Water pressure (typically 40–60 PSI in US homes) will find the tiniest gap.
• Using the Wrong Washer: A standard flat washer might not suffice for high-pressure applications. Use a fiber-reinforced rubber washer designed for plumbing.
• Ignoring Thermal Expansion: If this connection is for hot water (like a water heater), the metal will expand and contract. Over-tightening cold can lead to cracks when the metal heats up. Leave a tiny margin of safety; do not torque it to the maximum limit.
• Mixing Up Male and Female: It sounds obvious, but buying a “Male to Male” adapter when you need “Male to Female” is a frequent error. Double-check your existing pipes before purchasing.

FAQ: Frequently Asked Questions

1. Can I use Teflon tape on both sides of a 3/4 G to 1/2 NPT adapter?

Generally, no. You should use tape (and/or dope) on the NPT side because it relies on thread interference to seal. However, the G (BSP) side is typically parallel and seals via a washer or O-ring. Using tape on the G side can prevent the fitting from tightening enough to compress the washer, causing a leak. Only use tape on the G side if it is specifically a BSPT (tapered) thread, not BSPP.

2. How do I tell the difference between 3/4″ G and 3/4″ NPT threads?

Visually, they look very similar. The best way to tell is by measuring the thread angle (55° for G, 60° for NPT) using a thread gauge, or by checking the pitch. While both 3/4″ sizes often have 14 TPI, the diameter differs slightly. A practical test: if an NPT fitting screws in easily and feels loose on a G port, they are incompatible. Also, G threads often come with a bonding washer, while NPT fittings do not.

3. Will a 3/4 G to 1/2 NPT adapter reduce water flow significantly?

Yes, stepping down from 3/4″ to 1/2″ will restrict flow. A 3/4″ pipe has a significantly larger cross-sectional area than a 1/2″ pipe. You can expect a reduction in gallons per minute (GPM). For most residential faucets or shower heads, this is acceptable, but it may impact high-flow appliances like tankless water heaters or filling a bathtub quickly.

4. Is brass better than stainless steel for these adapters?

For most indoor residential plumbing, brass is the preferred choice. It is durable, resistant to corrosion, and easier to machine for precise threads. Stainless steel is excellent for outdoor or highly corrosive environments but is harder to work with and more expensive. Avoid plastic adapters for permanent installations involving hot water or high pressure.

5. What if the adapter still leaks after tightening?

If you have tightened it properly and it still leaks, disassemble immediately. Check for:

• Debris in the threads.
• A missing or damaged washer on the G side.
• Insufficient tape on the NPT side.
• Cracks in the adapter caused by over-tightening. If the threads are stripped, you must replace the fitting. Do not try to “fix” stripped threads with extra tape; it will fail eventually.

Conclusion

Navigating the world of 3 4 G thread to 1 2 NPT plumbing connections doesn’t have to be a headache. By understanding the fundamental differences between British (BSP/G) and American (NPT) standards, selecting the correct brass adapter, and applying the right sealing techniques, you can create a robust, leak-free joint. Remember, the key lies in respecting the geometry of the threads: tape the tapered NPT side, and washer-seal the parallel G side.

Now that you have the knowledge to tackle this adaptation, why not share this guide with a friend who is struggling with a similar plumbing puzzle? Sharing helpful DIY tips helps everyone save money and avoid water damage. Happy plumbing!
