Have you ever stood in the hardware aisle, holding two pipes that simply refuse to connect because one is slightly smaller than the other? It is a frustratingly common scenario for US homeowners tackling DIY projects, especially when dealing with older homes or specific appliance hookups like ice makers and humidifiers. You need a reliable bridge between these mismatched sizes, and that is exactly where a 3 8 male to 1 2 female plumbing fitting becomes your best friend. This small but mighty adapter solves size discrepancies instantly, preventing leaks and saving you from costly plumber calls.

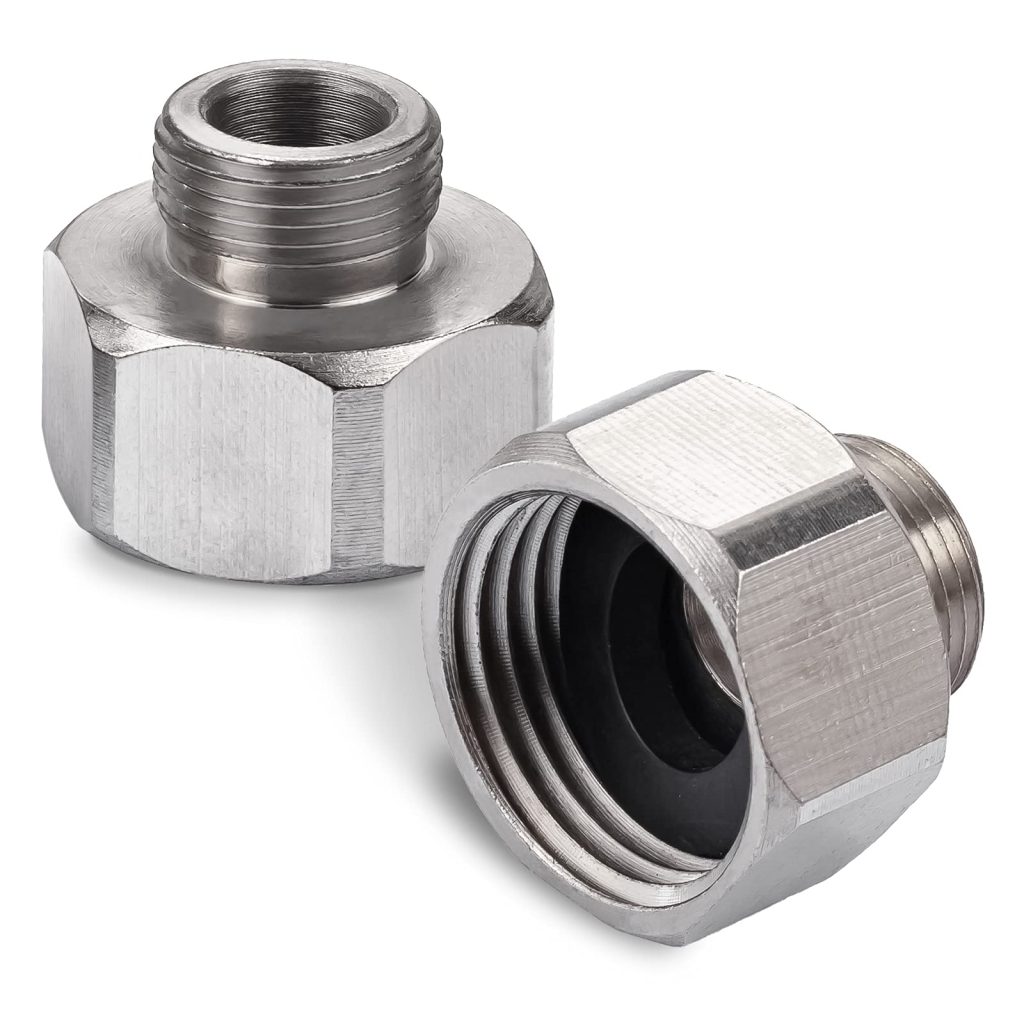

What Exactly Is a 3/8 Male to 1/2 Female Fitting?
Before diving into installation, it is crucial to understand what you are buying. In the plumbing world, measurements can be tricky. A 3 8 male to 1 2 female plumbing fitting is an adapter designed to connect a pipe or tube with a 3/8-inch male thread (external threads) to a port or pipe with a 1/2-inch female thread (internal threads).
In the United States, these fittings typically adhere to NPT (National Pipe Taper) standards for rigid pipes or compression/f flare standards for flexible tubing.
- 3/8″ Male End: Usually connects to supply lines, such as those found on toilets, faucets, or ice maker valves.
- 1/2″ Female End: Typically connects to the main water supply line coming out of the wall or floor, which is often standard 1/2-inch copper or PEX.
Understanding the difference between nominal pipe size and actual physical diameter is vital. As noted in general engineering standards, NPT threads are tapered to create a seal when tightened, unlike straight mechanical threads. You can read more about the history and standardization of pipe threads on Wikipedia.
Why Do You Need This Specific Adapter?
You might wonder why manufacturers do not just make all pipes the same size. The reality is that different fixtures require different water volumes and pressure ratings.
Common Use Cases in American Homes
- Refrigerator Ice Makers: Many modern fridges use a 3/8-inch compression line, but your home’s shut-off valve is likely 1/2-inch NPT.
- Toilet Supply Lines: Older toilets or specific high-efficiency models often utilize 3/8-inch inlet valves.
- Humidifier Installations: Whole-house humidifiers frequently tap into 3/8-inch lines but need to connect to 1/2-inch mains.
- Sink Faucet Upgrades: When replacing a faucet, the new supply lines might be 3/8-inch, while the existing angle stop is 1/2-inch.
Without the correct 3 8 male to 1 2 female plumbing fitting, you cannot create a watertight seal. Using makeshift solutions like excessive tape or forced connections leads to catastrophic leaks and water damage.
Types of Materials: Which One Should You Choose?
Not all fittings are created equal. The material you choose depends on your water type, local building codes, and budget. Here is a comparison to help you decide.
| Material | Best For | Pros | Cons |
|---|---|---|---|
| Brass | General residential use | Durable, corrosion-resistant, handles high heat/pressure. | Can corrode in very acidic water; more expensive than plastic. |
| Stainless Steel | High-moisture areas, outdoor use | Superior rust resistance, sleek look, extremely strong. | Highest cost; harder to tighten without proper tools. |
| Chrome-Plated Brass | Visible areas (under sinks) | Aesthetic appeal, easy to clean, good corrosion resistance. | Plating can chip over time if overtightened. |
| PVC/Plastic | Cold water only, drainage | Cheap, easy to cut, no corrosion. | Cannot handle hot water; prone to cracking under high pressure. |
Expert Recommendation: For potable water lines inside your home, lead-free brass is the industry gold standard. It offers the best balance of durability and safety. Always look for the “LF” stamp on the fitting to ensure it meets the Safe Drinking Water Act requirements.
Step-by-Step Installation Guide
Installing a 3 8 male to 1 2 female plumbing fitting is straightforward if you follow precise steps. Rushing this process is the number one cause of leaks.
Tools You Will Need
- Adjustable wrench (or two channel-lock pliers)
- Teflon tape (PTFE tape) or pipe dope
- Pipe cutter or hacksaw (if cutting pipe)
- Deburring tool or sandpaper
- Bucket or towel (for residual water)
Installation Instructions
- Shut Off the Water: Locate the main water shut-off valve or the local angle stop for the fixture. Turn it clockwise until tight. Open the faucet to drain remaining pressure.
- Prepare the Threads: Inspect the 1/2-inch female port. Ensure it is clean and free of old tape or debris. If there is rust, gently clean it with a wire brush.
- Apply Sealant: Wrap Teflon tape around the 3/8-inch male threads of the fitting.
- Technique: Wrap the tape clockwise (looking at the end of the pipe) about 3 to 4 times. Do not cover the very first thread to prevent tape shreds from entering the water line.
- Alternative: You can use a thin layer of pipe dope (thread sealant) instead of tape, but do not use both unless specified by the manufacturer.
- Hand-Tighten First: Screw the 3/8 male end into the 1/2 female port by hand. Ensure it goes in straight to avoid cross-threading. You should be able to turn it easily for the first few rotations.
- Wrench Tighten: Use an adjustable wrench to tighten the fitting.
- Critical Detail: Tighten approximately 1.5 to 2 full turns past hand-tight. For NPT threads, the seal is made by the threads wedging together. Overtightening can crack brass fittings; undertightening causes leaks.
- Connect the Supply Line: Attach your 3/8-inch supply line (e.g., the ice maker line) to the other side of your setup if this fitting is part of a larger assembly.
- Test for Leaks: Slowly turn the water back on. Watch the connection closely for the first 2 minutes. Run your finger around the joint to feel for fine sprays. If a leak appears, tighten slightly more (no more than a quarter turn).
Troubleshooting Common Issues
Even experienced DIYers face hurdles. Here is how to solve common problems associated with this specific adapter.
The Fitting Won’t Thread On
If the fitting stops turning after only one rotation, you likely have cross-threading.
- Solution: Back it out completely. Check for damaged threads. Re-align perfectly straight and try again. Never force it.
Persistent Leaking After Tightening
If water seeps out despite tightening, your sealant method may be insufficient.
- Solution: Turn off the water, disassemble, and remove old tape. Apply fresh PTFE tape, ensuring you wrap it in the correct direction. If using pipe dope, ensure it covers all thread grooves.
Corrosion Appearing Quickly
If you see green or white crust forming within months, you may have a galvanic corrosion issue (mixing incompatible metals like steel and brass without a dielectric union).
- Solution: Replace the fitting with a brass or stainless steel version and consider installing a dielectric union if connecting to galvanized steel pipes.
FAQ: Frequently Asked Questions
1. Can I use a 3/8 male to 1/2 female fitting for gas lines?
No. Never use standard plumbing fittings for gas lines unless they are specifically rated and labeled for gas (often yellow-dipped or marked “CSST/Gas”). Gas requires different sealants (yellow tape) and stricter leak testing. Using water-rated fittings for gas is a severe safety hazard.
2. What is the difference between NPT and Compression fittings?
NPT (National Pipe Taper) relies on tapered threads to seal and requires tape or dope. Compression fittings use a ferrule (a small ring) that compresses against the pipe when tightened, creating a seal without threading into the pipe itself. Ensure you buy the correct type; a 3 8 male to 1 2 female plumbing fitting is usually NPT on both ends, but hybrid versions exist.
3. Will this fitting reduce water pressure?
Technically, any reduction in pipe diameter can affect flow rate, but moving from 1/2-inch to 3/8-inch over a short distance (like an adapter) has a negligible impact on household water pressure. You will not notice a difference in shower strength or faucet flow.
4. Do I need a permit to install this adapter?
In most US jurisdictions, minor repairs and like-for-like replacements (including adding an adapter to connect an appliance) do not require a permit. However, if you are altering the main supply lines or moving pipes within walls, check your local building codes.
5. How long do these fittings last?
A high-quality brass fitting installed correctly can last 20 to 50 years. Plastic fittings may degrade faster, especially if exposed to UV light or hot water. Regular visual inspections during routine home maintenance are recommended.
Conclusion
Dealing with mismatched pipe sizes does not have to be a nightmare. With the right 3 8 male to 1 2 female plumbing fitting, you can seamlessly connect your appliances, fix leaks, and complete your renovation projects with professional results. By choosing the correct material, applying sealant properly, and following the step-by-step installation guide, you ensure a durable, leak-free connection that stands the test of time.
Remember, plumbing is about precision, not force. Take your time, double-check your connections, and enjoy the peace of mind that comes with a job well done.
