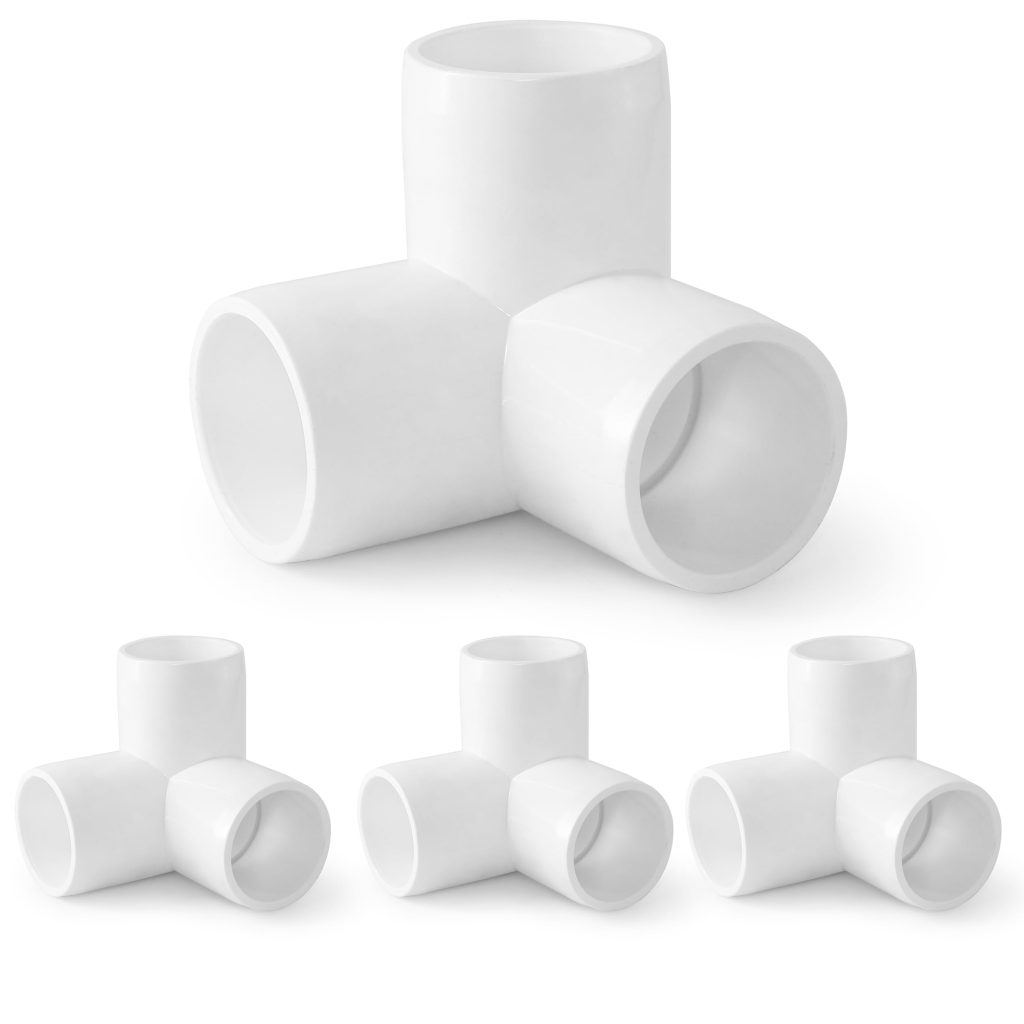

3-Inch White Plastic 3-Way Elbow Fittings: The Ultimate Guide

Have you ever stared at a complex network of pipes in your basement or backyard, wondering how to make three lines converge without causing a leak? It’s a common frustration for homeowners and contractors alike: finding the right connector that ensures smooth water flow while maintaining structural integrity. Whether you are upgrading a septic system or installing a new drainage line, selecting the correct 3 inch white plastic plumbing 3 way el fittings is the critical first step to a successful, leak-free project. In this guide, we will break down everything you need to know about these essential components, ensuring you make an informed decision with confidence.

What Exactly Is a 3-Way “El” Fitting and When Do You Need One?

When plumbers talk about a “3-way El,” they are often referring to a specific type of elbow fitting that allows for a branch connection, technically known as a Wye (Y) or a Combination Wye and Eighth Bend (Combo). Unlike a standard 90-degree elbow that simply turns a pipe, a 3-way fitting allows fluid from two different directions to merge into one, or one line to split into two.

You typically need a 3 inch white plastic plumbing 3 way el fittings in scenarios where:

• Branch Drainage: You need to connect a secondary drain line (like a sink or washing machine) into a main 3-inch soil stack.
• Directional Changes with Branches: The main line needs to change direction while simultaneously accepting a new input.
• Venting Systems: Creating complex vent networks where air needs to flow from multiple fixtures to the roof vent.

Using a standard tee instead of a proper sanitary wye in drainage applications can lead to frequent clogs. The angled design of a 3-way elbow encourages waste to flow smoothly rather than hitting a flat wall, which is a common cause of blockages in older systems.

Material Matters: Why White Plastic (PVC/ABS)?

In the US market, “white plastic” almost exclusively refers to PVC (Polyvinyl Chloride), though sometimes ABS (Acrylonitrile Butadiene Styrene) is used (which is usually black, but white variants exist for specific code requirements). For 3-inch applications, Schedule 40 PVC is the industry standard.

According to data from the Plastics Pipe Institute, plastic piping systems have a failure rate significantly lower than traditional cast iron or copper when installed correctly, primarily due to their resistance to corrosion and chemical degradation. White PVC is preferred because:

1. Corrosion Resistance: It does not rust or corrode when exposed to acidic waste or soil chemicals.
2. Smooth Interior: The inner walls remain smooth over decades, maintaining flow capacity.
3. Cost-Effectiveness: It is generally 40-60% cheaper than metal alternatives.
4. Ease of Installation: It requires no threading or welding, just solvent cement.

Expert Insight: “The transition from cast iron to PVC in residential drainage was one of the biggest leaps in plumbing efficiency. The hydraulic smoothness of a 3-inch PVC wye reduces friction loss by up to 30% compared to rougher metal counterparts.” — Senior Plumbing Engineer, Residential Construction Review.

Key Specifications: Choosing the Right Fit

Not all 3-inch fittings are created equal. Before heading to the hardware store, you must understand the specific specifications required for your project. Using the wrong pressure rating or angle can result in code violations or system failure.

Comparison: Schedule 40 vs. Schedule 80

For most residential applications involving 3 inch white plastic plumbing 3 way el fittings, Schedule 40 is the required standard for DWV (Drain, Waste, and Vent) systems. Schedule 80 is rarely needed unless you are dealing with high-pressure industrial effluent.

Understanding the Angles

The “El” in your search query implies an elbow component. In 3-way configurations, the angle of the branch is crucial:

• 1/8 Bend (22.5°): Gentle turn, best for main stack connections to prevent turbulence.
• 1/6 Bend (30°): Moderate turn, common in tight spaces.
• 1/4 Bend (90°): Sharp turn. Warning: Never use a sharp 90-degree tee for horizontal-to-horizontal drainage transitions; it guarantees clogs. Use a “Combo” (Wye + 1/8 bend) instead.

Step-by-Step Installation Guide

Installing a 3-way fitting requires precision. A poor glue joint can lead to sewage leaks inside your walls or under your slab. Follow these concrete steps to ensure a professional-grade installation.

Tools and Materials Needed

• 3-inch White PVC 3-Way Fitting (Wye or Combo)
• PVC Primer (Purple) and Solvent Cement (Clear or Gray)
• Tape Measure and Marker
• PVC Pipe Cutter or Hacksaw
• Deburring Tool or Sandpaper
• Safety Glasses and Gloves
• Rags

Installation Process

1. Measure and Cut Precisely Measure the section of the pipe where the fitting will go. Mark your cut lines clearly. Using a pipe cutter, make a straight 90-degree cut. Tip: A crooked cut leaves gaps that cement cannot fill.
2. Dry Fit the Assembly Before applying any chemicals, assemble the pipes and the 3 inch white plastic plumbing 3 way el fittings dry. Ensure the branch aligns perfectly with your incoming line. Mark the alignment lines on the pipe and fitting with a marker so you know how far to push them during the final glue-up.
3. Deburr and Clean Use your deburring tool or sandpaper to remove all plastic shavings from the inside and outside of the cut pipe. Wipe both the pipe end and the fitting socket with a clean, dry rag to remove dust and moisture. Note: Even a small amount of dirt can break the chemical bond.
4. Apply Primer (The Purple Step) Dip the primer brush into the can and apply a generous coat to the outside of the pipe end and the inside of the fitting socket. You should see the white plastic soften slightly and turn purple. This step is mandatory for code compliance in most US states.
5. Apply Solvent Cement While the primer is still wet, apply a liberal layer of solvent cement to the same areas (pipe exterior and fitting interior). Do not skimp here; you want to see a small bead of glue squeeze out when joined.
6. Join and Twist Immediately push the pipe into the fitting. Give it a quarter-turn (90 degrees) twist as you push. This distributes the cement evenly. Align your marker lines. Hold the joint firmly for 30 seconds to prevent it from pushing back out due to hydraulic pressure.
7. Curing Time Wait at least 15 minutes before handling the pipe gently, and 2 hours before running water through it. For full pressure testing, wait 24 hours. Temperature Note: If working in temperatures below 40°F (4°C), curing times may double.

Common Mistakes to Avoid

Even experienced DIYers make errors when working with plastic plumbing. Here are the top pitfalls to avoid when using 3 inch white plastic plumbing 3 way el fittings:

• Using the Wrong Glue: Never use ABS cement on PVC pipes, or vice versa. They require specific chemical solvents. Using the wrong type results in a weak joint that will fail under stress.
• Ignoring Flow Direction: A Wye fitting is directional. Installing it backward (against the flow) will cause immediate blockages. Always ensure the branch enters the main line in the direction of the flow.
• Over-tightening Supports: Plastic expands and contracts with temperature changes. Secure your pipes with hangers, but do not clamp them so tightly that the pipe cannot move slightly, which can stress the glued joints.
• Skipping the Primer: Some “all-in-one” cements claim not to need primer. However, most US building inspectors will fail your inspection if purple primer is not visible on the joint. Always use primer for DWV systems.

Frequently Asked Questions (FAQ)

1. Can I use a 3-inch white plastic 3-way fitting for pressurized water lines?

Generally, no. Most 3-way “el” fittings (Wyes/Combos) are rated for DWV (Drain, Waste, Vent) applications, which are non-pressurized gravity systems. If you need to split a pressurized water line, you should use a standard PVC Tee rated for pressure (often Schedule 80 or specific pressure-class fittings) and check the manufacturer’s PSI rating.

2. What is the difference between a “Wye” and a “Tee”?

A Tee has a 90-degree branch, creating a sharp turn for the flowing liquid. A Wye (Y-shape) has a 45-degree (or similar angled) branch. In drainage, a Wye is superior because it guides waste smoothly into the main line, reducing the risk of clogs. A Tee is acceptable only when connecting a vertical vent pipe to a horizontal drain, not for joining two horizontal drains.

3. Is white PVC safe for drinking water?

White Schedule 40 PVC marked with “NSF-pw” or “NSF-61” is safe for potable (drinking) water. However, many 3-inch DWV fittings are not rated for drinking water. Always check the stamp on the fitting. If it says “DWV” only, do not use it for your main water supply line.

4. How do I connect a 3-inch fitting to a 4-inch pipe?

You cannot directly glue a 3-inch spigot into a 4-inch hub. You will need a reducer bushing or a specific 4×3 Wye fitting. A reducer bushing fits inside the 4-inch opening to accept the 3-inch pipe. Ensure the bushing is glued securely and oriented correctly to avoid catching debris.

5. Can I paint white plastic plumbing fittings?

Yes, but you must prepare the surface first. PVC is non-porous, so paint won’t stick well to raw plastic. Clean the fitting with a mild detergent, rinse, and dry. Then, apply a primer designed for plastics (not the purple plumbing primer) before painting with an acrylic or epoxy-based paint suitable for bathrooms or exteriors.

6. What if I make a mistake after gluing?

Once PVC solvent cement cures, the joint is permanent. The plastic layers have essentially melted together. There is no way to undo a glued joint. You must cut the pipe out completely using a hacksaw or reciprocating saw and install a new section using two slip-fix couplings or a new fitting assembly.

Conclusion

Selecting and installing the right 3 inch white plastic plumbing 3 way el fittings is more than just a hardware purchase; it is an investment in the long-term reliability of your home’s drainage system. By understanding the difference between Wyes and Tees, respecting the chemical bonding process of PVC, and adhering to local building codes, you can prevent costly leaks and frustrating clogs down the road.

Remember, the key to a successful plumbing project lies in the details: proper priming, correct alignment, and allowing adequate cure time. Whether you are a seasoned contractor or a dedicated DIY homeowner, treating every joint with care ensures your system runs smoothly for decades.
