Master Your Project: The 3 Way 1 1/2 Inch PVC Plumbing Pipe Guide

Are you staring at a complex junction in your drainage system, wondering how to split a flow without causing a future clog? You are not alone; many homeowners and contractors face the challenge of connecting multiple lines efficiently while adhering to strict plumbing codes. Choosing the right 3 way 1 1/2 inch PVC plumbing pipe fitting is critical not just for water flow, but for the long-term health of your entire plumbing infrastructure. In this guide, we will break down exactly what you need to know to make the right choice, ensuring your project is durable, code-compliant, and leak-free.

What Exactly Is a 3-Way 1 1/2 Inch PVC Fitting?

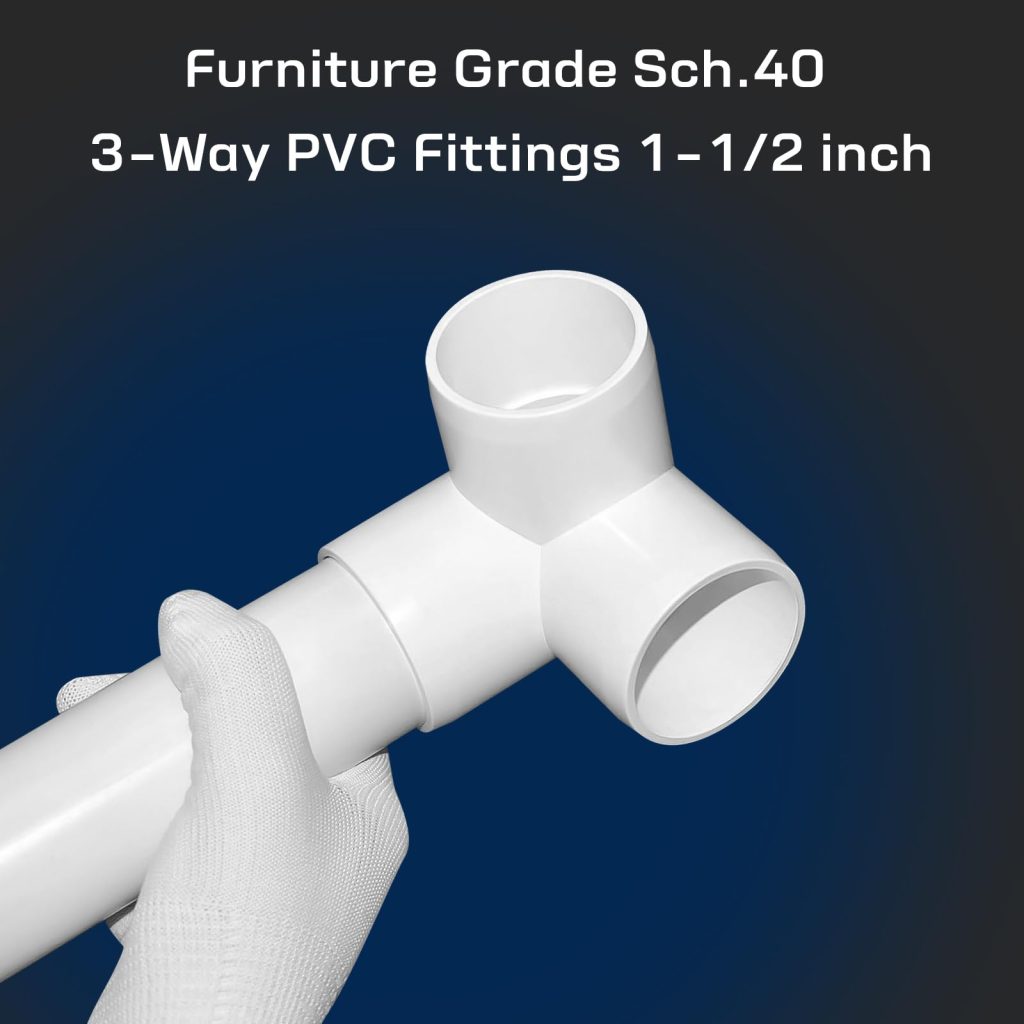

When plumbers talk about a “3-way” fitting in the context of a 3 way 1 1/2 inch PVC plumbing pipe, they are rarely referring to a single, universal part. Instead, this term usually encompasses two distinct types of fittings that serve very different purposes: the Sanitary Tee and the Wye (Y). Understanding the difference is the first step to a successful installation.

A Sanitary Tee looks like a “T”. It allows flow from a vertical line to turn 90 degrees into a horizontal line, or vice versa. However, it is designed specifically for waste moving from a horizontal branch into a vertical stack. Using it incorrectly can lead to immediate blockages.

A Wye (Y) fitting, on the other hand, branches off at a 45-degree angle. This gentle slope mimics the natural flow of water, reducing turbulence and preventing solid waste from getting caught at the junction. For a 1 1/2 inch line—commonly used for bathroom sinks, laundry standpipes, and vent lines—choosing between these two determines whether your drain sings or gurgles.

Key Specifications for 1 1/2 Inch PVC

• Nominal Size: 1.5 inches (Actual outer diameter is typically 1.900 inches for Schedule 40).
• Material: Polyvinyl Chloride (PVC).
• Common Schedules: Schedule 40 (standard pressure/drain) and Schedule 80 (heavy-duty).
• Connection Type: Socket (Slip) x Socket x Socket, or sometimes Spigot x Socket.

Sanitary Tee vs. Wye: Which One Do You Actually Need?

This is the most common question found in “People Also Ask” sections across search engines. The answer depends entirely on the direction of the flow and the orientation of the pipes.

The Rule of Thumb

• Vertical to Horizontal: If you are draining water from a vertical pipe down into a horizontal run, a Sanitary Tee is often acceptable (and sometimes required) depending on local codes, provided the flow is gravity-fed downward.
• Horizontal to Horizontal: If you are joining two horizontal lines or branching off a horizontal line, you must use a Wye (often combined with a 45-degree elbow, known as a “Combo”). Never use a Sanitary Tee on its side for horizontal flow; it acts like a dam for solids.

Comparison Table: Sanitary Tee vs. Wye

Expert Insight: According to general plumbing engineering principles, maintaining a smooth flow path is essential to prevent “hydraulic jump,” where water slows down abruptly and drops solids. The Wikipedia entry on Plumbing highlights how proper fitting selection reduces maintenance costs over the lifecycle of a building.

Step-by-Step: How to Install a 3-Way 1 1/2 Inch PVC Connection

Installing a 3 way 1 1/2 inch PVC plumbing pipe fitting requires precision. A poor glue job can lead to leaks inside your walls, which is a nightmare to fix. Follow this exact tutorial for a professional result.

Tools and Materials Needed

• 1 1/2 inch PVC Sanitary Tee or Wye (as determined above).
• 1 1/2 inch PVC pipe sections.
• PVC Primer (Purple is standard for inspections).
• PVC Cement (Glue) rated for Schedule 40.
• Tape measure and marker.
• PVC pipe cutter or hacksaw.
• Deburring tool or sandpaper.
• Safety glasses and gloves.

Installation Procedure

1. Measure and Cut: Measure the gap where the fitting will go. Mark your 1 1/2 inch pipe. Cut the pipe squarely using a pipe cutter. A crooked cut leaves gaps that glue cannot fill.
2. Dry Fit First: Assemble the pipes and the 3 way 1 1/2 inch PVC plumbing pipe fitting without glue. Ensure the angles are correct and the depth of the insertion is marked. Disassemble.
3. Deburr and Clean: Use your deburring tool or sandpaper to remove any plastic shards from the inside and outside of the cut pipe. Wipe the ends with a clean rag to remove dust.
4. Apply Primer: Dip the primer brush into the can. Apply a generous coat of purple primer to the outside of the pipe ends and the inside of the fitting sockets. This softens the plastic for a chemical weld. Wait about 5–10 seconds until tacky.
5. Apply Cement: Immediately apply a liberal layer of PVC cement to the primed areas. Do not skimp; you want a bead of glue visible when inserted.
6. The Quarter-Turn Twist: Push the pipe into the fitting firmly. Give it a quarter-turn (90 degrees) twist as you push. This spreads the cement evenly. Hold the joint together for 30 seconds to prevent it from pushing back out due to hydraulic pressure.
7. Cure Time: While the joint sets in 30 seconds, do not stress the pipe. Wait at least 2 hours before running water through a 1 1/2 inch line, though 24 hours is ideal for full pressure strength.

Critical Tip: Work in a well-ventilated area. PVC cement fumes are potent. If the temperature is below 40°F (4°C) or above 100°F (38°C), consult the cement manufacturer’s instructions, as cure times vary drastically.

Common Applications for 1 1/2 Inch PVC Lines

Why is the 1 1/2 inch size so popular? In the United States, this dimension is the workhorse of residential bathroom plumbing.

• Bathroom Sinks: Almost all vanity drains utilize 1 1/2 inch piping. A wye fitting here allows you to connect a second sink in a double-vanity setup.
• Laundry Standpipes: While some modern codes prefer 2 inch, many existing homes and specific jurisdictions still allow 1 1/2 inch for washing machine drains, provided the venting is adequate.
• Vent Stacks: Vent lines, which regulate air pressure to allow water to flow smoothly, frequently use 1 1/2 inch PVC. Here, a Sanitary Tee is commonly used to connect the vent to the main stack.
• Condensate Drains: HVAC systems often produce condensation that is routed away via 1 1/2 inch PVC lines using simple tee fittings.

Real-World Scenario: The Double Vanity Upgrade

Imagine you are renovating a master bath to include a double vanity. You have a single 1 1/2 inch drain coming out of the wall. To connect two sinks, you cannot simply shove two pipes into one. You need a 3 way 1 1/2 inch PVC plumbing pipe configuration.

1. Install a Wye fitting on the existing horizontal line.
2. Attach a short nipple to the branch of the Wye.
3. Use another Wye or a specialized double-fixture fitting to split the flow further if needed.
4. Ensure every trap (the U-shaped pipe under the sink) is within 24 inches of the vent to prevent siphoning.

Troubleshooting: Why Is My New Fitting Leaking or Clogging?

Even with the best intentions, things can go wrong. Here is how to diagnose issues related to your 3-way installation.

Issue 1: The Joint is Leeping

• Cause: You didn’t use enough primer, or you didn’t twist the pipe during assembly. Another possibility is that the pipe wasn’t cut square, leaving a gap.
• Fix: There is no “re-gluing” a failed PVC joint. You must cut out the section entirely and replace the fitting and the adjacent pipe segments.

Issue 2: Frequent Clogs at the Junction

• Cause: You likely used a Sanitary Tee on a horizontal line. Solids hit the flat back of the tee and accumulate.
• Fix: Replace the Sanitary Tee with a Wye fitting. Ensure the slope of your horizontal pipe is at least 1/4 inch per foot. If the slope is too flat, water moves too slowly to carry waste.

Issue 3: Gurgling Sounds

• Cause: Improper venting. When water rushes down the drain, it creates a vacuum. If your 3-way setup blocked the vent path, air gets sucked through the P-trap, causing that gurgle.
• Fix: Check that your vent stack is clear and that you haven’t accidentally created an “S-trap” (a prohibited configuration where the pipe dips down and then up before exiting).

FAQ Section

1. Can I use a regular “T” fitting for drainage?

No. A standard “T” (often called a furniture grade or pressure tee) has a sharp 90-degree corner inside. This creates immediate turbulence and catches debris, leading to clogs. Always use a Sanitary Tee or a Wye for drainage applications involving waste.

2. Is 1 1/2 inch PVC strong enough for a main sewer line?

Generally, no. Main sewer lines exiting a house are typically 3 inches or 4 inches in diameter to handle the volume of toilets and multiple fixtures. A 3 way 1 1/2 inch PVC plumbing pipe fitting is intended for branch lines (sinks, vents, showers), not the main sewage exit.

3. Do I need to use primer with PVC cement?

In almost all US jurisdictions, yes. The International Plumbing Code (IPC) requires both primer and cement for pressurized and non-pressurized PVC joints to ensure a proper chemical bond. Skipping primer may pass a visual inspection initially but often fails pressure tests or long-term durability checks.

4. What is the difference between Schedule 40 and Schedule 80?

Schedule 80 has thicker walls and can handle higher pressure, but it has a smaller inner diameter. For standard residential drainage (DWV – Drain, Waste, Vent), Schedule 40 is the standard and is perfectly adequate. They share the same outer diameter, so fittings are interchangeable, but the flow capacity differs slightly.

5. Can I install these fittings in cold weather?

You can, but you must be careful. PVC becomes brittle in freezing temperatures, making it prone to cracking during cutting or assembly. Furthermore, PVC cement cures much slower in the cold. Keep the materials indoors until the moment of installation and extend the cure time before testing.

Conclusion

Mastering the use of a 3 way 1 1/2 inch PVC plumbing pipe fitting is a fundamental skill for any serious DIYer or plumbing professional. By understanding the critical differences between a Sanitary Tee and a Wye, respecting the chemistry of PVC bonding, and adhering to code-compliant slopes, you can build a drainage system that lasts for decades. Remember, the goal isn’t just to connect pipes; it’s to facilitate smooth, trouble-free flow.
