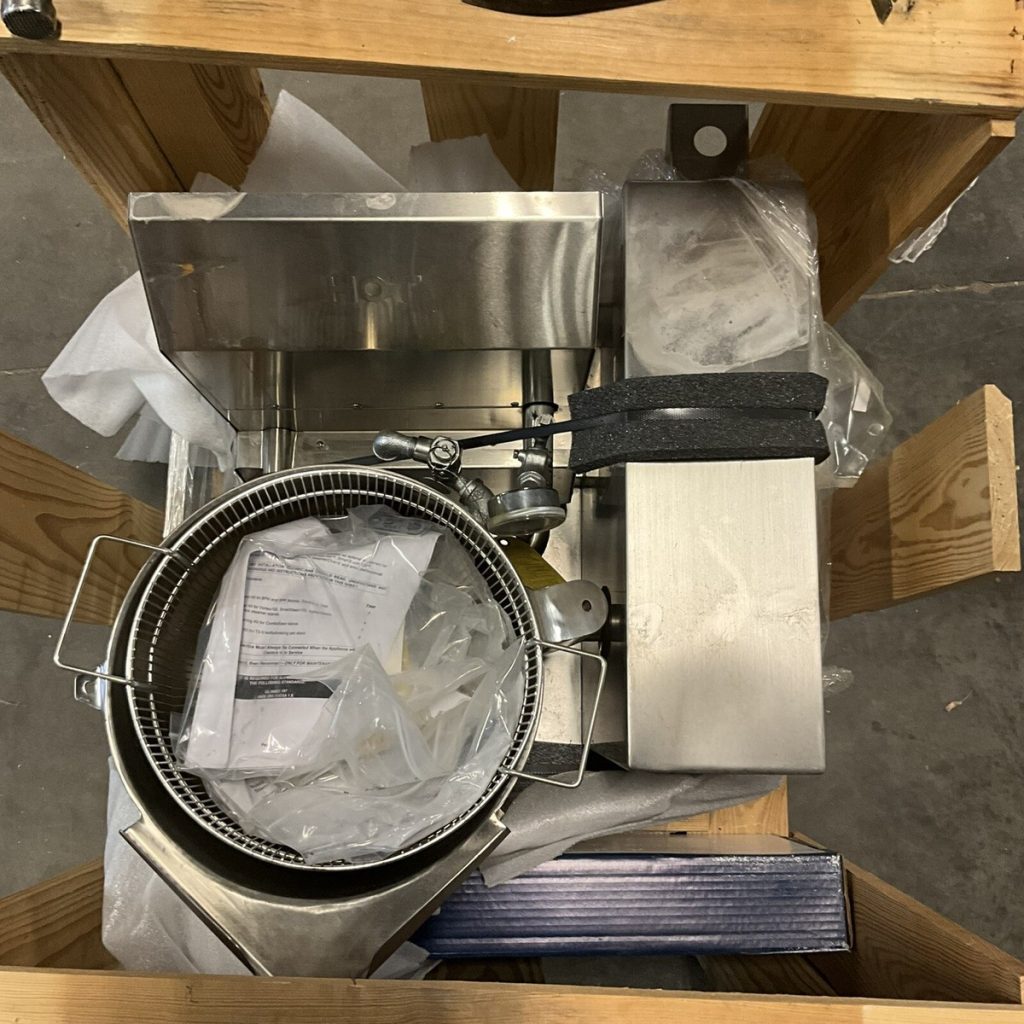

30 Year Old 5 Gallon Steam Jacket: Is It Worth Buying?

Are you looking to start a small-batch food production line or a craft brewery on a tight budget? Finding high-quality industrial equipment can be daunting, especially when you stumble upon a listing for a 30 year old 5 gallon steam jacket plumbed tilting kettle. While the price tag might look incredibly attractive compared to brand-new models, purchasing three-decade-old machinery comes with significant hidden risks and potential rewards. In this guide, we will break down exactly what you need to know about aging steam-jacketed kettles, helping you decide if this vintage workhorse is a goldmine or a money pit.

What Exactly Is a “Plumbed Tilting” Steam Jacket Kettle?

Before diving into the age factor, it is crucial to understand the mechanics of the equipment you are considering. A 5 gallon steam jacket kettle is a vessel used primarily in food processing, pharmaceutical compounding, and craft brewing to heat liquids evenly using steam pressure rather than direct fire.

The term “plumbed” indicates that the unit is designed to be permanently connected to an external steam source (like a boiler) and water supply, rather than being a self-contained electric unit. The “tilting” mechanism allows the heavy kettle to pivot, usually via a hand crank or gear motor, enabling easy pouring of thick sauces, soups, or wort without manual lifting.

When you see a listing for a 30 year old 5 gallon steam jacket plumbed tilting unit, you are looking at a piece of industrial heritage. These units were built to last, often constructed from heavy-gauge stainless steel (typically 304 or 316 grade). However, age affects more than just the exterior shine.

Key Components to Identify

• The Jacket: The double-walled space where steam circulates.
• The Tilting Mechanism: Gears, trunnions, and handles that allow rotation.
• Valves and Fittings: Steam inlet, condensate outlet, and safety relief valves.
• Seals and Gaskets: Critical points that degrade over time.

The Reality of Buying 30-Year-Old Industrial Equipment

Is it wise to buy equipment manufactured in the mid-1990s? The answer depends entirely on your technical capability and risk tolerance. Industrial kitchen equipment from the 1990s was engineered with a “buy it for life” mentality, often featuring thicker metal and simpler mechanical systems than some modern counterparts. However, technology and safety standards have evolved.

The Pros of Vintage Units

1. Build Quality: Older kettles often use heavier gauge stainless steel, making them more durable against physical dents and corrosion.
2. Cost Efficiency: A 30 year old 5 gallon steam jacket plumbed tilting kettle can cost 60–70% less than a new equivalent.
3. Simplicity: Mechanical tilting gears are often easier to repair than modern electronic actuators if parts are still available.

The Cons and Risks

1. Obsolete Parts: Finding gaskets, specific valve fittings, or gear replacements for a brand that may no longer exist can be a nightmare.
2. Safety Standards: Pressure vessel regulations have tightened significantly since the 1990s. An old kettle might not meet current ASME (American Society of Mechanical Engineers) codes required by local inspectors.
3. Hidden Damage: Micro-fractures in the steam jacket or pitting corrosion inside the pot may not be visible to the naked eye.

According to general engineering principles regarding pressure vessels, the integrity of the metal degrades over time due to thermal cycling (heating and cooling). For a deeper understanding of pressure vessel safety history, you can refer to Wikipedia’s overview on pressure vessels.

Critical Inspection Checklist: Don’t Buy Blindly

If you are seriously considering a 30 year old 5 gallon steam jacket plumbed tilting unit, never buy it without a physical inspection. Here is a step-by-step guide to evaluating the unit.

1. Inspect the Stainless Steel Interior

Look for pitting corrosion. This appears as tiny black dots or rough patches on the steel surface.

• Acceptable: Minor surface staining that cleans off with citric acid or passivation gel.
• Dealbreaker: Deep pits that catch your fingernail. This indicates the structural integrity is compromised, and bacteria can hide there, making it unsafe for food production.

2. Test the Tilting Mechanism

This is often the first part to fail on old units.

• Action: Try to tilt the kettle from 0 to 90 degrees.
• What to feel: It should move smoothly. If it grinds, sticks, or feels “notchy,” the trunnion bearings or gear teeth are worn.
• Warning: On a 5-gallon unit, the leverage is manageable, but if the gears are stripped, fabrication of new parts could cost more than the kettle itself.

3. Check the Steam Jacket Integrity

This is the most critical safety step.

• Visual Check: Look for rust bubbles on the exterior of the jacket. This often indicates water leaking from the jacket and trapping moisture against the outer shell.
• Pressure Test: Ideally, hire a professional to hydro-test the jacket. If you cannot do this, ask the seller for proof of recent pressure testing. A leaking jacket means the unit is scrap metal.

4. Evaluate the Valves and Plumbing

Since this is a plumbed unit, check the inlet and outlet ports.

• Are the threads corroded?
• Do the valves turn freely, or are they seized?
• Note: Replacing old brass or bronze valves with modern stainless steel ones is standard, but ensure the port sizes match current industry standards (e.g., NPT fittings).

Comparison: Vintage vs. New 5-Gallon Kettles

To help you make an informed decision, here is a direct comparison between buying a 30 year old 5 gallon steam jacket plumbed tilting kettle versus purchasing a brand-new model.

Expert Insight: “While the upfront savings of a vintage kettle are tempting, small business owners must calculate the ‘Total Cost of Ownership.’ If you spend $1,200 on an old kettle and another $2,000 on repairs and compliance certification within the first year, you would have been better off financing a new unit.” — Industry Equipment Consultant.

Step-by-Step: How to Restore a Used Steam Kettle

If you have purchased a 30 year old 5 gallon steam jacket plumbed tilting kettle and it passed the initial inspection, follow these steps to bring it up to operational standard.

Step 1: Deep Cleaning and Passivation

Old kettles often have mineral buildup and surface oxidation.

1. Fill the kettle with a solution of warm water and citric acid (concentration: 2–4%).
2. Let it sit for 2 hours to remove scale.
3. Scrub gently with a non-abrasive pad.
4. Rinse thoroughly and apply a passivation gel to restore the protective chromium oxide layer on the stainless steel.

Step 2: Replace All Seals and Gaskets

Never trust 30-year-old rubber.

• Remove all gaskets from the steam inlet, condensate outlet, and tilt mechanism housing.
• Measure the dimensions precisely.
• Order FDA-grade silicone or Viton gaskets suitable for steam temperatures (up to 150°C / 300°F).

Step 3: Lubricate the Tilting Gearbox

1. Locate the grease zerks (fittings) on the trunnion supports.
2. Use a high-temperature, food-grade grease (NLGI Grade 2).
3. Pump grease until you see fresh lubricant purging the old, dark grease out of the seals.
4. Cycle the tilt mechanism 10 times to distribute the lubricant.

Step 4: Install Modern Safety Valves

Old pressure relief valves may be stuck or calibrated incorrectly.

• Install a new ASME-certified safety relief valve rated for the maximum working pressure of the jacket (usually 15–30 PSI for low-pressure kettles).
• Ensure the discharge pipe is directed safely away from the operator.

Step 5: Conduct a Leak Test

1. Connect the kettle to your steam source slowly.
2. Pressurize the jacket to 50% of its rated capacity.
3. Inspect all joints, welds, and the new valves with a soap solution. Bubbles indicate leaks.
4. If no leaks appear, bring to full operating pressure and monitor for 30 minutes.

Frequently Asked Questions (FAQ)

1. Is it safe to use a 30-year-old steam jacket kettle for commercial food production?

It can be safe, but only if it passes a rigorous pressure test and meets your local health department’s equipment codes. Many jurisdictions require an ASME stamp valid within a certain timeframe. Always consult your local inspector before putting a vintage pressure vessel into commercial service.

2. Where can I find replacement parts for a 30 year old 5 gallon steam jacket plumbed tilting kettle?

Parts availability depends on the original manufacturer (e.g., Groen, Hamilton, Blodgett). For generic components like gaskets and valves, industrial supply houses like Grainger or McMaster-Carr are excellent resources. For proprietary gears or castings, you may need to contact specialized restaurant equipment refurbishers or machine shops.

3. What is the typical lifespan of a steam jacketed kettle?

With proper maintenance, the stainless steel vessel itself can last 50+ years. However, the functional lifespan of the system (valves, seals, gears) is typically 15–20 years before major overhauls are needed. A 30-year-old unit is considered to be in its “retirement” phase unless it has been meticulously maintained.

4. Can I convert a plumbed steam kettle to electric?

Technically, yes, but it is rarely cost-effective. Converting a plumbed unit to electric requires installing immersion heating elements or an external electric steam generator, which involves complex wiring and control panels. It is usually cheaper to sell the steam unit and buy an electric model designed for that purpose.

5. How much steam pressure does a 5-gallon kettle require?

Most 5-gallon tilting kettles operate on low-pressure steam, typically between 15 PSI and 30 PSI. Using higher pressure can damage the older seams of a 30-year-old unit. Always check the data plate on the kettle for the Maximum Allowable Working Pressure (MAWP).

6. What are the signs that the kettle is beyond repair?

If you find deep pitting corrosion inside the pot, cracks in the welds of the steam jacket, or if the jacket fails a hydrostatic pressure test, the unit is beyond economical repair. Additionally, if the tilting mechanism has broken casting supports, welding them back together is often unsafe due to the stress loads involved.

Conclusion

Investing in a 30 year old 5 gallon steam jacket plumbed tilting kettle is a decision that balances significant cost savings against potential maintenance headaches and safety concerns. While these vintage units were built like tanks and can still serve as reliable workhorses for small batches, they demand a careful eye and a willingness to perform restorative maintenance.

If you have the technical skills to inspect, refurbish, and certify the equipment, you could secure a high-quality asset for a fraction of the new price. However, if you require guaranteed uptime, strict regulatory compliance, and warranty protection, investing in a modern unit may be the wiser long-term strategy for your business.
