Smart 30×30 House Floor Plans With All Plumbing on 1 Wall

Building a compact home doesn’t mean sacrificing functionality—or your budget. If you’re exploring 30×30 house floor plans with all plumbing on 1 wall, you’re likely looking for a smart, efficient layout that reduces construction complexity and plumbing costs. This design approach is gaining popularity among DIY builders, tiny home enthusiasts, and budget-conscious homeowners across the U.S.—and for good reason. Let’s break down why this strategy works and how to implement it effectively.

Why Put All Plumbing on One Wall? (And Does It Really Save Money?)

One of the biggest hidden costs in home construction is plumbing. According to the National Association of Home Builders (NAHB), plumbing can account for 5–10% of total construction costs—and that jumps significantly if pipes are scattered across multiple walls.

By consolidating all wet areas (kitchen, bathroom, laundry) along a single wall, you:

• Reduce pipe length by up to 40% (per EPA WaterSense guidelines)
• Lower labor time for plumbers
• Minimize future leak risks and repair access points
• Simplify insulation and framing

This “stacked plumbing” strategy is commonly used in apartment buildings—but it’s just as effective in compact single-family homes like a 30×30 house floor plan.

“Grouping plumbing fixtures vertically or horizontally is a hallmark of cost-efficient design. It’s not just about saving copper—it’s about smarter spatial planning.”
— Sarah Williams, Certified Residential Designer & NAHB Green Building Expert

Key Benefits of 30×30 House Floor Plans With All Plumbing on 1 Wall

Here’s why this layout is ideal for small homes:

✅ Cost Savings: Fewer materials, less labor, faster installation
✅ Faster Build Time: Simplified MEP (mechanical, electrical, plumbing) coordination
✅ Easier Future Renovations: All plumbing access is centralized
✅ Better Energy Efficiency: Reduced hot water wait time = less wasted water and energy
✅ Ideal for ADUs & Tiny Homes: Perfect for Accessory Dwelling Units (ADUs) under 900 sq ft

For reference, a typical 30×30 home = 900 square feet—a sweet spot for minimalist living or rental income properties.

How to Design a Functional 30×30 Layout With Plumbing on One Wall

Follow these 5 practical steps to create an efficient, livable plan:

Step 1: Choose the Right Wall

Pick an interior wall that runs front-to-back or side-to-side without major structural interruptions. Avoid exterior walls in cold climates (to prevent pipe freezing).

Step 2: Stack Wet Areas Vertically or Horizontally

• Option A (Horizontal): Place bathroom, kitchen sink, and laundry side by side along the wall.
• Option B (Vertical): If building two stories, align bathrooms/kitchen directly above each other.

Example: In a 30×30 single-story home, position the bathroom at one end of the wall, kitchen in the middle, and utility closet at the other—all sharing the same supply and drain lines.

Step 3: Maintain Minimum Clearances

• Bathroom: At least 30” clear in front of fixtures (per ADA guidelines)
• Kitchen: 42” minimum walkway between counter and opposite wall
• Laundry: 36” of front clearance for washer/dryer access

Step 4: Coordinate with Framing Early

Work with your builder or architect to frame stub-outs during rough-in. This avoids costly rework later.

Step 5: Use Standard Fixture Dimensions

Stick to standard sink (22” wide), toilet (30” wide including clearance), and shower (36”x36”) sizes to avoid custom plumbing adapters.

For more on plumbing code basics, see the International Plumbing Code overview on Wikipedia.

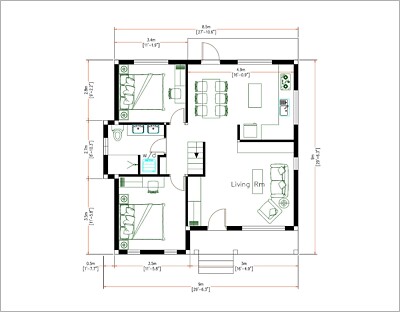

Sample 30×30 Floor Plan Layout (Text-Based Infographic)

1234567891011121314151617

All plumbing fixtures (toilet, shower, sink, kitchen sink, washer) align along the central interior wall.

Pros vs. Cons: Is This Layout Right for You?

Tip: This layout shines in rectangular lots, infill urban builds, or backyard ADUs—less ideal if you dream of a freestanding kitchen island far from utilities.

Real-World Case Study: Texas ADU Project Saves $4,200

In Austin, TX, homeowner Maria R. built a 900 sq ft ADU using a 30×30 floor plan with all plumbing on one wall. By aligning the bathroom, kitchenette, and laundry closet along a single interior partition:

• Plumbing rough-in took 2 days instead of 5
• Material costs dropped by $1,800
• Total plumbing savings: $4,200 (including labor)
• The unit rented out 3 weeks after completion

“Grouping the plumbing was the best decision,” Maria said. “My contractor loved it—and my tenants never notice the layout ‘limitation.’”

Common Mistakes to Avoid

🚫 Putting plumbing on an exterior wall → Risk of frozen pipes in Zone 5+ climates
🚫 Ignoring vent stack placement → Can cause drainage issues if not planned early
🚫 Overcrowding fixtures → Violates building codes and hurts usability
🚫 Forgetting future access panels → Always install an access hatch behind the shower or under the sink

FAQ: 30×30 House Floor Plans With All Plumbing on 1 Wall

Q1: Can I put all plumbing on an exterior wall?

A: Technically yes—but it’s not recommended in climates where temperatures drop below freezing. Interior walls provide better insulation and easier access. If you must use an exterior wall, insulate pipes thoroughly and consider heat tape.

Q2: Does this layout limit design creativity?

A: Not necessarily. You can still have vaulted ceilings, open living areas, or large windows—just keep wet zones clustered. Many modern tiny homes use this approach without feeling cramped.

Q3: How much money can I really save?

A: Most builders report $2,000–$5,000 savings on plumbing alone in a 900 sq ft home. Add reduced framing and electrical coordination, and total savings can exceed $7,000.

Q4: Is this allowed by building codes?

A: Yes. The International Residential Code (IRC) doesn’t prohibit grouped plumbing—in fact, it encourages efficient MEP routing. Just ensure proper venting, slope (¼” per foot for drains), and fixture spacing.

Q5: Can I do this in a two-story 30×30 house?

A: Absolutely! In fact, it’s even more efficient. Stack bathrooms and kitchen directly above each other so drain lines drop vertically through one chase wall.

Q6: Where can I find free or affordable 30×30 plans with this feature?

A: Reputable sources include:

• The Plan Collection (filter by “plumbing stack”)
• Houseplans.com (search “compact + wet wall”)
• Local ADU design firms (many offer templates for under $300)

Conclusion: Build Smarter, Not Bigger

A 30×30 house floor plan with all plumbing on 1 wall isn’t just a budget hack—it’s a strategic design choice that delivers long-term value, simplicity, and sustainability. Whether you’re building a backyard guest house, a retirement cottage, or a minimalist starter home, this approach keeps costs down without compromising comfort.

If this guide helped you envision your efficient small home, share it with a friend who’s planning a build! 💡
👉 Tag them on Facebook, Pinterest, or Instagram—and maybe you’ll both save thousands on your next project.

Happy building!
