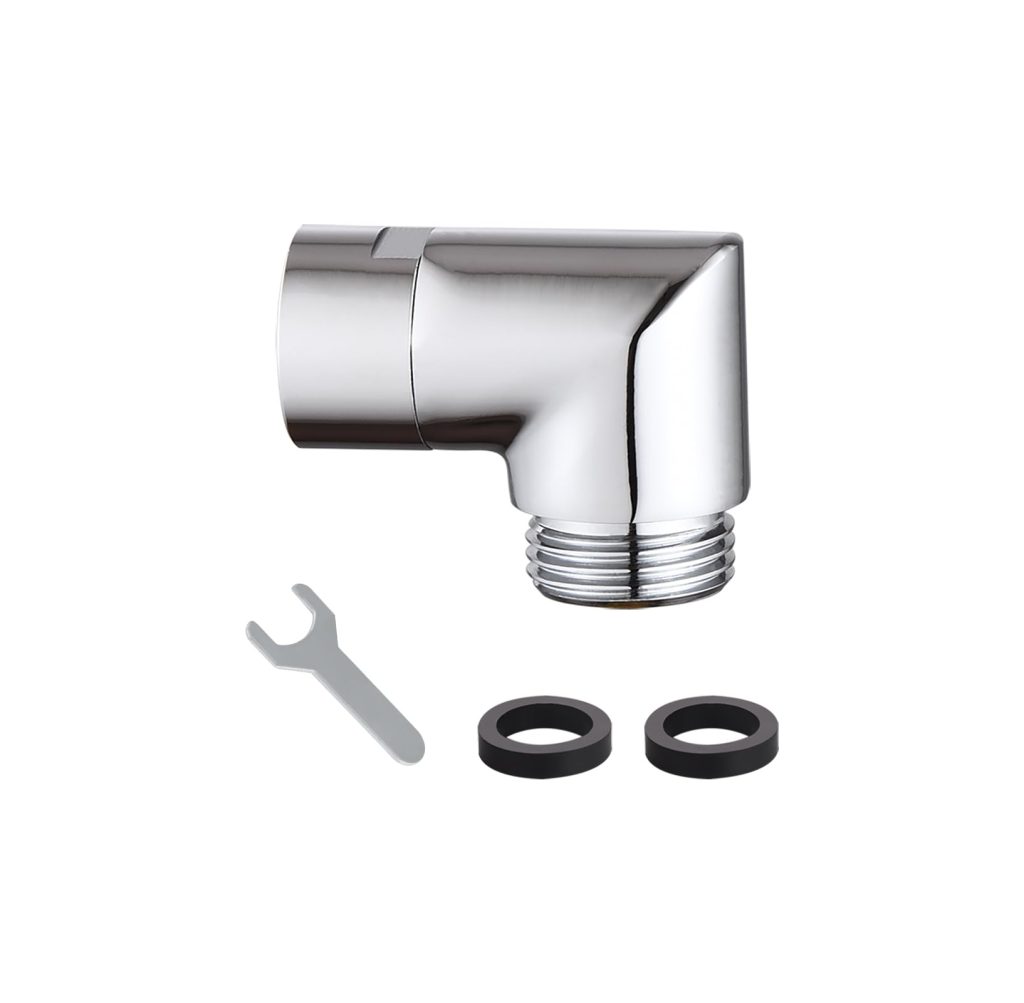

90 Degree Elbow Shower Fittings for Mobile Homes: The Ultimate Guide

There is nothing more stressful than discovering a water leak behind your shower wall, especially when you live in a manufactured home where plumbing systems can be unique and unforgiving. Many homeowners panic, fearing expensive repairs, but the solution often lies in understanding the specific components needed, such as the right 90 degree elbow shower plumbing fittings for manufactured homes. Whether you are renovating your bathroom or fixing a sudden drip, choosing the correct fitting is the difference between a quick DIY win and a flooded floor. In this guide, we will walk you through everything you need to know to make the right choice with confidence.

Why Manufactured Homes Need Specific Plumbing Fittings

When dealing with residential plumbing, one size does not fit all. Manufactured homes (often called mobile homes) operate under different constraints and building codes compared to site-built houses. Understanding these differences is crucial before you head to the hardware store.

The Unique Constraints of Mobile Home Plumbing

Manufactured homes are built in factories and transported to their final location. This process subjects the plumbing system to vibration and movement that traditional homes do not experience. Consequently, the plumbing lines are often tighter, with less room for error in the walls.

• Space Limitations: Wall cavities in manufactured homes are typically narrower (often 2×3 studs instead of 2x4s), requiring compact fittings.
• Material Differences: While modern site-built homes frequently use copper or rigid PEX, many manufactured homes utilize CPVC (Chlorinated Polyvinyl Chloride) or flexible PEX-Al-PEX tubing to accommodate movement.
• Pressure Ratings: The fittings must withstand specific pressure ratings suitable for the thinner piping often found in these structures.

Using a standard residential elbow in a manufactured home can lead to stress fractures over time. According to industry standards, fittings in these homes must be rated for the specific thermal expansion and contraction rates of the piping material used during construction. For a deeper understanding of plumbing material standards, you can refer to general construction guidelines on Wikipedia.

Types of 90 Degree Elbows: Which One Fits Your System?

Not all elbows are created equal. When searching for 90 degree elbow shower plumbing fittings for manufactured homes, you will encounter several types. Choosing the wrong one can result in leaks or code violations.

1. CPVC 90-Degree Elbows

CPVC is the most common material found in older and many current manufactured homes. It is yellowish-white and requires a specific solvent cement for installation.

• Best For: Rigid piping systems where flexibility is not required at the joint.
• Pros: Highly resistant to corrosion, inexpensive, and easy to find.
• Cons: Can become brittle over time if exposed to freezing temperatures; requires chemical glue which needs curing time.

2. PEX 90-Degree Elbows (Crimp or Clamp)

Modern manufactured homes are increasingly switching to PEX (Cross-linked Polyethylene). These fittings are usually brass or plastic and require a special crimping tool.

• Best For: Systems prone to freezing or shifting, as PEX is flexible.
• Pros: Freeze-resistant, faster installation, fewer fittings needed due to pipe flexibility.
• Cons: Requires an investment in a crimping tool; cannot be used outdoors (UV sensitivity).

3. SharkBite (Push-to-Connect) Elbows

These are revolutionary for DIYers. They work with both PEX and CPVC (with adapters) and require no glue or tools.

• Best For: Emergency repairs or tight spaces where swinging a wrench is impossible.
• Pros: Instant installation, removable, highly reliable.
• Cons: Significantly more expensive per unit; some local codes restrict their use inside closed walls (check your local manufactured home regulations).

Comparison Table: Choosing the Right Fitting

Step-by-Step Installation Guide

Replacing a faulty elbow in your shower plumbing doesn’t have to be a nightmare. Follow these precise steps to ensure a leak-free connection. Note: Always turn off the main water supply before starting.

Step 1: Preparation and Safety

Before cutting any pipes, ensure the area is dry. Water and electricity (if using power tools nearby) do not mix.

• Turn off the water main.
• Open the shower faucet to drain residual water.
• Place a bucket under the work area to catch drips.
• Measure twice: Determine the exact length of pipe you need to remove. Remember, the fitting adds length back into the line.

Step 2: Cutting the Old Pipe

Use a dedicated pipe cutter for the cleanest edge. A hacksaw can work but may leave burrs that cause turbulence and leaks.

• Cut the pipe at least 2 inches away from the existing fitting on both sides.
• If replacing a section, cut out the damaged elbow and the compromised pipe segment.
• Critical Detail: Deburr the inside and outside of the cut pipe. For CPVC, use a deburring tool or sandpaper. For PEX, ensure the cut is perfectly square (90 degrees).

Step 3: Dry Fitting

Always perform a “dry fit” before applying glue or crimping.

• Insert the new 90 degree elbow shower plumbing fittings for manufactured homes into the pipe ends without adhesive.
• Check the alignment. Does the shower arm line up correctly?
• Mark the insertion depth on the pipe with a marker. This ensures you push the pipe in far enough during the final assembly.

Step 4: Final Assembly (Based on Material)

For CPVC:

1. Clean the pipe end and fitting socket with CPVC primer (purple).
2. Apply a liberal amount of CPVC solvent cement to both the pipe and the fitting.
3. Push the pipe into the fitting immediately and give it a quarter-turn to distribute the cement.
4. Hold firmly for 30 seconds to prevent push-out.
5. Wait Time: Allow at least 2 hours for curing before pressurizing (check cement label for temperature-specific times).

For PEX (Crimp Method):

1. Slide the copper or stainless steel crimp ring onto the pipe.
2. Push the pipe onto the brass elbow until it hits the internal stop.
3. Position the crimp tool over the ring and squeeze until the tool releases.
4. Use a “go/no-go” gauge to verify the crimp is perfect.

For Push-to-Connect:

1. Ensure the pipe end is smooth and round.
2. Push the pipe into the fitting until it bottoms out.
3. Tug gently to ensure the grip rings have engaged.

Step 5: Testing

Once the adhesive has cured (for CPVC) or the crimps are set:

• Turn the water main back on slowly.
• Inspect the new fitting closely for any signs of weeping or dripping.
• Run the shower for 5 minutes to check for leaks under flow pressure.

Common Mistakes to Avoid

Even experienced DIYers can make errors when working with the confined spaces of a manufactured home shower. Avoid these pitfalls to save time and money.

• Mixing Materials Incorrectly: Never glue CPVC to PVC. They look similar but have different chemical compositions. Using the wrong glue will result in an immediate failure.
• Over-tightening: If using threaded adapters on your elbow, do not overtighten. Plastic threads can crack easily. Use Teflon tape and hand-tighten plus a quarter turn with a wrench.
• Ignoring Support: In manufactured homes, water hammer (the shockwave from stopping water flow) can shake pipes loose. Ensure your new elbow is secured with a pipe strap within 6 inches of the fitting.
• Skipping the Primer: With CPVC, skipping the purple primer is a fatal mistake. The primer softens the plastic to allow the cement to fuse the pieces together chemically, not just stick them.

FAQ Section

1. Can I use standard home depot elbows for my mobile home shower?

While they may physically fit, it is risky. Manufactured homes often use specific pipe diameters (like 3/8″ or specific OD sizes) that differ from standard site-built 1/2″ or 3/4″ nominal sizes. Always measure the outside diameter of your existing pipe before buying. Using the wrong size can cause restricted water flow or leaks.

2. What is the difference between a “street” elbow and a regular 90-degree elbow?

A regular elbow has two female openings (sockets). A “street” elbow has one male end and one female end. In tight manufactured home shower walls, a street elbow can sometimes save space by eliminating the need for a short nipple piece of pipe. However, ensure the male end is compatible with your existing fitting.

3. How long does CPVC glue take to dry before I can shower?

While the initial set happens in minutes, full cure times vary based on humidity and temperature. Generally, you should wait at least 2 to 4 hours before turning the water on, and 24 hours is recommended for full pressure strength, especially in the humid environment of a bathroom.

4. Are push-to-connect fittings safe to hide inside the wall of a manufactured home?

This depends on your local building code and the specific brand. Many professional plumbers prefer crimped PEX or glued CPVC for concealed spaces because they are permanent. Push-to-connect fittings are excellent for accessible areas but check your home’s compliance manual before burying them behind drywall.

5. My shower pressure dropped after changing the elbow. What happened?

This is often caused by using a “restrictive” fitting or leaving debris inside the pipe during cutting. Some cheap elbows have smaller internal diameters. Additionally, if you didn’t deburr the pipe, the ridge can catch water flow. Remove the fitting and check for obstructions or switch to a high-flow brass fitting.

Conclusion

Fixing your shower plumbing in a manufactured home doesn’t require a professional plumber if you have the right knowledge and tools. By selecting the correct 90 degree elbow shower plumbing fittings for manufactured homes, understanding the material differences between CPVC and PEX, and following precise installation steps, you can restore your bathroom to perfect working order. Remember, the key to success lies in preparation: measure accurately, choose the right material for your specific home model, and never rush the curing process.
