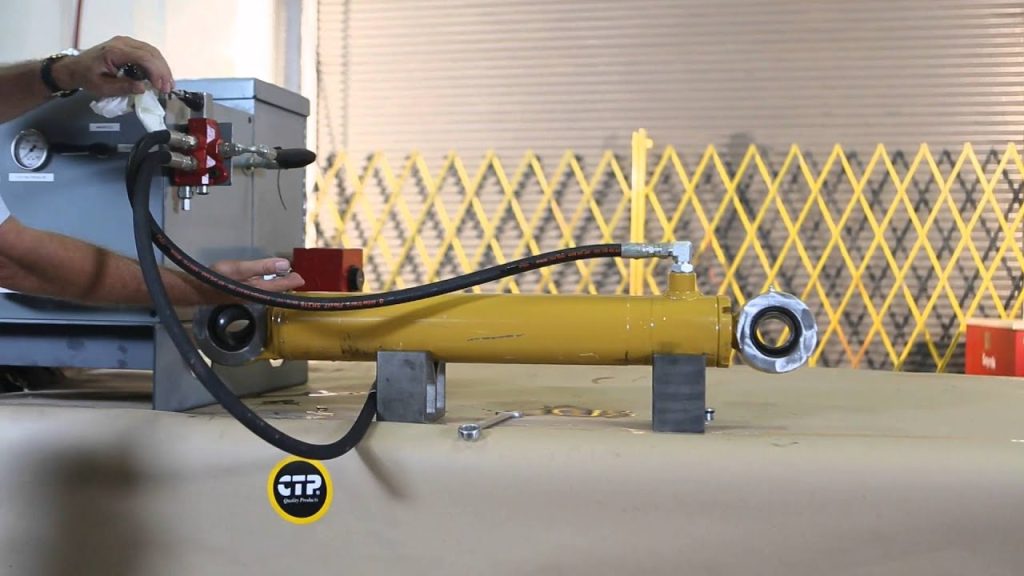

Have you ever noticed your heavy machinery acting up, leaking fluid, or wearing out seals far too quickly? Often, the culprit isn’t a broken part, but a simple installation error: the cylinder isn’t plumb. For anyone working with heavy equipment in the US, from construction sites in Texas to manufacturing plants in Ohio, knowing how to check the plumb of a hydraulic cylinder is a critical skill that saves time, money, and prevents dangerous accidents. In this guide, we will walk you through the exact steps to ensure your hydraulic systems are aligned perfectly, extending their lifespan and keeping your operations running smoothly.
Why Is Checking the Plumb Critical for Hydraulic Systems?
Before we dive into the tools and techniques, it is essential to understand why this matters. A hydraulic cylinder that is not installed plumb (perfectly vertical) or square to its mounting surface creates side-loading. This lateral force puts immense stress on components that are designed only for linear push-and-pull motion.
According to industry data, misalignment is responsible for nearly 30% of premature hydraulic cylinder failures. When a cylinder is out of plumb:
- Seal Wear Accelerates: The rod seals wear unevenly, leading to leaks.
- Rod Scoring: The chrome rod can score against the seal, causing permanent damage.
- Bearing Failure: The internal bearings take a beating, leading to sloppy movement.
- Safety Hazards: In extreme cases, a binding cylinder can snap or cause the load to shift unexpectedly.
As noted in engineering principles regarding fluid power systems, maintaining proper alignment is fundamental to efficiency. You can read more about the general mechanics of hydraulic systems on Wikipedia to understand the theoretical basis of why alignment dictates performance.
Essential Tools Needed to Check Plumb Accuracy
You cannot eyeball a hydraulic cylinder installation and expect precision. To properly check the plumb, you need specific tools that offer accuracy within thousandths of an inch. Here is what every professional technician should have in their toolbox:
| Tool | Purpose | Recommended Precision |
|---|---|---|
| Precision Machinist Level | To check vertical and horizontal alignment. | 0.0005″ per foot or better |
| Digital Calipers | To measure rod extension consistency. | 0.001″ resolution |
| Dial Indicator with Magnetic Base | To detect runout and wobble during extension. | 0.0001″ resolution |
| Feeler Gauges | To check gaps between mounting surfaces. | Standard set (0.001″ – 0.020″) |
| Laser Alignment Tool | For long-stroke cylinders where levels are impractical. | High-accuracy laser beam |
Pro Tip: Always ensure your tools are calibrated. An uncalibrated level can give you a false sense of security, leading to the very problems you are trying to avoid.
Step-by-Step Guide: How to Check the Plumb of a Hydraulic Cylinder
This process requires patience and attention to detail. Follow these steps strictly to ensure your cylinder is mounted correctly.
Step 1: Prepare the Work Area
Safety first. Ensure the hydraulic system is depressurized and the machine is locked out/tagged out (LOTO). Clean the mounting surfaces thoroughly. Any dirt, burrs, or old gasket material can throw off your measurements by several thousandths of an inch.
Step 2: Establish Your Reference Point
Identify the primary mounting surface. This is usually the base or the trunnion mount. Place your precision machinist level on this surface.
- Adjust the machine legs or shims until the bubble is perfectly centered.
- Target: The base must be level within 0.002 inches per foot. If the foundation isn’t level, the cylinder cannot be plumb.
Step 3: Check the Cylinder Body Verticality
Once the base is level, move to the cylinder body itself.
- Place the level against the barrel of the cylinder (ensure the area is clean and smooth).
- Check the vertical alignment in two planes: Front-to-Back and Side-to-Side.
- Rotate the level 90 degrees to verify the second axis.
- Acceptable Tolerance: For most industrial applications, the cylinder should be plumb within 0.005 inches over the length of the barrel. Heavy-duty mining equipment may allow slightly more, while precision manufacturing robots require tighter tolerances.
Step 4: Verify Rod Extension Parallelism
A cylinder might look plumb when retracted, but what happens when it extends?
- Attach a dial indicator to a fixed point on the machine frame.
- Position the indicator tip against the hydraulic rod.
- Slowly extend the cylinder fully.
- Watch the dial. If the needle moves significantly, the cylinder is binding or misaligned.
- Actionable Data: If the runout exceeds 0.010 inches over the full stroke, you must loosen the mounts and adjust the shims.
Step 5: The “Two-Person” Shim Adjustment
Adjusting large cylinders often requires a team.
- Person A monitors the level and dial indicator.
- Person B inserts or removes stainless steel shims under the mounting feet.
- Use a torque wrench to tighten bolts gradually in a star pattern to prevent warping the mount. Re-check the plumb after every tightening sequence.
Common Mistakes That Cause Misalignment
Even experienced technicians can make errors. Avoid these common pitfalls to ensure a successful installation:
- Ignoring Thermal Expansion: Metal expands when hot. If you align a cylinder cold, it may go out of plumb once the hydraulic oil heats up to operating temperature (typically 120°F–140°F). Solution: Consult the manufacturer’s specs for thermal growth allowances.
- Relying Solely on Visual Checks: The human eye cannot detect a 0.003-inch deviation. Always use instruments.
- Over-Tightening Before Verification: Tightening mounting bolts fully before checking the final plumb can warp the cylinder foot, pulling it out of alignment.
- Neglecting the Load Connection: Sometimes the cylinder is plumb, but the load connection (the clevis or eye bolt) is misaligned, creating a bind at the end of the stroke.
Comparison: Proper vs. Improper Installation
| Feature | Properly Plumbed Cylinder | Misaligned Cylinder |
|---|---|---|
| Seal Life | 3,000+ hours | < 500 hours |
| Rod Condition | Smooth, shiny chrome | Scored, pitted, or bent |
| Operation Noise | Quiet, smooth hum | Grinding, squeaking, or chattering |
| Maintenance Cost | Low (Scheduled only) | High (Emergency repairs) |
| Safety Risk | Minimal | High (Catastrophic failure) |
FAQ: Frequently Asked Questions About Hydraulic Cylinder Plumb
1. What is the acceptable tolerance for a hydraulic cylinder to be considered “plumb”?
For standard industrial applications, the general rule of thumb is 0.005 inches per foot of cylinder length. However, high-precision applications (like aerospace or robotics) may require tolerances as tight as 0.001 inches per foot. Always refer to the Original Equipment Manufacturer (OEM) specifications for the definitive answer.
2. Can I use a standard carpenter’s level to check the plumb?
No. A standard carpenter’s level typically has an accuracy of ±0.020 inches per foot, which is far too loose for hydraulic systems. You must use a precision machinist level or a digital inclinometer that reads in thousandths of an inch to detect the slight deviations that cause seal wear.
3. What happens if I operate a cylinder that is slightly out of plumb?
Operating a misaligned cylinder causes side-loading. This forces the piston rod to rub against the seal and gland unevenly. The immediate result is accelerated seal wear and fluid leakage. Over time, this leads to rod scoring, bearing failure, and potentially a bent rod, which can cause the cylinder to seize completely during operation.
4. How often should I check the plumb of my hydraulic cylinders?
You should check the plumb during every installation or re-installation. For existing machinery, it should be part of your annual preventive maintenance schedule. However, if you notice new leaks, unusual noises, or if the machine has been moved or impacted, check the alignment immediately.
5. Do shims degrade over time, affecting the plumb?
Yes, if improper materials are used. Soft metals or plastic shims can compress over time under heavy vibration and load, causing the cylinder to settle and go out of plumb. Always use hardened stainless steel shims and ensure they are full-face (not just edge shims) to distribute the load evenly.
6. Is it possible to correct plumb issues without removing the cylinder?
In minor cases, yes. If the mounting bolts have some slack and the piping is flexible enough, you can loosen the mounts and insert shims to correct the angle. However, if the misalignment is severe or the piping is rigid, you may need to disconnect the hydraulic lines and remove the cylinder to access the mounting surface properly.
Conclusion
Mastering the skill of how to check the plumb of a hydraulic cylinder is more than just a technical requirement; it is a safeguard for your equipment and your team. By ensuring precise alignment, you drastically reduce wear and tear, prevent costly downtime, and maintain the highest safety standards on your job site. Remember, the few extra minutes spent with a precision level and dial indicator can save you thousands of dollars in repairs down the road.
Don’t let misalignment sabotage your productivity. Take the time to measure twice and install once. If you found this guide helpful, please share it with your fellow technicians and engineers on LinkedIn or Facebook. Let’s build a community of precision and safety in the heavy industry sector!
