A To Check The Plumb Of A Hydraulic Plunger: The Ultimate Guide

Imagine spending thousands of dollars on a heavy-duty hydraulic system, only to have it fail prematurely because of a misalignment so slight the naked eye couldn’t catch it. It is a frustrating scenario that plagues many facility managers and technicians across the United States. Whether you are installing a new lift or maintaining an existing press, knowing A To Check The Plumb Of A Hydraulic Plunger is not just a technical suggestion; it is the difference between smooth operation and catastrophic equipment failure. In this guide, we will walk you through the precise steps to ensure your hydraulic plunger is perfectly vertical, saving you time, money, and potential safety hazards.

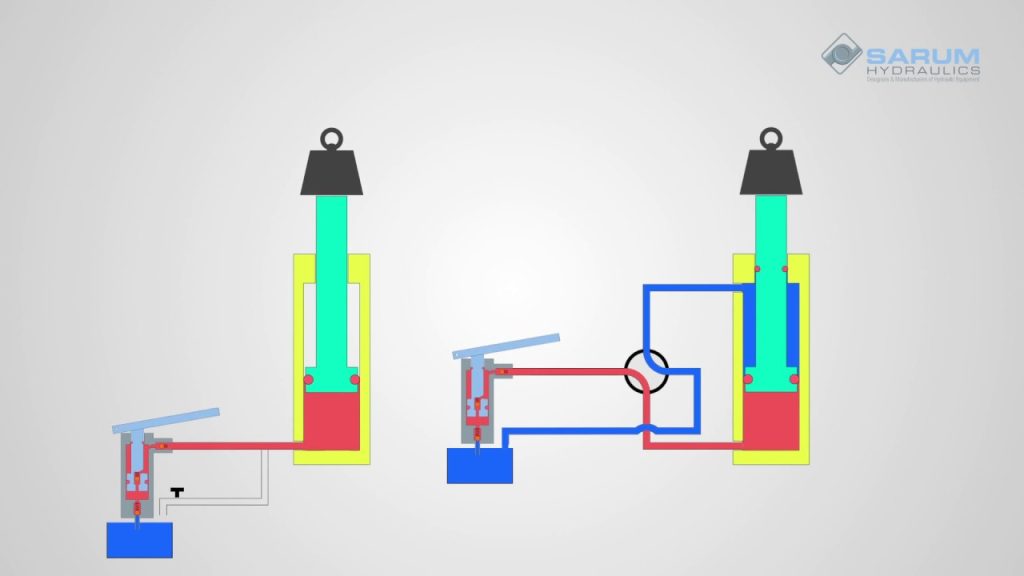

Why Vertical Alignment Matters in Hydraulic Systems

Before we dive into the tools and techniques, it is crucial to understand why being “plumb” is non-negotiable in hydraulics. A hydraulic plunger (or ram) is designed to move in a straight linear path. When the cylinder housing or the plunger itself is not perfectly vertical (plumb), several destructive forces come into play.

The Physics of Misalignment

When a plunger is off-plumb, the force generated by the hydraulic pressure is no longer directed purely upwards or downwards. Instead, a portion of that force becomes lateral (sideways). This creates what engineers call “side-loading.”

• Seal Degradation: Side-loading causes uneven wear on the rod seals and gland packing. Instead of wearing evenly, one side of the seal gets shredded, leading to rapid fluid leaks.
• Rod Scoring: The chrome-plated surface of the plunger can score against the gland, ruining the finish and creating paths for leaks.
• Binding and Stalling: In severe cases, the plunger may bind within the cylinder, causing the system to stall or the pump to overheat due to excessive resistance.

According to industry maintenance data, misalignment is responsible for nearly 30% of premature hydraulic cylinder failures. Ensuring your unit is plumb is the first line of defense against these costly issues.

Essential Tools for Checking Plumb Accuracy

You cannot achieve precision with guesswork. To properly check the plumb of a hydraulic plunger, you need the right instrumentation. While a standard carpenter’s level might work for rough framing, it lacks the sensitivity required for industrial hydraulics.

Here is the professional toolkit you will need:

1. High-Precision Machinist Level: Look for a level with a sensitivity of at least 0.0005 inches per inch (or 0.02 mm/m). These levels have vials that detect minute deviations that standard levels miss.
2. Optical Plumb Bob or Laser Level: For taller cylinders (over 6 feet), a physical level becomes unwieldy. A laser plummet or an optical transit provides a true vertical reference line over long distances.
3. Feeler Gauges: Used to measure the gap between the level and the plunger surface if the surface isn’t perfectly flat.
4. Shims and Adjustment Wedges: Have these ready before you start, as you will likely need to make micro-adjustments.
5. Clean Lint-Free Rags: Hydraulic surfaces must be spotless before measurement. Even a speck of dust can throw off your reading.

Pro Tip: Always calibrate your level before starting. Place it on a known flat surface, take a reading, flip it 180 degrees, and take another. If the readings differ, your level needs adjustment or replacement.

Step-by-Step: How To Check The Plumb Of A Hydraulic Plunger

This process requires patience and a steady hand. Rushing this step is the most common mistake technicians make. Follow this detailed procedure to ensure accuracy.

Step 1: Preparation and Safety First

Before touching any tools, ensure the hydraulic system is depressurized and locked out (LOTO – Lock Out Tag Out). The plunger should be fully retracted or extended to a stable position where it can be safely accessed. Clean the exposed surface of the plunger or the cylinder barrel thoroughly. Any grease, oil, or debris will create false readings.

Step 2: Establish Your Reference Points

You need to check plumb in two axes: front-to-back and side-to-side.

• Mark four points around the circumference of the plunger or cylinder barrel (North, South, East, West).
• If checking the cylinder housing, ensure the mounting surface is clean. If checking the plunger rod itself, ensure it is not rotating during the measurement.

Step 3: The Two-Axis Measurement

Place your high-precision machinist level against the plunger surface at the “North” position.

• Wait for the bubble to settle. This can take 10–15 seconds with high-sensitivity vials.
• Record the deviation. Is it off by 0.001″? 0.005″?
• Rotate the level 90 degrees to the “East” position and repeat.
• Critical Rule: You must check at multiple heights along the stroke if the cylinder is long. A cylinder can be plumb at the base but lean at the top. Check at the bottom, middle, and top of the exposed section.

Step 4: Analyze the Deviation

Compare your readings against the manufacturer’s tolerance specifications.

• General Industry Standard: Most hydraulic manufacturers recommend a tolerance of no more than 0.002 inches per foot of length.
• If your reading exceeds this, adjustment is mandatory.

For a deeper understanding of hydraulic mechanics and fluid dynamics principles that govern these tolerances, you can refer to general engineering resources like the Hydraulics entry on Wikipedia.

Step 5: Making the Adjustment

If the plunger is out of alignment:

1. Loosen the mounting bolts slightly—do not remove them completely.
2. Insert stainless steel shims under the mounting base on the low side.
   • Calculation: If you are 0.010″ off over a 2-foot base, you may need a shim calculated based on the leverage ratio of your specific mount.
3. Tighten the bolts gradually in a star pattern to avoid warping the base.
4. Re-check the plumb. Repeat until the bubble is centered in both axes.

Common Challenges and Troubleshooting

Even experienced technicians encounter hurdles. Here is how to handle common scenarios:

The Cost of Ignoring Plumb Checks

Why go through all this trouble? Let’s look at the numbers. A typical industrial hydraulic cylinder repair can cost between $1,500 and $5,000, excluding downtime. If a misaligned plunger causes a seal failure every 3 months instead of every 3 years, your maintenance costs skyrocket.

Furthermore, consider the safety implications. A binding plunger can suddenly release stored energy, causing the load to drop or the cylinder to whip violently. In the US, OSHA regulations emphasize the maintenance of equipment to prevent workplace injuries. Neglecting alignment checks can lead to regulatory fines and, more importantly, severe injury to operators.

FAQ: Frequently Asked Questions

1. How often should I check the plumb of my hydraulic plunger?

You should check the plumb during the initial installation and after any major maintenance involving the removal or remounting of the cylinder. Additionally, it is best practice to include a visual alignment check in your quarterly preventive maintenance schedule. If you notice uneven seal wear or fluid leaks, check the plumb immediately.

2. Can I use a smartphone app to check the plumb?

While smartphone inclinometer apps are convenient for rough carpentry, they are not recommended for precision hydraulic work. Most phone sensors have an accuracy margin of ±0.5 degrees, which translates to significant deviation over the length of a hydraulic cylinder. Stick to certified machinist levels or laser tools for professional results.

3. What if my floor is not level? Does that matter?

The levelness of the floor is irrelevant as long as the cylinder mounting surface is adjusted to make the plunger plumb. You are aligning the cylinder to gravity, not to the floor. Use shims to compensate for uneven flooring until the plunger itself reads perfectly vertical.

4. Does the weight of the load affect the plumb reading?

Yes, slightly. Heavy loads can cause deflection in the mounting structure or the cylinder itself. Ideally, check the plumb with the cylinder unloaded first. Then, apply a test load and re-check. If the alignment shifts significantly under load, your mounting structure may be too weak or flexible, requiring reinforcement.

5. What is the acceptable tolerance for large bore cylinders?

For large bore cylinders (over 6 inches diameter), the tolerance might be slightly more forgiving depending on the application, but the golden rule remains: the tighter, the better. Generally, staying within 0.002″ per foot is safe for almost all industrial applications. Always defer to the specific OEM (Original Equipment Manufacturer) manual for your specific model.

6. Can a bent plunger be straightened?

In most professional settings, a bent hydraulic plunger is considered scrap. Attempting to straighten a hardened chrome rod often compromises its structural integrity and heat treatment. It is safer and more cost-effective in the long run to replace a bent plunger than to risk a catastrophic failure later.

Conclusion

Mastering the skill of A To Check The Plumb Of A Hydraulic Plunger is a hallmark of a true hydraulic professional. It goes beyond simply following a manual; it is about understanding the physics of your equipment and respecting the precision required for high-pressure systems. By ensuring your plungers are perfectly vertical, you extend the life of your seals, prevent dangerous failures, and optimize the performance of your entire hydraulic network.

Don’t let a few thousandths of an inch compromise your operation. Grab your machinist level, follow the steps outlined above, and keep your systems running smoothly and safely.

Found this guide helpful? Share it with your maintenance team or post it on your LinkedIn profile to help other professionals avoid costly alignment errors. Let’s build a safer, more efficient industry together!
