Ac Condensate Plumbing Vent Pipe Installation 2 Story House: The Ultimate Guide

There is nothing more frustrating for a homeowner than discovering a water stain on the ceiling of a second-floor bedroom, only to realize it’s caused by a backed-up air conditioner drain line. Properly managing moisture removal is critical, yet often overlooked during construction or renovation. If you are tackling an Ac Condensate Plumbing Vent Pipe Installation 2 Story House project, understanding the physics of air pressure and gravity is essential to preventing costly water damage. This guide will walk you through the exact steps to ensure your system drains efficiently, stays code-compliant, and keeps your home dry.

Why Does a Two-Story AC Drain Line Need a Vent?

When installing an AC unit on a second floor, the condensate (water removed from the air) has to travel vertically down through walls or chases before exiting the home. This vertical drop creates a unique challenge known as the “stack effect” or siphonage.

Without a proper vent, the rushing water can create a vacuum behind it. This vacuum acts like a straw, sucking the water out of the P-trap installed at the air handler. Once the trap is empty, two bad things happen:

1. Sewer Gas Entry: If connected to a main waste line, odors can enter the HVAC system.
2. Air Lock: More critically, the unit may stop draining entirely because the negative pressure holds the water in the pan, causing an overflow.

According to fundamental plumbing physics, every trap needs ventilation to equalize pressure. As noted in general plumbing principles found on Wikipedia, vent pipes allow sewer gases to escape and, crucially for HVAC, allow air to enter the drainage system to prevent trap siphonage. In a two-story setup, the distance the water falls increases the velocity, making the risk of siphoning the trap significantly higher than in a single-story ranch home.

The Physics of the Drop

In a two-story house, your condensate line might drop 15 to 20 feet before hitting the main drain.

• Velocity: Water accelerates at roughly . By the time it reaches the bottom, it moves fast enough to create significant negative pressure upstream.
• The Solution: An auxiliary vent (often called a cheater vent or air admittance valve in tight spaces, though a roof vent is preferred) must be installed after the trap but before the long vertical drop.

Essential Tools and Materials Checklist

Before cutting any PVC, ensure you have the right materials. Using the wrong glue or pipe schedule can lead to failures within months.

Pro Tip: Always use Schedule 40 PVC for condensate lines. While some contractors use thin-walled DWV (Drain-Waste-Vent) or flexible vinyl tubing, Schedule 40 resists crushing inside wall cavities and handles the chemical breakdown of algae treatments better.

Step-by-Step Installation Guide

Follow these precise steps to ensure a leak-free installation. Remember, precision is key; a misaligned joint is a future leak.

Step 1: Locate the Drain Port and Plan the Route

Identify the secondary drain port on your air handler (usually located on the second floor). Measure the distance to the nearest vertical chase or exterior wall.

• Requirement: The line must slope downward at a minimum of 1/8 inch per foot (1% grade). Ideally, aim for 1/4 inch per foot.
• Constraint: Ensure the path avoids electrical wiring and sharp turns that could cause clogs.

Step 2: Install the Primary P-Trap

This is the most critical component. The trap must be installed immediately after the drain port exit, before any vertical drop.

1. Cut a piece of 3/4″ PVC pipe roughly 4–6 inches long.
2. Connect this to the air handler outlet using a slip-joint adapter or solvent weld, depending on the unit design.
3. Install the P-trap fitting.
4. Crucial Detail: The depth of the water seal in the trap should be at least 2 inches. However, the static pressure of the blower motor matters here. If your unit has a high-static pressure blower (common in two-story systems with long duct runs), you may need a deeper trap.
   • Formula: Trap Seal Depth = (Static Pressure in inches of water column) + 1 inch.
   • Example: If your blower creates 0.5″ WC pressure, your trap needs to hold at least 1.5″ of water. A standard 2″ trap usually suffices for residential units.

Step 3: Install the Vent Pipe (The “Anti-Siphon” Measure)

Immediately after the P-trap (on the downstream side), you must install a vent.

1. Install a sanitary tee pointing upward.
2. Run a vertical piece of PVC pipe upwards.
3. Height Requirement: This vent must terminate higher than the drain pan overflow level. If it terminates too low, water could spill out of the vent if a clog occurs downstream.
4. In a two-story house, this vent often runs up into the attic space and ties into an existing plumbing vent stack, or terminates through the roof if local codes require it. Some jurisdictions allow an Air Admittance Valve (AAV) under the sink or in the attic, provided it is accessible.

Step 4: Execute the Vertical Drop

Now that the trap and vent are secure, you can run the line down to the first floor or basement.

1. Use a long-sweep elbow (not a sharp 90-degree turn) to transition from horizontal to vertical. Sharp turns increase turbulence and clog risks.
2. Secure the pipe with hangers every 10 feet for vertical runs.
3. Ensure the pipe remains straight; sagging pockets will collect sludge and algae, leading to inevitable clogs.

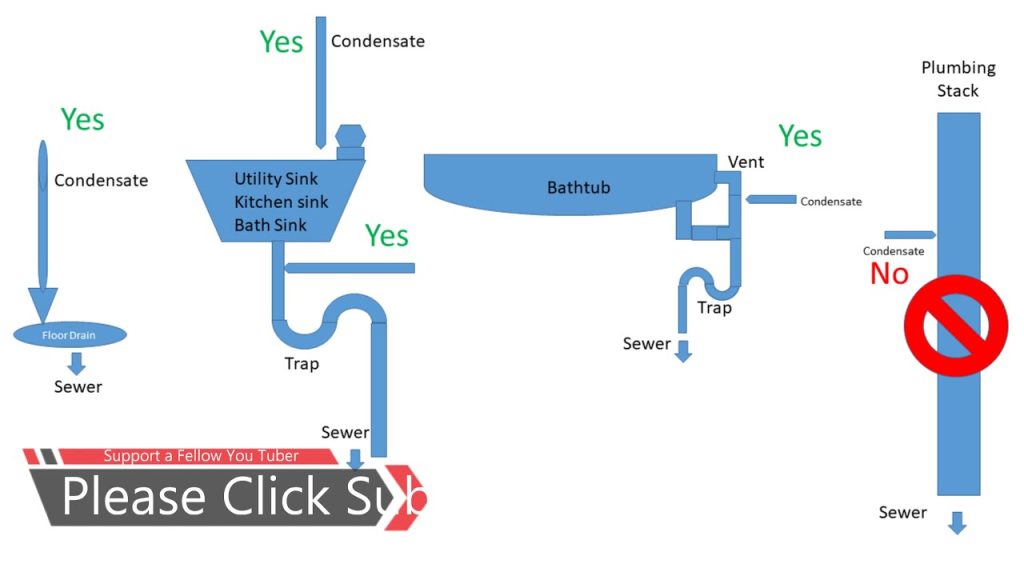

Step 5: Termination Point

Where does the water go?

• Option A (Interior): Tie into a bathroom sink drain, washing machine standpipe, or dedicated condensate pump. Must be done above the flood rim of the fixture to prevent sewage backup into the AC.
• Option B (Exterior): Run the pipe through an exterior wall. The termination should be visible (so you can see if it’s dripping) and at least 6 inches above the ground to prevent insect entry.
• Option C (Condensate Pump): If gravity drainage isn’t possible on the lower level, install a condensate pump with its own reservoir and float switch.

Step 6: Testing the System

Never close up the walls without testing.

1. Pour exactly 2 liters of water slowly into the drain pan at the air handler.
2. Observe the flow at the termination point. It should flow freely.
3. Check the P-trap. After the water flows, there must still be water sitting in the U-bend. If the trap is empty, your venting is insufficient, and siphoning is occurring.
4. Check all joints for weeping.

Common Mistakes to Avoid in Two-Story Installs

Even experienced DIYers make these errors. Avoiding them saves thousands in water damage repairs.

• Placing the Vent Before the Trap: This renders the trap useless. The vent must be downstream of the trap to break the vacuum created by falling water.
• Insufficient Slope: In long horizontal runs across an attic before dropping, a flat line allows algae to grow. Maintain that 1/4 inch per foot slope religiously.
• Using Flexible Tubing Inside Walls: Corrugated flexible tubing traps debris in its ridges. It is a ticking time bomb for clogs. Only use smooth-walled Schedule 40 PVC inside structural cavities.
• Ignoring the Secondary Drain: Building codes (such as the International Residential Code – IRC) often require a secondary drain line or an overflow switch for units located above finished living spaces (like a second floor). This provides a backup if the primary line clogs.

Comparison: Proper vs. Improper Venting

FAQ Section

1. How high does the condensate vent pipe need to be on a two-story house?

The vent pipe must terminate at a height greater than the overflow level of the AC drain pan. Typically, this means running the vent up into the attic and connecting it to the main plumbing vent stack or extending it through the roof. If using an Air Admittance Valve (AAV), it must be installed at least 4 inches above the horizontal branch drain or insulation level in the attic, and it must remain accessible for service.

2. Can I connect my AC condensate line directly to the sewer line without a trap?

No. Never connect an AC drain directly to a sewer line without a P-trap. Without a trap, sewer gases (including methane and hydrogen sulfide) will be drawn into your HVAC system and circulated throughout your home, posing health risks and creating foul odors. Furthermore, the negative pressure from the blower can push sewer gas out even without the siphon effect.

3. What size PVC pipe should I use for a 2-story AC drain?

For most residential central air conditioning units up to 5 tons, 3/4 inch Schedule 40 PVC is the standard minimum. However, for larger units (over 5 tons) or extremely long runs typical in large two-story homes, upgrading to 1 inch pipe is highly recommended to reduce friction loss and minimize the chance of clogs.

4. Why is my AC drain line gurgling loudly?

Gurgling indicates air moving through water, which usually means the trap is being siphoned or there is a partial clog. In a two-story house, this is almost always due to a missing or improperly placed vent pipe. The falling water creates a vacuum, pulling air through the trap violently. Check your vent installation immediately.

5. Do I need a condensate pump for a second-story installation?

Not necessarily. If you can route the pipe via gravity down through the walls to the ground level or a basement drain, a pump is not required. Gravity is more reliable than a mechanical pump. However, if the termination point is higher than the air handler (e.g., draining into an attic bathroom), then a condensate pump is mandatory.

6. How often should I clean the condensate line in a two-story home?

Because vertical lines can accumulate sludge that hardens over time, it is recommended to flush the line with a mixture of vinegar and water or a specialized HVAC tablet once a year, ideally before the cooling season starts. For two-story homes, pouring the cleaner from the top access point near the air handler ensures the entire vertical length is treated.

Conclusion

Successfully completing an Ac Condensate Plumbing Vent Pipe Installation 2 Story House project requires more than just gluing pipes together; it demands an understanding of airflow, gravity, and pressure dynamics. By installing a correctly sized P-trap and, most importantly, a properly located vent pipe, you protect your home from the nightmare of water damage and ensure your HVAC system operates efficiently for years to come.

Remember, the cost of a few extra feet of PVC and a sanitary tee is negligible compared to the cost of repairing a water-damaged ceiling and flooring. Take your time, follow the slope requirements, and test your system thoroughly before closing up the walls.
