Adding Plumbing To A Metal Building On A Slab: The Ultimate Guide

So, you’ve invested in a sturdy metal building, perhaps for a workshop, a garage, or even a new home, but now you’re facing a daunting reality: there are no water lines or drains. Adding plumbing to a metal building on a slab can feel like an impossible puzzle, especially when the concrete is already poured and cured. Many owners worry that they’ll have to jackhammer up their entire floor or compromise the structural integrity of their steel frame. The good news? With the right planning and techniques, you can integrate a fully functional plumbing system without turning your project into a nightmare. This guide will walk you through the proven methods professionals use to tackle this challenge efficiently and safely.

Can You Really Add Plumbing After the Slab is Poured?

The most common question we hear is, “Is it too late?” The short answer is no. While it is significantly easier to install plumbing before the concrete goes down, retrofitting a system is entirely feasible. However, the approach changes drastically once the slab is set.

When a metal building sits on a monolithic slab (a single pour of concrete), the primary challenge is accessing the ground beneath without destroying the foundation. According to general construction principles found in resources like Wikipedia’s entry on plumbing, modern plumbing relies on gravity for drainage and pressure for supply. In a retrofit scenario, you must work around these physical laws.

The Two Main Approaches

1. Trenching the Slab: Cutting channels into the existing concrete.
2. Surface Mounting or Framing: Building false floors or walls to hide pipes.

Step-by-Step: How to Cut and Install Pipes in an Existing Slab

If you need standard fixtures like a toilet or a shower, trenching the slab is usually unavoidable. Here is a precise, step-by-step methodology to ensure you don’t crack the surrounding concrete or hit rebar unexpectedly.

Step 1: Map and Mark Your Layout

Before touching any tools, you must have a precise blueprint.

• Identify the location of your main water entry point and the sewer/septic tie-in.
• Use a stud finder with metal detection or a ground-penetrating radar (GPR) service to locate any existing rebar or post-tension cables within the slab. Hitting a tension cable can be catastrophic.
• Mark your trench lines with blue painter’s tape. Keep trenches as straight as possible to minimize flow resistance.

Step 2: Cut the Concrete Precisely

Do not grab a sledgehammer yet. Precision is key to preventing uncontrolled cracking.

• Tool Required: A concrete saw with a diamond blade.
• Depth: Cut to a depth of approximately 3 to 4 inches. Most residential drain pipes (3-inch or 4-inch PVC) require about 4 inches of depth including the bedding material.
• Technique: Make two parallel cuts defining the width of your trench (usually 6–8 inches wide). Do not cut all the way through the slab if it is thick; you only need to remove the top layer to break out the rest.

Step 3: Break and Remove the Concrete

Once the perimeter is cut:

• Use an electric jackhammer or a heavy-duty demo hammer to break the concrete between the cuts.
• Remove the debris immediately to keep the workspace clean.
• Safety Note: Wear N95 masks, safety goggles, and hearing protection. Silica dust from concrete is hazardous.

Step 4: Excavate the Earth Beneath

Now that the concrete lid is off, you must dig the earth below.

• Dig down to achieve the proper slope. Drainage pipes require a slope of 1/4 inch per foot for 3-inch pipes and 1/8 inch per foot for 4-inch pipes.
• If your run is 10 feet long, the end of the pipe must be 2.5 inches lower than the start. Use a laser level to verify this gradient constantly.
• Create a flat bed of 2 inches of compacted sand at the bottom of the trench. This protects the PVC from sharp rocks and allows for slight settling without breaking.

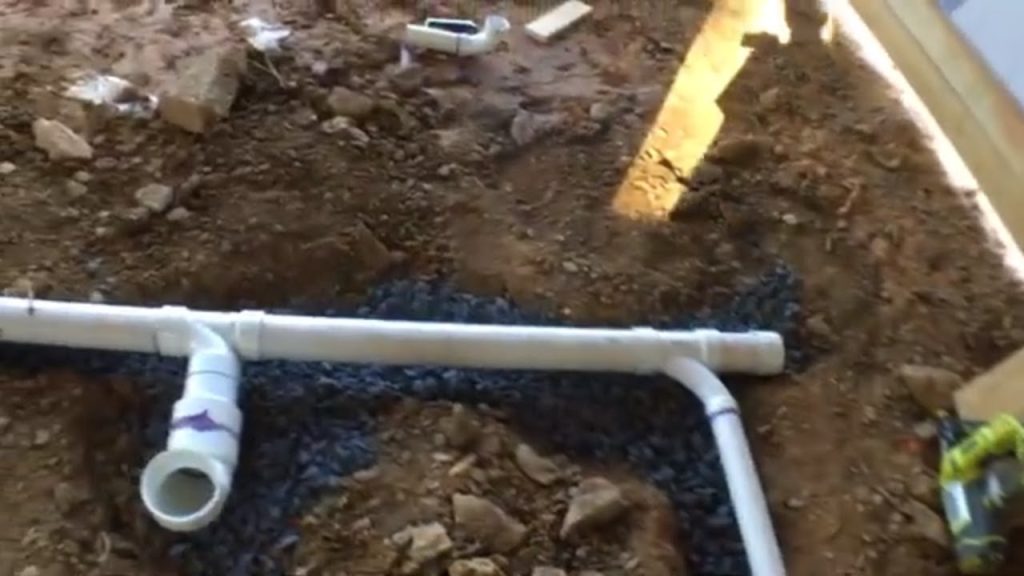

Step 5: Lay the Pipe and Test

• Install your PVC drain lines using primer and cement. Ensure every joint is smooth inside to prevent clogs.
• Crucial Step: Before covering anything, perform a water test. Plug the ends of the line and fill it with water. Mark the water level and wait 24 hours. If the level drops, you have a leak. Fix it now, not after the concrete is back.
• Once passed, cover the pipes with another 2 inches of sand to cushion them.

Step 6: Repour the Concrete

• Mix a high-strength concrete patch (often fiber-reinforced is best for thin pours).
• Pour the mix into the trench, vibrating it slightly to remove air pockets.
• Curing: Keep the new concrete moist for at least 3 to 7 days. Do not drive heavy equipment over it during this time.

Routing Water Supply Lines in Metal Buildings

While drains go under the slab, supply lines (fresh water) offer more flexibility. Metal buildings typically have girts (horizontal supports) and studs that create cavities perfect for running PEX tubing.

Why PEX is Superior for Metal Buildings

Cross-linked Polyethylene (PEX) is the industry standard for retrofits. Unlike rigid copper or CPVC, PEX is flexible.

• Freeze Resistance: PEX can expand slightly if water freezes, reducing the chance of bursting—a common risk in uninsulated metal buildings.
• Ease of Install: You can snake long runs through wall cavities with fewer fittings. Fewer fittings mean fewer potential leak points.

Installation Tips for Supply Lines

1. Drill Through Studs: When running lines through the metal framing, drill holes in the center of the stud web. Deburr the holes to prevent the sharp metal edges from slicing the PEX.
2. Insulate Everything: Metal buildings conduct temperature rapidly. If you run water lines on exterior walls, you must use foam pipe insulation. In freezing climates, consider installing heat trace cable alongside the pipes.
3. Manifold System: Consider a “home-run” manifold system where each fixture has its own dedicated line from a central hub. This balances pressure better and allows you to shut off one fixture without killing water to the whole building.

Dealing with Waste: The Challenge of Low Gravity

One specific headache in slab-on-grade metal buildings is when your new bathroom fixture is lower than the main sewer line exit. Gravity won’t help you here.

The Solution: Upflush Toilets (Macerating Systems)

If digging a deep enough trench to maintain slope is impossible (perhaps due to bedrock or existing footings), an upflush toilet system is a viable alternative.

• How it works: These units grind waste into a slurry and pump it upward through a small-diameter pipe (often 3/4 inch or 1 inch) that can run horizontally or vertically to connect to the main stack.
• Cost vs. Benefit: While the unit costs between $400–$800, it saves you thousands in concrete demolition and excavation.
• Limitations: They require electricity and make some noise during the flush cycle. They are excellent for additions but may not be ideal for high-traffic commercial restrooms.

Common Mistakes to Avoid When Retrofitting Plumbing

Even experienced DIYers stumble when working with existing slabs. Avoid these pitfalls to save money and frustration.

• Ignoring Expansion Joints: Metal buildings expand and contract significantly with temperature changes. If you rigidly connect your plumbing to the frame without slip joints or flexible connectors, the movement can snap your pipes.
• Inadequate Slope: “Close enough” is not good enough for drainage. If the slope is too flat, solids settle and cause clogs. If it’s too steep, water outruns the solids, leaving waste behind. Stick to the 1/4 inch per foot rule.
• Skipping Permits: Many homeowners assume metal buildings on private land don’t need permits. This is false. Plumbing work almost always requires inspection to ensure backflow prevention and proper venting. Fines can exceed the cost of the permit.
• Poor Venting: Every drain needs a vent to allow air in, preventing suction that empties your P-traps. If you can’t run a vent through the roof easily, consider an Air Admittance Valve (AAV), though local codes vary on their acceptance.

Frequently Asked Questions (FAQ)

1. How much does it cost to add plumbing to a metal building on a slab?

Costs vary widely based on location and complexity. For a basic retrofit involving one bathroom and a sink, expect to pay between $3,000 and $7,000 if hiring professionals. DIY costs might drop to $1,000–$2,000 for materials and tool rentals, but this excludes the value of your labor and the risk of errors.

2. Do I need to break the entire slab to add a bathroom?

No. You only need to cut trenches where the pipes will run. A typical bathroom retrofit requires cutting two or three narrow trenches (about 6–8 inches wide) connecting the fixtures to the main drain line. The rest of the slab remains intact.

3. Can I run plumbing in the walls of a metal building instead of the floor?

You can run supply lines in the walls easily. However, drain lines generally cannot go in standard 2×4 or metal stud walls because they are too wide (3–4 inches) and require a downward slope that walls cannot provide vertically without taking up too much space. Drains almost always must go under the floor.

4. What type of pipe is best for water lines in a metal shop?

PEX-A or PEX-B is highly recommended. It handles the thermal expansion and contraction of metal buildings better than copper. Copper can fatigue and crack over time due to the building’s movement and is also a target for theft in vacant buildings.

5. Is it possible to add plumbing without any concrete cutting?

Yes, but with limitations. You can use surface-mounted pipes covered by decorative boxing or build a raised wooden subfloor (sleepers) to run pipes underneath. However, this raises the floor level, creating a step-up entry which may violate ADA compliance or be inconvenient for moving equipment in and out.

6. How do I prevent pipes from freezing in a metal building?

Insulation is critical. Wrap all pipes in foam insulation with a minimum R-value of 3. For extreme climates, install heat trace cables that activate automatically when temperatures drop near freezing. Additionally, keeping the building heated to at least 55°F (12°C) during winter is the safest precaution.

Conclusion

Adding plumbing to a metal building on a slab is a challenging but entirely manageable project when approached with the right strategy. Whether you choose to carefully trench the concrete for a traditional gravity-fed system or opt for innovative solutions like macerating pumps, the key lies in meticulous planning and adherence to local codes. By understanding the unique behaviors of metal structures—such as thermal expansion—and using flexible materials like PEX, you can create a durable, leak-free plumbing system that serves your needs for decades.

Don’t let the solid concrete floor intimidate you. With precision cutting, proper sloping, and smart material choices, your metal building can be just as functional and comfortable as any stick-built home.
