All The Home Plumbing Fittings To A Vanity: The Ultimate Guide

Have you ever stood in the plumbing aisle of a hardware store, surrounded by a maze of shiny metal pieces, feeling completely overwhelmed by the sheer number of choices? You are not alone; connecting a sink to your water supply and drain lines is one of the most common yet confusing tasks for homeowners attempting a bathroom upgrade. Understanding all the home plumbing fittings to a vanity is the critical difference between a sleek, leak-free installation and a weekend project that ends in water damage. In this guide, we will break down every single component you need, explaining their specific roles so you can tackle your vanity installation with confidence and professional precision.

What Are the Essential Supply Line Fittings for a Vanity?

Before water ever reaches your faucet, it must travel through a specific set of supply line fittings. These components connect the shut-off valves on your wall or floor to the inlet threads of your new faucet. Getting these wrong is the primary cause of early-stage leaks.

The Shut-Off Valve Connection

The journey begins at the wall. Most modern homes use compression fittings or quarter-turn angle stops.

• Compression Fittings: These rely on a ferrule (a small brass ring) that compresses against the pipe when the nut is tightened. They are reliable but require precise tightening torque.
• Threaded Connections: If you have older iron pipes, you might need a male or female iron pipe thread (MPT/FPT) adapter.

The Flexible Supply Lines

Gone are the days of bending rigid copper tubes. Today, we use flexible braided stainless steel supply lines. When selecting these, you must consider two critical factors:

1. Length: Measure from the center of the shut-off valve to the faucet inlet. Add 2 inches for slack. Never stretch the line tight; it should have a gentle curve.
2. Connector Type: The wall end is usually a 3/8-inch compression fitting, while the faucet end varies. Many modern faucets use 3/8-inch O.D. compression, but some European styles require 1/2-inch IPS or even M10 metric fittings.

Pro Tip: Always buy high-quality lines with a solid brass core inside the braiding. Cheap aluminum cores can corrode and burst within months.

The Faucet Inlet Adapters

Sometimes the supply line doesn’t match the faucet tailpiece directly. This is where adapters come in.

• Straight Adapters: Used when the alignment is perfect.
• Swivel Adapters: These allow you to rotate the connection point, making it easier to tighten the nut in tight vanity cabinets.

Which Drainage Fittings Connect the Sink to the Wall?

While supply lines bring water in, the drainage system takes it out. This system relies on gravity and airtight seals to prevent sewer gases from entering your home. The complexity here often surprises DIYers because all the home plumbing fittings to a vanity drain assembly involve multiple slip-joint connections.

The Tailpiece Extension

The tailpiece is the vertical pipe coming straight down from the sink strainer.

• Standard Length: Usually 6 to 8 inches.
• Adjustability: If your sink is deep or your P-trap is low, you may need a slip-joint extension tube. These telescopic tubes allow you to adjust the height without cutting pipe.
• Material Choice: Chrome-plated brass looks great for exposed plumbing, while PVC or ABS is ideal for hidden installations inside a cabinet.

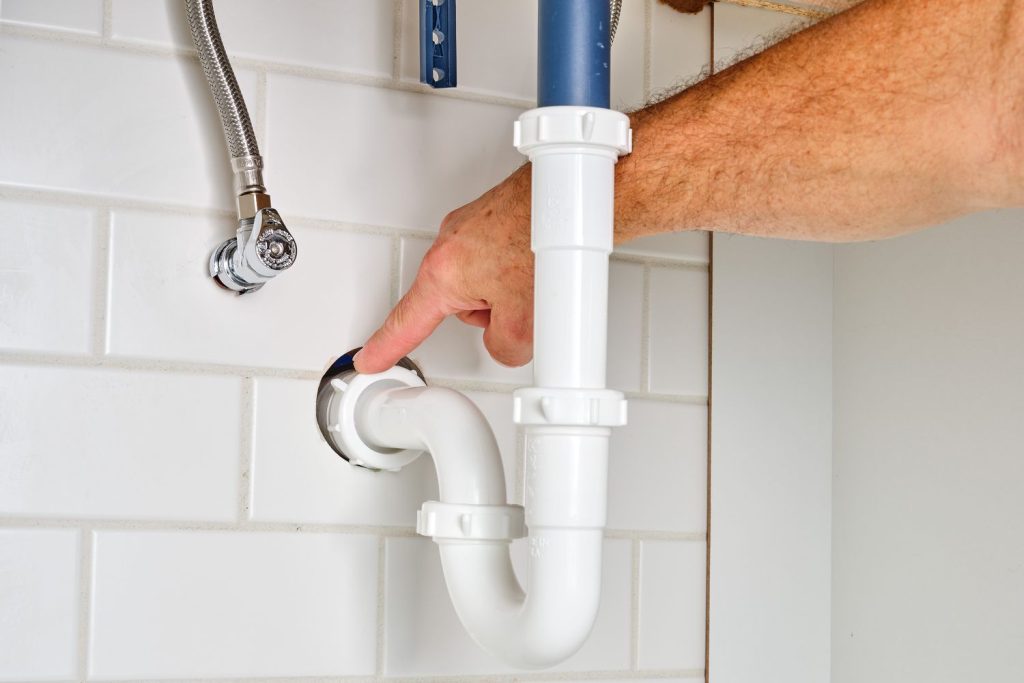

The P-Trap Assembly

The P-trap is the U-shaped bend under your sink. Its job is twofold: hold a water seal to block gases and provide a clean-out point for clogs.

• Slip-Joint Nuts and Washers: Unlike supply lines, P-traps do not use thread tape (Teflon tape). They rely on a beveled plastic washer inside a slip-joint nut.
  • Critical Detail: The beveled side of the washer must face toward the nut, not toward the pipe body. Installing this backward guarantees a leak.
• Trap Arm: This is the horizontal section connecting the P-trap to the drain pipe in the wall. It must slope downward slightly (1/4 inch per foot) to ensure proper flow.

The Wall Flange and Escutcheon

Where the pipe enters the wall, you need a wall flange (or escutcheon plate). This covers the rough hole in the drywall and provides a finished look. For a tight seal against sewer gas, some professionals recommend applying a bead of silicone around the pipe where it enters the wall flange, though the primary seal happens inside the trap adapter.

How Do Material Choices Impact Longevity and Safety?

Not all fittings are created equal. The material you choose affects everything from corrosion resistance to water taste. According to general engineering standards found in resources like Wikipedia’s entry on plumbing, material compatibility is crucial to prevent galvanic corrosion.

| Material | Best Use Case | Pros | Cons | | :— | :— | :— | : | | Brass (Chrome Plated) | Exposed supply & drain lines | Durable, aesthetic, resists corrosion | Expensive, can tarnish if plating chips | | Stainless Steel (Braided) | Flexible supply lines | High pressure rating, flexible, rust-resistant | Can kink if bent too sharply | | PVC / ABS | Hidden drain lines | Cheap, easy to cut, immune to rust | Not suitable for hot water supply, ugly aesthetics | | PEX | Water supply behind walls | Flexible, freeze-resistant, easy install | Requires special crimping tools, cannot be used for drain |

Expert Insight: Never mix dissimilar metals directly without a dielectric union. For example, connecting a copper pipe directly to a galvanized steel fitting can cause rapid corrosion due to electrochemical reactions. While vanity connections are usually small, sticking to brass or stainless steel for all visible fittings ensures uniformity and safety.

Step-by-Step: Installing All Fittings Correctly

Installing all the home plumbing fittings to a vanity requires a methodical approach. Follow these steps to ensure a professional result.

Step 1: Preparation and Measurement

Before buying anything, turn off the main water supply. Open the old faucet to drain residual water.

• Measure Vertical Distance: From the floor (or shut-off valve center) to the faucet inlet.
• Measure Horizontal Distance: From the wall to the center of the sink drain.
• Check Thread Sizes: Bring your old fittings to the store if possible, or take photos of the faucet specifications.

Step 2: Installing Supply Lines

1. Hand-tighten the compression nut onto the shut-off valve. Do not use Teflon tape on compression fittings; the ferrule creates the seal.
2. Connect the other end to the faucet tailpiece.
3. Torque Specification: Use an adjustable wrench to tighten the nut an additional 1/4 to 1/2 turn past hand-tight. Over-tightening can crush the ferrule or strip threads.
4. Repeat for hot and cold lines. Ensure the lines do not cross or touch each other excessively, as vibration can cause noise.

Step 3: Assembling the Drain

1. Insert the strainer body into the sink basin with a bead of plumber’s putty (or the provided rubber gasket) underneath. Tighten the locking nut from below.
2. Attach the tailpiece to the strainer.
3. Assemble the P-trap loosely first. Slide the slip nuts and washers onto the pipes before connecting them.
4. Connect the trap arm to the wall drain pipe. Ensure the slip-joint washer is oriented correctly (bevel toward the nut).
5. Tighten all slip nuts by hand, then give them a quarter turn with channel-lock pliers. Do not over-tighten plastic nuts, as they will crack.

Step 4: Testing for Leaks

1. Slowly turn on the water supply valves.
2. Let the water run for 2 liters to flush out any debris from the new lines.
3. Check every connection with a dry paper towel. Even a microscopic drip will show up on the towel.
4. Fill the sink with water, then pull the stopper to release a large volume quickly. This tests the drain under maximum flow pressure.
5. Inspect the P-trap and wall connection immediately after draining.

Frequently Asked Questions (FAQ)

1. Do I need Teflon tape for all plumbing fittings on a vanity?

No. You should only use Teflon tape (or pipe dope) on threaded connections where there is no gasket or ferrule, such as the connection between the shower arm and the elbow. For compression fittings (supply lines) and slip-joint connections (drains/P-traps), tape is unnecessary and can actually cause leaks by preventing the gasket or ferrule from seating properly.

2. What size are standard vanity supply lines?

In the United States, the standard size for vanity supply lines is 3/8-inch compression on the valve end. The faucet end is typically 3/8-inch compression as well, but always verify your specific faucet model, as some vessel sinks or imported fixtures may use 1/2-inch or metric threads.

3. Why is my P-trap leaking even though I tightened it?

The most common cause is the orientation of the beveled washer. The tapered side of the washer must face the direction of the tightening nut. If it is installed backward, the water pressure will force the washer away from the sealing surface, causing a leak regardless of how tight the nut is. Disassemble, flip the washer, and try again.

4. Can I use PVC pipes for the hot water supply line?

Absolutely not. PVC and ABS pipes are designed only for drainage and cold water. They will soften and fail under the temperature and pressure of hot water supply lines. Always use copper, PEX, or braided stainless steel flexible lines for water supply.

5. How often should I replace the flexible supply lines?

Even high-quality braided stainless steel lines degrade over time. Industry experts recommend replacing them every 5 to 7 years as a preventative measure. Rubber inside the braiding can dry rot, leading to sudden bursts. If you see any rust on the braid or bulging, replace them immediately.

6. What do I do if the shut-off valve won’t turn?

If an old valve is stuck, do not force it, or you might snap the stem, causing a massive flood. Try applying a penetrating oil (like WD-40 Specialist) and letting it sit for 15 minutes. Gently work it back and forth. If it remains stuck, it is safer to shut off the main house water and replace the entire valve before proceeding with the vanity installation.

Conclusion

Mastering all the home plumbing fittings to a vanity transforms a daunting renovation task into a manageable, satisfying DIY project. By understanding the specific roles of compression fittings, slip-joint washers, and P-traps, you ensure your new bathroom fixture is not only beautiful but also durable and leak-free. Remember, the secret to professional plumbing isn’t just tightening nuts; it’s knowing which washer goes where and respecting the limitations of different materials.
