Is there anything more frustrating than discovering a puddle of water under your kitchen sink, only to realize your trusted filtration system is leaking? For homeowners relying on clean drinking water, a small failure in the sealing mechanism can lead to significant water damage and wasted resources. Often, the culprit is a tiny, overlooked component: the American Plumber Under Sink Water Filter System O Ring. In this comprehensive guide, we will walk you through exactly how to identify, source, and replace this critical part to restore your system’s integrity and peace of mind.
Why Is My American Plumber Filter Leaking? Understanding the O-Ring’s Role

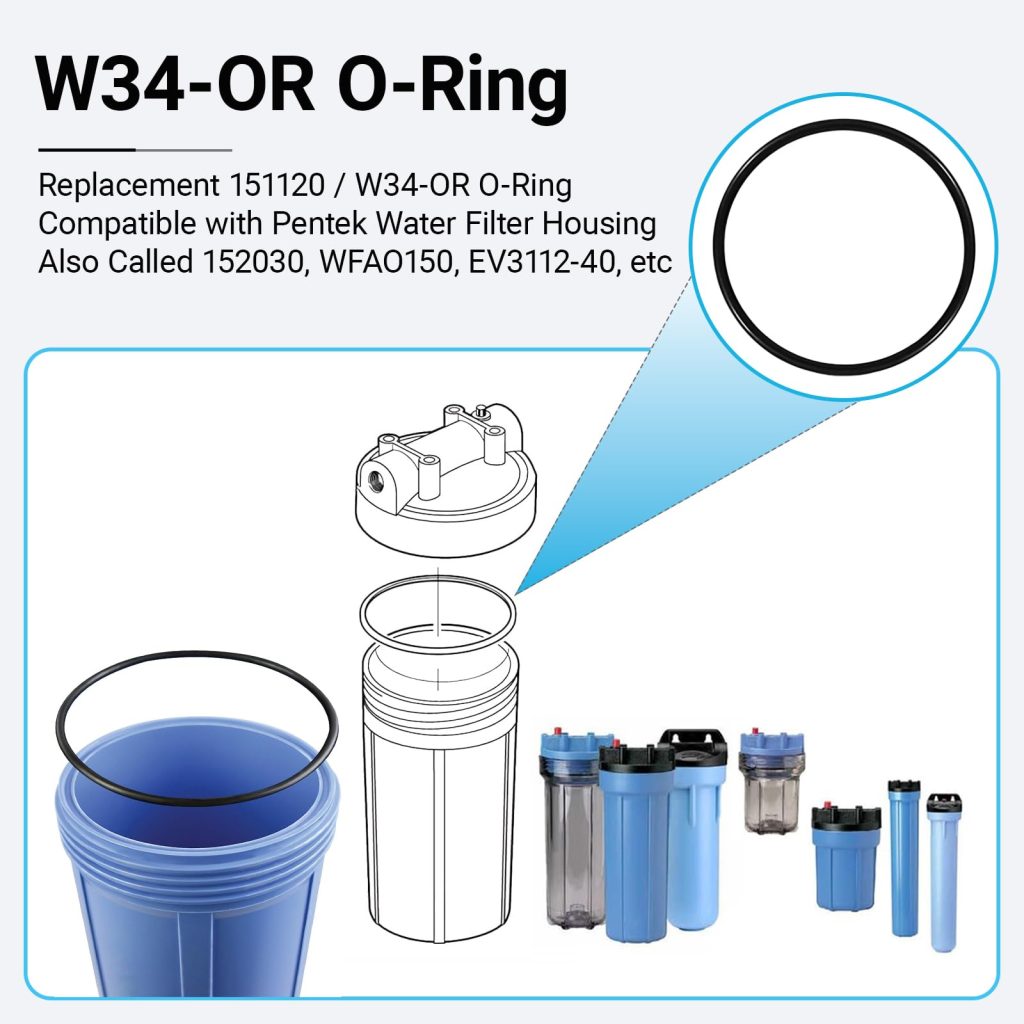

Before diving into the repair, it is crucial to understand why this small rubber ring causes such big problems. The O-ring (short for “oval ring”) acts as the primary gasket between the filter head and the filter housing or between connection ports. Its job is to create a watertight seal that withstands standard municipal water pressure, which typically ranges from 40 to 80 PSI (pounds per square inch).
When an O-ring fails, it is usually due to one of three reasons:
- Compression Set: Over time, the rubber loses its elasticity and cannot bounce back to fill gaps.
- Chemical Degradation: Chlorine and other chemicals in tap water can cause standard rubber to crack or become brittle.
- Physical Damage: Improper installation or cross-threading during filter changes can nick or tear the ring.
According to general plumbing maintenance data, nearly 60% of under-sink filter leaks are attributed to worn or misaligned O-rings rather than cracks in the housing itself. Ignoring this small component can lead to mold growth and structural damage to your cabinetry.
The Material Matters: Nitrile vs. Silicone
Not all O-rings are created equal. While many stock units come with standard Buna-N (Nitrile) rubber, upgrading to Silicone or Viton O-rings can significantly extend the life of your seal, especially if you have high chlorine levels in your water supply. Silicone offers better temperature resistance, while Viton provides superior chemical resistance.
How to Identify the Correct O-Ring Size for Your System
One of the most common questions homeowners ask is, “How do I know which O-ring fits my American Plumber system?” Using the wrong size is a guaranteed recipe for continued leaking. American Plumber systems generally adhere to standard sizing, but verification is key.
Step-by-Step Identification Process
- Shut Off the Water: Always turn off the supply valve before disassembling any part of the filtration system.
- Remove the Old O-Ring: Carefully take out the existing ring. If it is broken, try to piece it together to measure the full circumference.
- Measure Precisely: You need two specific measurements:
- Inner Diameter (ID): The distance across the inside of the ring.
- Cross-Section (CS): The thickness of the rubber itself.
Common Sizes for American Plumber Systems
While models vary, the most frequent sizes found in American Plumber under-sink units include:
| Component Location | Typical Inner Diameter (ID) | Typical Cross-Section (CS) | Standard Code (AS568) |
|---|---|---|---|
| Filter Housing Cap | 2.5 inches (approx. 63.5mm) | 0.139 inches (3.53mm) | #229 or #230 |
| Inlet/Outlet Ports | 0.5 inches (approx. 12.7mm) | 0.070 inches (1.78mm) | #012 |
| Quick-Connect Fittings | 0.375 inches (approx. 9.5mm) | 0.070 inches (1.78mm) | #006 |
Note: Always verify with your specific model number, as manufacturing tolerances can shift slightly between production years.
For a deeper understanding of industrial sealing standards and rubber compounds, you can refer to the technical specifications outlined on Wikipedia’s page on O-rings.
Step-by-Step Guide: Replacing the O-Ring Like a Pro
Replacing the O-ring is a task that requires patience and precision rather than heavy lifting. Follow this detailed tutorial to ensure a leak-free result.
Tools Required
- Adjustable wrench or strap wrench
- Digital calipers or a precise ruler
- Food-grade silicone lubricant (essential!)
- Clean, lint-free cloth
- Replacement O-ring kit
The Replacement Procedure
Step 1: Depressurize the System
Turn off the cold water supply valve under the sink. Open the filtered water faucet to release any remaining pressure in the line. Wait until the water stops dripping completely.
Step 2: Remove the Filter Housing
Using a strap wrench (to avoid scratching the plastic), unscrew the sump housing from the filter head. Be prepared for a small amount of residual water to spill out; place a towel underneath.
Step 3: Extract and Clean
Locate the old O-ring seated in the groove of the filter head or the top rim of the sump. Gently pry it out using a plastic pick or your fingernail—do not use metal tools that could scratch the sealing surface.
Clean the groove thoroughly with a damp cloth. Any sediment or mineral buildup here will prevent the new O-ring from sealing correctly.
Step 4: Lubricate the New O-Ring
This is the step most DIYers skip, leading to premature failure. Apply a thin, even coat of food-grade silicone lubricant to the new O-ring.
Why? Lubrication prevents the rubber from twisting or rolling during installation and reduces friction, allowing the O-ring to seat perfectly without tearing.
Step 5: Install and Seat
Place the lubricated O-ring into the groove. Ensure it sits flat and is not twisted. Run your finger around the entire circumference to confirm it is evenly seated.
Step 6: Reassemble and Test
Screw the housing back onto the filter head by hand first to avoid cross-threading. Tighten it an additional ¼ to ½ turn with the strap wrench. Do not overtighten, as this can crush the O-ring and cause leaks.
Turn the water supply back on slowly. Check for leaks immediately and again after 15 minutes of operation.
Troubleshooting: What If It Still Leaks?
You’ve replaced the O-ring, but water is still dripping. Don’t panic. Before calling a plumber, check these common oversights:
- Debris in the Groove: Even a single grain of sand can break the seal. Disassemble and clean again.
- Cracked Housing: Inspect the plastic housing for hairline fractures. If the plastic is cracked, no O-ring will fix it; you must replace the housing unit.
- Incorrect Lubricant: Did you use petroleum-based grease? This can degrade rubber O-rings rapidly. Ensure you used silicone-based lubricant only.
- High Water Pressure: If your home’s water pressure exceeds 80 PSI, it may be forcing water past the seal. Consider installing a pressure regulator.
Comparison: DIY Repair vs. Professional Service
| Feature | DIY Replacement | Professional Plumber |
|---|---|---|
| Cost | $5 – $15 (Part cost) | $150 – $250 (Labor + Parts) |
| Time | 15 – 30 Minutes | 1 – 2 Hours (including travel) |
| Difficulty | Low (Requires basic tools) | N/A |
| Risk | Low (if instructions followed) | None (Guaranteed work) |
| Best For | Standard wear and tear | Complex housing cracks or recurring issues |
Frequently Asked Questions (FAQ)
1. How often should I replace the O-ring in my American Plunder filter?
It is recommended to replace the O-ring every time you change the filter cartridge, which is typically every 6 to 12 months depending on usage and water quality. Since the O-ring is inexpensive, replacing it proactively prevents costly water damage.
2. Can I use a generic O-ring from a hardware store?
Yes, provided the dimensions (Inner Diameter and Cross-Section) match exactly and the material is rated for potable water. Look for O-rings labeled as NSF-61 certified or made from food-grade silicone/nitrile to ensure safety.
3. My O-ring looks fine, but it’s still leaking. What else could it be?
If the O-ring appears intact, the issue might be a cracked filter head, loose connection fittings, or high water pressure. Additionally, check if the O-ring groove itself is damaged or warped, which would prevent a proper seal regardless of the ring’s condition.
4. Is it safe to use Vaseline or petroleum jelly to lubricate the O-ring?
No. Petroleum-based products can cause nitrile and many synthetic rubbers to swell, degrade, or lose elasticity over time. Always use a food-grade silicone lubricant specifically designed for plumbing applications.
5. Where can I buy a replacement O-ring for an American Plumber system?
Replacement O-rings are available at most major hardware stores (like Home Depot or Lowe’s), specialized plumbing supply shops, and online retailers like Amazon. Searching by your specific filter model number usually yields the exact compatible kit.
6. What do I do if the O-ring keeps popping out during installation?
This usually indicates the O-ring is too large for the groove or has not been lubricated sufficiently. Ensure you have the correct cross-section size and apply plenty of silicone lubricant to help it slide into place and stay seated.
Conclusion
Dealing with a leaky water filter can feel like a major household crisis, but the solution is often as simple as replacing a small, inexpensive American Plumber Under Sink Water Filter System O Ring. By understanding the role of this critical component, selecting the right size, and following a careful installation process, you can restore your system’s efficiency and protect your home from water damage. Remember, regular maintenance—specifically swapping out that little rubber ring when you change your filters—is the secret to a long-lasting, leak-free water filtration system.
Did this guide help you fix your leak? Share this article with your friends and family on social media to help them avoid the headache of under-sink flooding! Stay proactive, keep your water clean, and happy plumbing.
