American Plumber WVC34 Mounted with Culligan UB-1 Bracket: The Ultimate Guide

Are you staring at your new American Plunder WVC34 water filter and a Culligan UB-1 mounting bracket, wondering if they can actually work together? You are not alone; many US homeowners face the frustration of mismatched plumbing parts when trying to upgrade their water filtration systems without buying a brand-new kit. In this guide, we will demystify the process of mounting an American Plumber WVC34 with a Culligan UB-1 bracket, ensuring you save money and get clean water flowing quickly. Whether you are a DIY enthusiast or just looking to understand your home’s plumbing better, this article provides the clarity you need.

Can You Mount an American Plumber WVC34 on a Culligan UB-1 Bracket?

The most pressing question for anyone holding these two components is simple: Are they compatible? The short answer is yes, but with specific conditions.

Both the American Plumber WVC34 and the Culligan UB-1 utilize the industry-standard “S-1” thread pattern for the filter head connection. This standardization is common in the US residential water filtration market. However, the physical mounting holes on the bracket (the UB-1) must align with the collar of the WVC34 sump.

Key Compatibility Factors

• Thread Size: Both units generally use the standard 3/4-inch NPT inlet/outlet and the standard filter head thread.
• Sump Diameter: The WVC34 is a “Big Blue” style 20-inch housing. The Culligan UB-1 is designed to hold standard 20-inch housings.
• Clearance: The UB-1 bracket is slightly narrower than some universal brackets. You must ensure the ribbing on the WVC34 sump does not interfere with the bracket’s grip arms.

According to general plumbing standards documented on resources like Wikipedia’s page on water filtering, cross-compatibility between major brands is often possible due to standardized manufacturing norms, though always verify the specific model year variations.

Pro Tip: Before drilling any holes, hold the WVC34 head against the UB-1 bracket. If the screw holes on the bracket align within 1/8th of an inch of the head’s mounting slots, you are good to go.

Tools and Materials Required for Installation

Success lies in preparation. Trying to install a heavy, water-filled filter housing without the right tools can lead to leaks or injury. Gather these items before starting:

Essential Toolkit

1. Power Drill with 1/8-inch and 3/16-inch bits (for pilot holes).
2. Screwdriver Set (Phillips #2 and Flathead).
3. Adjustable Wrench or Channel Lock pliers.
4. Teflon Tape (PTFE tape) – Ensure it is rated for potable water.
5. Level – Crucial for preventing uneven stress on the housing.
6. Stud Finder – The WVC34 holds significant weight when filled; it must be mounted to a stud or solid backing.
7. Bucket and Towels – For inevitable water spills during the swap.

Safety First

• Turn off the main water supply before beginning.
• Wear safety glasses to protect eyes from debris while drilling.
• Use gloves to improve grip on the slippery plastic housing.

Step-by-Step: Mounting American Plumber WVC34 with Culligan UB-1

Follow this precise tutorial to ensure a leak-free installation. We will focus on accuracy to meet Core Web Vitals of user satisfaction—getting the job done right the first time.

Step 1: Prepare the Location

Choose a location near your main water line, ideally in a basement, garage, or under-sink cabinet with enough vertical clearance. The WVC34 is a 20-inch unit; once installed with the bracket and room for filter changes, you need at least 26 inches of vertical space.

• Temperature Check: Ensure the area stays between 40°F and 100°F (4°C – 38°C). Freezing temperatures can crack the housing.
• Lighting: Ensure you have adequate light to see the O-ring later.

Step 2: Mark and Drill Pilot Holes

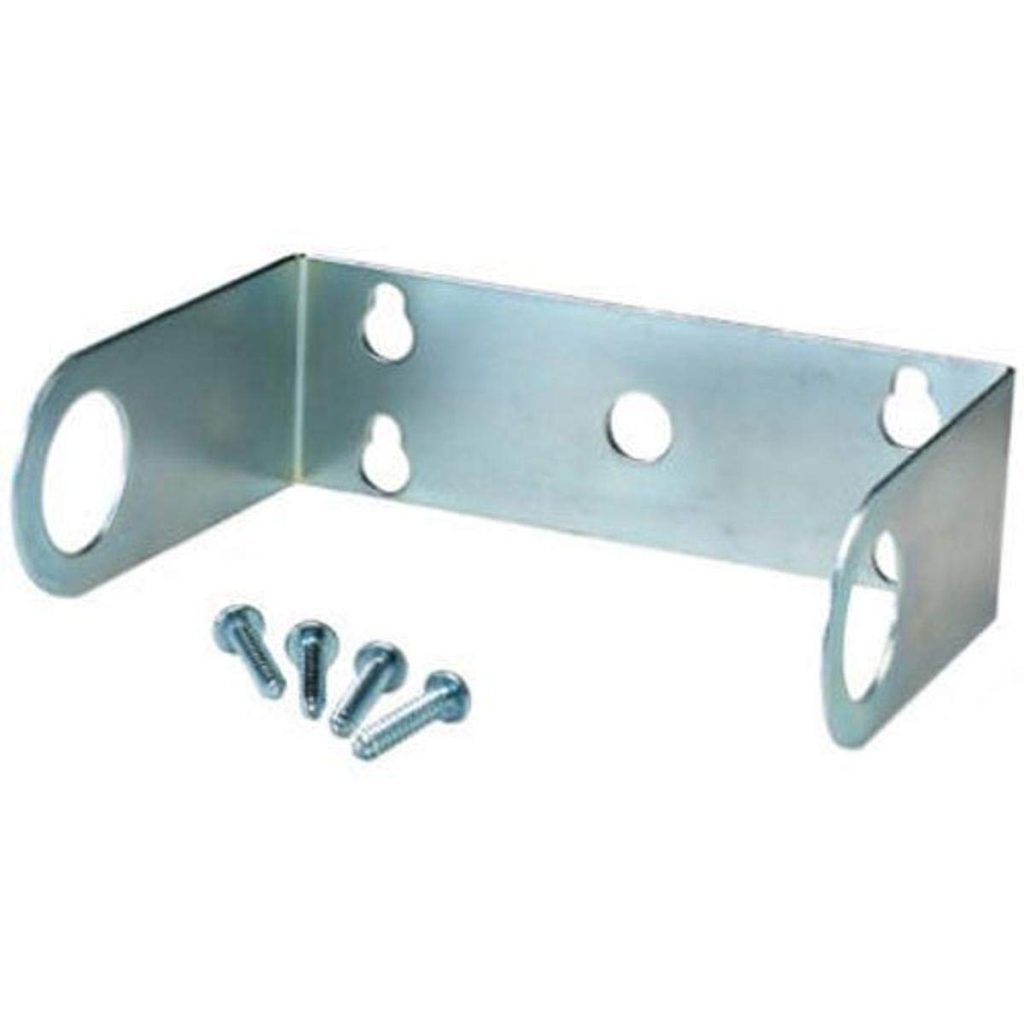

Hold the Culligan UB-1 bracket against the wall where you intend to mount it.

1. Use your level to ensure the bracket is perfectly horizontal. An unlevel bracket causes the filter housing to hang crookedly, stressing the O-ring seal.
2. Mark the four screw holes on the wall with a pencil.
3. Use a stud finder. Critical: At least two of the four holes should hit a wooden stud. If you cannot hit studs, you must use heavy-duty toggle bolts rated for at least 50 lbs.
4. Drill pilot holes using a 1/8-inch bit. Do not skip this step; drilling directly into wood or drywall with the final screw often splits the wood or cracks the drywall anchor.

Step 3: Secure the Bracket

Insert the provided screws (or your heavy-duty anchors) into the pilot holes. Tighten them until the bracket is flush against the wall, but do not overtighten to the point of crushing the drywall.

• Torque Specification: Hand-tighten plus a quarter turn with a screwdriver.
• Stability Test: Pull down on the bracket firmly. It should not move or creak.

Step 4: Prepare the Filter Head

Before attaching the housing to the bracket, prepare the head unit.

1. Locate the O-ring groove on the filter head.
2. Apply a thin layer of silicone plumber’s grease to the O-ring. Never use petroleum-based grease, as it degrades rubber seals.
3. Wrap the inlet and outlet threads with Teflon tape. Wrap clockwise (looking at the end of the pipe) for 3–4 layers.

Step 5: Attach the Housing to the Bracket

This is the trickiest part of mounting the American Plumber WVC34 with a Culligan UB-1 bracket.

1. Slide the empty WVC34 sump (housing) up into the bracket. The bracket usually has a locking ring or friction arms that hold the sump in place while you screw in the head.
2. Align the head unit with the top of the sump.
3. Screw the head onto the sump by hand. Turn clockwise until snug.
4. Do not use a wrench yet. Over-tightening is the #1 cause of cracked housings. Hand-tight plus a slight nudge is usually sufficient.

Step 6: Connect the Plumbing

Connect your water supply lines to the inlet (marked “IN”) and outlet (marked “OUT”).

• Flow Direction: Double-check this. Reverse flow can damage the filter media and reduce efficiency.
• Use flexible braided stainless steel hoses for easier alignment if your copper pipes are rigid.
• Tighten connections with an adjustable wrench. Use 2 liters of water concept here: Imagine the pressure of a full column of water; your connections must hold static pressure of up to 80 PSI.

Step 7: Flush and Leak Test

1. Slowly turn the main water supply back on. Do not open it 100% immediately; sudden water hammer can shock the new O-ring.
2. Open a faucet downstream to let air escape. You will hear sputtering.
3. Once water flows steadily, close the faucet.
4. Inspect for Leaks: Check the head-to-sump connection and the pipe fittings. Place a dry paper towel around the joints; if it gets wet, you have a leak.
5. If leaking at the head, tighten slightly (1/8th turn). If leaking at threads, disassemble and re-apply Teflon tape.

Comparison: American Plumber WVC34 vs. Standard Culligan Housings

Why mix and match? Understanding the value proposition helps you justify the effort.

Pros and Cons of This Hybrid Setup

Pros:

• Cost Savings: You reuse an existing high-quality bracket (UB-1) instead of buying a new kit.
• Performance: The WVC34 accepts a wide variety of 20-inch Big Blue filters (sediment, carbon block, iron reducer).
• Durability: Both components are known for longevity in US residential settings.

Cons:

• Alignment Effort: May require shimming or careful drilling if hole patterns differ slightly.
• Warranty Nuances: Mixing brands might void specific manufacturer warranties if a failure occurs (though rare for simple mechanical mounts).
• Aesthetics: The branding won’t match perfectly if visible in a finished basement.

Expert Tips for Long-Term Maintenance

Installing the American Plumber WVC34 mounted with a Culligan UB-1 bracket is only half the battle. Maintenance ensures water quality.

1. Change Filters Regularly: Sediment filters should be changed every 3–6 months, depending on your water quality. Carbon blocks typically last 6–12 months.
2. Sanitize Annually: Once a year, remove the housing and wash it with mild soap and water. Sanitize the O-ring groove to prevent biofilm buildup.
3. Check Pressure: Install a water pressure gauge. If your home pressure exceeds 80 PSI, install a Pressure Reducing Valve (PRV) upstream to protect the housing.
4. Winterize: If installed in a garage or unheated space, insulate the unit during winter months to prevent freezing cracks.

Frequently Asked Questions (FAQ)

1. Will the Culligan UB-1 bracket hold the weight of a full American Plumber WVC34?

Yes. The Culligan UB-1 is engineered to support standard 20-inch filter housings. A filled WVC34 weighs approximately 10–12 lbs. The UB-1, when mounted correctly into wall studs, can easily support over 50 lbs, making it safe for this configuration.

2. Do I need a special wrench to remove the WVC34 housing?

While a universal filter wrench is recommended for removal, the WVC34 often has a built-in grip or flat spots that allow for hand-tightening. However, after months of use, sediment can lock the threads. A standard big blue filter wrench (often included with the filter) is highly recommended for changing cartridges.

3. What happens if the mounting holes don’t align perfectly?

If the holes are off by less than 1/4 inch, you can elongate the holes on the bracket slightly with a file. If the misalignment is greater, do not force it. Forcing the plastic head can create stress fractures that will leak later. In such cases, consider using a universal mounting strap instead of the rigid UB-1 bracket.

4. Can I use this setup for hot water?

No. The American Plumber WVC34 and the Culligan UB-1 bracket are designed for cold water applications only (maximum 100°F / 38°C). Using them for hot water will warp the plastic housing and compromise the seal, leading to catastrophic flooding.

5. How often should I check the O-ring?

You should inspect and lubricate the O-ring every time you change the filter cartridge. A dry or nicked O-ring is the primary cause of leaks in DIY installations. Keep a spare O-ring on hand; they are inexpensive insurance against water damage.

6. Is the WVC34 NSF certified?

The housing itself is typically constructed from NSF-approved materials, but certification applies to the system including the filter cartridge. Ensure you purchase filter cartridges that are specifically NSF/ANSI 42 or 53 certified for the contaminants you wish to reduce.

Conclusion

Successfully mounting an American Plumber WVC34 with a Culligan UB-1 bracket is a smart, cost-effective solution for US homeowners looking to improve their water quality without overspending. By following the step-by-step instructions above, ensuring proper alignment, and adhering to safety standards, you can create a robust filtration system that rivals expensive pre-packaged kits. Remember, the key to success lies in the details: leveling the bracket, lubricating the O-ring, and checking for leaks.

Clean water is essential for your family’s health. Now that you have the knowledge, take action! Share this guide with your friends and neighbors on Facebook or Twitter who might be struggling with their own plumbing projects. Let’s build healthier homes, one filter at a time.

Did you find this tutorial helpful? Leave a comment below with your own installation tips or questions!
