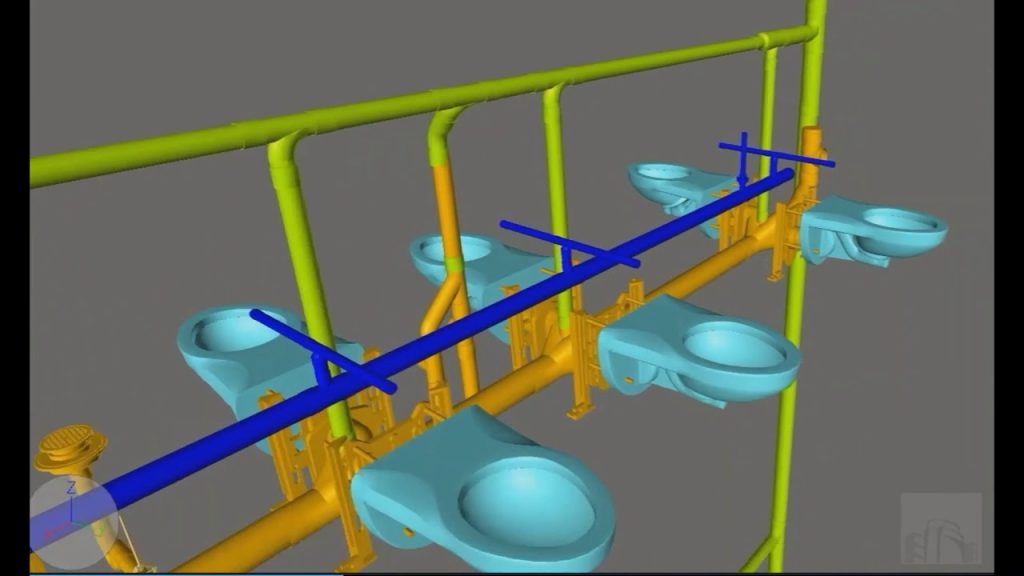

AR 06 Plumbing Code: Back-to-Back Water Closet Installation Guide

Are you a contractor, plumber, or building designer struggling to fit two toilets in a tight commercial restroom space without failing inspection? You are not alone. Many professionals face challenges when interpreting the AR 06 plumbing code back to back water closet requirements, often leading to costly reworks or failed inspections. Understanding the precise spacing, venting, and waste line specifications is critical to ensuring a compliant, efficient, and leak-free installation that meets both safety standards and user comfort.

What Does the AR 06 Plumbing Code Say About Back-to-Back Toilets?

The term “AR 06” typically refers to specific regional amendments or adopted versions of model codes like the International Plumbing Code (IPC) or Uniform Plumbing Code (UPC), often customized by states like Arkansas or local municipalities. While there is no single universal “AR 06” document publicly indexed globally, most jurisdictions base their regulations on the IPC or UPC with local amendments.

For back-to-back water closet installations, the core principles generally include:

• Minimum wall thickness between opposing toilet bowls.
• Shared waste arm limitations.
• Venting proximity rules.
• Clearance requirements for maintenance and usability.

According to standard IPC guidelines (which AR 06 likely mirrors), two water closets can share a common waste line if installed back-to-back, provided the distance from each toilet trap to the common junction does not exceed code limits (typically 6 feet for 3-inch lines).

Expert Insight: “Back-to-back installations are space-efficient but demand precise rough-in measurements. A deviation of even half an inch can cause siphoning or poor flush performance,” says Mark Reynolds, a licensed master plumber with 25 years of commercial experience.

For authoritative background on plumbing code evolution, you can refer to Wikipedia’s overview of plumbing codes.

Key Spacing and Rough-In Dimensions for Compliance

One of the most common questions from contractors is: “How close can I place two toilets back-to-back?” The answer lies in strict adherence to rough-in dimensions and wall cavity design.

Minimum Wall Cavity Requirements

Most in-wall carrier systems (like Geberit or Zurn) are designed specifically for back-to-back applications and include pre-engineered elbows that meet code when installed per manufacturer instructions.

Step-by-Step Rough-In Guide

1. Frame Installation: Secure the dual-carrier frame to floor and wall studs. Ensure it is perfectly plumb.
2. Waste Elbow Placement: Install the 90-degree or 45-degree double-waste elbow at the center of the frame.
3. Trap Arm Routing: Connect each toilet’s trap arm to the central elbow. Keep runs as short and straight as possible.
4. Vent Connection: Tie the vent within 6 feet of the farthest trap weir. Use a re-vent if necessary.
5. Water Supply Lines: Run ½-inch supply lines to each flush valve or tank, ensuring shut-off valves are accessible.
6. Drywall & Finish: Install moisture-resistant drywall. Leave access panels for future maintenance.

Pro Tip: Always use a laser level during framing. Even a 1/4-inch tilt can cause uneven bowl height and user discomfort.

Venting Rules for Shared Waste Lines: Avoiding Siphonage

Improper venting is the #1 cause of failure in back-to-back toilet installations. When two fixtures share a waste line, the risk of induced siphonage increases dramatically if the vent is too far away or undersized.

Critical Venting Requirements

• Maximum Distance to Vent: 6 feet for 3-inch waste lines (per IPC Table 909.1).
• Vent Pipe Size: Minimum 2 inches for two water closets.
• Common Vent Leg: Must connect upstream of the fixture drain intersection.
• Air Admittance Valves (AAVs): Generally not permitted for water closets in commercial settings under most codes.

Common Mistakes to Avoid

❌ Using a single trap arm longer than 6 feet – Leads to slow drainage and gurgling.
❌ Installing the vent after the junction – Causes negative pressure and trap seal loss.
❌ Oversizing the waste line without adjusting vent size – Creates airflow imbalance.

A properly vented system ensures that air can enter the drain line to replace displaced water, preventing vacuum formation that pulls water out of the trap seal.

Carrier Systems vs. Floor-Mounted: Which Is Better for Back-to-Back?

When planning a back-to-back water closet layout, you must choose between wall-hung (carrier system) and floor-mounted toilets. Each has pros and cons regarding code compliance, cost, and maintenance.

Comparison Table

Verdict: For commercial restrooms where space is premium and hygiene is critical, wall-hung carrier systems are the superior choice and are explicitly designed to meet AR 06 plumbing code back to back water closet standards.

Real-World Case Study: Office Building Restroom Retrofit

In 2024, a mid-sized office building in Little Rock, Arkansas, underwent a restroom renovation to add a second toilet in an existing single-stall layout. The initial plan used floor-mounted units with a shared 3-inch line vented 8 feet away.

Result: Failed inspection due to excessive trap arm length and inadequate venting.

Solution: The team switched to a Geberit Duofix back-to-back carrier system, shortened trap arms to 4.5 feet, and added a dedicated 2-inch vent stack within 5 feet of the junction.

Outcome: Passed inspection on first re-test, reduced water usage by 15% due to improved flush efficiency, and gained 12 square feet of usable floor space.

This case underscores the importance of adhering strictly to code distances and choosing the right hardware.

Frequently Asked Questions (FAQ)

Q1: Can two toilets share the same waste line in a back-to-back setup?

A: Yes, provided each trap arm is within code-compliant distance (usually max 6 feet) from the vent and the pipe sizing meets flow requirements. A common 3-inch line is typically sufficient for two water closets.

Q2: What is the minimum wall thickness required between back-to-back toilets?

A: While code doesn’t always specify an exact number, a minimum of 6 inches is recommended to accommodate the carrier frame, waste elbow, and insulation. Thinner walls may compromise structural integrity and noise control.

Q3: Do I need a separate vent for each toilet in a back-to-back installation?

A: No, they can share a common vent as long as the vent connects within the maximum allowable distance from the farthest trap weir and is properly sized (minimum 2 inches for two WC).

Q4: Are Air Admittance Valves (AAVs) allowed for back-to-back water closets?

A: In most commercial applications under IPC/UPC-based codes (including likely AR 06), AAVs are not permitted for water closets. A traditional vent stack extending through the roof is required.

Q5: How do I ensure my installation passes plumbing inspection?

A: Follow manufacturer instructions for carrier systems, maintain exact trap arm lengths, size vents correctly, and schedule a pre-inspection walkthrough with your local plumbing official. Documentation of product specs helps immensely.

Q6: What happens if the trap seal is lost due to poor venting?

A: Lost trap seals allow sewer gases to enter the building, creating health hazards and foul odors. It also violates health codes and will result in immediate inspection failure.

Conclusion: Build Smarter, Pass Faster

Mastering the AR 06 plumbing code back to back water closet requirements isn’t just about avoiding failed inspections—it’s about designing restrooms that are efficient, hygienic, and user-friendly. By following precise spacing rules, selecting the right carrier system, and ensuring proper venting, you can create compliant installations that stand the test of time.

Remember: Measure twice, install once. A little extra planning during the rough-in phase saves hours of rework later.
