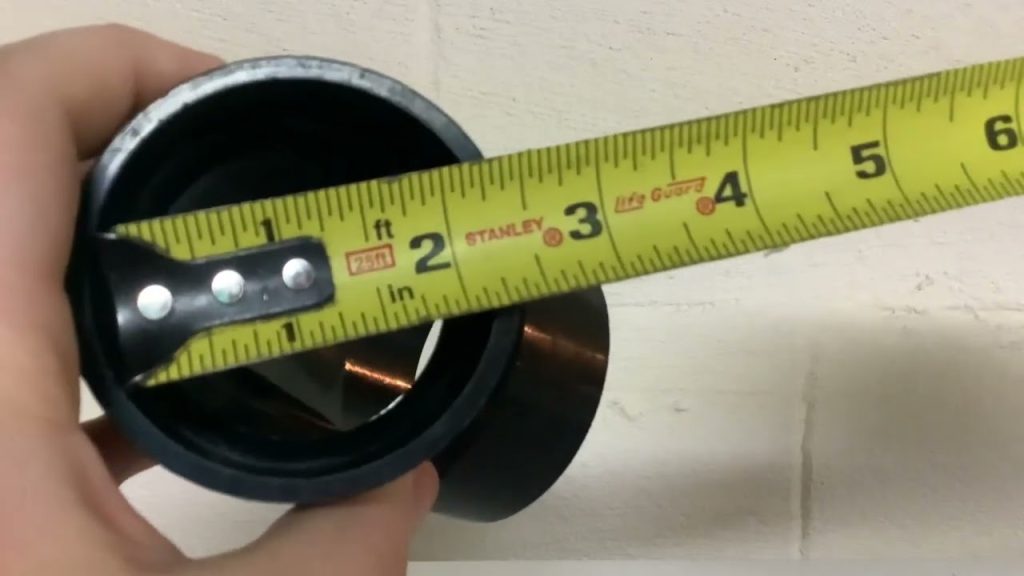

Are Plumbing Adapters Measured by Inner or Outer Diameter? The Ultimate Guide

Have you ever stood in the hardware aisle, holding a plumbing adapter in one hand and a pipe in the other, completely baffled by why they don’t seem to match despite having the same number on the label? You are not alone; this is one of the most common frustrations for DIY enthusiasts and even junior plumbers across the US. The confusion usually stems from a fundamental misunderstanding of whether plumbing adapters are measured by inner or outer diameter. The short answer is: it depends entirely on the type of pipe and the specific standard being used. In this guide, we will demystify these measurements, ensuring you never buy the wrong fitting again.

The Golden Rule: It Depends on the Pipe Material

When asking “Are plumbing adapters measured by inner or outer diameter?”, the immediate response from any seasoned professional is, “Which pipe are you using?” Unlike a universal ruler, the plumbing industry uses different reference points for different materials. Understanding this distinction is the first step to mastering pipe fittings.

Copper and CPVC: The Outer Diameter (OD) Standard

If you are working with copper tubing or CPVC (Chlorinated Polyvinyl Chloride), the sizing is strictly based on the Outer Diameter (OD).

• How it works: A ½-inch copper pipe does not have an inner diameter of ½ inch. Instead, its outside measures exactly 0.625 inches.
• The Fitting: The adapter or fitting is designed to slide over the pipe (for sweat/solder fittings) or grip the outside (for push-to-connect fittings). Therefore, the internal space of the fitting corresponds to the pipe’s OD.
• Why? This standard ensures that regardless of the wall thickness (Type K, L, or M copper), the external connection remains consistent.

PVC and ABS: The Nominal Iron Pipe Size (IPS) Quirk

Here is where it gets tricky. Rigid PVC and ABS pipes used in drainage and water supply often follow Nominal Iron Pipe Size (IPS).

• The Confusion: A “1-inch” PVC pipe has an outer diameter of roughly 1.315 inches, not 1 inch. The “1-inch” label is a historical nominal size, loosely based on the inner diameter of old iron pipes, but it matches neither the current ID nor OD precisely.
• The Measurement: For scheduling purposes (Schedule 40 vs. Schedule 80), the Outer Diameter remains constant, while the Inner Diameter changes based on wall thickness. Consequently, adapters for PVC are generally sized to match the consistent Outer Diameter, even though the name suggests otherwise.

PEX Tubing: Strict Outer Diameter

PEX (Cross-linked Polyethylene) has revolutionized residential plumbing. Like copper, PEX sizing is based on CTS (Copper Tube Size), which refers to the Outer Diameter.

• A ½-inch PEX tube has an OD of 0.625 inches, identical to ½-inch copper. This allows them to use the same brass adapters and crimp rings.

Pro Tip: Never assume the number on the package equals the physical measurement in inches. Always measure the pipe physically if the labeling has worn off.

Understanding Thread Standards: NPT vs. FPT vs. MPT

When your plumbing adapter involves threads, the measurement logic shifts slightly from simple diameter to thread engagement. This is a critical area where mistakes lead to leaks.

What is NPT?

National Pipe Tapered (NPT) is the US standard for threaded pipes and fittings.

• Measurement Basis: NPT sizes are nominal. A ½-inch NPT thread does not measure ½ inch on the inside or the outside.
• The Reality: A ½-inch NPT male thread has an outer diameter of approximately 0.840 inches. The “½-inch” refers roughly to the bore (inner hole) of the pipe it connects to, not the thread itself.
• Taper is Key: NPT threads are tapered (getting slightly larger toward the base). This taper creates the seal when tightened, often requiring Teflon tape or pipe dope.

FPT and MPT Explained

• FPT (Female Pipe Thread): The internal threads of a fitting.
• MPT (Male Pipe Thread): The external threads of a fitting.
• Compatibility: An MPT fits into an FPT. Both share the same nominal size designation, but again, physical measurement will differ from the label.

For a deeper dive into the history and technical specifications of thread standards, you can refer to the detailed documentation on Wikipedia’s National Pipe Thread page. Understanding the taper angle (1 degree 47 minutes) is vital for professionals ensuring leak-free joints in high-pressure systems.

Comparison: OD vs. ID vs. Nominal Sizing

To make this crystal clear, let’s look at a comparison table. This visual aid highlights why guessing leads to failed projects.

Key Takeaways from the Data

1. Consistency of OD: Notice how ½-inch Copper, PEX, and Steel/Iron all share a similar or identical Outer Diameter (0.625″ vs 0.840″ depending on the specific nominal class, but within their own systems, OD is the constant). This allows transition fittings to work.
2. Variable ID: The Inner Diameter fluctuates wildly based on wall thickness. If you tried to size a fitting based on ID, a Schedule 80 PVC pipe would require a totally different fitting than a Schedule 40, even though they connect to the same system. This proves why OD is the industry standard for most pressure pipe adapters.
3. The Garden Hose Exception: Note the last row. Garden Hose Threads (GHT) are one of the few common exceptions where the size (¾ inch) refers more closely to the Inner Diameter and the flow capacity, though the thread OD is actually about 1.062 inches. This is why you cannot screw a garden hose directly onto an NPT pipe without a specific adapter.

Step-by-Step: How to Measure and Select the Right Adapter

Don’t guess. Follow this precise tutorial to ensure you grab the correct adapter for your project.

Tools Needed:

• Digital Caliper (Preferred) or a flexible measuring tape.
• Thread pitch gauge (optional, for threaded fittings).
• The pipe or fitting you are connecting to.

Step 1: Identify the Pipe Material

Determine if you are dealing with Copper, PVC, PEX, or Galvanized Steel. Look at the printing on the side of the pipe. If it says “CTS,” you are dealing with Outer Diameter sizing. If it says “Schedule 40,” it is likely IPS/OD sizing.

Step 2: Measure the Outer Diameter (OD)

Place your caliper jaws around the outside of the pipe.

• Action: Gently close the jaws until they touch the pipe walls. Do not crush soft pipes like PEX.
• Reading: Record the measurement.
  • If it reads 0.625 inches, you have a ½-inch pipe (Copper/PEX).
  • If it reads 0.840 inches, you have a ½-inch NPT/Iron/PVC pipe.
  • If it reads 1.050 inches, you have a ¾-inch pipe.

Step 3: Measure the Inner Diameter (ID) – Only if Necessary

Only measure the ID if you are dealing with unmarked tubing or trying to determine flow rate restrictions.

• Action: Insert the upper jaws of the caliper into the pipe and expand until they touch the inner walls.
• Usage: Use this data primarily for calculating water volume, not for selecting standard pressure fittings.

Step 4: Check the Thread Type (If Applicable)

If the adapter is threaded:

• Count the threads per inch (TPI). A ½-inch NPT has 14 threads per inch.
• Check for taper. NPT threads get wider at the base; straight threads (like NPSM) do not.
• Warning: Never force a tapered thread into a straight thread connection without verifying compatibility, as this will crack the fitting.

Step 5: Select the Adapter

Match your measured OD to the adapter specification.

• Example: If your copper pipe OD is 0.625″, buy an adapter labeled “½-inch CTS” or “½-inch Copper.”
• Verification: Before leaving the store, test fit the adapter over the pipe end (if possible) to ensure a snug but not impossible fit.

Frequently Asked Questions (FAQ)

1. Can I use a caliper to determine the nominal pipe size?

Yes, absolutely. Since nominal sizes (like ½”, ¾”) do not match physical dimensions, using a digital caliper to measure the Outer Diameter is the most accurate way to reverse-engineer the nominal size. Compare your measurement against a standard pipe dimension chart to find the match.

2. Why do my ½-inch PVC and ½-inch Copper pipes have different diameters?

This is because they follow different historical standards. Copper uses CTS (Copper Tube Size) where the OD is fixed at 0.625″ for ½-inch. PVC typically follows IPS (Iron Pipe Size), where the OD for ½-inch is larger (0.840″) to match old steel pipe dimensions. You need a specific transition adapter (e.g., Copper x PVC) to connect them.

3. Are compression fittings measured by ID or OD?

Compression fittings are almost exclusively measured by the Outer Diameter (OD) of the tube they are clamping onto. The ferrule (the ring that compresses) bites into the outside of the pipe. Using a compression fitting sized for ID on an OD-standard pipe will result in immediate failure and leaking.

4. What happens if I confuse NPT and IPT?

IPT (Iron Pipe Thread) is often used interchangeably with NPT in casual conversation, but technically, NPT is tapered while some IPT designations can be straight. If you try to seal a tapered NPT male into a straight thread female without the proper gasket or O-ring, it will leak because the threads won’t wedge tightly together. Always verify if the fitting requires tape/dope (tapered) or a rubber washer (straight).

5. Is there a universal adapter for all pipe types?

No single adapter fits all due to the variations in OD and thread standards. However, push-to-connect fittings (like SharkBite) are highly versatile. They often feature internal grippers and O-rings designed to accommodate the specific OD of CTS pipe (Copper, CPVC, PEX) regardless of the material, provided the OD is exactly right. They do not work with IPS-sized PVC or threaded iron pipe without specific inserts or adapters.

Conclusion

Navigating the world of plumbing sizes doesn’t have to be a guessing game. To answer the core question: Most plumbing adapters for pressure systems (Copper, PEX, PVC) are measured and sized based on the Outer Diameter (OD), even if the label refers to a “nominal” size that sounds like an inner measurement. Threaded connections add a layer of complexity with NPT standards, where neither ID nor OD matches the label directly.

By understanding these distinctions, measuring your pipes with a caliper, and respecting the differences between CTS and IPS standards, you can save yourself hours of frustration and prevent costly water damage from leaks. Remember, in plumbing, precision is not just about perfection—it’s about keeping your home dry.
