Are Plumbing Measurements Standard in Manufactured Homes?

Owning a manufactured home comes with unique joys and distinct challenges, especially when it comes to maintenance and renovations. One of the most frequent questions we hear from homeowners is: “Are the measurements on plumbing standard for manufactured homes?” The short answer is both yes and no, and getting it wrong can lead to costly leaks or incompatible fixtures. While the industry follows strict federal guidelines, the specific pipe diameters and fitting types often differ significantly from traditional site-built houses. In this guide, we will break down exactly what you need to know to navigate your home’s plumbing system with confidence.

The Core Reality: HUD Code vs. Traditional Building Codes

To understand why plumbing measurements might seem “off” in your home, we first need to look at the regulatory framework. Unlike site-built homes, which adhere to local or state building codes (like the International Plumbing Code or IPC), manufactured homes in the United States are built according to the HUD Code (24 CFR Part 3280).

This federal standard was established to ensure safety and durability during transport and installation. Consequently, while the principles of plumbing remain the same, the measurements and materials often diverge from what a conventional plumber might expect.

Key Differences at a Glance

The goal of these differences is to create a system that can withstand the stress of being driven down a highway at 60 mph without cracking or leaking. For more detailed historical context on housing regulations, you can refer to the overview of Mobile Home standards on Wikipedia.

Are Water Supply Pipe Sizes Standard?

When homeowners ask about measurements, they are usually holding a wrench and staring at a pipe that doesn’t quite fit the standard connector from the hardware store. Let’s dive into the specifics of water supply lines.

The Diameter Dilemma: 1/2 Inch vs. 3/8 Inch

In a traditional house, you will almost exclusively find 1/2-inch pipes feeding your sinks and toilets, with 3/4-inch lines for main distribution. In manufactured homes, however, it is very common to encounter 3/8-inch OD (Outside Diameter) tubing for individual fixture supplies.

• Why? To save weight and space within the thin walls of a manufactured home.
• The Trap: If you buy a standard shut-off valve designed for 1/2-inch copper or PEX, it will not fit your 3/8-inch mobile home line without an adapter.

Expert Tip: Always measure the Outside Diameter (OD) of your existing pipe before purchasing replacements. Do not assume it is standard residential size. Many manufactured homes use PEX tubing where the OD measurement is critical for push-to-connect fittings.

Pressure Ratings and Material Types

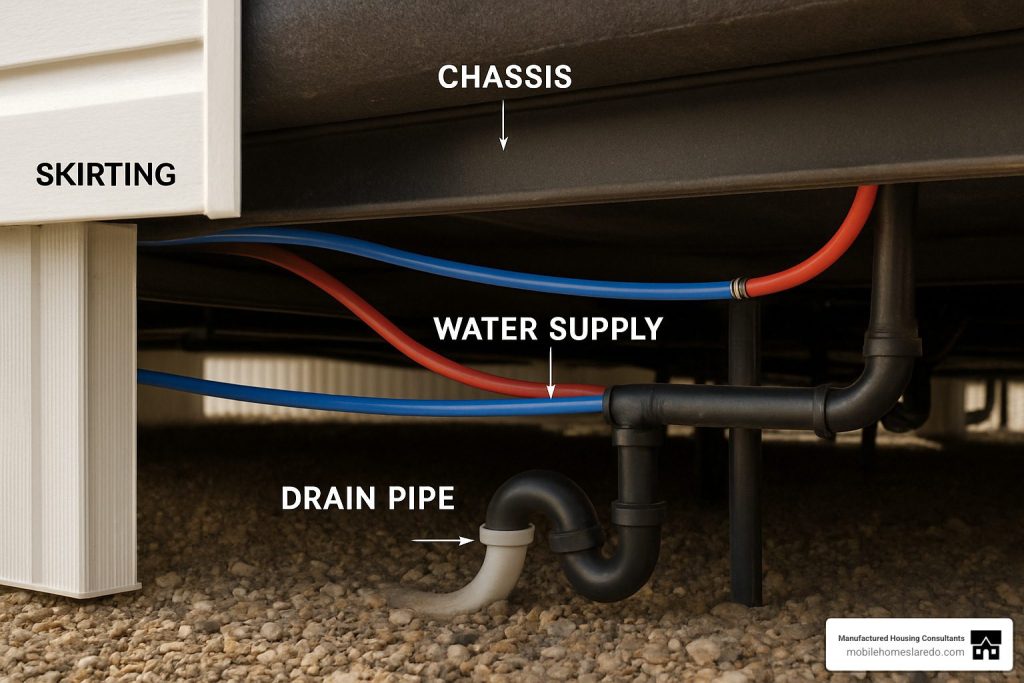

Manufactured homes predominantly use PEX (Cross-linked Polyethylene) or flexible plastic tubing rather than rigid copper. This is not just a cost-saving measure; flexible piping is less likely to rupture under the vibration of transport.

• Standard Measurement: Most supply lines are rated for 80–100 PSI.
• Connection Style: You will often see compression fittings or specific crimp rings that differ slightly in width from standard residential tools.

If you are upgrading fixtures, ensure your new faucet supply lines have adapters compatible with 3/8-inch compression or 1/2-inch FIP (Female Iron Pipe), as your home may have a mix depending on its age.

Drain and Waste Line Measurements: A Critical Distinction

The drainage system is where the most significant confusion occurs during renovations. If you try to connect a standard site-built sink trap to a manufactured home drain, you might find the slopes and diameters don’t align.

Common Drain Pipe Diameters

While the principles of gravity flow apply, the pipe sizing in manufactured homes is optimized for minimal intrusion into floor joists.

1. Sink Drains: Typically 1-1/4 inches or 1-1/2 inches. In older models (pre-1980s), you might even find 1-1/4 inch everywhere, whereas modern site-built homes mandate 1-1/2 inches for bathroom sinks.
2. Toilet Flanges: Usually 3 inches, which is standard. However, the offset (the distance from the wall to the center of the flange) can vary. In many mobile homes, this is a strict 12-inch rough-in, but slight deviations occur due to wall thickness variations.
3. Main Sewer Line: Typically 3 inches or 4 inches exiting the home.

The “Thin-Wall” Factor

A crucial measurement nuance is the wall thickness of the PVC or ABS pipe. Manufactured homes often use Schedule 30 or thin-wall PVC, whereas site-built homes use Schedule 40.

• The Problem: Even if the inner diameter looks similar, the outer diameter of thin-wall pipe is smaller.
• The Result: A standard Schedule 40 coupling will be too loose to glue properly onto a manufactured home’s drain pipe. You must purchase fittings specifically labeled for mobile home use or ensure you are using adapters designed for thin-wall pipe.

Step-by-Step: How to Measure and Verify Your Plumbing

If you are planning a renovation, do not guess. Follow this precise protocol to ensure you buy the right parts.

Step 1: Gather Your Tools You will need a digital caliper (preferred) or a high-quality tape measure, and a flashlight.

Step 2: Measure the Outside Diameter (OD) For supply lines, measure across the widest part of the pipe’s exterior.

• If the measurement is approx 0.375 inches, you have 3/8-inch tubing.
• If the measurement is approx 0.500 inches, you have 1/2-inch tubing.
• Note: Do not measure the inside; fittings grip the outside.

Step 3: Check the Drain Slope Manufactured homes have limited under-floor space. Use a level to check the slope of your drain pipes.

• Standard Requirement: A minimum slope of 1/4 inch per foot is required for proper drainage.
• Action: If your slope is less than this after installing a new fixture, you risk chronic clogs. You may need to shim the pipe supports carefully.

Step 4: Identify the Fitting Type Look at how the pipes connect.

• Are they glued (solvent weld)?
• Are they crimped (metal rings)?
• Are they push-fit? Taking a photo of the existing connection to the hardware store is often the safest bet if you are unsure.

People Also Ask: Common Questions About Mobile Home Plumbing

Here are answers to the most specific questions homeowners search for regarding this topic.

1. Can I use standard PVC fittings for my manufactured home drains?

Generally, no, not directly. Because manufactured homes often use thin-wall (Schedule 30) pipe, standard Schedule 40 fittings may not create a watertight seal. The inner diameter of a Schedule 40 fitting is designed to fit the larger outer diameter of Schedule 40 pipe. Using them on thin-wall pipe can lead to leaks and sewage odors. Look for fittings marked “Mobile Home” or use transition couplings.

2. What is the standard water pressure for a manufactured home?

The HUD Code typically designs systems to handle a maximum incoming pressure of 80 PSI. However, the ideal operating pressure is between 40 and 60 PSI. If your municipal supply exceeds 80 PSI, you must install a Pressure Reducing Valve (PRV) to prevent bursting pipes, which are often more vulnerable in mobile structures due to their flexibility.

3. Are toilet rough-in measurements the same in mobile homes?

Mostly, yes. The standard rough-in distance (from the finished wall to the center of the bolt caps) is 12 inches. However, because manufactured home walls can be thinner (often 2×3 studs instead of 2×4), the effective distance might feel different if you are measuring from the drywall surface versus the stud. Always measure from the finished wall surface to be safe.

4. Why are my water lines smaller than my neighbor’s site-built house?

This is a deliberate design choice based on the HUD Code. Smaller diameter pipes (3/8 inch vs 1/2 inch) reduce the overall weight of the home, which is critical for transport and axle load limits. They also take up less space within the confined floor cavities. As long as the fixture flow rate meets federal standards, this is compliant and normal.

5. Can I replace mobile home plumbing with standard PEX?

Yes, and it is often recommended during major renovations. Upgrading to standard PEX-A or PEX-B (1/2 inch) can improve water flow and make future repairs easier since parts are universally available. However, you must ensure that any transition from the existing thin lines to the new standard lines uses the correct reducing adapters to avoid leaks.

Conclusion: Navigating Your Unique Plumbing System

So, are the measurements on plumbing standard for manufactured homes? They follow a standard, but it is a different one than traditional housing. Recognizing the distinction between HUD Code requirements and local building codes is the key to successful maintenance and renovation. From the prevalence of 3/8-inch supply lines to the nuances of thin-wall drain fittings, your home has unique specifications designed for mobility and efficiency.

By measuring carefully, understanding the “thin-wall” constraint, and sourcing the correct adapters, you can upgrade your plumbing with the same confidence as a site-built homeowner. Don’t let the differences intimidate you; they are simply engineering solutions to a unique set of challenges.
