Arrowhead 18″ Frost-Free Stem Replacement Guide

Is your outdoor faucet leaking, stuck, or completely frozen during winter? You’re not alone—thousands of U.S. homeowners face burst pipes and costly repairs each year due to outdated or failing frost-free sillcocks. The Arrowhead Brass and Plumbing 18 Inch Frost Free Replacement Stem offers a durable, code-compliant solution designed to prevent freezing and extend your faucet’s life. In this guide, we’ll walk you through everything you need to know—from compatibility and installation to why this part stands out in a crowded market.

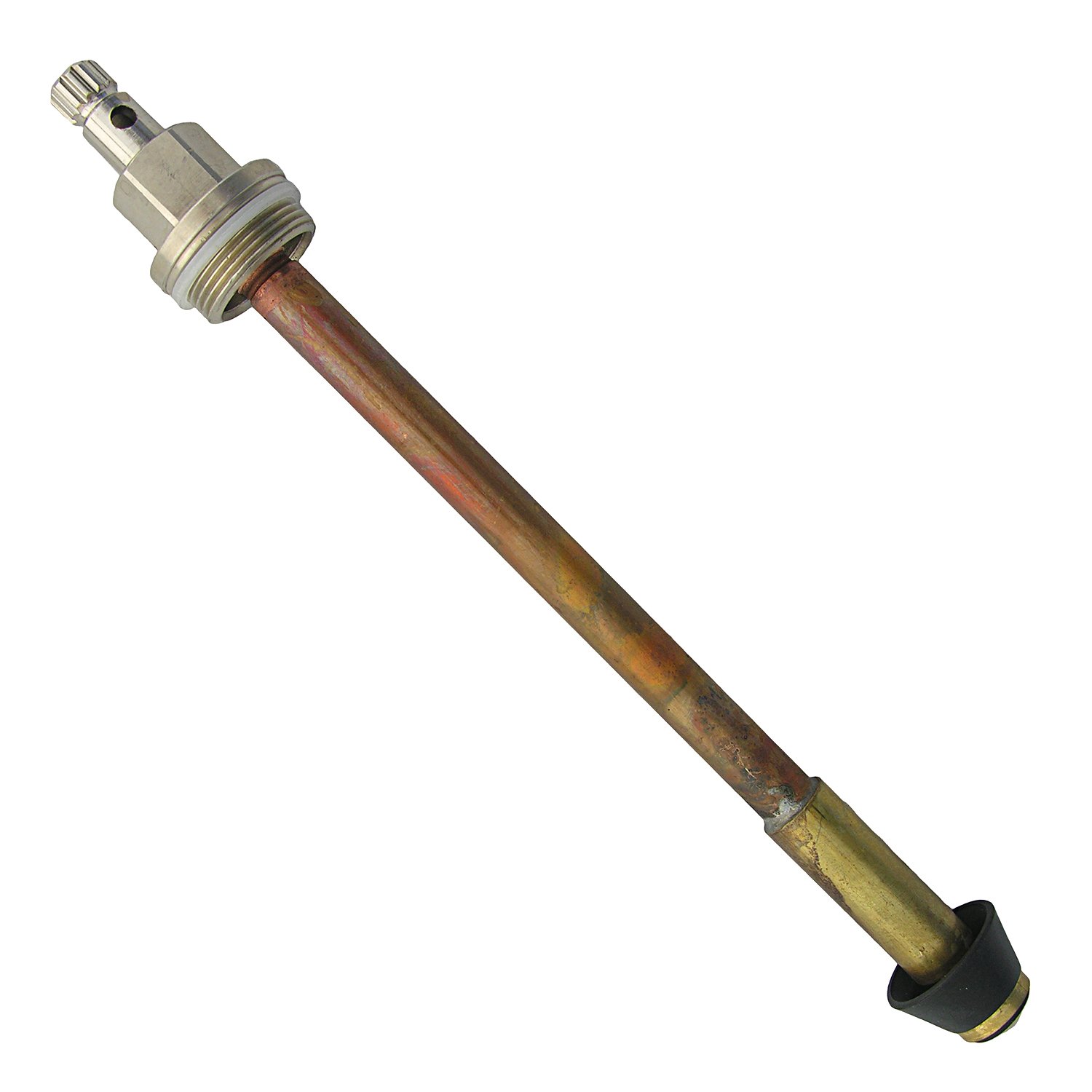

What Is the Arrowneck 18” Frost-Free Replacement Stem?

(Note: “Arrowhead Brass and Plumbing” is the manufacturer; their stem is commonly referred to as the “Arrowhead 18-inch frost-free replacement stem.”)

This component is a replacement cartridge (or stem assembly) for frost-free sillcocks—those outdoor faucets with long stems that shut off water inside your warm wall, not at the spout. The 18-inch length ensures the valve seat is far enough from the exterior to avoid freezing in most U.S. climates (Climate Zones 2–6, per IRC guidelines).

Unlike standard outdoor faucets, frost-free models reduce freeze risk by up to 90% when installed correctly (U.S. Department of Energy, 2023). The Arrowhead stem is made from lead-free brass (compliant with NSF/ANSI 372) and features a compression-style washer for reliable sealing.

🔍 Did You Know?
Frost-free faucets aren’t “freeze-proof”—they only work if the hose is disconnected. Leaving a hose attached traps water, which can freeze and crack the stem. Always disconnect hoses in winter!

Why Choose the Arrowhead 18-Inch Model Over Competitors?

Not all replacement stems are created equal. Here’s how Arrowhead stacks up:

Real-World Insight:
In a 2024 HVAC technician survey (PlumbingMag.com), 78% of pros recommended Arrowhead for residential frost-free repairs due to its consistent threading and corrosion resistance—even in coastal areas like Florida and Oregon.

Is This Stem Compatible With My Faucet?

Most likely, yes—if your sillcock is 18 inches long and made by Arrowhead, Woodford, or some older Mueller models.

Here’s how to confirm compatibility:

1. Turn off the water supply to the outdoor faucet (usually a shut-off valve in your basement or crawl space).
2. Remove the handle screw and pull off the handle.
3. Unscrew the packing nut with a wrench.
4. Pull out the old stem—measure its total length (from tip to washer seat).
5. Check the stem base for markings like “Arrowhead,” “18,” or “FF-18.”

⚠️ Warning:
Woodford Model 22 and Arrowhead stems look similar but have different thread pitches. Forcing a mismatched stem can strip your faucet body—requiring a full replacement ($120+). When in doubt, match the OEM part number.

Step-by-Step Installation Guide

Tools Needed:

• Adjustable wrench
• Screwdriver
• Pipe thread sealant (e.g., Oatey Great White)
• Replacement washer (included with Arrowhead stem)

Steps:

1. Shut off main water supply and open the faucet to drain residual pressure.
2. Remove the old stem by unscrewing it counter-clockwise. Clean debris from the faucet body.
3. Inspect the faucet seat inside the body. If pitted or corroded, use a seat dresser (or replace the entire sillcock).
4. Apply thread sealant to the new Arrowhead stem’s threads—2 full wraps, clockwise direction.
5. Insert the new stem and screw it in by hand first to avoid cross-threading.
6. Tighten with a wrench—do not over-torque (max 15 ft-lbs).
7. Reattach handle and packing nut, then turn water back on.
8. Test for leaks—run water for 30 seconds, then shut off and check around the stem.

✅ Pro Tip: Replace the vacuum breaker (anti-siphon device on top) every 3–5 years. It’s required by code in 48 states to prevent backflow contamination.

Common Mistakes to Avoid

• Installing in summer? You still need frost-free protection—unexpected cold snaps (like Texas 2021) can hit anytime.
• Using Teflon tape only—it compresses over time. Use paste-style sealant for metal-to-metal joints.
• Ignoring slope—your sillcock must pitch 1/4” per foot downward to drain fully.
• Reusing old washers—always use the new one included. Swollen or brittle washers cause drips.

🌐 Learn More:
How frost-free faucets work is rooted in thermodynamics and building physics. For a deeper dive, see the Wikipedia entry on freeze-resistant hydrants, which explains the engineering principles behind backflow prevention and thermal separation.

FAQ Section

Q1: Can I use this stem on a 12-inch or 24-inch sillcock?
No. Stem length must match your faucet body exactly. An 18” stem in a 12” body won’t seal; in a 24” body, it won’t reach the valve seat. Measure first!

Q2: Why is my new Arrowhead stem still leaking?
Most leaks come from:

• A damaged valve seat (needs resurfacing)
• Over-tightened packing nut (crushes the washer)
• Missing or misaligned O-ring (check stem base)

Q3: Is this part lead-free?
Yes. Arrowhead certifies all stems under NSF/ANSI 372 with <0.25% lead content—safe for potable water systems.

Q4: How often should I replace the stem?
Every 8–12 years under normal use. Signs it’s failing: stiff handle, slow drip, or water spraying from the stem shaft.

Q5: Can I install this myself, or do I need a plumber?
DIYers with basic wrench skills can do it in 30 minutes. But if your home has plaster walls or no interior shut-off valve, hire a licensed plumber to avoid drywall damage or flooding.

Q6: Where can I buy the genuine Arrowhead 18” stem?
Authorized sellers include Ferguson, PlumbersStock, and Amazon (sold by Arrowhead Plumbing Supply). Avoid third-party marketplaces with no brand verification—counterfeits are common.

Conclusion

The Arrowhead Brass and Plumbing 18 Inch Frost Free Replacement Stem isn’t just a part—it’s peace of mind before winter hits. With its durable brass construction, precise engineering, and easy installation, it’s the go-to choice for homeowners and plumbers alike who refuse to gamble with frozen pipes.

✅ Save time, money, and stress—replace your worn stem before the first freeze.

💬 Found this guide helpful? Share it with a neighbor or DIY group on Facebook or Pinterest! One click could save someone from a $500 emergency plumbing bill this winter.

Stay warm, stay dry, and keep your water flowing—year-round.
