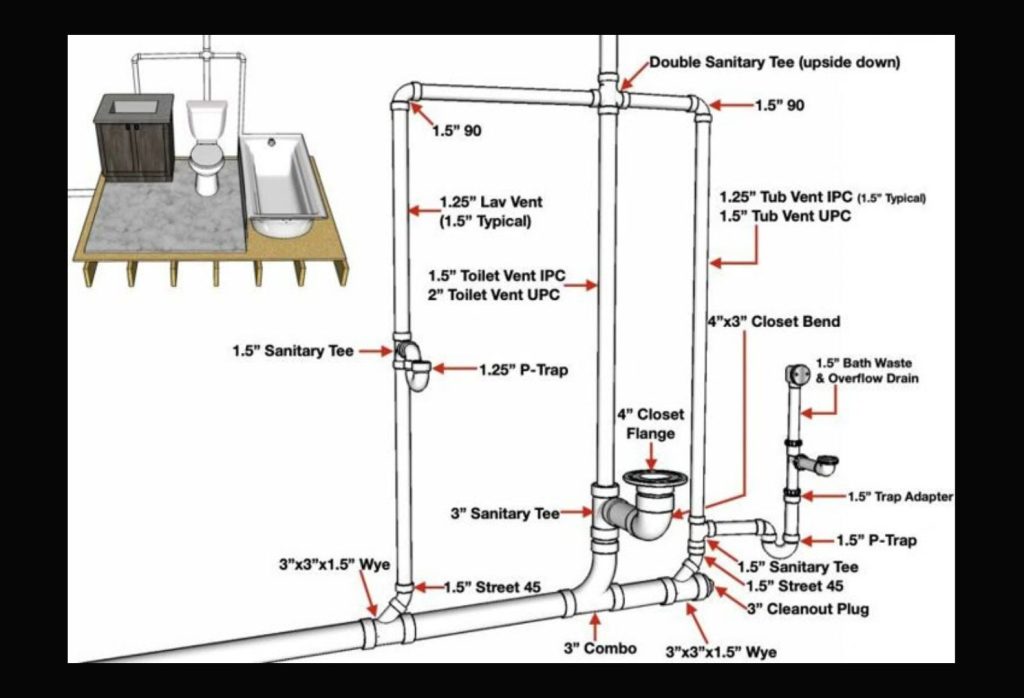

Bathroom Plumbing Diagram For Rough In Inside A Ceiling: The Ultimate Guide

Are you staring at an open ceiling, feeling overwhelmed by the maze of pipes and wondering if your new bathroom layout will actually work? You are not alone; getting the bathroom plumbing diagram for rough in inside a ceiling right is the single most critical step in any renovation, yet it is where most DIYers and even some contractors make costly mistakes. A precise plan today saves you from tearing down finished walls tomorrow. This guide will walk you through the exact measurements, code requirements, and strategic planning needed to execute a flawless rough-in, ensuring your project passes inspection the first time.

Why a Precise Plumbing Diagram is Non-Negotiable

Before you cut a single hole in your joists or solder a copper pipe, you must understand that “winging it” is not an option. The space inside a ceiling—whether it’s a drop ceiling in a basement or the floor structure above—is a confined environment where every inch counts.

According to industry data from the National Association of Home Builders (NAHB), plumbing errors account for nearly 15% of all construction defect claims, with improper rough-in measurements being a leading cause. When you are working inside a ceiling, you face unique challenges:

• Limited Access: Once the drywall or ceiling tiles are up, fixing a misaligned drain is a nightmare.
• Structural Integrity: Cutting joists for pipes without a plan can compromise the building’s strength.
• Gravity Dependency: Unlike supply lines, drain lines rely entirely on slope. If your diagram doesn’t account for the drop over distance, your toilet will never flush properly.

A professional bathroom plumbing diagram for rough in inside a ceiling acts as your blueprint. It translates abstract ideas into concrete measurements, ensuring that every vent, waste line, and water supply aligns perfectly with your fixtures.

Understanding the Anatomy of a Ceiling Rough-In

To create an effective diagram, you must first visualize the three distinct layers of plumbing that coexist inside a ceiling cavity. These systems often compete for the same limited space, making your layout crucial.

1. The Drain-Waste-Vent (DWV) System

This is the largest component. DWV pipes are wide (usually 3 to 4 inches for toilets, 2 inches for showers) and require a specific slope.

• The Challenge: They cannot go up; they must go down. In a ceiling rough-in, this means the pipes must fit within the depth of your joists or require boxing out (dropping the ceiling lower).
• Key Rule: For every foot of horizontal travel, a 3-inch pipe must drop at least 1/4 inch.

2. The Water Supply Lines

These are smaller (1/2 inch or 3/4 inch PEX or copper) and carry pressurized water.

• The Advantage: They can run uphill, downhill, or horizontally with ease.
• The Constraint: They must be insulated if running through unheated ceiling spaces to prevent freezing.

3. The Vent Stack

Vent pipes allow sewer gases to escape and air to enter the system so water flows smoothly.

• Critical Detail: Vents must generally rise vertically until they are at least 6 inches above the flood rim of the highest fixture before turning horizontal.

Pro Tip: When drafting your diagram, always draw the DWV lines first. They are the “bullies” of the plumbing world—they take up the most space and have the strictest rules. Fit your supply lines and vents around them.

Step-by-Step: Creating Your Bathroom Plumbing Diagram

Creating a bathroom plumbing diagram for rough in inside a ceiling requires a methodical approach. Follow these steps to ensure accuracy.

Step 1: Measure the Fixture Rough-In Distances

Every fixture has a standard “rough-in” distance—the measurement from the finished wall to the center of the drain or supply. If you get these wrong, your toilet won’t fit against the wall, or your shower valve will be behind the tile.

Note: Always verify the specific manufacturer’s template before finalizing your diagram, as “comfort height” toilets or European fixtures may vary.

Step 2: Calculate the Slope (The Fall)

This is where most ceiling installations fail. You must calculate how much vertical space your drain pipes need.

The Formula: $\text{Total Drop}=\text{Length of Run (ft)}\times 0.25\text{ inches}$Total Drop=Length of Run (ft)×0.25 inches

Example Scenario: Imagine your new bathroom is being added to a basement, and the main sewer line is 20 feet away from your new toilet location.

• Calculation: $20\text{ ft}\times 0.25\text{ in/ft}=5\text{ inches}$20 ft×0.25 in/ft=5 inches.
• Result: Your toilet drain pipe must start 5 inches higher at the toilet end than where it connects to the main stack.

If your ceiling joists are only 9.25 inches deep (standard 2×10) and you need to fit a 4-inch pipe plus 5 inches of slope, you might not have enough room. Your diagram must indicate if you need to:

1. Lower the ceiling height.
2. Frame a “soffit” or bulkhead to hide the pipes.
3. Use a specialized macerating pump (if gravity flow is impossible).

Step 3: Map the Venting Strategy

Your diagram must show how air gets into the system. According to the Uniform Plumbing Code, every trap must be protected by a vent.

• Wet Venting: Can you use the sink drain to vent the toilet? This saves space in the ceiling.
• Air Admittance Valves (AAV): If running a vent up through the roof is impossible in your ceiling layout, check local codes to see if an AAV under the sink is permissible.

Step 4: Account for Joist Penetrations

When drawing your lines across the ceiling joists, mark exactly where holes will be drilled.

• Rule of Thumb: Never drill a hole in the middle third of a joist’s span.
• Sizing: Holes should not exceed 1/3 the depth of the joist.
• Notching: Notching the top or bottom of a joist is generally restricted to the outer thirds of the span and limited to 1/6 of the depth.

If your diagram shows a 4-inch drain needing to cross the center of a 2×8 joist, you have a structural conflict. You will need to install “sister joists” or reroute the pipe.

Common Mistakes to Avoid in Ceiling Rough-Ins

Even with a diagram, pitfalls exist. Here are the most frequent errors we see in the field:

• Ignoring Insulation Space: In a ceiling, cold air circulates freely. If your diagram places hot and cold supply lines touching each other or the exterior sheathing without foam insulation, you risk condensation dripping onto your future ceiling drywall.
• Forgetting Cleanouts: A cleanout is an access point to clear clogs. If your main line runs 30 feet inside a closed ceiling without a cleanout, a future clog will require demolishing the ceiling. Always include a cleanout in your diagram at every change of direction greater than 45 degrees or every 50 feet of run.
• Misjudging Wall Thickness: Your diagram should reference the finished wall, not the stud. If you measure from the stud but plan to use 5/8-inch fire-rated drywall plus tile, your toilet flange could end up 1/2 inch too far out, preventing the toilet from sealing.

Tools and Materials for a Successful Install

To bring your bathroom plumbing diagram for rough in inside a ceiling to life, gather these essentials:

1. Laser Level: Essential for marking consistent slopes across long ceiling spans.
2. PEX-A Tubing: More flexible than copper or PEX-B, making it easier to snake through tight ceiling joist bays.
3. No-Hub Cast Iron or PVC: For the main waste lines. PVC is lighter and easier for overhead work, but check local noise ordinances; cast iron is quieter.
4. Pipe Insulation: Closed-cell foam sleeves (minimum R-3 value) for all supply lines.
5. Fire Blocking: Remember to install fire blocks around pipes where they penetrate framing members to meet safety codes.

Frequently Asked Questions (FAQ)

1. Can I run a 4-inch toilet drain horizontally inside a ceiling?

Yes, but it requires a strict slope of 1/4 inch per foot. If the run is too long, the pipe will drop below the joists, requiring you to build a soffit (a dropped box) to conceal it. Never run a drain completely flat; it will lead to chronic clogs.

2. What is the minimum ceiling height for a bathroom rough-in?

Most building codes require a minimum finished ceiling height of 7 feet (84 inches). However, over bathtubs and showers, some codes allow this to be reduced to 6 feet 8 inches, provided there is no showerhead mounted above that height. Always check your local jurisdiction.

3. How do I vent a bathroom if I can’t go up through the roof?

If penetrating the roof is structurally difficult, you have two options: run the vent horizontally to an existing stack in a nearby wall (maintaining proper slope to prevent water trapping in the vent), or install an Air Admittance Valve (AAV) under the sink vanity. Note that AAVs are not legal in all regions.

4. Should supply lines be run above or below the drain lines in the ceiling?

Ideally, keep them separate to avoid contamination risks if a leak occurs. However, in tight ceiling spaces, supply lines are often run above the DWV lines. If they must cross, ensure the supply line is on the upstream side of the drain or properly shielded. Never run a potable water line directly underneath a sewage joint.

5. Do I need a permit for moving plumbing inside a ceiling?

Absolutely yes. Moving drains, vents, or supply lines almost always requires a building permit and subsequent inspections (rough-in and final). Unpermitted work can void your home insurance and cause major issues when selling your home.

6. What type of pipe is best for overhead plumbing in a ceiling?

For supply lines, PEX is widely considered the best choice for ceilings because it expands slightly if water freezes (reducing burst risk) and requires fewer fittings, which means fewer potential leak points overhead. For drains, PVC is standard due to its light weight, though cast iron is superior for soundproofing if the bathroom is below a bedroom.

Conclusion

Mastering the bathroom plumbing diagram for rough in inside a ceiling is the difference between a smooth, successful renovation and a disaster involving jackhammers and flooded basements. By meticulously planning your slopes, respecting structural limits, and adhering to code-compliant measurements, you ensure that your new bathroom functions flawlessly for decades.

Remember, the time you spend drawing and double-checking your diagram is the cheapest insurance you can buy. Don’t rush the rough-in phase; precision here guarantees peace of mind later.

Found this guide helpful? Share it with your fellow DIYers or your contractor on Facebook, Pinterest, or Twitter to help them avoid common plumbing pitfalls! Let’s build better bathrooms together.
