Finding a 1-inch gap around a pipe in your wall, floor, or under the sink can be more than just an eyesore—it’s a potential entry point for pests, drafts, moisture, and even fire hazards. If you’ve searched for the best way to cover a 1 inch gap in plumbing, you’re not alone. Many homeowners face this common issue, especially after new pipe installations or during renovations. The good news? With the right materials and technique, sealing it properly is both simple and effective—no plumbing degree required!
Why Should You Seal a 1-Inch Gap Around Plumbing Pipes?
Ignoring even small gaps around plumbing can lead to significant problems:
Pest infestations: Mice, insects, and rodents can squeeze through openings as small as ¼ inch.
Energy loss: Unsealed gaps let conditioned air escape, increasing heating and cooling costs by up to 20% (U.S. Department of Energy).
Moisture & mold: Humid air entering walls can condense on cold pipes, fostering mold growth.
Fire risk: In multi-story homes, unsealed penetrations can allow fire to spread between floors faster.
According to the International Residential Code (IRC), all pipe penetrations through walls, floors, and ceilings must be fire-blocked and sealed with approved materials—especially gaps larger than ½ inch. A 1-inch gap definitely qualifies.
What Are the Best Materials to Cover a 1-Inch Plumbing Gap?
Not all sealants are created equal. The best way to cover a 1 inch gap in plumbing depends on location, pipe type, and building code requirements. Here’s a quick comparison:
💡 Pro Tip: For a true 1-inch gap, a combination approach works best—use a backing material (like foam rope or metal) plus a code-approved sealant.
Step-by-Step: How to Properly Seal a 1-Inch Gap Around a Pipe
Follow this safe, code-compliant method suitable for walls, floors, or under sinks:
What You’ll Need
Fire-rated expanding foam (e.g., Great Stuff Fireblock)
Backer rod (½” diameter closed-cell foam rope)
Utility knife
Caulk gun
100% silicone or fire-rated caulk (if near framing)
Safety gloves & goggles
Step 1: Clean & Dry the Area
Remove dust, grease, or old caulk. The surface must be dry—moisture prevents adhesion.
Step 2: Insert Backer Rod (For Deep Gaps)
Push the foam rope into the gap until it sits about ¼ inch below the surface. This acts as a “saddle” so foam doesn’t over-expand or sink.
🔍 Why? Without backing, foam can retract or create voids, reducing effectiveness.

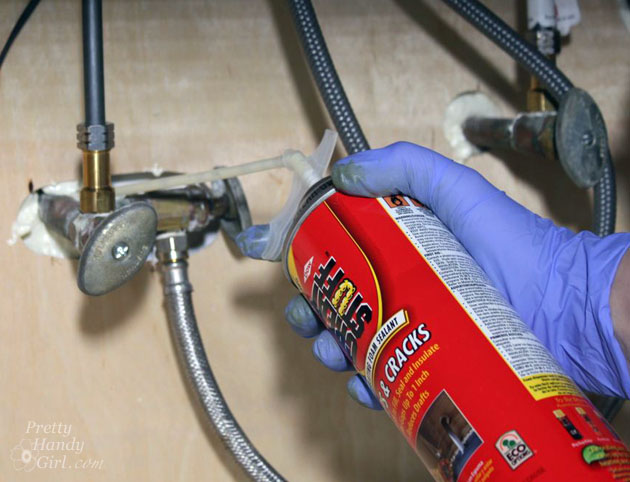

Step 3: Apply Fire-Rated Expanding Foam
Shake the can for 30 seconds. Hold the nozzle at a 45° angle and fill the gap 50–60% full. The foam will expand 2–3x its volume.
⚠️ Warning: Never overfill! Excess foam is hard to remove and can warp drywall.
Step 4: Let It Cure (2–24 Hours)
Check the product label. Most fireblock foams cure in 2 hours but reach full strength in 24.
Step 5: Trim & Finish (Optional)
Once cured, use a utility knife to trim excess foam flush with the wall. For visible areas (e.g., under sinks), apply a bead of paintable silicone over the foam for a clean look.
🧪 Real-World Case: A 2023 Home Inspection Report from ASHI found that 78% of pest-related wall infestations originated from unsealed utility penetrations—most under 2 inches wide.
Common Mistakes to Avoid
Using regular spray foam: Standard foam isn’t fire-rated and can melt in a fire, creating toxic fumes. Always choose fireblock-rated foam (look for “ASTM E814” or “UL 1784” certification).
Skipping the backer rod: Leads to foam collapse or incomplete sealing.
Sealing moving pipes: If the pipe vibrates (like a washing machine line), use flexible sealants like silicone—not rigid foam.
Ignoring local codes: Some municipalities require metal fire collars for vertical penetrations. When in doubt, check with your local building department.
Q1: Can I use duct tape or spray foam from the hardware store?
No. Duct tape degrades quickly and offers zero fire or pest protection. Regular spray foam (like “Great Stuff” regular) isn’t fire-rated. Only use fireblock foam labeled for plumbing/electrical penetrations.
Q2: Is it safe to seal around hot water pipes?
Yes—if you use the right product. Fire-rated foam and high-temp silicone (rated for 350°F+) are safe for hot water lines. Never use flammable materials near heat sources.
Q3: What if the gap is between the pipe and concrete floor?
Use a hydraulic cement or polyurethane sealant designed for concrete. These resist moisture migration and bond well to masonry. Clean the area thoroughly first.
Q4: Do I need to seal gaps behind walls?
Absolutely. Hidden gaps are the most dangerous—they allow undetected pest entry and energy loss. Seal all penetrations, even if not visible.
Q5: Can I paint over the sealed gap?
Yes—once the foam or caulk is fully cured (check manufacturer instructions). Use water-based paint for best results. Oil-based paints may not adhere well to foam.
Q6: How long does the seal last?
Properly installed fire-rated foam lasts 10–20 years. Silicone lasts 20+ years if not exposed to UV light. Inspect annually for cracks or shrinkage.
Conclusion
Sealing a 1-inch gap in your plumbing isn’t just about looks—it’s a critical step in protecting your home’s safety, energy efficiency, and structural integrity. By using fire-rated materials, following building codes, and applying the right technique, you can confidently tackle this DIY project in under an hour.
Don’t let small gaps become big problems! Share this guide with a friend who’s fixing up their home—or save it for your next weekend project. Got questions? Drop them in the comments below!
🔧 Pro Tip: Bookmark this page for your next home maintenance checklist—you’ll thank yourself later.
Stay safe, seal smart, and keep your home draft-free!
