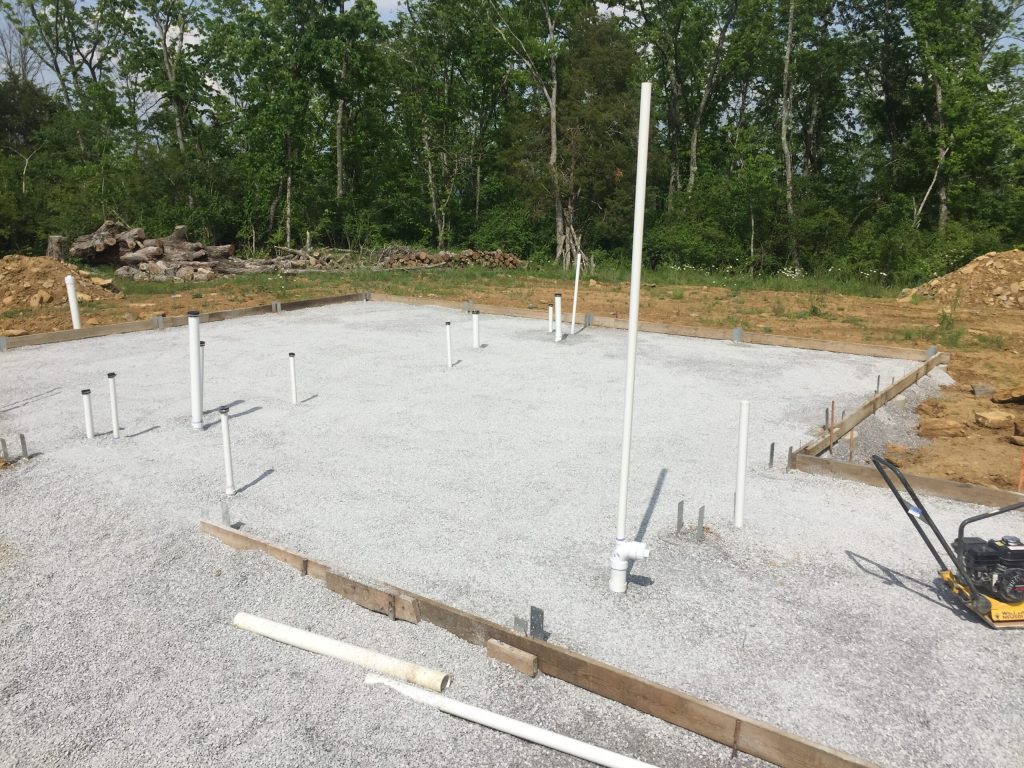

Best Way To Prep Monoslab For Plumbing And Fall

Building a home or commercial structure on a monolithic slab is a popular choice in the United States due to its cost-efficiency and speed of construction. However, the margin for error is slim; once the concrete pours, correcting mistakes becomes exponentially expensive and difficult. Many DIY enthusiasts and even junior contractors struggle with the critical phase of integrating utilities while maintaining structural integrity.

Finding the best way to prep monoslab for plumbing and fall protection is essential for a successful build. This guide will walk you through the precise steps to prepare your site, install plumbing rough-ins correctly, and implement necessary safety measures to prevent accidents during the pouring process. By following these expert guidelines, you ensure a foundation that lasts for decades.

Understanding the Monolithic Slab System

Before diving into the preparation, it is crucial to understand what a monolithic slab is. Unlike traditional foundations that use separate footings and stem walls, a monolithic slab is poured all at once. The thickened edges act as the footing, while the center remains thinner.

This method requires meticulous planning because the plumbing lines must be embedded directly into the ground before the concrete arrives. According to general construction principles, the stability of this system relies heavily on soil compaction and proper drainage. You can read more about the structural engineering basics on Wikipedia’s page on Slab-on-grade.

Step 1: Site Excavation and Soil Compaction

The foundation of any great slab is the earth beneath it. If the ground shifts, the slab cracks. Therefore, the first step in the best way to prep monoslab for plumbing and fall safety is rigorous site preparation.

Clearing and Grading

Remove all organic material, including topsoil, roots, and debris. Organic matter decomposes over time, creating voids that lead to settling. Grade the site to ensure proper water runoff away from the building perimeter.

Compaction Requirements

Compaction is non-negotiable. You must achieve a minimum of 95% compaction density.

• Equipment: Use a vibrating plate compactor for small areas or a sheep’s foot roller for larger sites.
• Moisture Control: The soil should be at “optimum moisture content.” If it’s too dry, it won’t compact; too wet, and it becomes mushy.
• Layering: Compact in lifts (layers) of no more than 6–8 inches.

Pro Tip: Perform a Proctor Test to determine the optimal moisture content for your specific soil type. This data-driven approach prevents future structural failures.

Step 2: Installing the Vapor Barrier and Gravel Base

Once the soil is compacted, you need to create a stable, dry base for the concrete.

1. Gravel Base: Spread a 4-inch layer of crushed stone (usually #57 stone or similar). This layer aids in drainage and provides a stable platform for walking and working without sinking into the mud.
2. Vapor Barrier: Lay down a high-quality polyethylene vapor barrier (minimum 10-mil thickness). Overlap seams by at least 6 inches and tape them securely. This prevents ground moisture from wicking up into the concrete, which can cause flooring issues later.

Step 3: Plumbing Rough-In Strategy

This is the most critical technical phase. Errors here mean jackhammering concrete later. Here is how to execute the plumbing rough-in effectively.

Trenching for Lines

Do not lay pipes directly on the vapor barrier where they will bear weight. Instead:

• Dig shallow trenches in the compacted gravel/soil for main sewer lines and water supply lines.
• Ensure trenches are wide enough to allow for proper bedding material around the pipes.

Bedding and Protection

• Sand Bedding: Cover the pipes with 2–3 inches of clean sand. This protects the PVC or PEX pipes from sharp rocks in the gravel that could puncture them under the weight of the concrete.
• Slope Verification: For drain lines, maintain a slope of 1/4 inch per foot toward the main sewer exit. Use a laser level to verify this gradient.

Securing the Pipes

Pipes can float when concrete is poured. To prevent this:

• Stake the pipes securely using rebar stakes or specialized pipe hangers.
• Cap all open ends tightly with glue-on caps (not just tape) to prevent concrete slurry from entering the lines.

Step 4: Integrating Fall Protection and Safety

When discussing the best way to prep monoslab for plumbing and fall, we must address two types of “fall”:

1. Fall of Workers: Safety hazards during construction.
2. Fall of Concrete/Structural Integrity: Ensuring the slab doesn’t fail.

However, in the context of US construction regulations, “Fall Protection” usually refers to worker safety. Since monolithic slabs are ground-level, fall risks are lower than elevated work, but tripping hazards and trench collapses are real dangers.

OSHA Compliance for Trenches

If your plumbing trenches are deeper than 5 feet, OSHA requires protective systems.

• Shoring or Shielding: Use trench boxes if digging deep utility lines.
• Spoil Pile Distance: Keep excavated soil at least 2 feet back from the trench edge to prevent collapse.

Site Safety for the Pour Day

• Walkways: Create designated walkways using planks over the rebar grid to prevent workers from tripping over plumbing stub-ups.
• Marking Stub-Ups: Clearly mark all plumbing exits with tall, visible stakes or flags. This prevents workers from stepping on or breaking off caps.

Note: While monolithic slabs are low-rise, ensuring a flat, obstacle-free workspace is the best defense against slips, trips, and falls during the chaotic concrete pour.

Step 5: Reinforcement and Final Inspection

Before the concrete truck arrives, you must reinforce the slab to handle tensile stress.

Rebar and Wire Mesh

• Thickened Edges: Place continuous rebar in the thickened edges (footings). Typically, two #4 or #5 bars are used.
• Field Reinforcement: Use welded wire mesh (WWF) or fiber reinforcement in the center field of the slab to control cracking.
• Chairs: Use concrete chairs to keep the rebar and mesh suspended in the middle of the slab, not sitting on the ground.

The Pre-Pour Checklist

1. Plumbing Pressure Test: Have a plumber pressurize the water lines and perform an air/water test on drain lines. Document this inspection.
2. City Inspection: Schedule your framing/plumbing inspection. Do not pour until the inspector signs off.
3. Cleanliness: Blow out any debris from the forms and vapor barrier using a leaf blower.

FAQ Section

1. Can I run plumbing lines on top of the vapor barrier?

It is not recommended. Running lines on top of the barrier creates a weak point where the concrete may crack due to the void beneath the pipe. It is better to trench slightly into the compacted base and bed the pipes in sand, then patch the vapor barrier with approved tape.

2. How deep should plumbing lines be under a monolithic slab?

Plumbing lines should generally be buried at least 12 inches below the finished slab surface, depending on local frost lines and code requirements. Always check with your local building department, as frost depth varies significantly across the US.

3. What is the best way to prevent plumbing pipes from floating during the pour?

Concrete is heavy and fluid. To prevent pipes from floating, stake them down every 4 to 6 feet using rebar stakes driven into the ground. Additionally, ensure the pipes are filled with water (for drain tests) or air (if allowed by code) to add weight, though staking is the primary method.

4. Do I need fall protection gear for a monolithic slab pour?

Since monolithic slabs are at ground level, standard fall arrest systems (harnesses) are typically not required unless you are working near deep excavations or unprotected edges greater than 6 feet. However, slip-resistant boots and hard hats are mandatory to prevent common site accidents.

5. How long should I wait to pressure test plumbing before the pour?

You should perform the pressure test immediately before the inspection, which is usually 24–48 hours before the pour. This ensures that no damage occurred during the final stages of preparation. If the test fails, you have time to repair it before the concrete arrives.

6. What happens if I forget to cap a plumbing line?

If concrete enters a plumbing line, it can harden and completely block the pipe. This requires expensive hydro-jetting or, in worst-case scenarios, cutting into the cured slab to replace the section. Always double-check caps and use glue-on caps for security.

Conclusion

Preparing a monolithic slab requires a blend of precision engineering and strict adherence to safety protocols. By following the best way to prep monoslab for plumbing and fall protection, you mitigate the risk of costly repairs and ensure a safe working environment. Remember, the key lies in proper soil compaction, careful plumbing bedding, and rigorous pre-pour inspections.

Don’t cut corners on the invisible elements—what lies beneath the concrete determines the longevity of your structure. If you found this guide helpful, please share it with your fellow builders or DIY community on social media to help others build safer, stronger foundations.
