Designing a functional dental operatory is about more than just aesthetics; it’s about creating a workflow that saves time and reduces physical strain for your clinical team. One of the most critical yet complex components of this design is the Cabinet Dental Ctr Island W Plumbing F & Rough-In. Getting the plumbing and electrical rough-ins wrong can lead to costly renovations, delayed openings, and ergonomic nightmares down the line.
If you are an architect, contractor, or dental practice owner, you know that precision is non-negotiable. This guide breaks down exactly what you need to know to ensure your central island cabinet integrates perfectly with your facility’s infrastructure. We will cover dimensions, utility locations, and common pitfalls to avoid, ensuring your project meets both clinical needs and building codes.

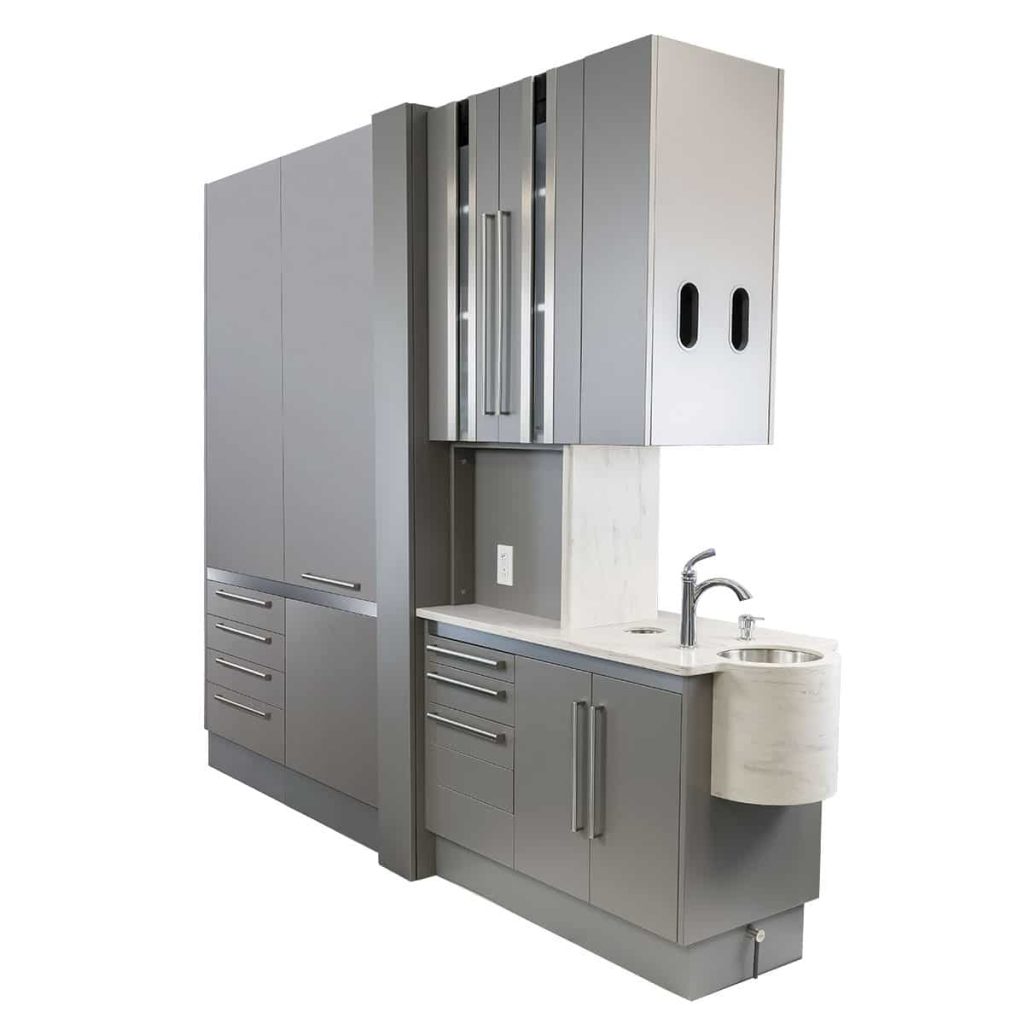

What Is a Dental Central Island Cabinet?
Before diving into the plumbing specifics, it is vital to understand the role of the central island. In modern dental ergonomics, the “four-handed dentistry” model relies heavily on the assistant having easy access to instruments and suction without crossing over the patient or the dentist.
A central island cabinet serves as the hub for:
- Utility Delivery: Air, water, vacuum, and electricity.
- Instrument Storage: Drawers for handpieces, mirrors, and disposables.
- Workflow Efficiency: Keeping the doctor’s side clear for patient interaction.
Unlike wall-mounted units, an island unit requires all utilities to come up through the floor (slab) or be routed through a raised floor system. This is where the rough-in phase becomes critical.
Why Is the Rough-In Phase Critical for Dental Islands?
The term “rough-in” refers to the initial installation of plumbing and electrical lines before the final finishes (like flooring and cabinetry) are installed. For a Cabinet Dental Ctr Island W Plumbing F & Rough-In, accuracy is paramount because once the concrete is poured or the slab is sealed, moving a pipe even two inches can cost thousands of dollars.
The Cost of Error
According to industry estimates, correcting a plumbing error after the slab has cured can cost between $2,000 and $5,000 per location, not including the delay in project timeline. Furthermore, incorrect rough-ins can violate local building codes, leading to failed inspections.
Key Components of the Rough-In
- Water Lines: Hot and cold supply for the cuspidor (spittoon) and handpiece cooling.
- Vacuum Lines: High-volume evacuation (HVE) and saliva ejector lines.
- Air Lines: Compressed air for handpieces and syringes.
- Electrical Conduits: For power outlets, data ports, and sometimes low-voltage lighting within the cabinet.
- Drainage: A proper trap and drain line for the cuspidor waste.
For more detailed standards on medical gas and plumbing systems in healthcare facilities, you can refer to general guidelines provided by Wikipedia’s page on Medical Gas Pipeline Systems, which outlines the broader regulatory context often adopted by dental boards.
Standard Dimensions and Layout for Dental Islands
While every manufacturer has slight variations, there are industry-standard dimensions that dictate where your rough-ins must be placed. Most dental islands are designed to fit within a standard operatory size of 10’ x 10’ or 10’ x 12’.
Typical Island Footprint
- Width: 30 to 36 inches.
- Depth: 24 to 30 inches.
- Height: 34 to 36 inches (countertop height).
The “Plumbing F” Factor
The “F” in your search query likely refers to the Fixture layout or the Floor penetration points. Most central islands require a cluster of utilities in the center or slightly offset toward the assistant’s side.
| Utility Type | Typical Rough-In Location (From Center of Island) | Depth Below Slab |
|---|---|---|
| Cold Water | 6″ Left of Center | 4–6 inches |
| Hot Water | 8″ Left of Center | 4–6 inches |
| Vacuum (HVE) | 4″ Right of Center | 4–6 inches |
| Air | 2″ Right of Center | 4–6 inches |
| Drain | Center or 2″ Left | Sloped 1/4″ per foot |
| Electrical | 12″ Right of Center | Conduit to junction box |
Note: Always consult the specific template provided by your cabinet manufacturer (e.g., A-dec, Pelton & Crane, Marus) before pouring concrete.
Step-by-Step Guide to Installing the Rough-In
If you are managing the construction process, follow these steps to ensure a smooth installation of your Cabinet Dental Ctr Island W Plumbing F & Rough-In.
Step 1: Obtain the Manufacturer’s Template
Never guess the locations. Download the CAD files or PDF templates from your dental equipment supplier. These templates show the exact “strike points” where pipes must emerge from the floor.
Step 2: Mark the Slab
Using the template, mark the center point of the island on the subfloor or slab. Use a laser level to ensure your marks are square with the room’s walls. Misalignment here will cause the cabinet to sit crooked, affecting door alignment and drawer function.
Step 3: Install Plumbing Sleeves
Do not run pipes directly through the concrete without protection. Use PVC sleeves (usually 2–3 inches in diameter) for each utility cluster. This allows for minor adjustments during the final hookup and protects the pipes from shifting concrete.
- Tip: Cap all sleeves tightly to prevent concrete debris from entering and clogging the lines.
Step 4: Electrical Conduit Routing
Run flexible metal conduit (whip) or PVC conduit from the main electrical panel to the island location. Ensure you have dedicated circuits for the dental unit, as required by the National Electrical Code (NEC). Typically, a 20-amp dedicated circuit is recommended for the operatory.
Step 5: Pressure Test Before Pouring
Before the concrete is poured, pressure test all water and air lines. Check for leaks. Once the concrete is poured, fixing a leak is exponentially harder. Document this test with photos for your records and insurance.
Step 6: Final Floor Finish Considerations
Ensure the final floor height is accounted for. If you are installing vinyl composition tile (VCT) or luxury vinyl tile (LVT), add the thickness of the flooring and adhesive (usually 1/8 inch) to your vertical measurements for pipe stub-ups.
Common Mistakes to Avoid
Even experienced contractors can stumble when dealing with specialized dental furniture. Here are the most frequent errors:
1. Ignoring the “Cleanable” Requirement
Dental offices must meet strict hygiene standards. Ensure that the rough-in allows the cabinet to sit flush against the floor or has a proper base seal. Gaps around pipe penetrations can harbor bacteria and fail health inspections. Use sanitary seals around all floor penetrations.
2. Incorrect Drain Slope
The cuspidor drain must have a minimum slope of 1/4 inch per foot toward the main waste line. If the slope is insufficient, you will experience frequent clogs and slow drainage, which is a major complaint among dental assistants.
3. Overlooking Future Technology
While roughing in, consider adding an extra conduit for future technology, such as intraoral cameras or digital sensors. It is much cheaper to pull a wire through an existing conduit later than to cut into the floor again.
4. Mixing Up Hot and Cold Lines
It sounds simple, but swapping hot and cold lines is a common error. Label every pipe clearly at the stub-up point. Using blue tape for cold and red tape for hot is a universal best practice.
FAQ: Frequently Asked Questions
Q1: Can I retrofit a central island if my office was built without rough-ins?
A: It is possible but expensive. You would need to core drill through the existing slab, trench the floor to run new lines, and then patch the concrete. This disrupts operations and increases costs significantly. It is always better to plan for rough-ins during initial construction or major remodels.
Q2: How deep should the plumbing rough-in be under the slab?
A: Typically, plumbing lines should be buried at least 4 to 6 inches below the top of the slab to protect them from cracking due to surface load. However, local codes may vary, so always check with your local building department.
Q3: Do I need a floor drain in the operatory?
A: Most modern dental operatories do not require a floor drain if the cuspidor is properly connected to the waste line. However, some local codes or specific infection control protocols may recommend one. Check with your state dental board regulations.
Q4: What is the standard voltage for dental cabinets?
A: Most dental units operate on 110-120V. However, some larger compressors or sterilization centers may require 220-240V. Ensure your electrical rough-in includes the correct voltage and amperage as specified by your equipment list.
Q5: How long does the rough-in phase take?
A: For a single operatory island, the plumbing and electrical rough-in typically takes 1–2 days for a skilled team. However, this depends on the complexity of the building’s existing infrastructure.
Q6: Should I use PEX or Copper for water lines?
A: Both are acceptable. PEX is easier to install and resistant to freeze damage, while Copper is traditional and highly durable. Many modern dental offices prefer PEX for its flexibility and lower labor cost, but ensure it is rated for medical/dental use.
Conclusion
Installing a Cabinet Dental Ctr Island W Plumbing F & Rough-In is a foundational step in creating a high-performance dental practice. By adhering to precise measurements, following manufacturer templates, and coordinating closely with your plumbing and electrical teams, you can avoid costly mistakes and ensure a smooth workflow for your dental team.
Remember, the goal is not just to install a cabinet, but to create an environment that supports efficiency, hygiene, and patient comfort. Take the time to plan your rough-ins correctly, and your investment will pay dividends for years to come.
