Have you ever noticed a strange gurgling sound in your sink or a slow-draining bathtub? These are classic signs that your home’s plumbing ventilation system might not be functioning correctly. Many homeowners attempting DIY renovations often ask the critical question: can a plumbing vent pipe be vented horizontally?
The short answer is yes, but with very strict conditions. Understanding these nuances is vital to prevent sewer gas from entering your living space and to ensure your drains flow smoothly. In this guide, we will break down the complex building codes into simple, actionable advice so you can tackle your project with confidence and compliance.

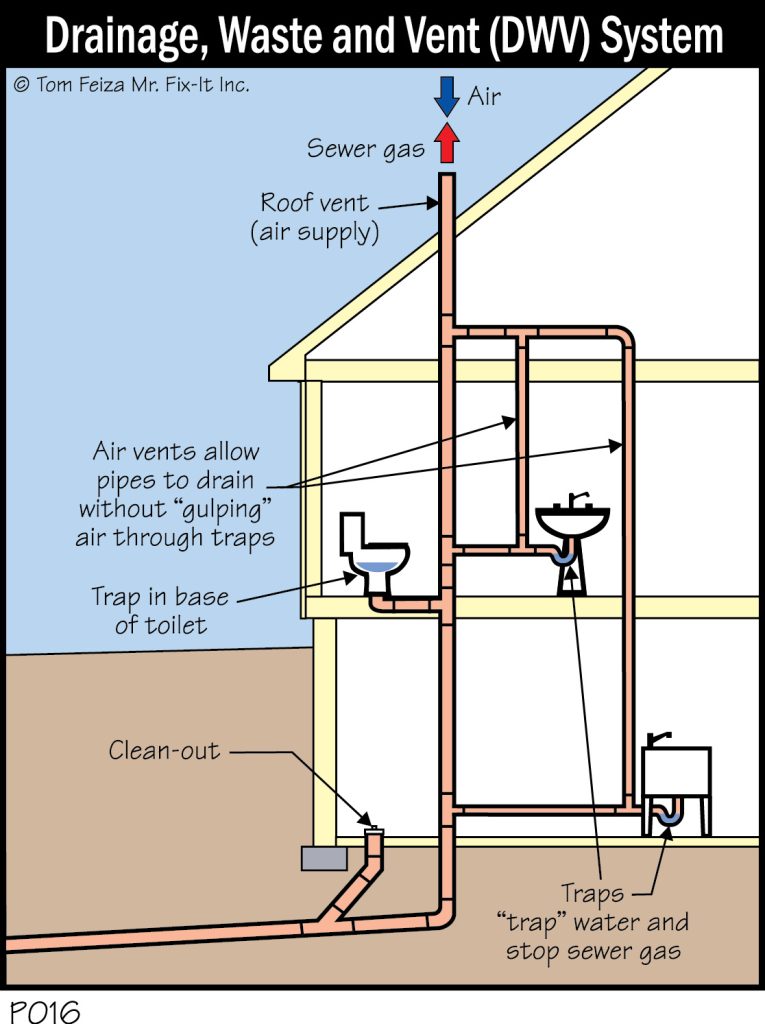

The Golden Rule: Above the Flood Rim
Before discussing horizontal runs, we must establish the most important rule in plumbing ventilation. According to both the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), a vent pipe can only turn horizontal after it has risen at least 6 inches above the flood level rim of the highest fixture it serves.
What does this mean for your home?
If you have a sink, the “flood level rim” is the top edge of the basin where water would overflow if the drain were clogged. Your vent pipe must travel vertically up from the drain trap, clear this height by at least 6 inches, and only then can it make a 90-degree turn to run horizontally.
Why Is This Rule Non-Negotiable?
This regulation exists to prevent wastewater from entering the vent stack. If a drain becomes blocked, water backs up. If the horizontal vent turn is too low, sewage could spill into the vent line. Once sewage enters a horizontal vent, it can stagnate, cause blockages, and allow dangerous sewer gases to seep back into your home through fixture traps.
Pro Tip: Always measure from the highest fixture on that branch. If you have a sink and a toilet on the same branch, measure from the sink rim, as it is typically higher than the toilet bowl rim.
Slope Requirements for Horizontal Vents
A common misconception among DIYers is that vent pipes do not need a slope because they only carry air. This is false. While vents primarily manage air pressure, they are also subject to condensation and occasional moisture ingress.
The Correct Pitch
Any horizontal section of a vent pipe must be sloped correctly to ensure that any condensation or accidental water entry drains back toward the soil stack (the main vertical waste pipe), not toward the vent terminal on the roof.
- Standard Slope: The general requirement is a minimum slope of 1/4 inch per foot (approx. 2% grade).
- Direction: The slope must always pitch toward the drain.
If you install a horizontal vent with a negative slope (pitching away from the drain) or no slope at all, water will pool in the low spots. Over time, this standing water can collect debris, freeze in colder climates, or create an airlock that disrupts the ventilation balance.
| Feature | Vertical Vent Section | Horizontal Vent Section |
|---|---|---|
| Primary Function | Carry gases out, admit air in | Connect branches, maintain pressure |
| Slope Requirement | Plumb (90° vertical) | Min. 1/4″ per foot toward drain |
| Material Risk | Low risk of clogging | Higher risk if slope is incorrect |
| Code Restriction | Must be within distance limits | Must be above flood rim level |
IPC vs. UPC: Know Your Local Code
In the United States, plumbing codes are not uniform across every state. Most jurisdictions adopt either the International Plumbing Code (IPC) or the Uniform Plumbing Code (UPC). While they are similar, there are subtle differences regarding venting that you must verify with your local building department.
International Plumbing Code (IPC)
The IPC is widely used in the eastern and midwestern US. It tends to be slightly more flexible regarding certain venting configurations, such as the allowance of “wet venting” in more scenarios. However, its rule on horizontal venting remains strict: the 6-inch clearance above the flood rim is mandatory.
Uniform Plumbing Code (UPC)
Common in the western US, the UPC is often considered more conservative. It places a heavy emphasis on the integrity of the trap seal. Under the UPC, inspectors may scrutinize horizontal vent lengths more closely to ensure they do not exceed the maximum allowable distance from the trap.
For a deeper understanding of standard plumbing definitions and historical code evolution, you can refer to general resources like Wikipedia’s page on Plumbing Vents, which provides a broad overview of how these systems have standardized over time.
Common Mistakes to Avoid
Even experienced handymen can stumble when dealing with vent lines. Here are the most frequent errors observed in residential plumbing inspections:
- Turning Horizontal Too Early: Cutting the vertical rise short to fit under a cabinet or into a wall cavity. This is an immediate code violation.
- Using Sharp 90-Degree Elbows Underground: While acceptable above ground, sharp turns can restrict airflow. Use two 45-degree elbows for smoother transitions if space allows.
- Ignoring Condensation: Failing to slope the pipe means condensation from warm indoor air hitting cooler pipes will pool, potentially leading to mold or mineral buildup.
- Undersizing the Pipe: Horizontal runs often require larger diameters if they serve multiple fixtures. A 1.5-inch vent might suffice for a single sink, but a main horizontal branch serving a bathroom group may need to be 2 inches or larger.
Step-by-Step: Installing a Horizontal Vent Section
If you have determined that your design requires a horizontal vent, follow these steps to ensure compliance and functionality.
Tools Needed:
- Tape measure
- Level (with degree indicators or slope vial)
- PVC Primer and Cement (for PVC pipes)
- Pipe cutter or hacksaw
- Support straps/hangers
Instructions:
- Measure the Rise: From the center of the drain pipe connection, measure vertically. Ensure you have at least 6 inches of vertical pipe above the highest fixture’s flood rim before making your turn.
- Mark the Turn Point: Mark the pipe where the 90-degree elbow will sit. Double-check this measurement against your cabinet heights or wall studs.
- Cut and Dry Fit: Cut the pipe to length. Dry fit the elbow and the horizontal section. Do not glue yet.
- Check the Slope: Place your level on the horizontal pipe section. Adjust the position until you achieve a 1/4 inch drop per foot of length toward the main stack.
- Example: For a 4-foot horizontal run, the end near the stack should be 1 inch lower than the end near the elbow.
- Secure the Pipe: Install pipe hangers every 4 feet for horizontal PVC vent lines. Ensure the hangers do not pinch the pipe or alter the slope.
- Prime and Glue: Apply purple primer to both the pipe ends and the fitting sockets. Follow immediately with PVC cement. Give a quarter-turn as you push them together to distribute the glue evenly.
- Inspect: Wait for the cement to cure (usually 15–30 minutes) before moving the pipe. Verify the slope one last time.
FAQ: Frequently Asked Questions
1. Can a vent pipe go horizontal in the attic?
Yes, vent pipes often run horizontally in attics to connect multiple bathroom groups to a single roof penetration. However, the same rules apply: the pipe must have entered the attic space vertically from below the flood rim level, and the horizontal run must be sloped correctly toward the drain stack.
2. What happens if a vent is not sloped correctly?
If a horizontal vent sags or slopes away from the drain, water from condensation or rain intrusion will pool. This “bellies” the pipe. Over time, this water can freeze in winter, blocking the vent entirely, or accumulate sludge that restricts airflow, causing slow drains and gurgling noises.
3. Can I use 45-degree elbows instead of 90-degree elbows?
Yes, and it is often recommended. Using two 45-degree elbows creates a sweeper turn that reduces air resistance and makes it easier for snakes or cleaning tools to pass through if a blockage occurs. This is particularly useful in long horizontal runs.
4. How far can a vent run horizontally?
The distance depends on the pipe diameter and the number of fixtures served. Generally, for a 1.5-inch pipe, the maximum developed length might be around 40–50 feet, but this varies by code (IPC vs. UPC) and local amendments. Always consult your local plumbing code table for “Maximum Distance of Trap from Vent.”
5. Does a kitchen island need a special vent?
Kitchen islands are tricky because they often lack a nearby wall for a traditional vertical vent. In these cases, plumbers often use an “Island Fixture Vent” which loops up under the counter, goes horizontal, and then connects to the main vent. This loop must still adhere to the height and slope requirements discussed above.
Conclusion
So, can a plumbing vent pipe be vented horizontally? Absolutely, provided you respect the physics of water and air. By ensuring your vent rises at least 6 inches above the flood rim before turning, and maintaining a consistent 1/4 inch per foot slope toward the drain, you create a system that is both code-compliant and highly functional.
Proper venting is the unsung hero of your home’s plumbing. It protects your health by keeping sewer gases out and ensures your daily routines aren’t interrupted by sluggish drains. If you are unsure about your specific layout, always consult a licensed plumber or your local building inspector.
