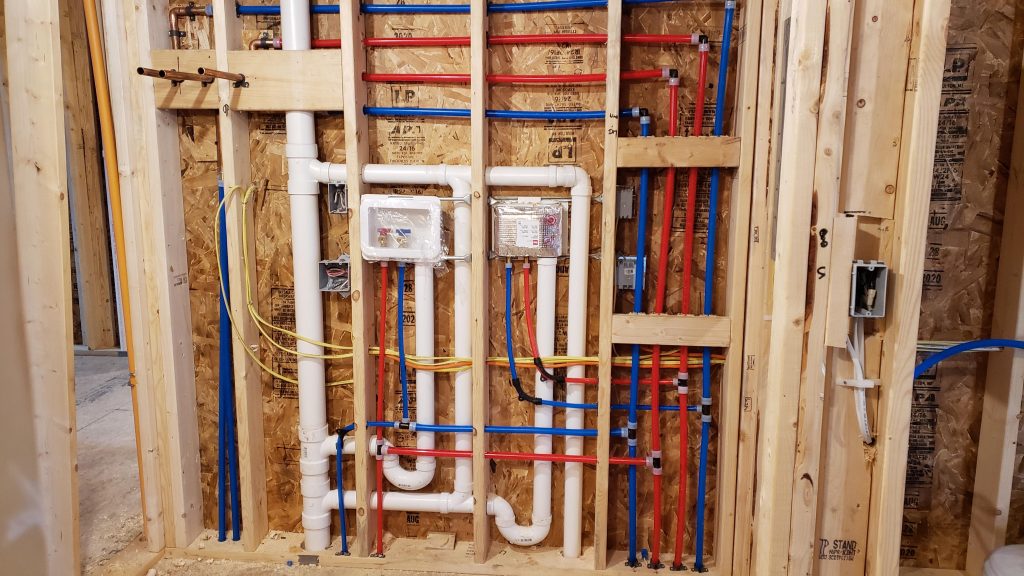

If you’re remodeling your home or planning a new build, you’ve probably asked yourself: “Can electrical and plumbing be in the same wall?” It’s a smart question—after all, you want your home to be safe, up to code, and free from hidden hazards. The good news? Yes, they can coexist—but only if you follow strict safety guidelines and local building codes. In this guide, we’ll break down exactly how to do it right, so you avoid leaks, shocks, or failed inspections.
Why This Question Matters
Combining electrical wiring and plumbing pipes in the same wall cavity is common in modern construction—but it’s also a frequent source of confusion for DIYers and even some contractors. Mistakes can lead to water damage, fire hazards, or code violations that cost thousands to fix. According to the National Fire Protection Association (NFPA), electrical distribution and lighting equipment were involved in an estimated 34,000 home structure fires per year between 2015–2019. While not all were caused by plumbing interference, improper installation near water sources increases risk significantly.
Understanding the rules isn’t just about compliance—it’s about protecting your home and family.
What Do Building Codes Say?
The International Residential Code (IRC) and the National Electrical Code (NEC) govern how electrical and plumbing systems can share space. Here’s what you need to know:
- NEC Section 300.7 requires that where piping systems and electrical conduits are in contact, adequate protection must prevent damage from condensation, corrosion, or physical contact.
- IRC P2902.3 states that water pipes must not be installed in the same stud cavity as electrical wiring unless physical separation is maintained.
- Most local jurisdictions follow these standards but may add stricter rules—always check with your local building department before starting work.
💡 Pro Tip: In many U.S. counties, inspectors will reject a rough-in inspection if Romex cable and copper pipes are stapled to the same stud without a buffer.
Can Electrical and Plumbing Share a Stud Bay? The Real Answer
Yes—but with conditions. Here’s a practical breakdown:
✅ When It’s Allowed:
- Electrical cables and plumbing pipes run on opposite sides of the same stud.
- A steel nail plate (1/16″ thick) is installed over pipes or wires when they’re within 1¼ inches of the edge of a stud (to prevent drill/screw damage).
- Non-metallic sheathed cable (NM cable/Romex) is kept at least 1 inch away from water pipes to reduce condensation risk.
❌ When It’s Not Allowed:
- Running electrical wires directly above or below a water heater or shutoff valve (risk of leaks onto live components).
- Installing outlets or junction boxes inside plumbing chases or wet zones like shower walls.
- Burying both systems in the same insulated cavity without vapor barriers in humid climates.
For visual clarity, here’s a quick reference:
| Wires & pipes on opposite sides of stud | ✅ Yes | Nail plates if <1¼” from edge |
| Wires touching cold water pipe | ⚠️ Risky | Insulate pipe or separate |
| Outlet directly behind sink | ❌ No | Must be GFCI-protected & offset |
| Shared cavity in exterior wall | ⚠️ Possible | Vapor barrier + insulation |
Step-by-Step: Safely Installing Both in One Wall
Follow these steps to stay compliant and safe:
- Plan the layout using a wall framing diagram. Mark all studs, top/bottom plates, and planned pipe/wire paths.
- Drill separate holes:
- Drill plumbing holes lower in the stud (typically 8–12 inches from bottom plate).
- Drill electrical holes higher (18–24 inches from bottom plate).
- Maintain at least 6 inches vertical separation between holes.
- Install nail plates on any stud where a pipe or wire is within 1¼ inches of the face.
- Use insulated pipe sleeves on cold water lines to prevent condensation dripping onto wires.
- Label everything during rough-in so inspectors can verify separation.
- Schedule an inspection before closing walls—never skip this step.
🔧 Real-World Example: In a 2023 remodel in Austin, TX, a contractor avoided a $2,500 rework fee by using color-coded tape (blue for plumbing, yellow for electrical) during rough-in—making separation obvious to the inspector.
Common Mistakes to Avoid
Even experienced handymen slip up. Watch out for:
- Assuming “it’s always been done this way” – Older homes often violate current codes.
- Running wires through plumbing access panels – Creates future shock risks during maintenance.
- Ignoring humidity – In bathrooms or basements, moisture can corrode connections over time.
- Using PVC conduit near hot water pipes – Heat can warp plastic, exposing wires.
For deeper insight into material compatibility, see the Wikipedia entry on building codes in the United States , which outlines how federal guidelines interact with local enforcement.
Electrical vs. Plumbing: Pros and Cons of Sharing a Wall
| Space Efficiency | Saves wall depth in tight layouts (e.g., powder rooms) | Increases complexity during repairs |
| Cost | Fewer walls to open during install | Higher risk of rework if not done right |
| Safety | Safe when code-compliant | Dangerous if wires contact wet pipes |
| Inspection | Accepted by most AHJs (Authorities Having Jurisdiction) | May require extra documentation |
FAQ Section
Q1: Can I run Romex next to a copper water pipe in the same stud bay?
A: Yes, but only if they’re on opposite sides of the stud and separated by at least 1 inch. Use pipe insulation on cold lines to prevent condensation from dripping onto the cable.
Q2: Do I need GFCI protection if outlets are near plumbing?
A: Absolutely. The NEC requires GFCI outlets in all areas within 6 feet of a sink, tub, or shower—regardless of wall configuration. This includes laundry rooms and garages.
Q3: Can PEX tubing and electrical wires share a hole in a stud?
A: No. Drilling a single hole for both increases friction damage risk and violates separation rules. Always use separate holes, spaced vertically.
Q4: What if my house already has them mixed—should I worry?
A: If it passed inspection and shows no signs of moisture or wear, it’s likely safe. But during renovations, upgrade to current code—especially if adding new circuits or plumbing.
Q5: Are there special rules for exterior walls?
A: Yes. In insulated exterior walls, shared cavities can trap moisture. Use vapor barriers, insulated pipe sleeves, and avoid placing outlets in wet-prone zones.
Q6: Can a plumber and electrician work in the same wall at the same time?
A: Coordination is key. Schedule a pre-install meeting between trades to map out stud usage. Many pros use shared digital blueprints via apps like Bluebeam or PlanGrid.
Conclusion
So, can electrical and plumbing be in the same wall? Yes—safely and legally—as long as you respect separation rules, use protective hardware, and follow local codes. Doing it right protects your home from fire, water damage, and costly repairs down the road.
If you found this guide helpful, share it with a friend tackling a home project! A quick post on Facebook or Pinterest could save someone from a dangerous DIY mistake. And remember: when in doubt, consult a licensed electrician or plumber—your safety is worth the investment.
Stay safe, build smart, and never cut corners on code.
