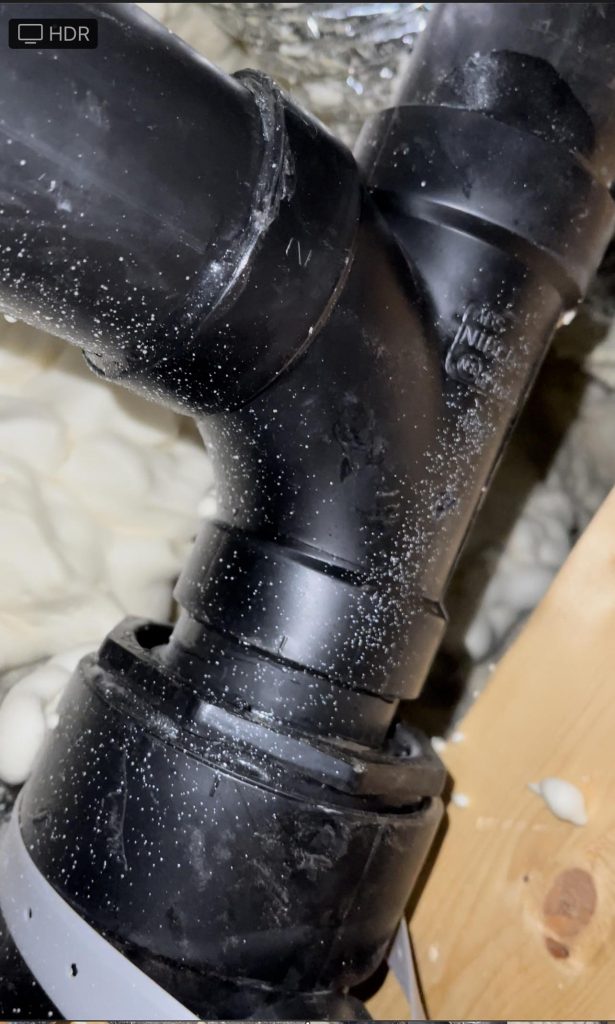

Can I Have Bends In My Plumbing Drain Vent?

Have you ever heard a gurgling sound from your sink or noticed a slow-draining bathtub? These annoying issues often stem from improper ventilation in your home’s plumbing system. Many homeowners ask, “Can I have bends in my plumbing drain vent?” The short answer is yes, but it must be done correctly to maintain proper airflow and prevent dangerous sewer gas buildup.

Understanding the balance between necessary structural adjustments and plumbing code compliance is crucial. In this guide, we will break down exactly where you can place bends, which angles are safe, and how to ensure your home’s plumbing breathes as efficiently as it drains.

The Golden Rule: 45-Degree Angles vs. 90-Degree Turns

When installing or modifying a plumbing vent, the angle of the bend is the single most important factor. Gravity and air pressure do not forgive sharp turns.

Why Sharp Turns Are Dangerous

A standard 90-degree elbow (often called a “quarter bend”) creates significant resistance to airflow. In a drain line, water might push through, but in a vent stack, the primary goal is air movement. If air cannot flow freely, a vacuum forms behind draining water. This vacuum can siphon water out of your P-traps, leaving your home vulnerable to sewer gases.

The Safe Zone: 45-Degree Bends

According to most United States plumbing codes, including the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), you should use 45-degree elbows (also known as “eighth bends”) when changing the direction of a vent pipe.

• Single 45-Degree Bend: Perfectly acceptable.
• Two 45-Degree Bends: Acceptable if separated by a straight section of pipe (at least 6 inches is recommended).
• Long-Sweep 90s: In some specific drainage scenarios, a long-sweep 90 is allowed, but for vents, sticking to 45s is the gold standard for safety and compliance.

Pro Tip: Always prioritize airflow over convenience. A slightly longer run with gentle 45-degree angles performs infinitely better than a short run with a sharp 90-degree turn.

How High Must the Vent Be Before Bending?

One of the most common questions in the “People Also Ask” section is about the vertical requirement. You cannot simply start bending your vent pipe right where it exits the drain tee.

The 6-Inch Rule

Most local building codes require that the vent pipe remain vertical for at least 6 inches above the flood level rim of the highest fixture served by that vent.

Why? This vertical section ensures that any condensation or rainwater entering the top of the vent drains back down into the waste system rather than pooling in a horizontal bend. If you bend the pipe too low, water can accumulate in the low spot of the bend, creating an accidental trap that blocks airflow.

Flood Level Rim Defined

The “flood level rim” is the point at which water would overflow from a fixture. For a sink, it’s the top edge of the basin. For a toilet, it’s the top of the bowl. Your vent must rise vertically past this point before taking its first horizontal turn or angled bend.

Can Vent Pipes Run Horizontally?

Yes, vent pipes can run horizontally, but there is a critical condition: They must be above the flood level rim.

Once your vent pipe has risen sufficiently high (usually well into the attic space or through the roof structure), it can transition to a horizontal run to connect to the main stack or exit through a wall. However, even in horizontal runs, you must maintain a slight slope.

Slope Requirements for Horizontal Vents

Unlike drain lines which slope downward toward the sewer, horizontal vent lines should ideally be level or sloped slightly upward toward the exit point. This prevents condensation from running back down into the vent stack. If water pools in a horizontal vent section, it can freeze in colder climates (like the US Midwest or Northeast), completely blocking the vent.

Distance Limits: How Far Can a Vent Travel?

You might wonder if you can run a vent 50 feet across the attic to reach the roof. While physically possible, plumbing codes limit the distance a vent can travel based on the diameter of the pipe.

The Diameter-Distance Ratio

The larger the pipe, the further it can travel without losing effectiveness. Here is a general guideline based on standard US plumbing codes:

• 1.25-inch pipe: Maximum distance of roughly 30 feet.
• 1.5-inch pipe: Maximum distance of roughly 42 feet.
• 2-inch pipe: Maximum distance of roughly 80 feet.

Note: These distances assume no more than two 45-degree bends. Every additional bend reduces the effective distance.

If you exceed these distances, the friction from the pipe walls and bends will restrict airflow enough to cause drainage issues. In such cases, you may need to install an Air Admittance Valve (AAV) closer to the fixture, though this should always be verified with your local inspector.

For more detailed technical specifications on plumbing systems, you can refer to the general principles outlined on Wikipedia’s Plumbing Ventilation page.

Step-by-Step: Installing a Bent Vent Correctly

If you are tackling this as a DIY project, follow these steps to ensure compliance and functionality.

1. Plan the Route: Identify the highest fixture connected to the vent. Measure the distance to the roof exit or main stack.
2. Cut the Pipe: Use a hacksaw or PVC cutter to cut your ABS or PVC pipe to length. Ensure cuts are square.
3. Dry Fit First: Assemble the pieces without glue. Check that you have at least 6 inches of vertical rise before the first bend.
4. Use 45-Degree Elbows: Connect your bends using 45-degree fittings. If you must change direction significantly, use two 45s with a short straight spacer in between.
5. Check for Sags: Ensure horizontal sections do not sag. Use pipe hangers every 4 feet to support the weight.
6. Glue and Prime: Apply purple primer and cement to all joints. Push firmly and hold for 10 seconds.
7. Inspect: Before closing up walls, have your work inspected if required by your local municipality.

FAQ: Common Questions About Plumbing Vents

1. Can I use a 90-degree elbow in a vent stack?

Generally, no. You should avoid standard 90-degree elbows in vent stacks because they restrict airflow and can trap condensation. If you absolutely must make a 90-degree turn, use two 45-degree elbows separated by a short piece of straight pipe.

2. What happens if my vent has too many bends?

Excessive bends create friction and air resistance. This can lead to slow draining, gurgling noises, and P-trap siphoning. When the P-trap loses its water seal, toxic sewer gases like methane and hydrogen sulfide can enter your living space.

3. Can I run a vent pipe through an exterior wall?

Yes, this is called a “stack vent” or “wall vent.” However, it must terminate above the roof line or at least 6 inches above the highest window or door opening within 10 feet. Local codes vary significantly on this, so check with your building department.

4. Is it okay to have a dip in the vent pipe?

No. Any dip or “sag” in a vent pipe acts as a trap. It will collect condensation or rainwater, blocking the airflow. A blocked vent is functionally the same as having no vent at all. Always ensure vents slope slightly upward or remain perfectly level.

5. Can I combine vents from different fixtures?

Yes, this is called “wet venting” or “common venting,” depending on the configuration. However, the pipe size must increase as more fixtures are added. For example, a single sink might need a 1.25-inch vent, but if it shares a vent with a toilet, the pipe may need to be 2 inches.

Conclusion

So, can you have bends in your plumbing drain vent? Absolutely. In fact, bends are often necessary to navigate around framing, ductwork, and other obstacles in your home. The key is to respect the physics of airflow.

By sticking to 45-degree angles, maintaining a 6-inch vertical rise before bending, and keeping horizontal runs level or slightly upward, you ensure your plumbing system works quietly and efficiently. Remember, a well-vented system protects your home from odors and ensures rapid drainage.
