Can You Pass Plumbing Pressure Test With Valves?

Standing in front of a rough-in inspection can feel like holding your breath while waiting for a verdict. One of the most common questions homeowners and DIY enthusiasts ask is: “Can I pass plumbing pressure inspection with valves installed?” The short answer is nuanced: while some codes allow it under strict conditions, most professional plumbers and inspectors recommend removing them to avoid costly failures.

In this guide, we will break down exactly what building codes say, why valves are often the weak link in pressure tests, and how you can prepare your system to pass inspection with confidence. Whether you are renovating a bathroom or building a new home, understanding these details can save you time, money, and significant stress.

The Short Answer: It Depends on Your Local Code

The direct answer to whether you can leave valves in during a pressure test is generally no, but with important exceptions. Most United States plumbing codes, including the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), prioritize the integrity of the piping system itself, not the fixtures or appurtenances attached to it.

Valves—such as gate valves, ball valves, or stop valves—are mechanical devices with internal seals, gaskets, and packing nuts. These components are not designed to withstand the high pressures used in initial leak testing (often 100 PSI for water or 10-15 PSI for air). If a valve fails during the test, you fail the inspection, even if your copper or PEX pipes are perfectly sealed.

However, some local jurisdictions may permit tested-and-certified valves to remain if they are fully open and properly supported. Always check with your local building department before capping off your lines.

Why Inspectors Are Skeptical of Valves

Inspectors look for leaks in the permanent infrastructure. Valves introduce variables:

• Internal Bypass: A slightly defective valve might leak internally, causing pressure drops that mimic a pipe leak.
• Packing Leaks: The stem packing on older or lower-quality valves often weeps under high pressure.
• False Negatives: If a valve is closed, it isolates part of the system, meaning that section isn’t actually being tested.

What Do Major Plumbing Codes Say?

To understand the rules, we must look at the standards that govern US construction. While local amendments always take precedence, the major model codes provide the baseline.

International Plumbing Code (IPC) Guidelines

The IPC is widely adopted across many US states. According to IPC Section 312, the plumbing system must be tested to ensure it is gas-tight and watertight.

• Water Test: The system is filled with water and subjected to a pressure of at least 100 PSI (or the working pressure, whichever is higher) for 15 minutes.
• Air Test: If using air, the pressure is typically 5–10 PSI.

The code specifies that the test applies to the piping. It does not explicitly forbid valves, but it requires that the system hold pressure without loss. Since valves are prone to minor seepage that doesn’t constitute a “pipe leak” but still causes pressure loss, they are often excluded from the test loop by best practice.

Uniform Plumbing Code (UPC) Standards

The UPC, common in the Western US, is similarly strict. It emphasizes that all openings must be temporarily capped or plugged. If a valve is left in place, it must be capable of withstanding the test pressure. Many standard residential shut-off valves are rated for working pressure (e.g., 80–125 PSI) but may not have the safety margin required for rigorous testing protocols.

For a deeper understanding of plumbing standards, you can refer to the general overview of plumbing codes on Wikipedia.

Risks of Leaving Valves Installed During Testing

Leaving valves in place might seem like a time-saver, but it introduces significant risks that can delay your project. Here is a comparison of the potential outcomes.

The “Weeping” Problem

Even high-quality brass ball valves can “weep” slightly from the stem when subjected to 100 PSI of water pressure. To an inspector watching the gauge, a drop from 100 PSI to 95 PSI over 15 minutes is a failed test. You then spend hours checking every joint, only to realize the valve was the culprit. This wastes time and damages your credibility with the inspector.

Step-by-Step: How to Properly Prep for a Pressure Test

To ensure you pass your plumbing pressure inspection, follow this professional workflow. This method eliminates valves from the equation, ensuring the test reflects the quality of your piping work.

Step 1: Identify All Valve Locations

Walk through your rough-in. Mark every location where a shut-off valve, stop valve, or main control valve will eventually be installed. Common spots include:

• Under sinks (hot and cold)
• Behind toilets
• At the water heater connections
• Main line entry points

Step 2: Remove Valves or Use Test Plugs

If the valves are already installed, remove them. Replace them with appropriate test plugs or caps.

• For threaded fittings: Use brass or plastic caps rated for the test pressure.
• For soldered/crimped fittings: Install a temporary nipple and cap, or use a specialized expansion plug if accessible.

Step 3: Cap All Open Ends

Ensure every fixture outlet is capped. This includes shower heads, tub spouts, and faucet stems. Use steel or brass caps for durability; plastic caps can crack under high pressure if over-tightened.

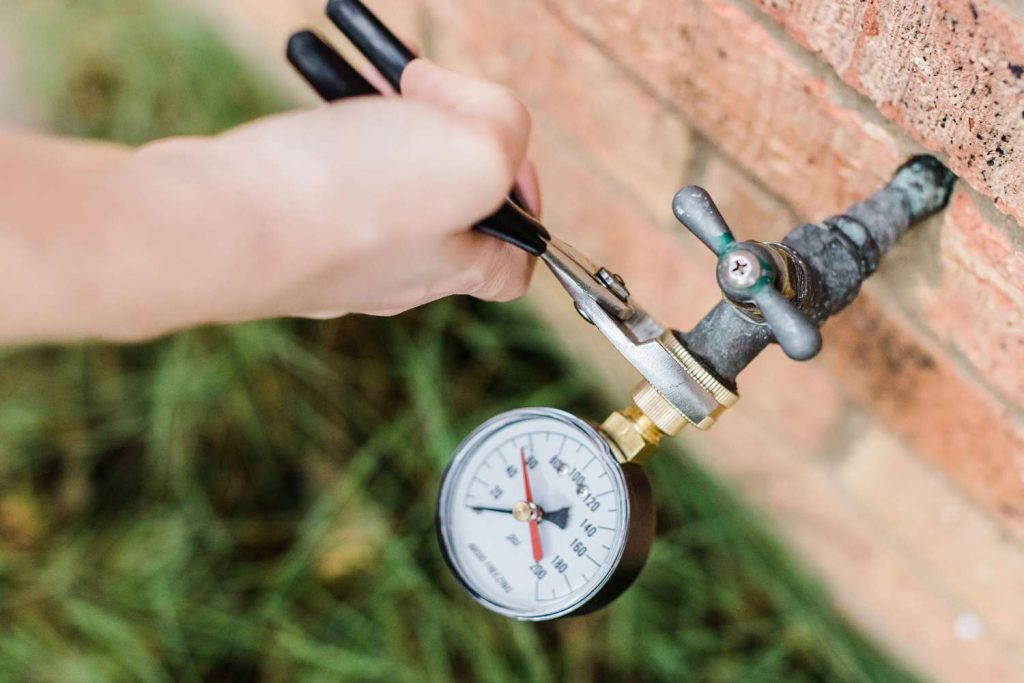

Step 4: Connect the Test Gauge

Attach your test pump and gauge to the lowest point in the system or the main cleanout. Ensure the gauge is calibrated and readable.

Step 5: Fill and Pressurize

• Water Test: Fill the system slowly to purge air pockets. Air compresses and can give false readings. Once full, pump to 100 PSI.
• Air Test: If allowed by your local code, pressurize to 10–15 PSI. Note: Air testing is dangerous if done incorrectly due to stored energy; water is preferred for safety.

Step 6: The Wait Period

Let the system sit for the required time (usually 15 minutes for water). Watch the gauge.

• Pass: No drop in pressure.
• Fail: Any visible drop. Check joints, then re-test.

Step 7: Reinstall Valves After Passing

Once the inspector signs off on the rough-in, you can safely remove the caps and install your final valves. This ensures your valves are not subjected to unnecessary stress during the construction phase.

People Also Ask (FAQ)

1. Can I leave ball valves open during a pressure test?

Technically, yes, if the valve is rated for the test pressure. However, it is not recommended. Ball valves can have slight imperfections in the seat or stem packing that cause minor pressure drops. Most inspectors prefer to see capped pipes to eliminate any ambiguity about where a leak might be coming from.

2. What happens if my pressure gauge drops during the test?

If the gauge drops, you have failed the test. You must locate the leak. Start by checking all joints, caps, and plugs. If you left valves in, check their stem packing first. Once the leak is repaired, you must re-pressurize and restart the timing period. You cannot simply top off the pressure and continue.

3. Is it better to use air or water for plumbing pressure tests?

Water is generally safer and more reliable. Air is compressible, meaning a small leak can release a large amount of energy quickly, posing a safety risk. Water is incompressible, making pressure drops easier to interpret and safer to manage. Additionally, air temperature fluctuations can affect pressure readings, leading to false failures.

4. Do I need to test drain-waste-vent (DWV) lines with valves?

DWV systems are typically tested differently, often using a water column test (filling the system with water to a certain height) or an air test at low pressure (5 PSI). Valves are rarely present in DWV rough-ins except for cleanouts. Cleanout plugs must be tight, but standard shut-off valves are not part of DWV systems.

5. Can I use cheap plastic caps for the test?

Avoid using thin plastic caps for high-pressure water tests (100 PSI). They can crack or blow off, causing water damage and injury. Use brass or heavy-duty ABS/PVC caps glued or threaded securely. For air tests, plastic caps are usually sufficient since the pressure is much lower.

6. Does the inspector check the valves after the test?

Yes, during the final inspection (when fixtures are installed), the inspector will check that valves operate correctly and do not leak under normal working pressure. However, the rough-in pressure test is specifically for the piping integrity. Passing the rough-in test does not guarantee the valves are good; it only proves the pipes are sound.

Conclusion

So, can you pass plumbing pressure inspection with valves installed? While it is physically possible if the valves are perfect, it is a gamble that rarely pays off. The risk of a minor valve leak causing a failed inspection is too high.

The professional standard—and the safest route to a passing grade—is to remove valves during the rough-in pressure test and replace them with sturdy caps. This isolates the piping system, providing clear, undeniable proof that your installation is leak-free. Once the inspector gives the thumbs up, you can install your valves with peace of mind, knowing the hard work behind the walls is solid.
