Can I Plumb a DI Canister into My RO System? Yes—Here’s How

If you’ve ever asked, “Can I plumb a DI canister into my RO system?”—you’re not alone. Many homeowners, aquarium enthusiasts, and even small lab operators want ultra-pure water beyond what standard reverse osmosis (RO) provides. The good news? Yes, you absolutely can—and it’s often a smart upgrade. In this guide, we’ll walk you through why, when, and exactly how to integrate a deionization (DI) canister into your existing RO setup—safely, efficiently, and without voiding warranties.

What Is a DI Canister and Why Add It to an RO System?

A DI (deionization) canister houses ion-exchange resins that remove dissolved ions—like sodium, calcium, chloride, and silica—that RO membranes alone may miss. While RO typically removes 90–99% of contaminants, a DI stage polishes the water to near 0 ppm (parts per million) total dissolved solids (TDS).

This matters if you’re:

• Keeping sensitive reef aquariums (corals die at >5 ppm TDS)
• Running a car wash (spot-free drying)
• Performing laboratory experiments
• Brewing precision coffee or beer

According to the Water Quality Association (WQA), combining RO with DI achieves >99.9% purity, making it the gold standard for critical applications.

Can You Really Plumb a DI Canister into Any RO System?

Yes—but with caveats. Most under-sink or countertop RO systems can accept a DI stage after the RO membrane and storage tank. However, compatibility depends on:

1. Available space under your sink
2. Existing pressure (DI works best with low pressure)
3. Flow rate (DI resins saturate faster with high flow)

⚠️ Important: Never place the DI canister before the RO membrane. RO removes organics, chlorine, and particulates—stuff that would destroy DI resin in hours. DI is strictly a final polishing stage.

For reference, standard residential RO systems produce water at 50–100 psi before the tank, but post-tank pressure drops to 5–10 psi—ideal for DI.

Step-by-Step: How to Plumb a DI Canister into Your RO System

Follow these steps carefully. You’ll need basic tools: tubing cutter, push-fit connectors, and a DI canister (e.g., 10-inch standard size).

Tools & Materials Needed:

• DI canister with mixed-bed resin (e.g., Purolite MB20 or equivalent)
• 1/4″ food-grade tubing (polyethylene or polypropylene)
• Quick-connect fittings (John Guest type recommended)
• TDS meter (to verify performance)

Installation Steps:

1. Turn off feed water and depressurize the RO system. Open the faucet to release pressure.

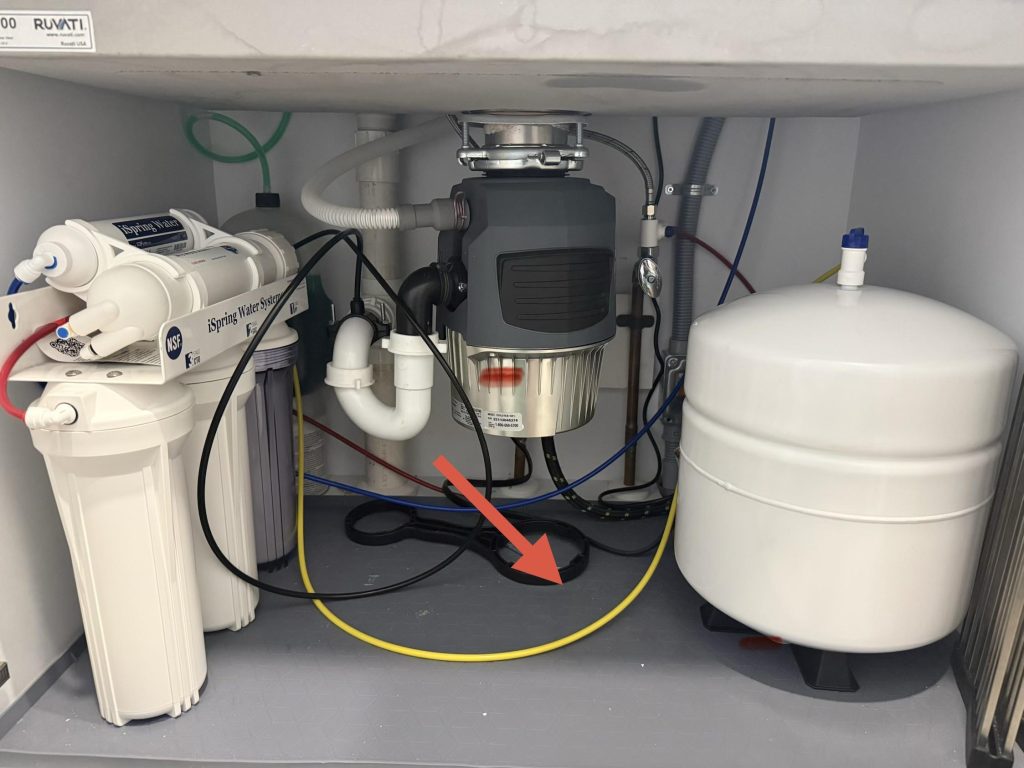

2. Locate the post-storage tank line—this is usually the tube leading from the tank to the RO faucet.
3. Cut this line about 6 inches from the tank outlet.
4. Install the DI canister in-line:
   • Connect the tank-side tube to the IN port of the DI canister.
   • Connect a new tube from the OUT port to the original faucet line.
5. Flush the system: Run 2–3 gallons of water through the DI canister to remove resin dust.
6. Test output TDS: Use a TDS meter. Pure DI water should read 0–1 ppm. If it reads >5 ppm, the resin may be exhausted or improperly installed.

💡 Pro Tip: Mount the canister vertically with flow bottom-to-top to prevent channeling and maximize resin contact time.

For visual learners, this diagram from Wikipedia on water purification shows where DI fits in multi-stage systems.

RO + DI vs. RO Alone: What’s the Real Difference?

*Varies based on feed water TDS. Higher input TDS = faster exhaustion.

Common Mistakes to Avoid

• Skipping a carbon post-filter: If your RO lacks a final carbon stage, volatile organics may pass through. DI doesn’t remove these.
• Ignoring flow rate: High flow (>0.5 GPM) reduces contact time, lowering DI efficiency.
• Using expired resin: Old or pre-used resin won’t work. Always buy fresh, sealed cartridges.
• Not monitoring TDS: Without a meter, you won’t know when the DI is exhausted—leading to sudden spikes in contaminants.

When Should You Not Add a DI Canister?

While beneficial in many cases, DI isn’t always necessary:

• Drinking water: RO alone is safe and healthy. DI water lacks minerals and tastes flat.
• High TDS feed water (>300 ppm): DI resin depletes too fast, becoming cost-ineffective. Consider a double-pass RO instead.
• Low usage: If you use <5 gallons/month, resin may dry out or grow bacteria.

In such cases, stick with RO or upgrade your membrane—not add DI.

FAQ: Your Top Questions Answered

Q1: Will adding a DI canister reduce water pressure?

A: Slightly—but only by 1–2 psi. Since DI is installed after the storage tank (low-pressure side), it won’t affect RO performance or faucet flow noticeably.

Q2: How do I know when to replace the DI resin?

A: Use a TDS meter. When output rises above 1–2 ppm, it’s time. Some resins also change color (e.g., blue to gold) as an indicator.

Q3: Can I refill the DI canister myself?

A: Yes! Buy bulk mixed-bed resin (e.g., from Spectrapure or ResinTech). But ensure you rinse thoroughly—resin dust can clog faucets.

Q4: Is DI water safe to drink?

A: Technically yes, but not recommended long-term. It lacks essential minerals like calcium and magnesium. Use it for appliances, aquariums, or labs—not daily hydration.

Q5: Does DI remove bacteria or viruses?

A: No. DI only removes ions. If microbial safety is a concern, add a UV sterilizer after the DI stage.

Q6: Can I use DI with well water?

A: Only if your RO system is already treating well water effectively. DI won’t handle iron, manganese, or hardness—those must be removed before RO.

Final Thoughts: Is It Worth It?

If you need ultra-pure water, pluming a DI canister into your RO system is a low-cost, high-impact upgrade. It’s simple to install, reliable, and transforms your output from “clean” to “laboratory-grade.”

Just remember:

• Install it after the storage tank
• Always monitor TDS
• Replace resin before it’s exhausted

For reef keepers, detailers, and DIY scientists—this combo is a game-changer.
