Remodeling a bathroom or kitchen often presents tricky spatial challenges, especially when dealing with non-standard wall thicknesses. You might be staring at a narrow wall cavity, wondering if there is enough room for your pipes without compromising the building’s integrity. The burning question on every DIYer’s mind is: Can I run sink plumbing through 3-5/8 stud walls safely and legally?
The short answer is yes, but it requires precision. A 3-5/8 inch stud (often referred to as a “4-inch nominal” stud) offers less margin for error than standard 2x4s. In this guide, we will break down exactly how to do it correctly, ensuring your home remains safe, up to code, and leak-free.
Understanding the 3-5/8 Inch Stud Dimension
Before you pick up a drill, it is crucial to understand what you are working with. In the United States, lumber is sold by “nominal” sizes, but the actual dimensions are smaller due to planing and drying.
- Nominal Size: 4 inches
- Actual Width: 3.5 inches (often rounded to 3-5/8 in older construction or specific engineered studs)
- Actual Depth: 1.5 inches (for a 2×4 profile) or 3.5 inches (for a 2×6 profile turned sideways).
Note: In most modern residential framing, a “3-5/8 stud” usually refers to the width of a metal stud or a specific engineered wood product. However, for this article, we will assume you are dealing with a wood stud wall where the cavity depth or stud width is approximately 3.5 to 3.625 inches.
Why Does This Matter for Plumbing?
Standard PVC drain pipes for sinks are typically 1.5 inches or 2 inches in diameter. Supply lines are much smaller (0.5 inches). When you combine the pipe diameter with the necessary clearance for structural integrity, space becomes tight.
According to general construction principles, you must never compromise more than one-third of the stud’s width when drilling holes. For a 3.5-inch wide stud, this leaves you with very little room for error.
Is It Code-Compliant to Drill These Studs?
One of the primary concerns for homeowners is legality. Will passing an inspection be possible if you drill into these narrower studs?
The International Residential Code (IRC) Guidelines
The IRC is the benchmark for most US jurisdictions. Section R602.6 outlines the rules for drilling and notching framing members.
- Hole Diameter: Holes bored in any stud shall not exceed one-third the depth of the stud.
- Edge Distance: Holes must be at least 5/8 inch from the edge of the stud.
- Notching: Notches in the top or bottom plate cannot exceed one-fourth the depth of the member.
Expert Insight: If your stud is exactly 3.5 inches wide, one-third of that is roughly 1.16 inches. This means you technically cannot drill a 1.5-inch hole through the center of a single 3.5-inch stud without violating code.
So, how do professionals solve this? They do not drill through the web of a single narrow stud if it violates the 1/3 rule. Instead, they use one of two methods:
- Sistering: Adding another stud alongside to reinforce the structure.
- Wall Build-Out: Increasing the wall depth slightly to accommodate standard 2×4 or 2×6 framing.
For a definitive understanding of building codes, you can refer to the International Code Council standards, which are widely adopted across the US. While Wikipedia provides a general overview of building codes, always check your local municipal amendments, as they can be stricter than national guidelines.
Step-by-Step: How to Safely Run Plumbing in Narrow Walls
If you have determined that your specific stud configuration allows for drilling (or if you are using metal studs which have pre-punched knockouts), follow these steps meticulously.
Step 1: Locate and Mark
Use a high-quality stud finder to locate the exact center of the stud. Mark the center line vertically. Use a tape measure to mark the height where the pipe needs to pass.
- Tip: Ensure you are at least 5/8 inch away from the edge of the stud. For a 3-5/8 inch stud, the center is your safest bet.
Step 2: Choose the Right Drill Bit
For a 1.5-inch PVC pipe, you need a hole saw bit.
- Recommended Bit Size: 1.75 inches to 2 inches. This allows room for the pipe and slight movement without binding.
- Tool: Use a cordless drill with high torque.
Step 3: Drill the Hole
Drill slowly to prevent splintering the wood. If you hit resistance, stop and check for nails or metal plates.
- Safety Check: If the remaining wood on either side of the hole is less than 5/8 inch, stop. You are compromising the stud’s structural integrity.

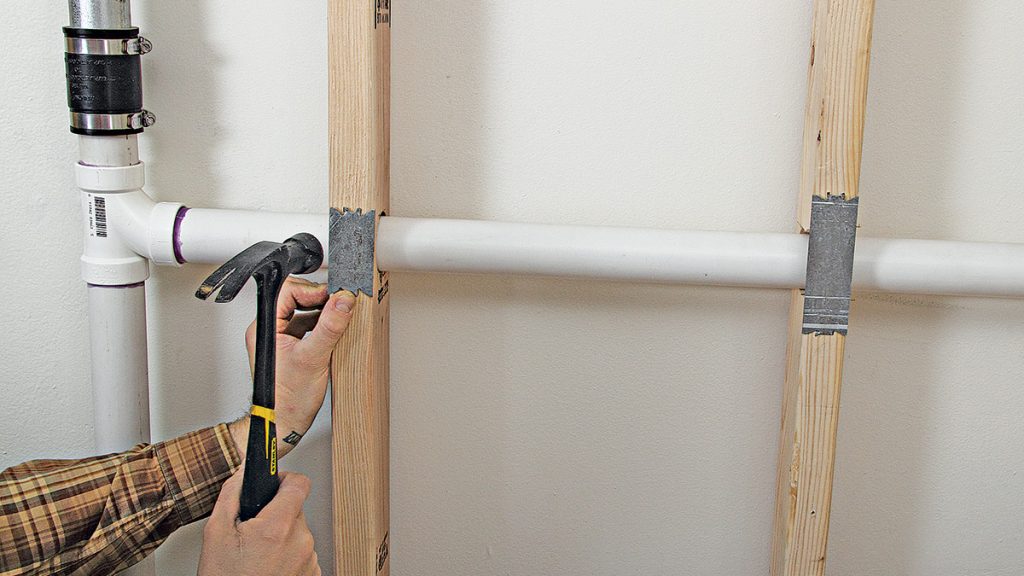

Step 4: Install Protective Plates
This is a non-negotiable step for safety and code compliance. If the pipe is within 1.25 inches of the face of the stud, you must install a nail plate (also known as a protection plate).
- Why? This prevents future screws from drywall or cabinets from puncturing your water lines.
- Material: Use 16-gauge steel plates, at least 3 inches wide.
Step 5: Insulate and Seal
In exterior walls, condensation can form on cold water pipes. Wrap your pipes with foam insulation sleeves before inserting them into the stud cavity. This prevents sweating and potential mold growth inside the wall.
Pros and Cons: Drilling vs. Surface Mounting
When dealing with 3-5/8 inch studs, sometimes drilling isn’t the best option. Here is a comparison to help you decide.
| Feature | Drilling Through Studs | Surface Mounting (Box-Out) |
|---|---|---|
| Aesthetics | Clean, hidden pipes | Visible bulkheads or boxes |
| Structural Risk | Moderate (if done incorrectly) | None (no drilling required) |
| Cost | Low (just labor and bits) | Higher (lumber and drywall) |
| Insulation | Easy to insulate inside wall | Harder to insulate around box |
| Code Compliance | Strict limits on hole size | Generally easier to pass |
Verdict: If your stud width is borderline (under 3.5 inches), surface mounting or building a small “chase” wall is often safer and more code-friendly than risking a structural violation.
Common Mistakes to Avoid
Even experienced DIYers make errors when working with tight spaces. Avoid these pitfalls:
- Ignoring the “One-Third” Rule: Drilling a 2-inch hole in a 3.5-inch stud leaves only 0.75 inches of wood on each side. This is structurally unsound.
- Skipping Nail Plates: One accidental screw from a hanging cabinet can cause a catastrophic leak.
- Forgetting Slope: Drain pipes need a slope of 1/4 inch per foot toward the main stack. In narrow walls, ensure your drilling height accounts for this gradient.
- Using Rigid Pipes in Tight Spaces: Consider using flexible PEX for supply lines instead of rigid copper, as it is easier to snake through tight stud bays.
FAQ: Your Questions Answered
1. Can I run a 2-inch drain pipe through a 3-5/8 stud?
Generally, no. A 2-inch hole exceeds the one-third depth limit of a 3.5-inch stud (which allows only ~1.16 inches). You would need to sister the stud or use a larger wall cavity.
2. What is the minimum distance from the edge of the stud for a hole?
According to most US building codes, the edge of the hole must be at least 5/8 inch from the nearest edge of the stud. This ensures the wood retains its load-bearing capacity.
3. Do I need a permit to run sink plumbing in existing walls?
In most US jurisdictions, yes. Any alteration to plumbing systems typically requires a permit and inspection. Check with your local building department to avoid fines during a home sale.
4. Can I use PEX tubing instead of copper in these studs?
Yes, PEX is highly recommended for narrow studs. It is flexible, requires fewer fittings, and can often be snaked through existing holes without extensive drilling.
5. What if I accidentally drill too close to the edge?
If you violate the 5/8-inch edge distance rule, you must install a nail plate to protect the area. However, if the hole is too large (exceeding 1/3 the stud width), you must reinforce the stud by sistering a new piece of lumber alongside it.
6. Is it better to drill through the center or offset the hole?
Always drill through the center of the stud. Offsetting the hole reduces the wood material on one side, creating a weak point that can lead to cracking or failure under load.
Conclusion
So, can I run sink plumbing through 3-5/8 stud walls? The answer is a cautious yes, provided you respect the structural limits of the wood. By adhering to the one-third drilling rule, maintaining proper edge distances, and installing protective nail plates, you can achieve a professional, code-compliant result.
Remember, when in doubt, consult a licensed plumber or structural engineer. It is far cheaper to ask a question now than to repair a collapsed wall or a flooded kitchen later.
