Can I Use In-The-Wall Vents for Plumbing? The Truth

Have you ever started a bathroom remodel only to realize that running a traditional vent pipe through your roof is impossible due to existing beams or finished ceilings? You are not alone. Many homeowners face this exact dilemma when trying to install a new sink, toilet, or washing machine in a location far from the main stack. This leads to the critical question: Can I use in-the-wall vents for plumbing?

The short answer is yes, but with significant caveats regarding local building codes and the specific type of device used. Traditional venting requires pipes to extend through the roof, but modern plumbing technology offers alternatives like Air Admittance Valves (AAVs) that fit neatly inside your wall cavity. In this guide, we will break down exactly how these systems work, whether they are legal in your area, and how to install them safely to protect your home’s hygiene and structural integrity.

What Are In-The-Wall Plumbing Vents?

To understand if you can use them, you must first understand what they are. In traditional plumbing, every fixture needs a vent pipe that allows air to enter the drainage system. This prevents negative pressure (vacuum) from siphoning water out of your P-traps, which would otherwise allow dangerous sewer gases into your home.

An in-the-wall vent, most commonly known as an Air Admittance Valve (AAV), is a mechanical device that replaces the need for a pipe to go through the roof. It contains a spring-loaded or gravity-based seal that opens to let air in when wastewater flows down the drain (creating negative pressure) and closes tightly to prevent sewer gas from escaping when the system is at rest.

How Do They Differ from Traditional Vents?

According to the Uniform Plumbing Code (UPC), which is adopted by many western US states, AAVs are recognized as a legitimate alternative to traditional venting under specific conditions. However, they are not a “one-size-fits-all” solution.

Are In-The-Wall Vents Legal in the US?

This is the most critical section for any DIYer. While the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) generally permit the use of Air Admittance Valves, local amendments always take precedence.

The General Rule

Most states in the US allow AAVs for individual fixtures or branch vents. However, some jurisdictions have stricter rules. For example:

• California: Historically strict, but now allows AAVs under specific UPC guidelines.
• New York: Generally accepts them, but requires them to be accessible for maintenance.
• Illinois: Allows them, but often requires a traditional vent for the main stack.

Expert Tip: Before purchasing materials, call your local building department. Ask specifically: “Do you allow Air Admittance Valves (AAVs) for individual fixture vents under the current residential code?” Getting a verbal confirmation is good, but getting it in writing is better for future home sales.

When Should You Use an In-The-Wall Vent?

You should consider using an in-the-wall vent in the following scenarios:

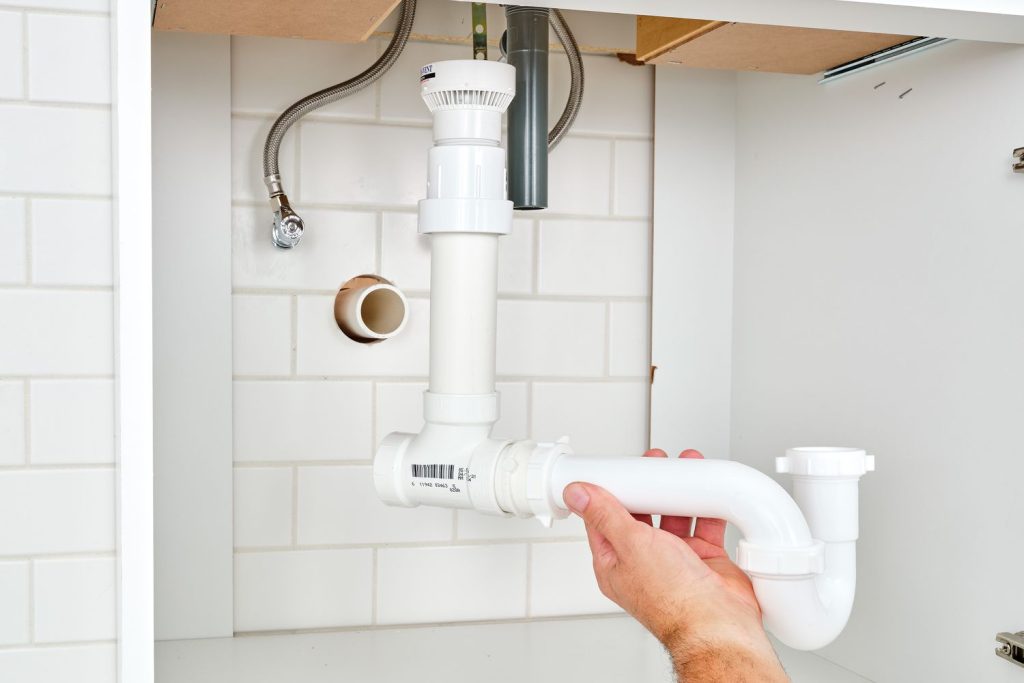

1. Kitchen Island Sinks: Running a vent pipe up through an island cabinet and across the ceiling to a wall is expensive and aesthetically challenging. An AAV installed under the sink is the standard solution here.
2. Basement Bathrooms: If you are adding a half-bath in a basement below the main sewer line, you might be using a macerating pump. These systems often require specific venting solutions where AAVs are highly effective.
3. Remote Fixtures: If you are adding a sink in a garage or a laundry room far from the main stack, running a new vent line through finished walls can be destructive. An AAV minimizes drywall repair.
4. Historical Home Renovations: In older homes where drilling through plaster and lath is difficult, AAVs offer a non-invasive alternative.

Step-by-Step Guide: Installing an In-The-Wall AAV

If you have determined that an AAV is code-compliant in your area, here is how to install one properly. Note that this guide assumes basic plumbing knowledge. Always turn off water supplies before working.

Tools and Materials Needed

• Air Admittance Valve (AAV) – Ensure it is NSF/ANSI 14 certified.
• PVC Pipe and Fittings (1.5-inch or 2-inch, depending on fixture).
• PVC Primer and Cement.
• Hacksaw or PVC Cutter.
• Drill and Hole Saw (if installing inside a wall).
• Stud Finder.

Installation Steps

1. Locate the Drain Line: Identify the drain pipe for the fixture you are venting. The AAV must be installed above the flood level rim of the highest fixture it serves. For a standard sink, this means at least 4 inches above the horizontal branch drain.
2. Cut the Pipe: Turn off the water. Cut into the vertical drain pipe or add a sanitary tee fitting to create a vertical opening for the vent.
3. Prepare the Connection: Dry fit the PVC fittings to ensure the AAV will sit vertically. AAVs must always be installed vertically (within 15 degrees of vertical) to function correctly. Gravity keeps the seal closed; if it is sideways, it will leak sewer gas.
4. Glue the Fittings: Apply purple primer to the pipe and fittings, followed by PVC cement. Insert the fittings quickly and hold for 30 seconds. Allow it to cure for at least 15 minutes before testing.
5. Install the AAV: Screw or glue the AAV onto the top of the vertical pipe. If it is a push-fit model, ensure it clicks into place securely.
6. Accessibility Check: Code requires AAVs to be accessible. This means you cannot simply drywall over them. You must leave an access panel, or install them under a sink cabinet where they can be reached for future replacement.
7. Test the System: Run water down the drain. Listen for gurgling. If the drain flows smoothly and no smell emerges, the installation is successful.

Pros and Cons: Is It Worth It?

Before you commit, weigh the advantages against the potential downsides.

Advantages

• Cost-Effective: Saves hundreds of dollars in labor and materials compared to running new roof vents.
• Aesthetic Freedom: No need for ugly vent pipes on your roof or through visible ceiling beams.
• Ease of Installation: Ideal for DIYers who do not want to tackle roofing work.

Disadvantages

• Mechanical Failure: Unlike a pipe, an AAV has moving parts. The seal can fail over time (typically 10–20 years), requiring replacement.
• Not for Main Stacks: You generally cannot use an AAV to vent the entire house. It is for branch lines or individual fixtures only.
• Potential for Clogs: If installed incorrectly or if debris enters the valve, it can stick open or closed.

FAQ Section

1. Can I put an air admittance valve inside a closed wall?

No. Building codes universally require AAVs to be accessible. This means you must be able to reach them without destroying the wall. If you must place it in a wall, you must install a removable access panel. Placing it under a sink cabinet is the most common compliant method.

2. How long do in-the-wall plumbing vents last?

High-quality AAVs are tested to withstand hundreds of thousands of cycles. On average, they last between 10 to 20 years. However, if you notice slow draining or smell sewer gas, the valve may have failed earlier and needs replacement.

3. Can I use an AAV for a toilet?

Yes, but with caution. Toilets require a 2-inch vent line. You must ensure the AAV is rated for the fixture unit load of the toilet. Most standard AAVs handle single fixtures well, but check the manufacturer’s specifications for “fixture units” (FU). A standard toilet is roughly 4 FUs.

4. Will an in-the-wall vent freeze in winter?

Since AAVs are installed indoors (inside the thermal envelope of the house), they are generally safe from freezing. Traditional roof vents can freeze shut in extreme cold, which is actually one advantage of using an indoor AAV. However, ensure the wall cavity is insulated if it is an exterior wall.

5. Do I still need a P-trap if I use an AAV?

Absolutely. The AAV replaces the vent pipe, not the trap. Every plumbing fixture must have a P-trap to hold water and block sewer gas. The AAV simply ensures that the water in the P-trap isn’t sucked out when you drain the sink.

6. Can I use duct tape or regular tape to seal the AAV?

No. Never use tape to seal plumbing vents. Use only approved PVC cement for glued connections or manufacturer-approved threading compounds for threaded connections. Tape will degrade, leak gas, and violate code.

Conclusion

So, can I use in-the-wall vents for plumbing? Yes, you can, and for many renovation projects, they are a brilliant, code-compliant solution. Air Admittance Valves offer a practical way to vent fixtures without the hassle and expense of roof penetration. They are particularly useful for kitchen islands, basement additions, and remote sinks.

However, success depends on three things: checking your local codes, ensuring the valve is accessible for maintenance, and installing it vertically. By following these guidelines, you can enjoy a functional, odor-free plumbing system that meets modern standards.
