Can LS Steam Vent Be Plumbed Into Radiator Cap?

Swapping an LS engine into a classic car or custom build is a thrilling project, but the cooling system often presents a confusing puzzle for DIY enthusiasts. One of the most common questions we hear from builders is: can LS steam vent be plumbed into radiator cap? The short answer is yes, but doing it correctly is critical to preventing dangerous air pockets and ensuring your engine stays cool under pressure.

If you are worried about overheating or unsure how to handle those extra ports on your cylinder heads, you are not alone. Many builders mistakenly block these ports or route them incorrectly, leading to hot spots and potential head gasket failure. In this guide, we will break down exactly how to manage your LS steam vents properly, ensuring your build is both reliable and efficient.

Understanding the LS Steam Port Function

To understand where to plumb these lines, you first need to understand what they do. Unlike older small-block Chevys, LS engines feature “steam ports” or “crossover tubes” located at the rear of each cylinder head. These ports are designed to bleed off steam and hot coolant that accumulates in the highest points of the engine block and heads.

Why Do LS Engines Have Steam Vents?

When an engine heats up, coolant turns to steam. Steam rises. If this steam gets trapped in the cylinder heads, it creates an “air lock.” Since air (and steam) does not transfer heat as effectively as liquid coolant, this trapped pocket can cause localized overheating. This can lead to:

• Warped cylinder heads.
• Blown head gaskets.
• Inaccurate temperature gauge readings.

The steam vents allow this vapor to escape and return to the cooling system where it can condense back into liquid. According to general automotive engineering principles, maintaining a consistent flow of coolant through these high points is essential for thermal management (Wikipedia: Internal Combustion Engine Cooling).

Can You Plumb Steam Vents Directly to the Radiator Cap?

This is the core question: Can LS steam vent be plumbed into radiator cap?

Technically, you cannot plumb them into the cap itself, as the cap is a sealing device. However, you can and should plumb the steam vents into the coolant surge tank or the upper radiator hose neck near the radiator cap location.

The Ideal Setup: The Surge Tank

The most effective method used by professional builders is routing the steam lines to a dedicated coolant surge tank (also known as a degas bottle or overflow tank).

1. Connection Point: The steam lines should enter the surge tank above the coolant level.
2. Function: As steam enters the tank, it separates from the liquid. The steam condenses on the cooler walls of the tank or mixes with the cooler coolant, turning back into liquid.
3. Return: The main radiator hose draws coolant from the bottom of this tank, ensuring only liquid (not air) enters the water pump.

Alternative: Tying into the Upper Radiator Hose

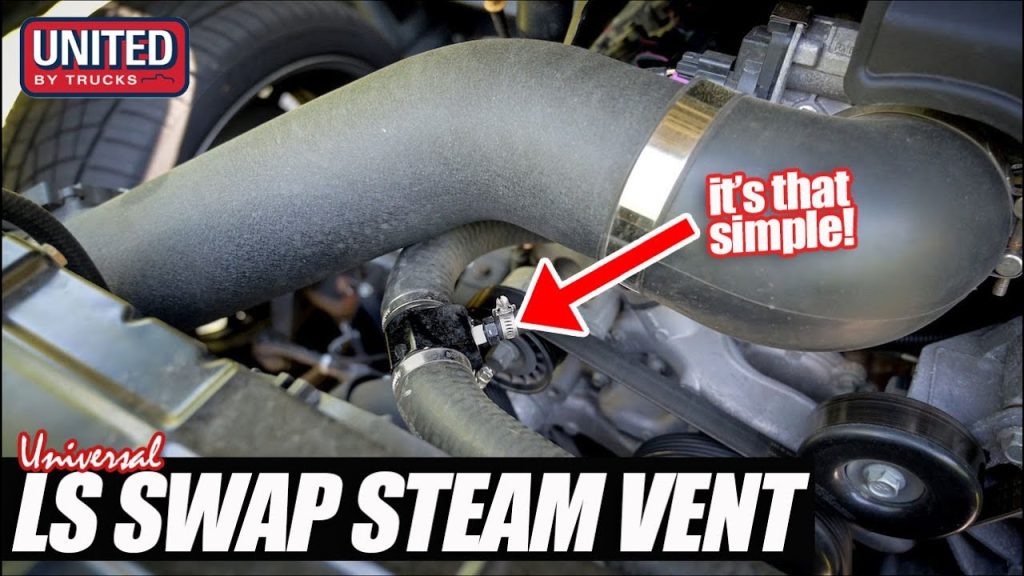

If you do not have a surge tank, you can tee the steam lines into the upper radiator hose.

• Pros: Simpler, fewer parts.
• Cons: Higher risk of air pockets if not bled properly. The steam may re-enter the radiator before fully condensing.

Expert Tip: Never block off the steam ports unless you are using specific aftermarket heads that have internal crossovers designed to eliminate the need for external lines. Blocking standard LS heads is a recipe for overheating.

Step-by-Step Guide: Plumbing Your LS Steam Vents

Follow these steps to ensure your cooling system is air-tight and efficient. This process assumes you are using a standard LS swap setup with a universal radiator.

Tools and Materials Needed

• 5/8-inch or 3/4-inch heater hose (depending on your fitting size).
• Stainless steel T-fittings or AN adapters.
• Hose clamps (high-quality constant tension clamps are recommended).
• Coolant surge tank (optional but recommended).
• GM-style steam port fittings (if not already installed in heads).

Installation Steps

1. Identify the Ports: Locate the steam ports on the rear of both cylinder heads. They are typically smaller than the main thermostat housing outlet.
2. Install Fittings: Screw in the appropriate barbed fittings or AN adapters into the cylinder heads. Use Teflon tape or thread sealant rated for high temperatures to prevent leaks.
3. Route the Hoses: Run a hose from each head’s steam port. You can join these two hoses into a single line using a Y-fitting or T-fitting behind the engine.
4. Connect to the Destination:
   • Option A (Surge Tank): Connect the combined line to the top nipple of your surge tank.
   • Option B (Radiator Neck): Install a T-fitting into the upper radiator hose, just before it enters the radiator. Connect the steam line here.
5. Secure the Lines: Ensure the hoses are secured away from moving parts (like fans or belts) and hot exhaust manifolds. Use zip ties or brackets every 12–18 inches.
6. Fill and Bleed: Fill the system with a 50/50 mix of distilled water and high-quality antifreeze. Start the engine with the radiator cap off (or surge tank open) to allow air to escape. Run the heater on high to circulate coolant through the heater core as well.

Comparison: Surge Tank vs. Radiator Hose Tee

To help you decide which method is best for your build, here is a quick comparison.

Common Mistakes to Avoid

Even experienced mechanics can make errors when dealing with LS cooling systems. Here are the most frequent pitfalls:

• Using Too Small Hose: Do not use 3/8-inch heater hose for steam vents if the fittings are 5/8-inch. Restricting flow can cause pressure buildup in the heads.
• Ignoring the Heater Core: The heater core acts as a secondary radiator. Ensure your steam vents are not competing with the heater core flow in a way that causes restriction.
• Poor Bleeding Procedure: Failing to bleed the system properly is the #1 cause of post-swap overheating. Take your time during the initial fill.
• Wrong Radiator Cap Pressure: Ensure your radiator cap matches your system’s design. Most LS swaps work well with a 16–18 psi cap. Using a cap with too low pressure will cause coolant to boil over prematurely.

FAQ Section

1. What happens if I block the LS steam ports?

If you block the steam ports on standard LS heads, steam will trap in the cylinder heads. This leads to hot spots, which can warp the heads or blow the head gaskets. It also causes the temperature sensor to read inaccurately, potentially misleading you about the engine’s actual state.

2. Can I run just one steam line instead of two?

While some builders try to run only one line, it is not recommended. Both cylinder heads generate steam. Running only one line can create an imbalance in pressure and cooling efficiency between the left and right banks. Always plumb both heads.

3. Do LS3 heads need steam lines plumbed differently than LS1?

The basic principle remains the same for LS1, LS2, LS3, and LS6 engines. All feature external steam ports that need to be routed to the cooling system. However, always check your specific head casting, as some aftermarket performance heads may have modified port sizes or internal bypasses.

4. Why is my LS engine overheating after the swap?

The most common reasons are air pockets in the system due to improper bleeding, incorrect fan shroud placement, or blocked steam vents. Ensure your steam vents are open and routed correctly, and double-check that your electric fans are wired to turn on at the correct temperature.

5. Can I use the heater core return line for the steam vents?

It is possible to tee into the heater core return line, but this is not ideal. The heater core return is already carrying cooled coolant. Adding steam here can disrupt the flow dynamics. It is better to return the steam to the high point of the system (surge tank or upper hose) where it can be managed more effectively.

Conclusion

So, can LS steam vent be plumbed into radiator cap area? Yes, by routing them to the surge tank or upper radiator hose near the cap, you ensure that harmful steam is expelled from the cylinder heads. This simple step is vital for the longevity of your LS swap.

By understanding the function of these ports and following the proper plumbing techniques, you can avoid common overheating issues and enjoy a reliable, high-performance engine. Don’t cut corners on your cooling system—it is the lifeline of your build.
