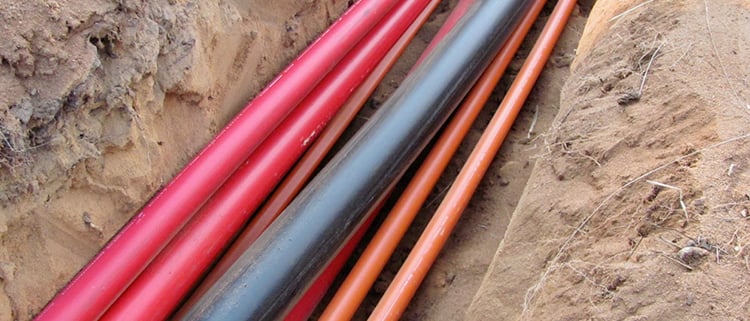

Can Plumbing and Electrical Be in the Same Trench?

If you’re planning a home renovation, backyard project, or new construction, you’ve probably wondered: “Can plumbing and electrical be in the same trench?” It’s a smart question—combining utilities can save time and money, but doing it wrong risks safety, code violations, and costly repairs. The short answer? Yes, they can share a trench—but only under specific conditions. Let’s break down exactly how to do it right, safely, and in compliance with U.S. building codes.

What Do U.S. Building Codes Say About Shared Trenches?

The National Electrical Code (NEC) and local plumbing codes govern how utilities can coexist underground. While the NEC doesn’t outright ban plumbing and electrical in the same trench, it mandates strict separation distances to prevent damage, corrosion, and electrical hazards.

According to NEC Article 300.5, which covers underground installations:

• Electrical conduits must be buried at minimum depths (e.g., 18 inches for PVC conduit under 120V).
• When sharing a trench with water or gas lines, horizontal and vertical separation is required.

The International Plumbing Code (IPC) also requires protection for water lines from potential damage—including from electrical faults or excavation near live wires.

💡 Expert Insight: “Combining utilities is common in residential builds, but only if separation rules are followed to the inch,” says Michael Torres, a licensed master electrician with 18 years of experience in California. “I’ve seen contractors cut corners—only to face failed inspections or water leaks from damaged pipes.”

How Far Apart Must Plumbing and Electrical Be in a Shared Trench?

The exact distance depends on your local jurisdiction, but general U.S. guidelines (based on NEC and IPC) are as follows:

⚠️ Important: Always check with your local building department. Some cities (like Austin, TX or Seattle, WA) enforce stricter rules due to soil conditions or seismic activity.

For example, in Florida, where the water table is high, inspectors often require electrical lines to be placed above plumbing to avoid submersion risks during flooding.

Step-by-Step: Installing Plumbing and Electrical in One Trench

Follow this 7-step process to ensure a safe, code-compliant installation:

1. Call 811 Before Digging
   Dial 811 (or visit call811.com ) at least 3 business days before excavation. This free service marks existing underground utilities to prevent accidents.
2. Plan Your Trench Layout
   Sketch a cross-section showing:
   • Bottom: Water pipe (typically 36″ deep for frost protection in northern states)
   • Middle: Electrical conduit (18–24″ deep, depending on voltage)
   • Top: Backfill with clean soil
3. Dig to Required Depths
   • Water lines: 36 inches minimum in most U.S. regions (deeper in cold climates).
   • Electrical: 18 inches for PVC conduit carrying 120/240V circuits.
4. Maintain 12-Inch Horizontal Clearance
   If running side-by-side, keep at least 12 inches between the outer edges of the pipe and conduit.
5. Use Protective Barriers (If Needed)
   In tight spaces, install a physical barrier (e.g., pressure-treated wood or metal plate) between utilities. This is often required in commercial builds.
6. Install Conduit and Pipe
   • Use Schedule 40 or 80 PVC for electrical.
   • Use PEX or copper for water lines (avoid galvanized steel near electrical—it corrodes faster).
7. Inspect Before Backfilling
   Most jurisdictions require a rough-in inspection before covering the trench. Don’t skip this—it avoids costly re-digs.

Pros and Cons of Sharing a Trench

✅ Advantages

• Cost savings: One trench = less labor, equipment, and restoration.
• Faster installation: Contractors complete utility runs in a single pass.
• Less landscape disruption: Ideal for finished yards or driveways.

❌ Disadvantages

• Higher risk of damage: A plumbing leak can corrode wires; a rodent chewing conduit can flood a pipe.
• Code complexity: Mistakes lead to failed inspections or insurance claims.
• Future repairs: Fixing one utility may require digging up the other.

📊 Real-World Data: A 2023 study by the National Association of Home Builders (NAHB) found that 68% of new single-family homes used shared trenches for at least one utility run—but 22% required rework due to improper separation.

Common Mistakes to Avoid

• Burying electrical below plumbing: Water leaks can pool around wires, creating shock or short-circuit risks.
• Using non-metallic conduit near gas lines: Not allowed in most codes.
• Ignoring local amendments: The NEC is a baseline—your city may add extra rules.
• Skipping conduit for direct-burial cable: Even “direct-burial” NMWU cable needs protection near plumbing.

For more on conduit types and burial rules, see the Wikipedia page on electrical conduit , which outlines material standards and applications.

FAQ Section

Q1: Can I run Romex (NM cable) in the same trench as a water line?

A: No. Romex (NM-B) is not rated for direct burial and cannot be used underground—even in a shared trench. You must use UF-B cable or install NM cable inside approved conduit (e.g., PVC or rigid metal).

Q2: Is it okay to put electrical and plumbing in the same trench for a backyard shed?

A: Yes, as long as you follow separation rules. For a 120V shed circuit, bury PVC conduit 18 inches deep and keep it 12 inches away from the water line (if present). Always get a permit.

Q3: Do low-voltage wires (like for sprinklers or landscape lights) need separation?

A: Generally, no strict separation is required for low-voltage (<50V) wiring. However, best practice is to keep them 6+ inches away to avoid accidental damage during repairs.

Q4: What if my trench is too narrow for 12-inch separation?

A: You can stack vertically—electrical above plumbing—with at least 6 inches of vertical clearance. Never place electrical below water lines.

Q5: Can gas lines share a trench with electrical or plumbing?

A: Not recommended. Most codes (including IPC and NFPA 54) require 24+ inches of separation from electrical and discourage shared trenches due to explosion risks.

Q6: Who should I consult before digging?

A: Always contact:

• 811 (for utility locates)
• Your local building department (for permits and code specifics)
• A licensed electrician or plumber if you’re unsure

Conclusion

So, can plumbing and electrical be in the same trench? Yes—safely and legally—as long as you respect separation distances, use proper materials, and follow local codes. Doing it right saves money and time, while cutting corners risks safety, fines, and system failures.

If you’re a DIYer, when in doubt, call a pro. A $150 consultation can prevent a $5,000 mistake.
