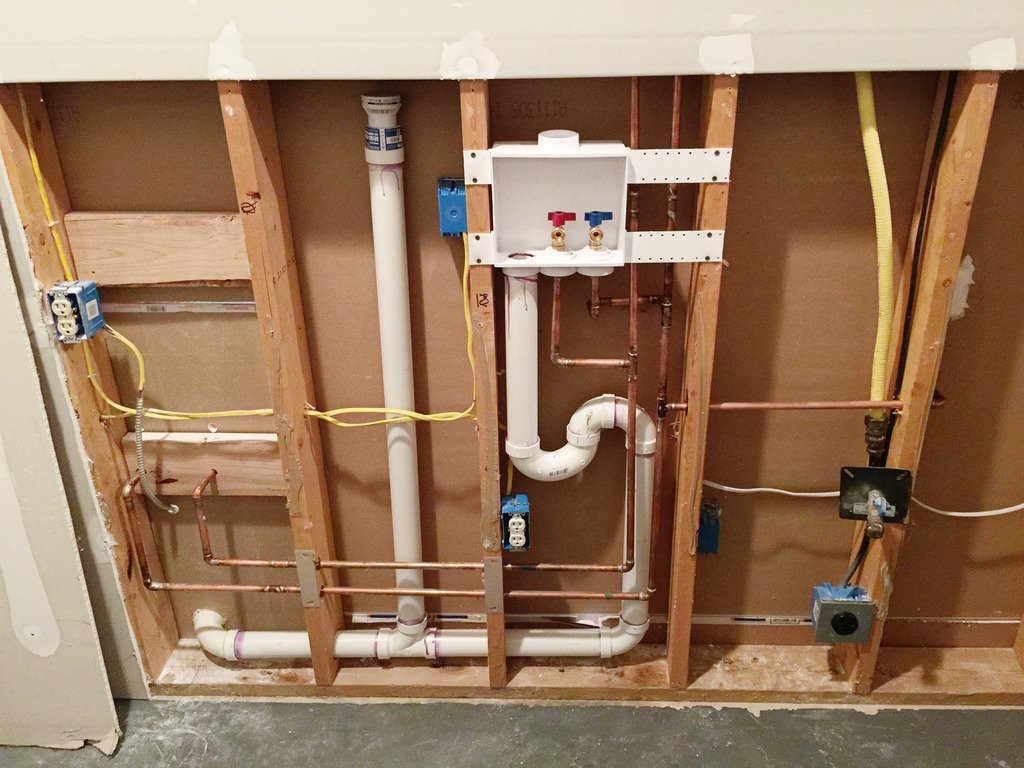

If you’re renovating your home or planning new construction, you’ve probably wondered: Can plumbing and electrical be in the same wall? It’s a smart question—after all, both systems are essential, and space is often tight. The short answer is yes, but only if you follow strict safety codes and best practices. Getting it wrong can lead to costly repairs, safety hazards, or even code violations. Let’s break down exactly how to do it right.
Is It Safe to Run Plumbing and Electrical in the Same Wall?
Yes, it’s safe—as long as you follow the National Electrical Code (NEC) and local building regulations. The NEC doesn’t prohibit plumbing and electrical from sharing a wall cavity, but it does impose specific clearance and protection requirements to prevent hazards like water damage, short circuits, or fire risks.
According to the International Residential Code (IRC) and NEC Article 300, electrical wiring must be protected from physical damage and moisture. That means if a water pipe leaks or bursts, your wiring shouldn’t be compromised.
Expert Insight: “In over 15 years of home inspections, I’ve seen more electrical issues from improper pipe-wire proximity than from faulty breakers,” says Michael Tran, certified home inspector and former NEC committee contributor.
What Does the Code Say? Key Rules to Follow
1. Minimum Separation Distance
While the NEC doesn’t mandate a fixed distance between pipes and wires, many local jurisdictions adopt a 1-inch horizontal or vertical separation as a best practice. This reduces the risk of nails or screws piercing both systems during future work.
2. Protection from Physical Damage
If electrical cables run parallel to plumbing pipes, they must be:
- Installed on opposite sides of the stud whenever possible.
- Protected by steel plates if within 1¼ inches of the edge of a stud (per NEC 300.4).
3. Avoid Direct Contact
Never allow NM (non-metallic) cable to rest directly against hot water pipes. Heat can degrade the cable’s insulation over time. Use insulated clamps or spacers to maintain separation.
4. Grounding and Bonding
Metal water pipes must be bonded to the home’s grounding electrode system (NEC 250.104). This prevents the pipe from becoming energized in case of a fault.
For more on grounding principles, see the Wikipedia entry on electrical bonding .
Pros and Cons of Sharing Wall Space
| Saves space in tight walls (e.g., bathrooms, kitchens) | Higher risk of accidental damage during repairs |
| Reduces need for additional framing | Requires careful planning and labeling |
| Cost-effective during new construction | May complicate future upgrades or inspections |
Bottom line: Sharing a wall is practical if done correctly—but it’s not a shortcut. Precision matters.
Step-by-Step: How to Safely Install Both in One Wall
Follow these steps during new builds or major renovations:
- Plan the Layout
Use a wall framing diagram to map out pipe and wire routes. Keep them on opposite sides of studs when feasible. - Drill Separate Holes
If both must pass through the same stud, drill separate holes—at least 1 inch apart. Never notch the same section of wood for both. - Install Protective Plates
Where wires or pipes are within 1¼ inches of the stud edge, attach 1/16-inch steel protector plates to prevent nail punctures. - Use Proper Cable Types
In damp areas (like bathrooms), use UF-B (Underground Feeder) or THWN-rated wires in conduit for added moisture resistance. - Label Everything
Tag wires and pipes during rough-in. Future electricians or plumbers will thank you. - Schedule Inspections
Have both electrical and plumbing inspected before drywall goes up. Catching errors early saves thousands.
Common Mistakes Homeowners Make
- Assuming “it’s always been done this way” – Older homes often violate modern codes.
- Running wires under sinks without GFCI protection – Required within 6 feet of water sources (NEC 210.8).
- Ignoring condensation risks – Cold water pipes can “sweat,” creating moisture near outlets.
- Using plastic boxes near metal pipes without grounding – Can create shock hazards.
A 2023 study by the National Fire Protection Association (NFPA) found that 7% of residential electrical fires were linked to improper wiring near plumbing or moisture sources.
When to Call a Professional
While DIY enthusiasts can handle minor updates, combining plumbing and electrical in the same wall should involve licensed pros if:
- You’re working in a bathroom, kitchen, or laundry room (wet locations).
- Your home was built before 1980 (older materials may not meet current standards).
- You’re unsure about local code amendments (they vary by city!).
A licensed electrician and plumber can coordinate to ensure compliance and safety—saving you time, money, and stress.
FAQ Section
Q1: Can electrical wires touch water pipes?
A: No. Direct contact isn’t allowed. Wires must be separated from pipes by at least 1 inch or protected with non-conductive barriers. Hot water pipes can degrade wire insulation over time.
Q2: Is it okay to run PEX and Romex in the same stud bay?
A: Yes, but they should be on opposite sides of the stud. If they cross, maintain separation and avoid sharp bends in the PEX that could pinch the cable.
Q3: Do I need conduit if electrical and plumbing share a wall?
A: Not always—but in wet or high-risk areas (like basements), metal or PVC conduit adds protection and may be required by local code.
Q4: Can a water pipe and electrical panel share a wall?
A: Generally, no. NEC 110.26 requires a clear working space in front of panels (30 inches wide, 36 inches deep). Pipes shouldn’t run through this zone or directly above/below without drip loops and shielding.
Q5: What if my inspector fails the setup?
A: Don’t panic. Most issues are fixable—like adding steel plates or rerouting a cable. Work with your contractor to revise and reschedule the inspection.
Q6: Does homeowners insurance cover damage from shared-wall mistakes?
A: Possibly not if the installation violates code. Always get permits and inspections—insurance companies often deny claims for unpermitted work.
Conclusion
So, can plumbing and electrical be in the same wall? Absolutely—safely and legally—when you respect code requirements, maintain proper separation, and prioritize protection over convenience. Whether you’re building new or remodeling, taking these precautions protects your home, your family, and your investment.
💡 Found this guide helpful? Share it with a friend planning a renovation! A quick post on Facebook or Pinterest could save someone from a costly (or dangerous) mistake. And if you’re unsure, always consult a licensed professional—your safety is worth more than a DIY shortcut.
