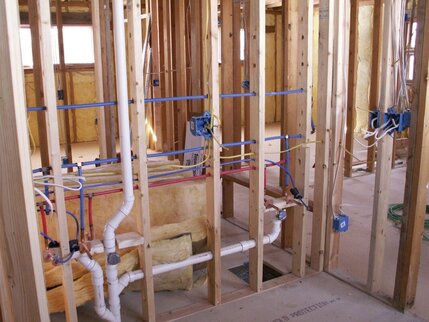

Can Plumbing and Electrical Be in the Same Wall Cavity?

If you’re renovating your home or tackling a DIY project, you’ve probably wondered: Can plumbing and electrical be in the same wall cavity? It’s a smart question—because mixing water and electricity without proper precautions can lead to serious hazards. The short answer is yes, they can coexist—but only under strict guidelines set by national and local building codes. In this guide, we’ll break down exactly how to do it safely, legally, and efficiently.

Is It Safe to Run Plumbing and Electrical in the Same Wall?

Safety is the #1 concern when combining plumbing and electrical systems. Water conducts electricity, so any leak near live wires poses a shock or fire risk. However, modern building practices account for this.

According to the National Electrical Code (NEC) and the International Residential Code (IRC), plumbing and electrical can share a wall cavity as long as specific separation and protection rules are followed. For example:

• Electrical cables must be installed at least 1¼ inches from the edge of a stud to prevent accidental puncture by nails or screws.
• If pipes and wires cross, they should not run parallel in direct contact.
• Metal water pipes must be properly grounded to prevent electrical conduction.

Expert Insight: “In over 15 years of residential inspections, I’ve seen zero incidents caused by properly installed co-located plumbing and electrical—because the codes work when followed,” says Michael Tran, certified home inspector and member of ASHI (American Society of Home Inspectors).

What Do Building Codes Say About Shared Wall Cavities?

The NEC (Article 300.4) and IRC (Section P2902.3) provide clear guidance:

• NEC 300.4(D): Requires that cables or raceways installed in bored holes of wood studs be protected if the edge of the hole is less than 1¼ inches from the nearest edge of the stud.
• IRC P2902.3: Mandates that water supply and drainage pipes be installed to avoid contact with electrical wiring unless separated by a barrier or proper spacing.

These codes exist not to restrict design but to prevent real-world risks like short circuits, corrosion, or electrocution during maintenance.

For more on electrical safety standards, refer to the National Electrical Code overview on Wikipedia .

Best Practices for Installing Plumbing and Electrical in the Same Wall

When planning your wall layout, follow these step-by-step guidelines to ensure compliance and safety:

Step 1: Plan the Layout Before Cutting

• Use a stud finder and blueprint to map out where pipes and wires will run.
• Keep electrical lines on one side of the stud bay and plumbing on the other whenever possible.

Step 2: Maintain Minimum Clearance

• Maintain at least 1 inch of separation between water pipes and electrical cables.
• If they must cross, ensure the wire passes perpendicular to the pipe—not parallel.

Step 3: Use Protective Plates

• Install steel nail plates over any wiring or piping within 1¼ inches of a stud edge.
• This prevents accidental drilling during future installations (e.g., shelves or cabinets).

Step 4: Avoid Wet Areas for Electrical Boxes

• Never place electrical outlets or junction boxes directly behind sinks, showers, or tubs.
• If needed near wet zones, use GFCI (Ground Fault Circuit Interrupter) outlets rated for damp/wet locations.

Step 5: Label and Document

• Take photos of the wall cavity before closing it up.
• Keep a record for future repairs or inspections.

Pros and Cons of Sharing a Wall Cavity

Note: In new construction, shared cavities are common and efficient. In older homes, retrofitting both systems into one cavity can be risky without professional assessment.

Common Mistakes Homeowners Make

Even well-meaning DIYers can make dangerous errors:

1. Running Romex cable directly against copper pipes → Risk of insulation wear and short circuits.
2. Ignoring local amendments → Some states (like California or Florida) have stricter rules than the NEC.
3. Skipping GFCI protection near sinks or laundry areas → Violates code and increases shock risk.
4. Using plastic boxes near metal pipes without grounding → Creates potential for stray voltage.

Always check with your local building department before starting work. Permits and inspections aren’t red tape—they’re your safety net.

Real-World Example: Bathroom Renovation Gone Right

In a 2023 case study from a Portland, OR renovation firm, a client wanted to add a new vanity with lighting and plumbing in a narrow 2×4 wall. The team:

• Ran 12/2 NM-B (Romex) cable on the left side of the stud bay.
• Installed PEX water lines on the right side, with a 1.5-inch gap.
• Used a metal nail plate where both systems passed through the same stud.
• Installed a GFCI outlet 36 inches above the floor (per IRC requirements).

The project passed inspection on the first try—and the homeowner saved $1,200 by avoiding a wall rebuild.

FAQ Section

Q1: Can PEX plumbing and electrical wires touch?

A: No. Even though PEX is plastic and non-conductive, codes still require separation (typically 1 inch) to prevent damage during installation or from long-term vibration/friction. Direct contact can wear through wire insulation over time.

Q2: What if my house already has them in the same cavity?

A: If it was installed to code and shows no signs of damage (corrosion, frayed wires, leaks), it’s likely safe. However, have a licensed electrician or plumber inspect it—especially in homes built before 1990.

Q3: Do I need a permit to run both in one wall?

A: Yes, in most U.S. jurisdictions. Any new electrical or plumbing work typically requires a permit and final inspection to ensure compliance with local codes.

Q4: Can gas lines share a cavity with electrical?

A: Generally no. Gas lines have stricter separation rules. NEC 510.1 and local fire codes often prohibit electrical wiring in the same cavity as gas piping due to explosion risks.

Q5: Is it okay in a basement or garage?

A: Yes—but with extra caution. Basements are damp, so use wet-rated cables (e.g., UF-B) and corrosion-resistant boxes. Garages often require GFCI protection for all outlets.

Q6: How much does it cost to correct improper installation?

A: Correction costs range from $300 to $2,500, depending on wall access, materials, and labor. Prevention is far cheaper than remediation.

Conclusion

So, can plumbing and electrical be in the same wall cavity? Yes—safely and legally—as long as you follow building codes, maintain proper separation, and prioritize protection. Whether you’re building new or remodeling, smart planning prevents hazards and costly fixes down the road.

If this guide helped you avoid a dangerous mistake or simplified your renovation plans, share it with a friend or on social media! Your DIY community will thank you—and stay safer because of it.

🔧 Pro Tip: When in doubt, consult a licensed electrician and plumber. Their combined expertise ensures your wall cavity meets every safety standard—so you can sleep soundly (and safely) at night.
