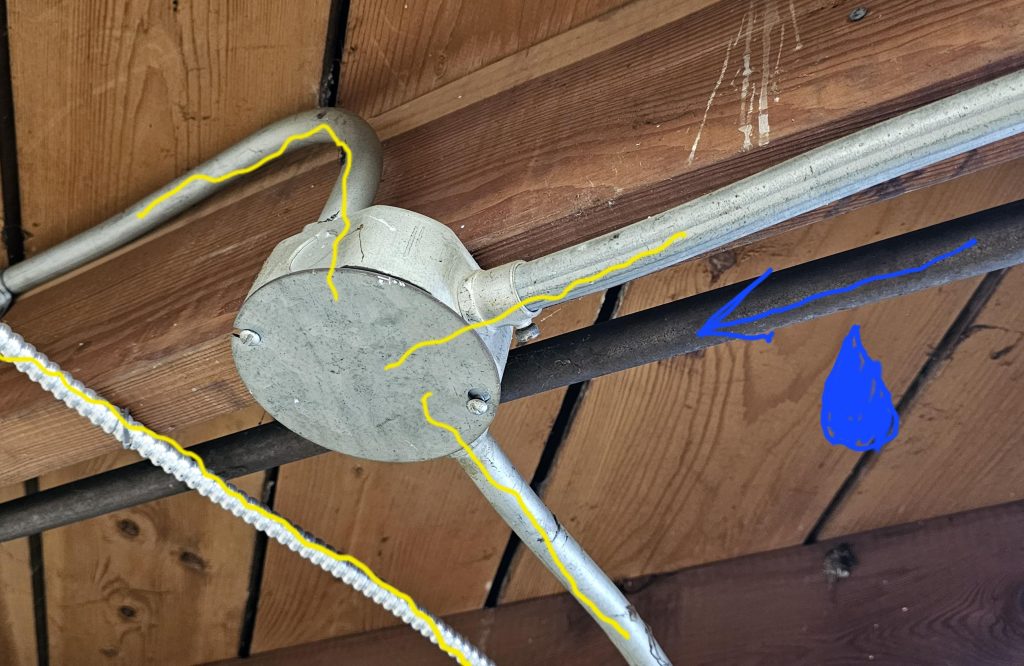

Remodeling a bathroom or kitchen often feels like solving a complex puzzle, especially when water and electricity share the same walls. You might find yourself staring at a blueprint, wondering if it is safe to route pipes beneath your power sources. The short answer to can plumbing lines be run below an electrical outlet is yes, but it requires strict adherence to safety codes and careful planning to prevent catastrophic damage.
In this guide, we will break down the National Electrical Code (NEC) requirements, explain the hidden risks of water-electricity proximity, and provide actionable steps to ensure your home remains safe and compliant. Whether you are a DIY enthusiast or hiring a contractor, understanding these rules is non-negotiable for protecting your family and your property value.
Is It Legal to Run Pipes Under Electrical Outlets?
When asking can plumbing lines be run below an electrical outlet, the first place to look is the law—specifically, the building codes that govern construction in the United States.
The National Electrical Code (NEC) Stance
The National Electrical Code (NEC), published by the National Fire Protection Association (NFPA), is the benchmark for safe electrical design, installation, and inspection. While the NEC does not explicitly ban plumbing lines from being physically located below an outlet in all scenarios, it imposes strict regulations on how they interact.
According to NEC Article 110.26, working space around electrical equipment must be kept clear. More importantly, NEC Article 300.5 and local plumbing codes generally dictate that water pipes and electrical conduits should not occupy the same physical space in a way that compromises safety.
Key Rule: Water lines should never be installed in a way that allows leakage to drip directly onto electrical components, outlets, or junction boxes.
If a pipe bursts or develops a slow leak, gravity will pull the water downward. If an electrical outlet is directly below that pipe, the risk of short-circuiting, electrocution, or fire increases exponentially. Therefore, while not always “illegal” in a strict sense if proper shielding is used, it is heavily discouraged by inspectors and insurance companies unless specific mitigation measures are taken.
Local Amendments Matter
Building codes are adopted at the state and municipal levels. Some jurisdictions in the US have stricter amendments than the national standard. For example, certain cities in California or New York may require a minimum vertical separation distance between plumbing and electrical systems. Always check with your local building department before starting work.
For a deeper understanding of how electrical standards are developed globally, you can refer to the general overview on Wikipedia’s National Electrical Code page.
What Are the Risks of Running Plumbing Below Outlets?
Understanding the “why” behind the code is just as important as knowing the rule itself. Here are the primary dangers associated with placing plumbing lines below electrical outlets.
1. Water Damage and Short Circuits
Water is a highly effective conductor of electricity. If a copper pipe sweats due to condensation or a PEX fitting fails, water can seep into the wall cavity. If it drips into the back of an electrical outlet box:
- Short Circuit: The hot and neutral wires may connect through the water, tripping the breaker.
- Arc Fault: Intermittent contact can create sparks, leading to an electrical fire inside the wall.
- Corrosion: Over time, moisture accelerates the corrosion of wire terminals, increasing resistance and heat generation.
2. Mold and Structural Integrity
Even if an electrical fire doesn’t occur, persistent moisture from a leaking pipe below an outlet creates a perfect environment for mold. Mold spores can spread through HVAC systems, posing serious health risks to residents with allergies or asthma. Furthermore, wet drywall loses its structural integrity, requiring costly repairs.
3. Insurance Claim Denials
Many homeowners insurance policies have exclusions for “poor maintenance” or “code violations.” If an investigation reveals that plumbing was improperly installed below an electrical outlet against code, your insurer may deny the claim for water or fire damage. This leaves you liable for thousands of dollars in repairs.
How to Safely Install Plumbing Near Electrical Systems
If your floor plan dictates that plumbing must pass near or below an electrical outlet, you must follow best practices to mitigate risk. Here is a step-by-step approach to doing it safely.
Step 1: Maintain Proper Separation Distance
The gold standard is separation. Aim for a horizontal distance of at least 12 inches between any plumbing line and an electrical box. If vertical stacking is unavoidable:
- Ensure the plumbing line is not directly above the outlet box.
- Offset the pipe so that any potential leak would hit the solid stud or drywall, not the electrical component.
Step 2: Use Protective Shielding
If you must run a pipe close to an outlet, install a metal splash guard or a waterproof barrier between the two systems.
- Metal Plates: Use nail plates not just for protection against screws, but as a minor water deflector.
- Rubber Grommets: When pipes pass through studs near electrical wiring, use rubber grommets to prevent vibration wear and provide a slight seal.
Step 3: Choose the Right Piping Material
Not all pipes are created equal when it comes to leak risks.
- PEX (Cross-linked Polyethylene): Preferred for retrofits. It has fewer connections (fewer leak points) and is flexible, allowing it to be routed away from electrical boxes more easily than rigid copper.
- Copper: Durable but prone to pinhole leaks over decades due to corrosion. If using copper, ensure all joints are soldered perfectly and inspected.
- CPVC: Rigid and prone to cracking if not supported properly. Avoid running CPVC directly above electrical zones if possible.
Step 4: Install GFCI Protection
Any outlet in a bathroom, kitchen, or near a water source must be a Ground Fault Circuit Interrupter (GFCI).
- How it works: A GFCI monitors the balance of current between the hot and neutral wires. If it detects a discrepancy (as small as 4-6 milliamps), indicating current is leaking (possibly through water), it cuts power in milliseconds.
- Requirement: NEC Article 210.8 mandates GFCI protection in areas where water and electricity may mix. This is your last line of defense.
Comparison: Safe vs. Unsafe Installation Practices
To visualize the difference, refer to the table below:
| Feature | Safe Installation | Unsafe Installation |
|---|---|---|
| Positioning | Pipe offset horizontally by 12+ inches from outlet. | Pipe runs vertically directly behind/above outlet. |
| Protection | GFCI outlet installed; metal splash guard used. | Standard outlet; no barrier between pipe and wire. |
| Material | PEX with minimal joints in the wall cavity. | Old galvanized steel with multiple threaded joints. |
| Inspection | Pressure tested before closing walls. | No pressure test; walls closed immediately. |
| Code Compliance | Meets NEC and local plumbing codes. | Violates separation guidelines. |
Expert Tips for Homeowners and Contractors
As an industry professional, I recommend these additional precautions to ensure long-term safety:
- Pressure Test Before Closing Walls: Never assume a pipe is leak-free. Pressurize the plumbing system to 1.5 times its working pressure and hold it for at least 15–30 minutes. Check for drops in pressure.
- Take Photos: Before installing drywall, take high-resolution photos of the wall cavity showing the relationship between pipes and wires. This helps future contractors avoid drilling into pipes or wires.
- Use Stud Finders with AC Detection: When hanging items later, use a stud finder that detects both wood/metal and live AC voltage. This prevents accidental nails into both pipes and wires.
- Insulate Cold Water Lines: Condensation on cold water pipes can mimic a leak. Insulating these pipes prevents sweat from dripping onto nearby electrical components.
FAQ Section
1. Can I run a water line directly behind a drywall that has an outlet on it?
While not explicitly illegal in every jurisdiction, it is highly risky and discouraged. If the pipe leaks, the water will saturate the drywall around the outlet box, likely causing a short circuit. It is better to route the pipe through a different stud bay or offset it significantly.
2. Does the type of pipe (Copper vs. PEX) change the code requirements?
No, the material does not change the fundamental electrical safety codes. However, PEX is often preferred in retrofit situations because it is flexible and can be easier to route away from electrical boxes, reducing the likelihood of conflict.
3. What is the minimum distance between plumbing and electrical wires?
The NEC does not specify a universal inch-perfect distance for parallel runs in residential walls, but general best practice and many local codes suggest a minimum of 12 inches of separation. If they must cross, they should do so at a 90-degree angle to minimize shared wall space.
4. Do I need a permit to move a plumbing line near an outlet?
Yes. In most US municipalities, moving plumbing lines or adding new electrical outlets requires a permit and subsequent inspection. Skipping this step can lead to fines and issues when selling your home.
5. What happens if water gets into an electrical outlet?
If water enters an outlet, it can cause a short circuit, tripping the breaker. If the breaker fails or the water creates a path to ground through a person, it can cause severe electrocution. It can also cause arcing, which generates intense heat and can start a fire inside the wall.
6. Can I use a standard outlet if it is far from the plumbing?
If the outlet is not in a “wet location” (like within 6 feet of a sink tub edge per NEC 210.8), a standard outlet is technically permitted. However, given the proximity to plumbing in your scenario, upgrading to a GFCI outlet is the safest and smartest choice, regardless of exact distance.
Conclusion
So, can plumbing lines be run below an electrical outlet? Technically, yes, but it is a gamble with safety that you should avoid whenever possible. The risks of water damage, electrical fires, and code violations far outweigh the convenience of a direct route.
By maintaining proper separation, using GFCI protection, and adhering to the National Electrical Code, you can ensure your home remains safe and efficient. Remember, when in doubt, always consult a licensed plumber or electrician. Their expertise is an investment in your peace of mind.
