If you’ve ever tackled a plumbing project or noticed odd gurgling sounds from your drains, you might be wondering: Can plumbing sewer vents have 90-degree turns in them? It’s a smart question—because improper venting can lead to slow drains, sewer odors, or even health hazards. Whether you’re a DIYer or a new homeowner, understanding vent pipe rules is essential for a safe and efficient plumbing system.
What Is a Plumbing Sewer Vent—and Why Does It Matter?
Every plumbing system needs vent pipes to allow air into the drainage system. These vents prevent suction that would otherwise slow or stop water flow and stop sewer gases from backing up into your home. Without proper venting, your drains may gurgle, toilets might flush weakly, and unpleasant odors can creep in.
Sewer vents typically extend through your roof, allowing gases to escape safely outdoors while maintaining neutral air pressure in the pipes.
According to the International Plumbing Code (IPC), every plumbing fixture must be vented to ensure proper drainage and prevent trap siphonage.
Can You Use a 90-Degree Turn in a Sewer Vent Pipe? (The Short Answer)
Yes—but with important limitations.
While 90-degree elbows can be used in vent systems, they should be avoided below the flood level rim of the highest fixture they serve. Above that point—typically in the vertical riser toward the roof—90-degree turns are generally acceptable if installed correctly and in compliance with local plumbing codes.
The concern isn’t just the angle—it’s how it affects airflow and debris accumulation.
Why 90-Degree Turns Are Discouraged (and When They’re Okay)
The Problem with Sharp Turns Below Fixture Level
Plumbing vents must allow unrestricted airflow. A sharp 90-degree elbow in the horizontal or low vertical section can:
- Trap moisture and condensation
- Collect debris or ice in cold climates
- Restrict airflow, reducing vent efficiency
- Increase the risk of blockages
The Uniform Plumbing Code (UPC) and International Plumbing Code (IPC) both emphasize smooth airflow. While neither outright bans 90-degree fittings in vents, they strongly recommend using two 45-degree elbows instead to create a “swept” turn, which maintains better airflow and reduces clog risk.
“A 90-degree elbow creates turbulence that can impede the equalization of air pressure—a critical function of any vent system,” says master plumber James R. Thompson, co-author of Modern Plumbing Practices (8th ed.).
When 90s Are Acceptable
- Above the flood level rim: Once the vent pipe rises above the highest fixture (like a sink or toilet), a 90-degree turn to go through the roof or around an obstruction is usually fine.
- In dry vents: If the vent carries only air (not wastewater), a 90-degree elbow poses less risk—though long horizontal runs should still slope slightly (¼ inch per foot) to drain condensation.
Plumbing Code Guidelines: What the Experts Say
Both major U.S. plumbing codes address vent piping:
| Code | Rule on 90-Degree Turns in Vents | Key Requirement |
|---|---|---|
| IPC (International Plumbing Code) | Allows 90s but recommends long-sweep fittings | Vents must be “installed to prevent frost closure and not be subject to freezing” |
| UPC (Uniform Plumbing Code) | Permits 90s above flood level | Horizontal dry vents must slope back to the drain |
For reference, the flood level rim is the highest point water can reach in a fixture before it overflows (e.g., the top of a sink bowl).
According to the IPC Section 905, vent pipes must be “as straight as possible” and avoid unnecessary obstructions.
⚠️ Note: Local building codes may be stricter. Always check with your municipal plumbing inspector before finalizing your design.
Best Practices for Vent Pipe Installation
If you’re installing or modifying a vent system, follow these expert-backed steps:
- Use long-sweep fittings whenever possible
Replace 90-degree elbows with two 45-degree elbows or a long-radius 90 for smoother airflow. - Avoid horizontal runs below the flood rim
Keep vent piping vertical until it’s safely above all fixtures. - Slope horizontal dry vents
Even “dry” vents can collect condensation. Slope them ¼ inch per foot back toward the drainage pipe. - Maintain proper pipe size
Vents must match or exceed the drain pipe diameter (typically 1.5″ to 3″ depending on fixture load). - Protect roof penetrations
Use flashing and pipe boots to prevent leaks—especially if your vent turns 90 degrees to exit through the roof. - Insulate in cold climates
To prevent frost closure, insulate vents in unheated spaces or use heat tape in freezing zones.
Common Mistakes Homeowners Make with Vent Pipes
- Using plumbing drain fittings for vents: Drain elbows are different from vent fittings. Using the wrong type restricts airflow.
- Ignoring local codes: What’s allowed in Texas might be banned in Minnesota.

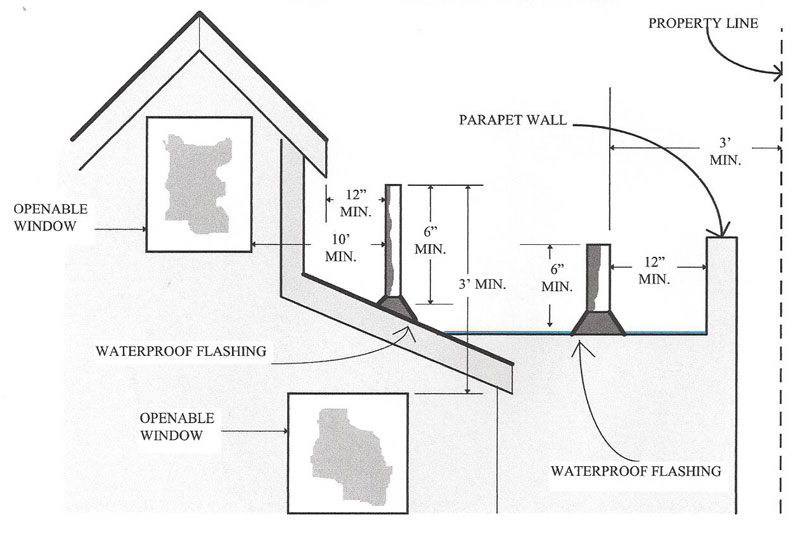

- Routing vents near windows or AC intakes: Vents must terminate at least 10 feet away from any opening to prevent sewer gas entry.
- Combining too many fixtures on one vent: Overloading a vent reduces effectiveness. Use wet venting or individual vents as needed.
Real-World Example: Fixing a Gurgling Sink
Case Study: A homeowner in Chicago installed a new basement bathroom. Afterward, the kitchen sink gurgled loudly during laundry cycles. Inspection revealed the new vent used a 90-degree elbow just 6 inches above the basement floor sink—well below the kitchen sink’s flood rim.
Solution: The plumber rerouted the vent using two 45-degree elbows and extended it vertically before turning. The gurgling stopped immediately, and airflow tests confirmed proper venting.
This illustrates how a single poorly placed 90-degree turn can disrupt an entire home’s drainage system.
FAQ Section
Q1: Can I use a standard 90-degree elbow in a vent pipe?
Yes, but only above the flood level rim of the highest fixture it serves. Below that level, use two 45-degree elbows or a long-sweep 90 to maintain airflow and reduce clog risk.
Q2: What’s the maximum number of 90-degree turns allowed in a vent?
There’s no fixed number, but fewer is always better. Each turn increases resistance. Most codes recommend minimizing direction changes and avoiding sharp turns in horizontal runs.
Q3: Do vent pipes need to be straight?
Not perfectly straight—but they should avoid unnecessary bends. Vertical sections should be as direct as possible. Horizontal dry vents must slope slightly (¼” per foot) toward the drain.
Q4: Can a vent pipe run horizontally?
Yes, but only if it’s above the flood level rim and properly sloped to drain condensation. Horizontal runs should be short and use wide-radius fittings.
Q5: What happens if a vent is blocked or improperly angled?
Symptoms include slow drains, gurgling sounds, sewer odors, and even sewer gas backup—which poses health risks due to methane and hydrogen sulfide.
Q6: Are there alternatives to roof vents?
Yes. Air Admittance Valves (AAVs) are code-approved in many areas as a vent alternative. However, they have limitations and aren’t allowed in all jurisdictions. Check local codes before using one.
Conclusion
So, can plumbing sewer vents have 90-degree turns in them? Technically, yes—but only in the right location and with the right fittings. To keep your plumbing system efficient, odor-free, and code-compliant, favor gentle bends over sharp turns, especially below fixture level.
Understanding these nuances can save you from costly repairs, health hazards, and failed inspections. If you’re unsure, consult a licensed plumber or your local building department.
Found this guide helpful? Share it with a friend or on social media—your next DIY project (or peace of mind) might depend on it! 🛠️🚽💨
