Can You Use Plumber Straps Under an AC Drain Pan?

If you are installing or repairing your air conditioning system, you might find yourself staring at a loose condensate drain line and wondering if those leftover plumber straps in your toolbox can do the job. It is a common dilemma for DIY homeowners: can you use plumber straps under an AC drain pan to secure the piping? While it might seem like a quick, cost-effective fix, the answer is not as straightforward as a simple “yes.”

Using the wrong support method can lead to sagging pipes, water damage, and even voided warranties. In this guide, we will break down exactly why standard plumber straps are often discouraged for this specific application, what building codes say, and the professional alternatives you should use instead. Let’s ensure your HVAC system stays dry, efficient, and up to code.

Why Proper Support Matters for AC Drain Lines

Before diving into the specific hardware, it is crucial to understand why support matters. The condensate drain line removes moisture pulled from the air by your evaporator coil. If this line sags or creates a “belly” due to poor support, water can pool inside the pipe.

The Risk of Water Traps and Algae

When water sits stagnant in a sagging section of the pipe, it becomes a breeding ground for algae, mold, and sludge. According to industry standards, proper slope is non-negotiable. The International Residential Code (IRC) and International Mechanical Code (IMC) generally require a minimum slope of 1/8 inch per foot for horizontal drainage piping.

If you use rigid plumber straps that do not allow for precise angle adjustment, you risk creating low spots. These low spots trap water, leading to:

• Clogs: Algae buildup restricts flow.
• Overflow: Water backs up into the drain pan and spills onto your ceiling or floor.
• System Shutdown: Many modern AC units have float switches that shut down the compressor if water levels get too high.

Can You Use Plumber Straps? The Technical Verdict

So, can you use plumber straps under an AC drain pan or on the drain line itself? Technically, you can, but it is rarely the best practice. Here is the nuanced breakdown.

The Problem with Standard Perforated Straps

Standard perforated plumber straps (often made of thin galvanized steel) are designed for holding vertical pipes against studs or joists. They are not engineered for supporting horizontal runs where gravity and water weight are constant factors.

1. Lack of Adjustability: Once nailed or screwed in, adjusting the height of a perforated strap is difficult. Achieving the critical 1/8-inch-per-foot slope requires precision.
2. Corrosion Risk: Condensate lines can sweat, and occasional leaks happen. Thin galvanized straps may rust over time, especially in humid attic environments, potentially weakening the support.
3. Vibration Transfer: AC systems vibrate. Rigid metal straps can transfer this vibration to the PVC or ABS pipe, potentially loosening joints over time.

When Might It Be Acceptable?

If you are using heavy-duty, adjustable metal hangers (not the thin perforated tape) and you meticulously ensure the correct slope, it may pass inspection in some jurisdictions. However, most HVAC professionals prefer materials specifically designed for plastic piping.

Expert Insight: “The goal is continuous support without pinch points. Metal straps can bite into PVC if overtightened, creating stress fractures. We always recommend plastic or cushioned supports for condensate lines.” — Senior HVAC Technician, 15 Years Experience.

Better Alternatives to Plumber Straps

If you want to avoid future headaches, consider these superior alternatives. These options are widely available at any US home improvement store like Home Depot or Lowe’s.

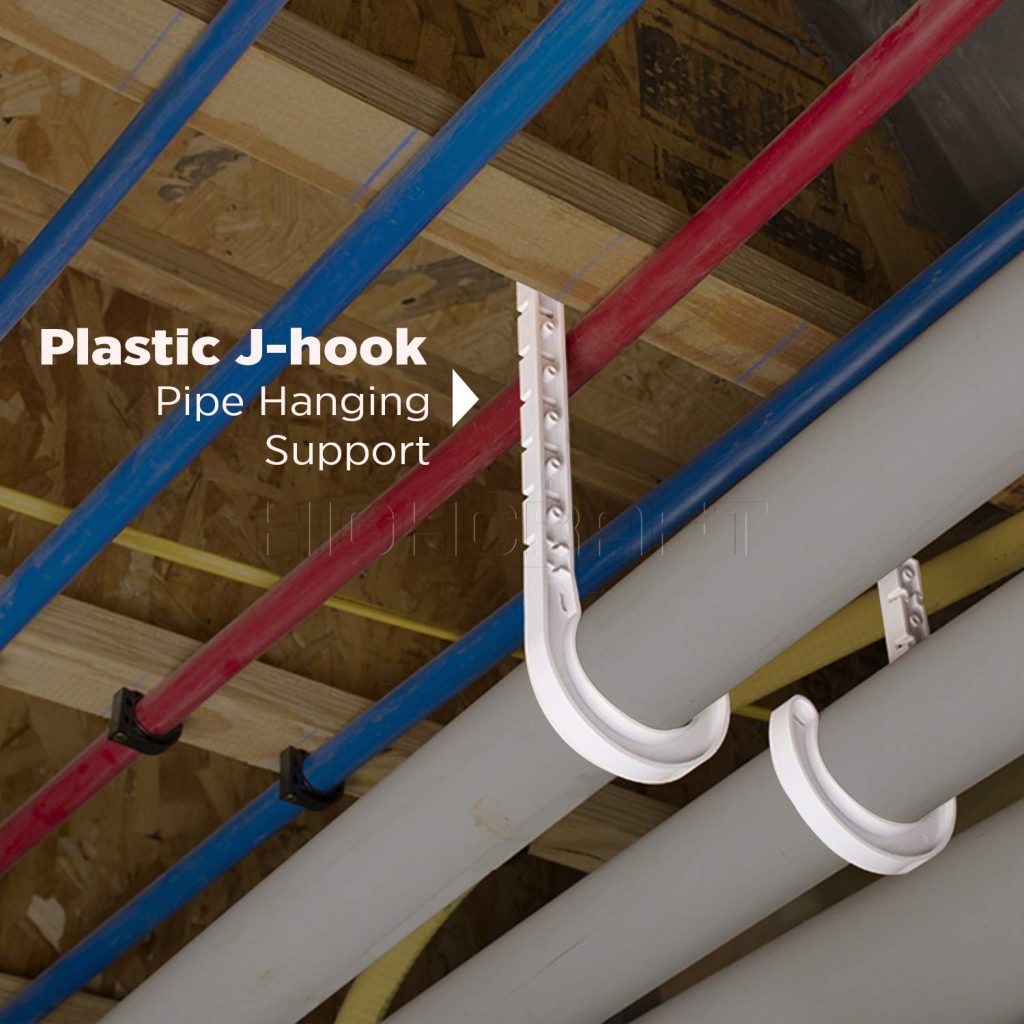

1. Plastic Pipe Hangers (Clips)

These are the gold standard for PVC and CPVC condensate lines.

• Pros: Cheap, easy to install, non-corrosive, and they snap around the pipe without crushing it.
• Cons: Must be nailed/screwed at every stud or joist crossing.

2. Adjustable Plastic Strap Hangers

These look like plumber straps but are made of durable plastic with teeth for grip.

• Pros: Allow for slight adjustments, gentle on pipes, and resistant to moisture.
• Cons: Slightly more expensive than metal tape.

3. Threaded Rod with Clevis Hangers

For commercial setups or long runs in unfinished basements.

• Pros: Highly adjustable, professional look, extremely sturdy.
• Cons: Overkill for most residential DIY projects; requires more tools to install.

Comparison Table: Support Methods

Step-by-Step: How to Properly Support Your AC Drain Line

If you are installing a new line or re-supporting an old one, follow these steps to ensure longevity and compliance.

Tools Needed:

• Tape measure
• Level (preferably a torpedo level)
• Drill or hammer
• Appropriate hangers (Plastic clips recommended)
• PVC Primer and Cement (if joining new sections)

Instructions:

1. Plan the Route: Identify the path from the air handler to the drain exit. Ensure there are no obstructions.
2. Establish the Slope: Mark your starting point at the air handler outlet. For every foot of horizontal run, the pipe must drop 1/8 inch.
   • Example: If your drain line is 8 feet long, the end of the pipe should be 1 inch lower than the start (8 x 1/8 = 1).
3. Install Hangers at Intervals: Place supports every 4 feet for horizontal runs, as per most plumbing codes. For vertical runs, support every story or at least every 10 feet.
4. Secure the Pipe: Snap the plastic clips around the pipe. Do not overtighten. The pipe should be held firmly but able to expand/contract slightly with temperature changes.
5. Check for Sags: Use your level to check between hangers. There should be no “bellies” where water can pool.
6. Test the Flow: Pour 2 liters of water (approx. 0.5 gallons) into the drain pan access point. Watch the exit to ensure free flow and check for leaks at the joints.

For more detailed information on plumbing code requirements for drainage, you can refer to general standards outlined by organizations such as the International Code Council or relevant sections on Wikipedia regarding Plumbing Codes to understand regional variations.

FAQ: Common Questions About AC Drain Support

1. Is it illegal to use metal plumber straps on PVC drain lines?

It is not necessarily “illegal” everywhere, but it often violates manufacturer installation instructions and best practices. Many local building inspectors may fail an inspection if metal straps are crushing the pipe or if the slope is incorrect due to rigid strapping. Always check your local municipal codes.

2. How far apart should I place supports on my AC drain line?

The general rule of thumb, supported by the Uniform Plumbing Code (UPC), is to support horizontal PVC pipes every 4 feet. Vertical pipes should be supported at each floor level or every 10 feet. Closer support prevents sagging over time.

3. Can I zip-tie the drain line to existing wires or pipes?

No. Never zip-tie your condensate line to electrical wiring, gas lines, or other plumbing. This is a fire hazard and a code violation. The drain line needs its own independent supports to maintain proper slope and prevent stress on other systems.

4. What happens if my drain line sags?

A sagging line creates a water trap. This standing water promotes algae growth, which eventually clogs the line. When the line clogs, the condensate backs up into the primary drain pan. If the secondary safety switch fails or is absent, water will overflow into your home, causing ceiling stains, mold growth, and structural damage.

5. Do I need insulation on the drain line?

In unconditioned spaces like attics or crawlspaces, yes. Insulating the condensate line prevents “sweating” (condensation forming on the outside of the cold pipe). This external moisture can drip onto your ceiling, mimicking a leak. Use foam pipe insulation sized for your PVC diameter.

6. Can I use adhesive hooks instead of straps?

Adhesive hooks are not recommended for permanent HVAC installations. The weight of the water-filled pipe, combined with temperature fluctuations in attics, will cause adhesives to fail over time. Mechanical fasteners (screws/nails) are required for safety and reliability.

Conclusion

To answer the initial question: Can you use plumber straps under an AC drain pan? While physically possible, it is not recommended. Standard perforated metal straps lack the adjustability and corrosion resistance needed for a reliable, long-term HVAC installation. They make it difficult to achieve the critical 1/8-inch-per-foot slope, increasing the risk of clogs and water damage.

Instead, opt for plastic pipe clips or adjustable plastic hangers. These inexpensive tools ensure your system remains code-compliant, efficient, and leak-free. Remember, a few dollars spent on the right hardware today can save you thousands in water damage repairs tomorrow.
