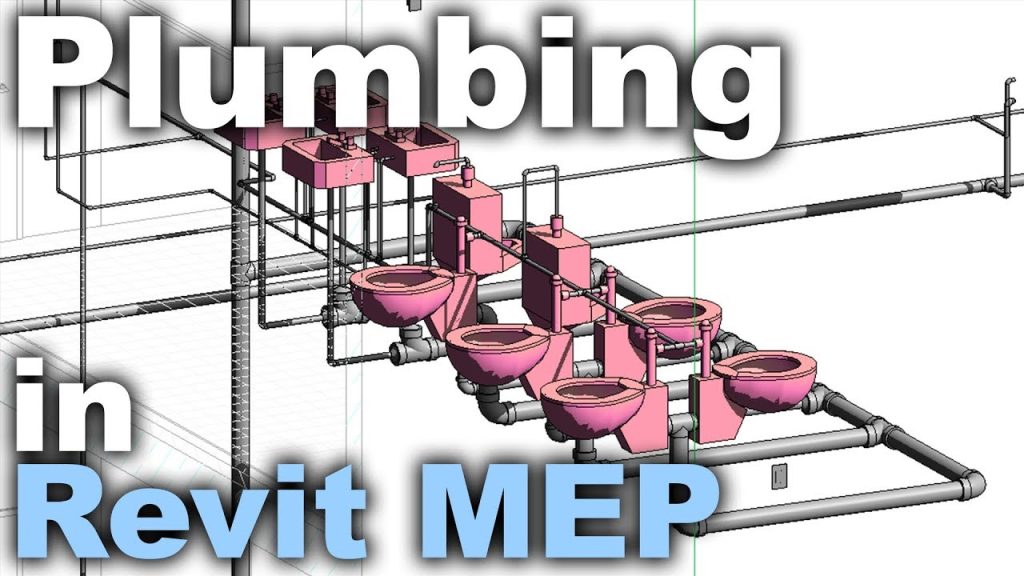

Can You Do A Full Plumbing Design In Revit?

If you are a mechanical engineer, plumber, or designer, you have likely faced the nightmare of coordinating 2D CAD drawings with architectural changes, only to find clashes during construction. It is frustrating, costly, and entirely avoidable. The question on many minds is: Can you do a full plumbing design in Revit? The short answer is a resounding yes. Not only can you do it, but doing so also elevates your project from simple drafting to intelligent Building Information Modeling (BIM).

In this guide, we will explore how Revit handles complex plumbing systems, from domestic water to sanitary waste. We will break down the capabilities, limitations, and best practices to help you decide if transitioning to a full BIM workflow is right for your next project. Let’s dive into the pipes.

What Does “Full Plumbing Design” Mean in Revit?

Before we discuss the “how,” we must define the “what.” In the context of Autodesk Revit, a full plumbing design goes beyond drawing lines on a screen. It involves creating intelligent 3D objects that carry data.

When you place a pipe in Revit, it knows its diameter, material, flow rate, and pressure class. When you place a fixture, it knows its water consumption and connection points. This data-rich environment allows for:

• Automated Scheduling: Instantly generate lists of all fixtures, valves, and pipe lengths.
• Clash Detection: Identify where pipes hit beams or ducts before construction begins.
• System Logic: Ensure that every sink is logically connected to a drain and a water supply.

According to industry standards, a “full” design includes domestic cold/hot water, sanitary waste, venting, and often storm drainage. Revit supports all these systems natively.

How Does Revit Handle Plumbing Systems vs. Traditional CAD?

The shift from Computer-Aided Design (CAD) to BIM is not just about moving from 2D to 3D; it is about moving from drawing to modeling.

The Limitations of 2D CAD

In traditional CAD, a pipe is just two parallel lines. If you move a wall, you must manually adjust every pipe segment associated with it. There is no intelligence. If you change a pipe size, you must manually update the schedule, the plan view, and the section views. Human error is inevitable.

The Power of Revit BIM

In Revit, elements are parametric. If you move a wall, the pipes attached to it move with it. If you change a pipe size, the schedule updates automatically. This interconnectedness is the core value proposition of BIM.

For a deeper understanding of the theoretical framework behind these digital representations, you can refer to the general concepts of Building Information Modeling on Wikipedia.

Step-by-Step: Creating a Plumbing System in Revit

If you are ready to start designing, here is a streamlined workflow to create a basic domestic water system. This process ensures you maintain model integrity and accuracy.

Step 1: Load the Right Families

Never start from scratch. Use the default Autodesk libraries or manufacturer-specific families.

• Go to the Insert tab.
• Click Load Family.
• Navigate to Plumbing > Fixtures.
• Select specific items like Water Closets or Sinks. Ensure the families have correct connector placements (Hot, Cold, and Waste).

Step 2: Place Fixtures and Define Connectors

Place your fixtures in the plan view.

• Select a sink.
• Look at the properties palette. Ensure the System Classification is set correctly (e.g., Domestic Cold Water).
• Check the connectors. You should see distinct ports for hot inlet, cold inlet, and waste outlet. If these are missing, the family is not suitable for engineering analysis.

Step 3: Draw the Piping

Now, connect the fixtures.

• Go to the Systems tab.
• Select Pipe.
• In the options bar, select the correct system type (e.g., Domestic Cold Water).
• Set your elevation. For example, standard branch lines might be at 2500 mm or 8'-2" above the finished floor.
• Click the connector on the fixture, then click the next point. Revit will automatically create fittings (elbows, tees) based on your routing preferences.

Step 4: Assign System Types

This is crucial for color coding and filtering.

• Select the pipes you just drew.
• In the Properties palette, ensure the System Type matches the fluid (e.g., Sanitary, Vent, Domestic Hot).
• Revit will automatically color-code them (e.g., Blue for Cold, Red for Hot, Green for Sanitary) based on your view templates.

Step 5: Validate with Pressure Loss Reports

For a true engineering design, you must validate the system.

• Select the entire system.
• Go to the Analyze tab.
• Click Pressure Loss Report.
• Revit will calculate the friction loss through the pipes and fittings. If the pressure at the furthest fixture is too low, you will need to upsize the pipe or adjust the pump settings.

Can Revit Calculate Pipe Sizes Automatically?

One of the most common questions is whether Revit can act as an engineer and size pipes for you. The answer is nuanced.

Revit has built-in calculators for pressure drop and flow velocity. You can set criteria, such as “maximum velocity of 8 feet per second” or “maximum pressure drop of 4 feet of head per 100 feet.” When you run the analysis, Revit can suggest pipe sizes that meet these criteria.

However, Revit does not replace local code compliance. It does not know that your specific municipality requires a minimum 2-inch vent for a certain number of fixtures. It does not automatically account for peak demand factors defined by IPC (International Plumbing Code) or UPC (Uniform Plumbing Code) unless you manually input those parameters into the fixture units.

Therefore, while Revit can assist in sizing, the final validation must always be performed by a licensed professional engineer who understands local regulations.

Pros and Cons of Using Revit for Plumbing Design

To give you a balanced view, let’s look at the advantages and disadvantages.

Advantages

• Coordination: The biggest benefit. You can see exactly where your sanitary line conflicts with the HVAC ductwork in real-time.
• Accuracy: Quantities are exact. No more guessing how many elbows are needed.
• Visualization: Clients and contractors can understand the design better with 3D views than with 2D blueprints.
• Documentation: Sections and details are generated from the model. If you change the model, the detail updates.

Disadvantages

• Learning Curve: Revit is complex. It takes months to become proficient, compared to weeks for CAD.
• Hardware Requirements: Large plumbing models require powerful workstations with significant RAM and GPU power.
• Initial Setup Time: Creating templates and loading families takes time upfront, though it saves time later.

FAQ Section

1. Is Revit better than AutoCAD for plumbing design?

For complex projects, yes. Revit offers superior coordination, automated scheduling, and 3D visualization. AutoCAD may still be faster for very small, simple residential renovations where 3D coordination is unnecessary.

2. Can Revit handle storm drainage systems?

Yes. Revit has specific system types for Storm Drainage. You can model roof drains, leaders, and underground storm piping. You can also integrate with civil engineering software like Civil 3D for exterior site drainage.

3. Do I need a separate plugin for plumbing calculations?

Not necessarily. Revit has native pressure loss reporting. However, many firms use plugins like MagiCAD or IMAGINiT Clarity for more advanced hydraulic calculations, code compliance checks, and automated routing that exceed native Revit capabilities.

4. How do I export Revit plumbing designs to contractors?

You can export views to PDF for traditional printing. For digital collaboration, you can publish the model to Autodesk Construction Cloud (BIM 360). Contractors can view the 3D model on tablets onsite, allowing them to rotate and inspect complex pipe racks easily.

5. What is the minimum computer specification for Revit plumbing design?

For a smooth experience, Autodesk recommends at least 16GB of RAM (32GB is preferred for large models), a dedicated graphics card with 4GB VRAM, and a multi-core processor (Intel i7 or AMD Ryzen 7 or higher).

6. Can I import CAD details into Revit?

Yes, you can import DWG files. However, it is best practice to use them only as underlays for tracing. Converting existing CAD blocks into intelligent Revit families takes time but is essential for maintaining a true BIM workflow.

Conclusion

So, can you do a full plumbing design in Revit? Absolutely. Revit is not just capable; it is the industry standard for modern MEP (Mechanical, Electrical, and Plumbing) design. It transforms plumbing from a static set of lines into a dynamic, data-rich system that enhances collaboration, reduces errors, and improves project outcomes.

While the learning curve is steep, the long-term benefits in efficiency and accuracy are undeniable. By leveraging Revit’s parametric capabilities, you are not just drawing pipes; you are engineering solutions.
