Renovating a bathroom often feels like solving a complex puzzle, especially when you are trying to maximize space or update outdated fixtures. One of the most common questions homeowners ask during this process is: “Can you do plumbing through back wall shower valve configurations?” The short answer is yes, but it requires precise planning and execution.
Whether you are aiming for a sleek, modern look with concealed pipes or simply trying to utilize shared wall space efficiently, understanding the mechanics of back-wall plumbing is crucial. This guide will walk you through everything you need to know, from structural considerations to code compliance, ensuring your project is both beautiful and functional.
What Is a Back-to-Back Shower Valve Setup?
Before diving into the “how,” it is essential to understand the “what.” A back-to-back shower setup occurs when two bathrooms share a common wall. In this configuration, the plumbing lines—specifically the hot and cold water supplies and the drain—are routed through the interior of this shared wall.
This method is highly popular in multi-story homes, apartment complexes, and hotel designs. Instead of running pipes vertically through floors or horizontally across ceilings, the plumbing stays contained within the wall cavity.
Why Do Plumbers Recommend It?
According to standard residential construction practices, sharing a wall for plumbing reduces the total length of piping required. This not only lowers material costs but also minimizes heat loss in hot water lines. However, the critical component here is the shower valve. When we ask, “Can you do plumbing through back wall shower valve installations?” we are specifically referring to how the mixing valve (the part you turn to control temperature) is accessed and installed from one side while serving fixtures on both sides, or simply being mounted on the rear side of the wall finish.
Can You Access the Shower Valve from the Back Wall?
One of the primary concerns for homeowners is maintenance. If your shower valve breaks, do you have to tear down your expensive tile work? This is where the concept of access panels comes into play.
The Importance of Access Panels
If you are plumbing through a back wall, you must plan for future repairs. The International Residential Code (IRC) and local building codes typically require that valves and shut-offs be accessible.
- Front Access: Traditional installation where the trim kit is on the tiled side, and the valve body is behind it.
- Rear Access: The valve is installed so it can be serviced from the adjacent room (the “back” wall). This is ideal if the shower is fully tiled and you want to avoid damaging the waterproofing membrane.
Expert Insight:
“Always install an access panel on the non-tiled side of a shared wall. It saves thousands of dollars in potential demolition costs later.” — Master Plumber Association Guidelines
For more detailed standards on plumbing accessibility, you can refer to general building codes outlined on Wikipedia’s page on Plumbing Codes.
Step-by-Step Guide: How to Plumb Through a Back Wall
If you have decided that a back-wall setup is right for your home, follow these steps to ensure a professional-grade installation. Note that this is a complex task; if you are not experienced, hiring a licensed plumber is recommended.
Step 1: Frame the Shared Wall Correctly
The wall must be sturdy enough to support the weight of the valve and the pipes.
- Use 2×6 lumber instead of 2x4s if possible. This provides deeper cavities for easier pipe routing and better sound insulation.
- Install blocking (horizontal wood supports) between the studs exactly where the valve and shower arm will be mounted. This prevents the wall from flexing when you turn the shower handle.
Step 2: Choose the Right Valve Type
Not all valves are created equal. For back-wall applications, consider:
- Pressure-Balancing Valves: Prevent scalding by adjusting to pressure changes.
- Thermostatic Valves: Maintain a specific temperature regardless of pressure fluctuations. These are bulkier and require more space in the wall cavity.
Step 3: Route the Water Lines
- Drill holes through the center of the studs.
- Run copper PEX, or CPVC lines (depending on local code) to the valve location.
- Crucial Tip: Ensure there is a slight slope in drain lines if you are also moving the drain through this wall. For supply lines, keep runs as straight as possible to maintain water pressure.

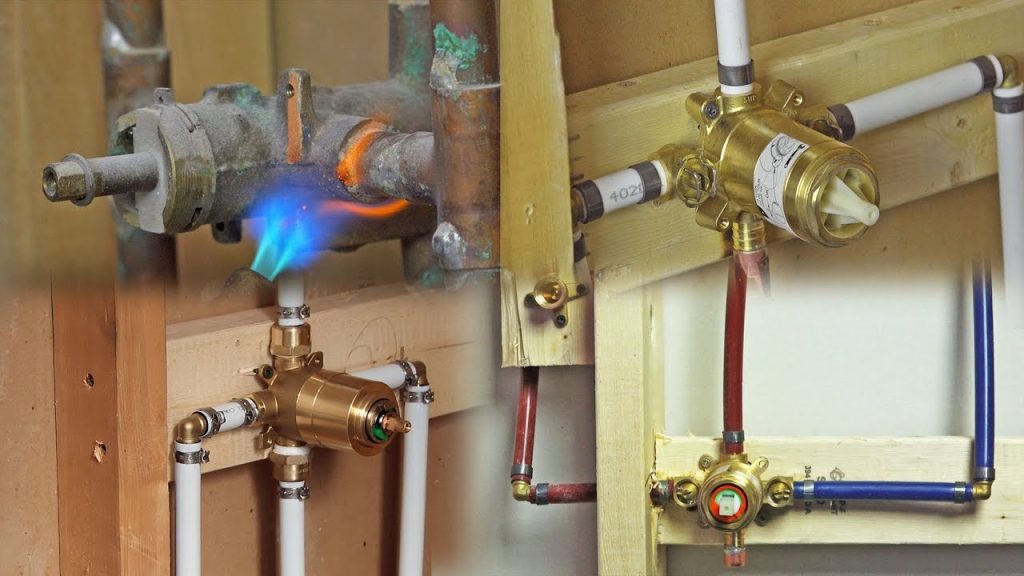

Step 4: Install the Valve Body
- Mount the valve body to the blocking you installed in Step 1.
- Ensure the valve is perfectly level. Use a spirit level to check both vertical and horizontal alignment.
- Connect the hot and cold inputs. Standard convention is hot on the left, cold on the right.
Step 5: Pressure Test Before Closing Walls
Never close up a wall without testing.
- Cap off the outlet where the shower head will go.
- Turn on the water supply.
- Check for leaks at all connections.
- Let the system sit under pressure for at least 15–30 minutes.
Step 6: Insulate and Seal
- Add soundproofing insulation (like rock wool) in the wall cavity. This reduces the noise of water rushing through pipes, which is a common complaint in back-to-back setups.
- Install a vapor barrier if required by your climate zone to prevent moisture buildup inside the wall.
Pros and Cons of Back-Wall Shower Plumbing
To help you decide if this method suits your needs, here is a quick comparison.
| Feature | Pros | Cons |
|---|---|---|
| Space Efficiency | Saves space in small bathrooms; no bulky pipe chases. | Requires precise framing; less margin for error. |
| Aesthetics | Allows for clean, minimalist tile work. | If not planned well, access panels can look unsightly. |
| Cost | Lower material costs due to shorter pipe runs. | Higher labor cost if access panels are custom-built. |
| Maintenance | Easy access from the back room (if planned). | Difficult to fix if no access panel was installed. |
| Noise | Can be better insulated within the wall. | Water hammer noise can transmit to the adjacent room. |
Common Challenges and Solutions
1. Stud Interference
Sometimes, the ideal spot for your shower valve lands directly on a stud.
- Solution: Do not notch the stud excessively as it weakens the structure. Instead, shift the valve slightly or use a “drop ear elbow” secured to a block between studs.
2. Depth Issues
Modern thermostatic valves are deep. If your wall is only 3.5 inches deep (standard 2×4), the valve might protrude.
- Solution: Build out the wall with furring strips or use 2×6 framing from the start.
3. Code Compliance
Every municipality has different rules regarding venting and pipe materials.
- Solution: Always pull a permit. An inspector will catch errors before they become costly disasters.
FAQ: Frequently Asked Questions
1. Can I retrofit a back-wall shower valve in an existing home?
Yes, but it is invasive. You will need to open up the walls on both sides of the shared bathroom. It is much easier to do this during a full remodel than as a minor repair.
2. Does plumbing through the back wall affect water pressure?
Generally, no. In fact, because the pipe runs are often shorter in shared-wall configurations, you might experience slightly better pressure and faster hot water delivery. However, ensure you use the correct pipe diameter (usually 1/2 inch for branches, 3/4 inch for mains).
3. What is the best material for pipes in a back wall?
PEX (Cross-linked Polyethylene) is currently the top choice for many US plumbers. It is flexible, resistant to scale and chlorine, and handles freezing temperatures better than copper. Copper is also excellent but more expensive and harder to install in tight spaces.
4. Do I need an access panel if I have a leak-proof valve?
Yes. Even the best valves have seals and cartridges that wear out over time (typically every 10–15 years). An access panel allows you to replace these parts without destroying your tile work.
5. Can I put a shower on both sides of the same wall?
Yes, this is called a “double-sided” or “pass-through” shower, but it is rare in residential homes due to privacy and plumbing complexity. More commonly, two separate showers share the same plumbing wall but face opposite directions.
6. How thick should the wall be for a shower valve?
Standard interior walls are 4.5 inches thick (including drywall). However, for shower valves, a 6-inch thick wall (using 2×6 studs) is highly recommended to accommodate the valve depth and provide room for proper insulation and blocking.
Conclusion
So, can you do plumbing through back wall shower valve setups? Absolutely. It is a smart, efficient, and aesthetically pleasing way to handle bathroom plumbing, provided it is done correctly. By focusing on proper framing, choosing the right valve, and ensuring future accessibility via panels, you can enjoy a luxurious shower experience without the headache of future repairs.
Remember, plumbing is the backbone of your bathroom. Cutting corners here can lead to water damage and mold issues down the line. If you are unsure about any step, consult with a licensed professional.
