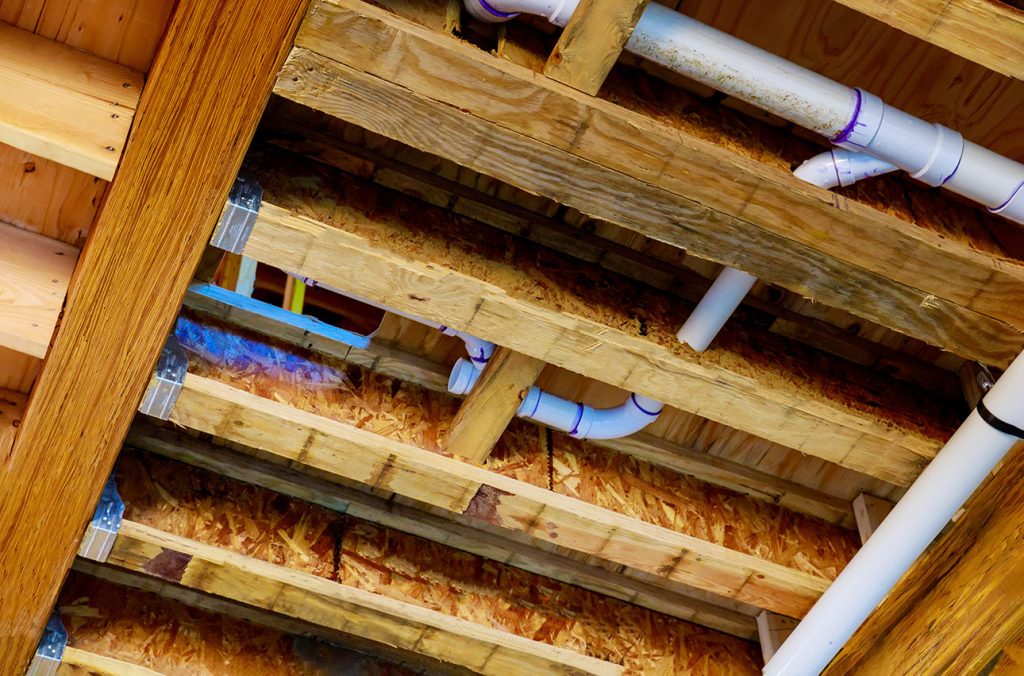

Renovating a bathroom or adding a new sink often leads to one stressful question: can you drill holes through floor joists for plumbing without compromising your home’s safety? It is a common dilemma for homeowners and DIY enthusiasts who want to run pipes efficiently but fear causing structural damage. The short answer is yes, but it requires precise adherence to building codes and engineering principles.
Drilling into joists is not something you can guess at. A misplaced hole can weaken the floor above, cause sagging, or even lead to catastrophic structural failure over time. In this guide, we will walk you through the exact rules, measurements, and best practices to ensure your plumbing project is both safe and code-compliant. Let’s dive in with confidence.
Understanding the Structural Role of Floor Joists
Before you pick up a drill, it is crucial to understand what floor joists actually do. Joists are horizontal structural members that span across an open space, perpendicular to the beams or walls that support them. Their primary job is to carry the load of the floor system and transfer it to the foundation.
When you drill a hole, you are removing material that helps resist two main forces:
- Compression: The top part of the joist gets squeezed.
- Tension: The bottom part of the joist gets stretched.
The middle section, known as the neutral axis, experiences the least amount of stress. This is why location matters immensely. Drilling in the wrong spot disrupts these forces, while drilling in the right spot minimizes impact. According to general engineering principles found on Wikipedia’s page on Joists, proper spacing and sizing are critical for maintaining the load-bearing capacity of any floor system.
Where Is the Safe Zone for Drilling?
The “Golden Rule” of drilling joists is all about location. You cannot simply drill anywhere. The International Residential Code (IRC) provides specific guidelines that most US jurisdictions follow.
The Horizontal Sweet Spot
You must drill holes in the center third of the joist’s height.
- Top Third: Avoid completely. This area handles compression forces.
- Bottom Third: Avoid completely. This area handles tension forces. Drilling here significantly increases the risk of the joist snapping or sagging.
- Middle Third: This is the neutral axis. It is the safest place to remove material.
The Vertical Placement
Holes should be drilled at least 2 inches away from the top or bottom edge of the joist. For a standard 2×10 joist (which is actually 9.25 inches tall), this leaves you a safe zone of roughly 3.25 inches in the vertical center.
Pro Tip: Always measure twice. Use a tape measure to mark the exact center of the joist’s height before drilling. If you are unsure, err on the side of caution and choose a smaller hole.
What Are the Maximum Hole Size Limits?
Size matters just as much as location. You cannot drill a hole that is too large, even if it is in the perfect spot. The general rule of thumb adopted by most building inspectors is based on the depth of the joist.
The One-Third Rule
The diameter of the hole should not exceed one-third of the depth of the joist.
Let’s look at some concrete examples using standard lumber dimensions:
| Joist Size (Nominal) | Actual Depth | Max Hole Diameter (1/3 Rule) | Recommended Max Safe Hole |
|---|---|---|---|
| 2×6 | 5.5 inches | 1.83 inches | 1.5 inches |
| 2×8 | 7.25 inches | 2.41 inches | 2.0 inches |
| 2×10 | 9.25 inches | 3.08 inches | 3.0 inches |
| 2×12 | 11.25 inches | 3.75 inches | 3.5 inches |
Note: Always check your local building codes, as some municipalities may have stricter requirements.
Distance Between Holes
If you need to run multiple pipes, you cannot drill holes right next to each other. The IRC states that the distance between the edges of any two holes must be at least two times the diameter of the larger hole.
For example, if you are drilling two 2-inch holes:
- Diameter = 2 inches
- Minimum spacing = 2 x 2 inches = 4 inches apart (edge to edge).
Notching vs. Drilling: What’s the Difference?
Sometimes, plumbing needs to go over a joist rather than through it. This is called notching. Notching is generally more dangerous to structural integrity than drilling because it removes material from the top or bottom edges where stress is highest.
When Can You Notch?
- Location: Notches are only allowed in the outer third of the joist’s span (near the supporting walls), never in the middle third of the span.
- Depth: The notch depth cannot exceed one-sixth of the joist’s depth.
- Length: The length of the notch cannot exceed one-third of the joist’s depth.
Drilling vs. Notching Comparison
| Feature | Drilling Holes | Notching |
|---|---|---|
| Best Location | Center of span | Ends of span (near walls) |
| Stress Impact | Low (if in neutral axis) | High (removes tension/compression zone) |
| Max Size | 1/3 of joist depth | 1/6 of joist depth |
| Plumbing Fit | Good for straight runs | Good for pipes crossing over |
| Risk Level | Moderate | High |
Expert Advice: Whenever possible, choose drilling over notching. If you must notch, reinforce the joist with a steel plate or consult a structural engineer.
Step-by-Step Guide to Drilling Safely
Ready to drill? Follow these steps to ensure precision and safety.
- Locate the Joists: Use a stud finder to locate the joists. Mark the center of each joist clearly with a pencil.
- Measure the Height: Measure the total height of the joist. Divide by three to find the boundaries of the safe “middle third.” Mark this zone lightly.
- Check for Obstacles: Ensure there are no existing electrical wires or nails in the drilling path. Use a non-contact voltage tester for safety.
- Select the Right Bit: Use a sharp spade bit or an auger bit for clean cuts. For larger holes (over 1 inch), a hole saw is ideal.
- Drill Perpendicularly: Hold the drill perfectly straight (90 degrees) to the face of the joist. A angled hole weakens the structure and makes pipe insertion difficult.
- Deburr the Hole: After drilling, use sandpaper or a file to remove any wood splinters inside the hole. This prevents damage to the plumbing pipes during insertion.
- Install Protection Plates: If the hole is within 1.25 inches of the edge of the joist (which it shouldn’t be if you followed the rules, but just in case), install a metal nail plate to prevent future screws from puncturing the pipe.
FAQ: Common Questions About Drilling Joists
1. Can I drill holes in engineered wood joists (I-Joists)?
No, not without specific manufacturer approval. Engineered I-joists have different structural properties than solid lumber. You can only drill holes in the web (the vertical center part) and strictly according to the manufacturer’s pre-printed guidelines. Never drill through the flanges (top and bottom chords) of an I-joist.
2. What if I accidentally drill a hole too big?
If you violate the one-third rule, you have compromised the joist. Do not ignore it. You must reinforce the joist. Common fixes include sistering a new joist alongside the damaged one or installing steel reinforcement plates. Consult a structural engineer for the best repair method.
3. Can I drill holes in load-bearing walls’ top plates?
This article focuses on floor joists. However, drilling into top plates of load-bearing walls is also restricted. Generally, you can drill holes up to half the width of the plate, but you must avoid cutting through the entire width. Always check local codes for wall framing modifications.
4. Does the type of wood matter?
Yes. Hardwoods like oak are stronger but harder to drill. Softwoods like pine or spruce are standard for framing. The one-third rule applies to standard softwood framing lumber (SPF – Spruce-Pine-Fir). If you have older hardwood joists, they may be more brittle, so extra care is needed to prevent splitting.
5. How close to the end of the joist can I drill?
Avoid drilling holes within the first 2 inches from the end of the joist. The ends are critical for bearing loads on the walls or beams. Keep holes at least 2-3 inches away from the supporting ends to maintain shear strength.
6. Can I cut a square hole for rectangular ducts?
Square holes are significantly weaker than round holes because stress concentrates at the corners. If you must cut a square or rectangular hole for HVAC ducts, it is considered a “cutout” rather than a hole. This requires strict adherence to notching rules or significant reinforcement. Round holes are always preferred for plumbing.
Conclusion
So, can you drill holes through floor joists for plumbing? Absolutely, provided you respect the structural limits of your home. By sticking to the middle third of the joist’s height, keeping holes under one-third of the depth, and maintaining proper spacing, you can safely run your plumbing lines without risking a saggy floor or costly repairs.
Remember, when in doubt, measure twice and drill once. If your project involves complex structural changes or you are unsure about your joist type, consulting a licensed contractor or structural engineer is always the wisest investment.
