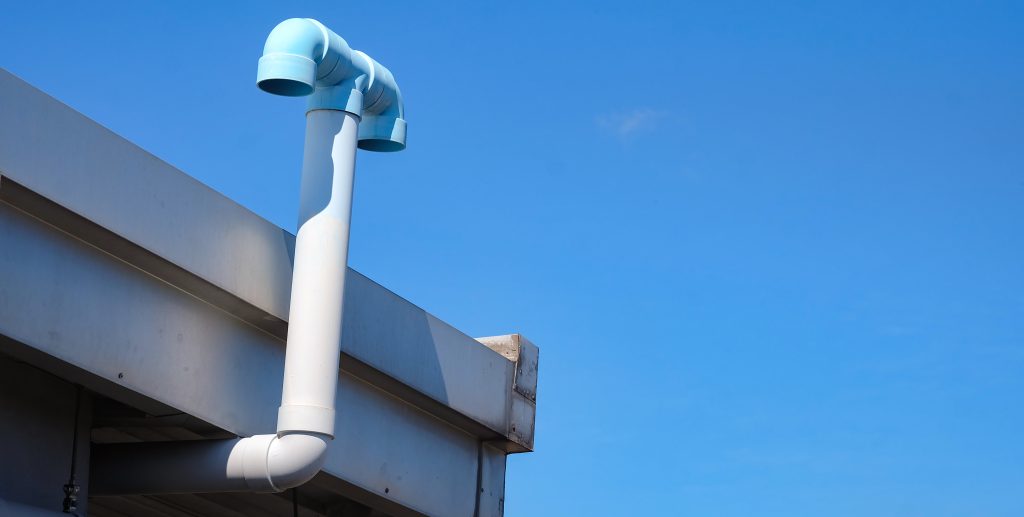

If you’re remodeling a bathroom, finishing a basement, or adding a new fixture in a tight space, you’ve probably wondered: “Can you run a plumbing vent out a wall?” It’s a common dilemma—especially in homes where roof access is difficult or costly. The short answer is yes, but it’s not as simple as poking a pipe through siding. Local plumbing codes, climate, and proper installation all play critical roles. Let’s break it down clearly, safely, and in full compliance with modern standards.
What Is a Plumbing Vent—and Why Does It Matter?
Before jumping into wall venting, it’s essential to understand what a plumbing vent does.
A plumbing vent (part of the Drain-Waste-Vent or DWV system) allows sewer gases to escape outdoors and lets air into the pipes. This equalizes pressure so wastewater flows smoothly without gurgling, slow drains, or dangerous gas buildup.
According to the International Residential Code (IRC) and Uniform Plumbing Code (UPC), every plumbing fixture must be vented—but not all vents need to go through the roof.
💡 Key Insight: The primary goal isn’t where the vent exits—it’s how effectively it vents while preventing sewer gas from entering living spaces.
Can You Legally Vent Through a Wall? (Code Compliance Explained)
Yes—but with strict conditions. Both the IRC (Section P3114) and UPC (Section 904) allow horizontal or sidewall venting if specific criteria are met:
- Height Requirement: The vent termination must be at least 10 feet above ground level and not less than 10 feet horizontally from any door, window, or air intake (unless it’s 3+ feet above those openings).
- Weather Protection: The vent must be protected from rain, snow, and frost—especially in cold climates.
- Frost & Capping: In freezing regions, the vent must be insulated or heat-traced to prevent ice blockage. Some codes require a frost-resistant cap.
- No Downward Bends: The pipe must slope upward continuously toward the exit to prevent water traps or blockages.
📌 Real-World Example: In Portland, Oregon, a 2021 case study by the city’s building department approved a wall vent for a basement ADU—provided it used a 45° upward elbow and terminated with a screened hood above the neighbor’s window line.
For full technical context, see Wikipedia’s overview of plumbing venting —a solid primer endorsed by engineering educators.
Pros and Cons: Wall Vent vs. Roof Vent
| Installation Cost | Lower (no roof penetration, fewer materials) | Higher (roof flashing, labor, risk of leaks) |
| Accessibility | Easier to inspect & service | Harder to reach, especially on steep roofs |
| Climate Suitability | Risky in freezing zones without precautions | Generally more reliable in all climates |
| Aesthetics | Visible on exterior wall | Hidden on roofline |
| Code Flexibility | Allowed only under specific conditions | Universally accepted |
Bottom Line: Wall vents are a smart alternative if you meet code and climate requirements—but they’re not a universal shortcut.
Step-by-Step: How to Install a Wall Vent (Safely & Legally)
⚠️ Important: Always check with your local building department before starting. Codes vary by state and even by county.
Materials Needed:
- PVC or ABS pipe (typically 1.5″ to 2″ diameter)
- 90° and 45° elbows
- Wall flashing kit
- Frost-resistant vent cap (if applicable)
- Pipe insulation (for cold climates)
- Sealant rated for exterior use
Installation Steps:
- Plan the Route:
Run the vent pipe upward from the drain stack at a minimum 1/4″ per foot slope toward the exterior wall. Avoid sharp bends. - Drill the Penetration:
Use a hole saw to cut through the wall sheathing and siding. Diameter should be 1/2″ larger than the pipe to allow for flashing. - Install Flashing:
Slide a wall flashing boot over the pipe and seal edges with exterior-grade silicone. This prevents water intrusion. - Terminate Properly:
Extend the pipe at least 12″ above grade and 10′ from windows. Cap with a screened, weatherproof vent hood to block debris and rodents. - Insulate in Cold Climates:
Wrap the exposed pipe with closed-cell foam insulation (R-5 or higher). In zones with sub-freezing temps, consider heat tape. - Test the System:
Flush all fixtures and listen for gurgling or slow drainage. If present, the vent may be undersized or improperly sloped.
🛠️ Pro Tip: Use a smoke test (available at plumbing supply stores) to check for leaks or backdrafting near the vent exit.
Common Mistakes to Avoid
- Terminating too low: Creates a risk of sewer gas entering nearby windows.
- Ignoring slope: Horizontal runs without upward pitch can trap water and block airflow.
- Skipping permits: Many homeowners retrofit vents without inspection—leading to failed home inspections later.
- Using indoor caps outdoors: Standard vent caps aren’t weatherproof. Always use exterior-rated models.
According to a 2023 report by the National Association of Home Builders (NAHB), 32% of plumbing-related inspection failures involved improper vent termination—most commonly due to wall vent misplacement.
FAQ Section
Q1: Is a wall vent legal in all U.S. states?
A: Most states allow it under IRC/UPC guidelines, but local amendments may prohibit it. Always verify with your city or county building office.
Q2: Can I vent a toilet through a wall?
A: Yes—if the toilet is within code distance (usually 6 feet) from the main stack and the vent meets termination rules. However, toilets generate high gas volume, so a roof vent is often preferred.
Q3: Will a wall vent freeze in winter?
A: It can—but only if un-insulated and exposed. Use heat tape or foam wrap in climates below 20°F. Frost-resistant caps help too.
Q4: Do I need a separate vent for each fixture?
A: No. Multiple fixtures can share a common vent stack, as long as the pipe diameter is adequate (e.g., 2″ for 2–3 fixtures).
Q5: Can I vent through a basement wall below grade?
A: No. Vents must exit above ground level to prevent water backup and gas infiltration. Below-grade vents violate all major plumbing codes.
Q6: How far can a vent run horizontally before exiting?
A: The horizontal run must maintain continuous upward slope and typically shouldn’t exceed 1/3 the vertical height of the stack. For a 9-foot ceiling, max horizontal is ~3 feet.
Conclusion
So, can you run a plumbing vent out a wall? Absolutely—if you follow code, respect climate risks, and prioritize safety over convenience. Wall venting offers a cost-effective, practical solution for additions, basements, and tight retrofits, but it’s not a DIY free-for-all.
When done right, it keeps your drains flowing, your air fresh, and your home compliant.
👉 Found this helpful? Share it with a friend tackling a home project—or pin it for your next renovation!
Remember: When in doubt, consult a licensed plumber. A $150 consultation could save you $2,000 in repairs (or a failed inspection).
