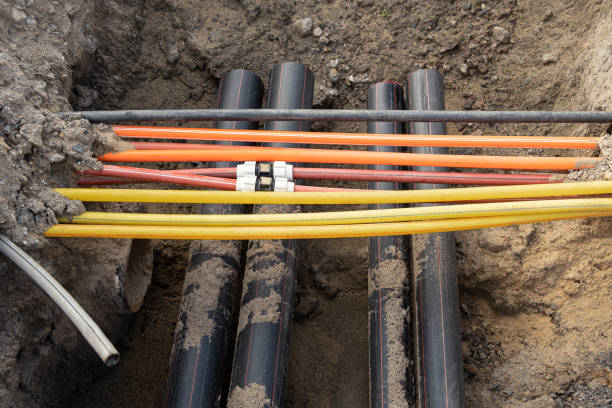

Can You Run Electrical and Plumbing in the Same Trench?

Homeowners and contractors often ask: “Can you run electrical and plumbing in the same trench?” Whether you’re installing a new irrigation line, adding an outdoor outlet, or building a backyard shed, combining utilities in one trench seems efficient—and cost-effective. But is it safe? And more importantly, is it allowed by code? In this guide, we’ll break down exactly what the National Electrical Code (NEC) and plumbing standards say, plus practical tips to do it right—without risking safety, fines, or system failures.

What Do Building Codes Say About Shared Trenches?

The short answer: Yes, you can run electrical and plumbing lines in the same trench—but only under strict separation rules.

According to the National Electrical Code (NEC) 2023, specifically Article 300.5, electrical conduits and water pipes can share a trench as long as they maintain a minimum horizontal separation. The exact distance depends on local amendments, but the general rule is:

• At least 12 inches of horizontal separation between electrical conduit and water lines.
• If vertical stacking is used (e.g., pipe above conduit or vice versa), maintain at least 6 inches of vertical clearance.

⚠️ Important: Always check with your local building department. Some municipalities (like parts of California or Florida) enforce stricter rules due to soil conditions, seismic activity, or flood risk.

For authoritative reference, the International Residential Code (IRC) also outlines utility separation standards that align with NEC guidelines.

Why Separation Matters: Safety and Longevity

Running electrical and plumbing lines too close together isn’t just a code violation—it’s a real hazard. Here’s why proper spacing is non-negotiable:

• Water leaks can corrode electrical conduits, leading to short circuits or fire risk.
• Electrical faults (e.g., from damaged wires) can energize metal pipes, creating electrocution risks.
• Future repairs become a nightmare if lines are tangled or too close—digging near one system could damage the other.

A 2022 study by the National Fire Protection Association (NFPA) found that 12% of residential electrical fires originated from improper outdoor wiring installations—many involving inadequate separation from plumbing or gas lines.

Step-by-Step Guide: Installing Electrical & Plumbing in One Trench

Follow these steps to ensure a safe, code-compliant installation:

1. Call 811 Before You Dig

In the U.S., dialing 811 (or visiting call811.com ) notifies utility companies to mark underground lines—free of charge. Never skip this step.

2. Plan Your Trench Layout

• Dig a trench at least 18–24 inches deep (deeper if required by local frost lines).
• Designate zones: place water lines on one side, electrical conduit on the other, with 12+ inches between them.
• Use stakes and string to map positions before digging.

3. Install Plumbing First

Lay your water or irrigation pipe first. Use Schedule 40 PVC for durability. Backfill with 6 inches of sand or fine gravel to protect the pipe.

4. Add Electrical Conduit

Run rigid metal conduit (RMC) or PVC electrical conduit on the opposite side. Ensure it’s rated for direct burial (look for “UL Listed for Direct Burial”).

🔌 Pro Tip: Use orange conduit for electrical—it’s the industry standard color, making future identification easier.

5. Backfill Carefully

• Add 6 inches of sand over both lines to cushion them.
• Then backfill with native soil, tamping every 6 inches to prevent settling.
• Avoid rocks or debris that could puncture pipes or conduit.

6. Document & Inspect

Take photos of the layout before final backfill. Submit to your local inspector if required. Most jurisdictions mandate an inspection before covering utilities.

Electrical vs. Plumbing in Trenches: Pros and Cons

Verdict: A shared trench is cost-effective and acceptable—if you follow separation rules and local codes.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

• Ignoring local amendments: NEC is national, but cities can add rules (e.g., 18-inch separation in Seattle).
• Using non-burial-rated wire: Standard NM-B (Romex) cannot be buried—even in conduit. Use UF-B cable or THWN wires in conduit.
• Skipping conduit for electrical: Direct-burial cable is okay, but conduit adds protection and future upgrade flexibility.
• Mixing gas lines in the same trench: Never run gas, electrical, and plumbing together. Gas lines require 24+ inches separation from all other utilities.

FAQ Section

Q1: Can I run electrical wire and water pipe in the same conduit?

A: No—never. Electrical wires and plumbing pipes must never share the same conduit or sleeve. This violates NEC 300.5 and creates serious electrocution and corrosion risks.

Q2: How deep should the trench be for both utilities?

A: Minimum depth varies:

• Electrical conduit: 18 inches (for 120V circuits in PVC conduit).
• Water lines: Typically 12–18 inches (below frost line in cold climates). When sharing a trench, dig to the deeper requirement—usually 18–24 inches.

Q3: Do I need a permit to dig a shared trench?

A: Yes, in most U.S. jurisdictions. Permits ensure your work meets safety codes and can be inspected. Unpermitted work may void home insurance or cause issues during resale.

Q4: Can I run low-voltage wiring (like landscape lighting) with plumbing?

A: Yes—low-voltage (under 30V) wiring has fewer restrictions. However, maintaining 6 inches of separation is still recommended to avoid accidental damage during repairs.

Q5: What if I accidentally nick a water line while installing conduit?

A: Stop immediately. Turn off the main water supply. Repair the pipe using a repair coupling or call a licensed plumber. Never bury a compromised line.

Q6: Are there special rules for commercial projects?

A: Yes. Commercial builds follow the National Electrical Code (NEC) and International Plumbing Code (IPC) more strictly, often requiring engineer-approved plans and 24-inch separation.

Conclusion

So, can you run electrical and plumbing in the same trench? Yes—you absolutely can, as long as you respect separation distances, use proper materials, and follow local codes. Doing it right saves time and money while keeping your home safe for years to come.

Before you grab a shovel, double-check with your local building department, call 811, and consider hiring a licensed electrician or plumber for complex runs. Safety isn’t just about compliance—it’s peace of mind.
